零件代码 PART NUMBER |
名称 PART NAME |
|
|
60008981 |
垫片 |
gasket |
|
60003567 |
螺栓 |
Bolt |
|
B229900004897 |
螺栓 M8×25凸缘 |
Bolt 028650-8250 M8×25 flange |
|
B229900004857 |
螺栓 M8×70凸缘 |
Bolt 028050-8700 M8×70 flange |
|
60008999 |
螺栓 |
Bolt |
|
B229900004394 |
旁通水管 |
Tube, Water (Bypass) |
|
B229900004541 |
垫片 |
Spacer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
B249900001066 |
风扇 |
Fan |
|
B229900004800 |
螺母 M10凸缘 |
Nut 091180-1100 M10 flange |
|
B229900004325 |
护罩 |
Guard AS, Fan |
|
B229900004326 |
护罩 |
Guard AS, Fan |
|
B229900004901 |
螺栓 M8×25凸缘 |
Bolt 028651-0250 M8×25 flange |
|
B229900004861 |
螺栓 M10×45凸缘 |
Bolt 028051-0450 M10×45 flange |
|
B229900004311 |
过渡块 |
Sleeve, Spacer |
|
B229900004593 |
支架 |
Shim |
|
B229900004786 |
螺钉 |
Screw |
|
B229900004801 |
螺母 |
Nut |
|
B229900004598 |
垫圈 |
Washer |
|
B229900004925 |
螺栓 M10×155凸缘 |
Bolt 109009-1141 M10×155 |
|
B229900004625 |
垫圈 |
Washer |
|
B229900004889 |
螺栓 M10×45凸缘 |
Bolt 028151-0450 M10×45 flange |
|
B229900005004 |
螺柱 |
Stud |
|
B230102000041 |
橡胶垫 |
Block, Rubber |
|
B230106000095 |
冷却风扇皮带(3根/套) |
Belt |
|
B229900004306 |
管套 |
Sleeve, Spacer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
B220299000217 |
增压器 |
Turbocharger |
|
B220299000218 |
增压器垫 |
Supercharger pad |
|
B229900004807 |
螺母 |
Nut |
|
B229900004587 |
垫圈 |
Washer |
|

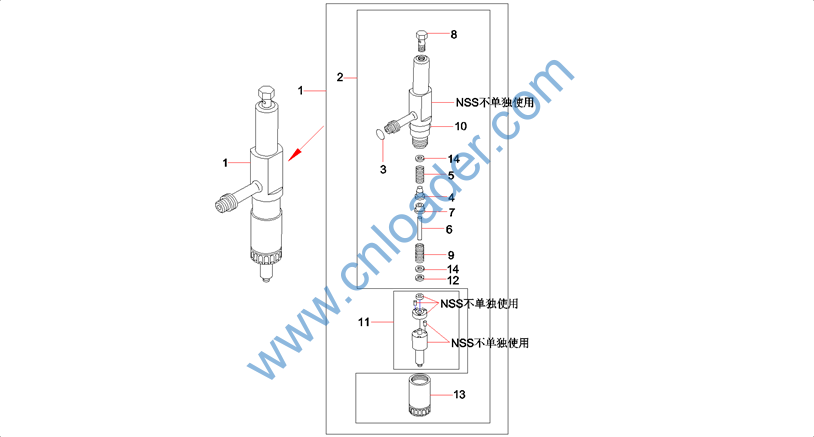

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B220299000207 |
喷油器 |
Injector |
|
B229900005031 |
喷油嘴固定架 |
Fixed frame of fuel nozzle |
|
B229900004626 |
垫圈 |
Washer |
|
B229900004475 |
座 |
Seat |
|
B229900004502 |
弹簧 |
Spring |
|
B229900004473 |
柱塞 |
Rod |
|
B229900004701 |
隔套 |
Spacer Sleeve |
|
B229900004931 |
螺栓 |
Bolt |
|
B229900004503 |
弹簧 |
Spring |
|
B229900004555 |
垫片 |
Shim |
|
B229900005120 |
喷嘴柱塞 |
Nozzle AS |
|
B229900004476 |
座 |
Seat |
|
B229900005032 |
喷油嘴固定套 |
Fixed sleeve of fuel nozzle |
|
B229900004220 |
调整垫 |
Shim |
|

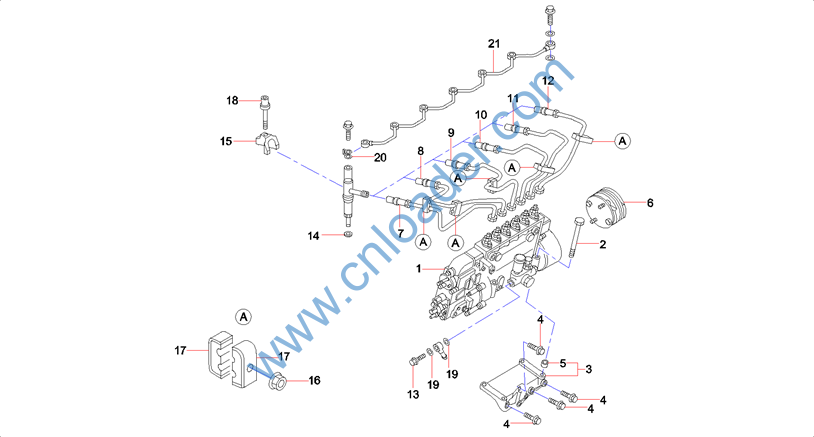

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B220301000458 |
喷油泵总成 |
Pump GP, Fuel Injection |
|
B229900004891 |
螺栓 M10×80凸缘 |
Bolt 028151-0800 M10×80 flange |
|
B229900005099 |
支架 |
Bracket |
|
B229900004888 |
螺栓 M10×40凸缘 |
Bolt 028151-0400 M10×40 flange |
|
B229900005069 |
销子 |
Pin |
|
B229900004372 |
连接盘 |
Plate, Coupling |
|
B229900004271 |
高压管 |
Tube, Fuel Injection |
|
B229900004267 |
高压管 |
Tube, Fuel Injection |
|
B229900004272 |
高压管 |
Tube, Fuel Injection |
|
B229900004268 |
高压管 |
Tube, Fuel Injection |
|
B229900004269 |
高压管 |
Tube, Fuel Injection |
|
B229900004270 |
高压管 |
Tube, Fuel Injection |
|
B210199000024 |
螺栓 |
Bolt |
|
B229900005100 |
垫片 |
Bracket |
|
B229900005101 |
支架 |
Bracket |
|
B229900004798 |
螺母 M6凸缘 |
Nut 091180-1060 M6 flange |
|
B229900004706 |
管夹 |
pipe nip |
|
B229900004955 |
螺栓 |
Bolt |
|
B229900002619 |
垫圈 |
Shim |
|
B229900004568 |
垫片 |
Spacer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
B229900004297 |
管 Tube AS |
|

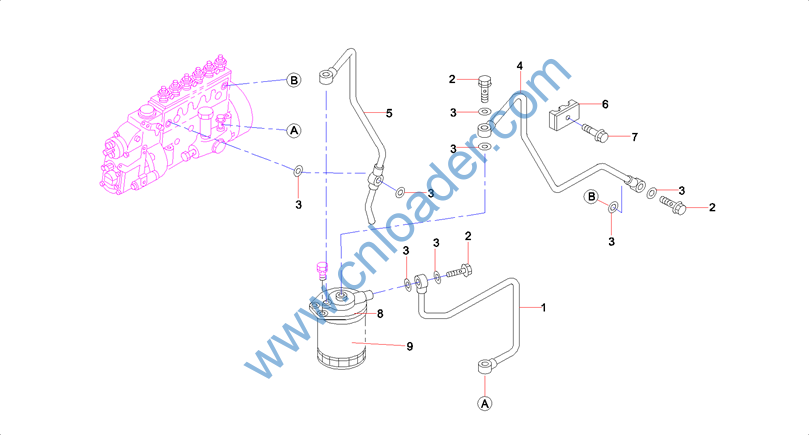

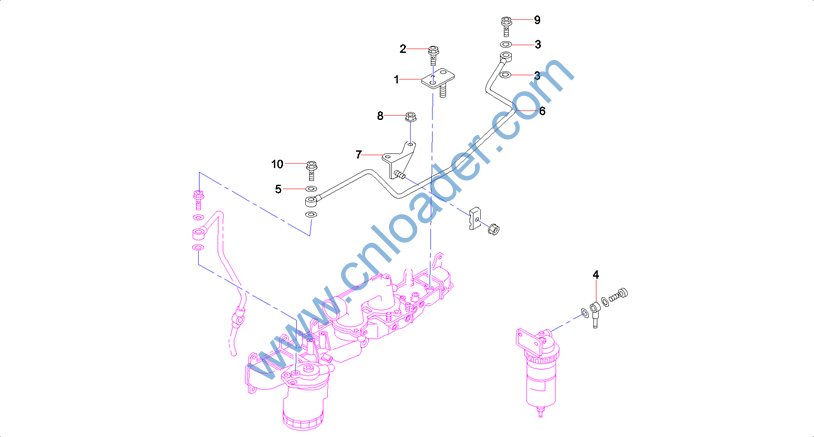

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900005088 |
支架 |
Bracket |
|
B229900004850 |
螺栓 |
Bolt 028050-8160 M8×16 flange |
|
B229900004530 |
垫片 |
Shim |
|
B229900002620 |
燃油管 |
Tube |
|
B230199000038 |
燃油回油管密封垫 五十铃 |
Shim |
|
B229900004290 |
管 |
Tube |
|
B229900005089 |
支架 |
Bracket |
|
B229900004800 |
螺母 M10凸缘 |
Nut 091180-1100 M10 flange |
|
B229900004950 |
螺栓 M10×21凸缘 |
Bolt 894396-7110 M10×21 flange |
|
B229900004932 |
螺栓 M8×18凸缘 |
Bolt 109675-0371 M8×18 flange |
