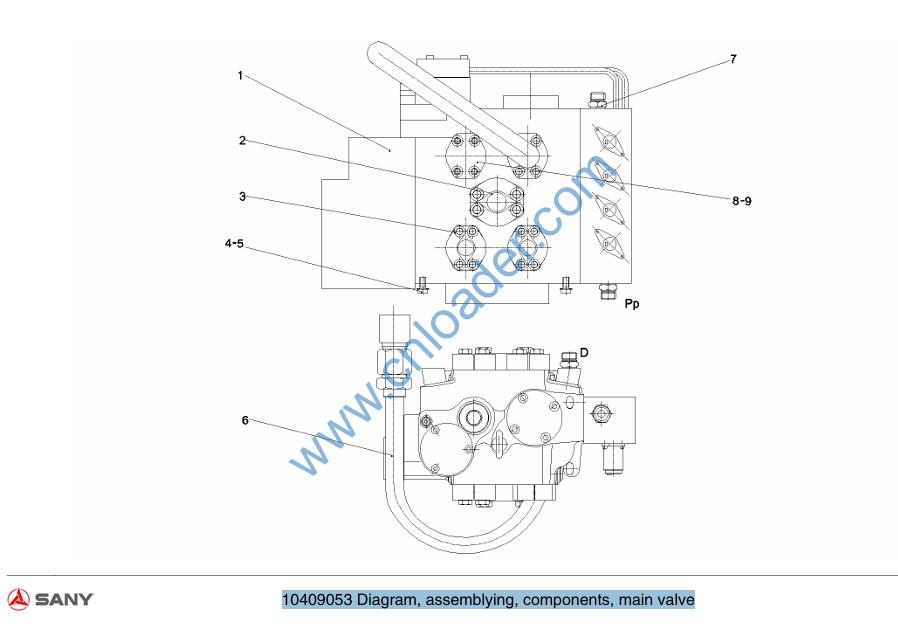

10409053 Diagram, assemblying, components, main valve

10409053 Diagram, assemblying, components, main valve

1 60117514 Valve, multi-way 1
2 A210204000353 Screw 8
3 A210204000462 Screw 24
4 A210204000196 Screw 4
5 A210401000001 Washer 4
6 A810312019045 Pipe, steel 1
7 B210780000036 Connector, pipe 3
8 A820199003283 Flange 1
9 A210204000337 Screw 8

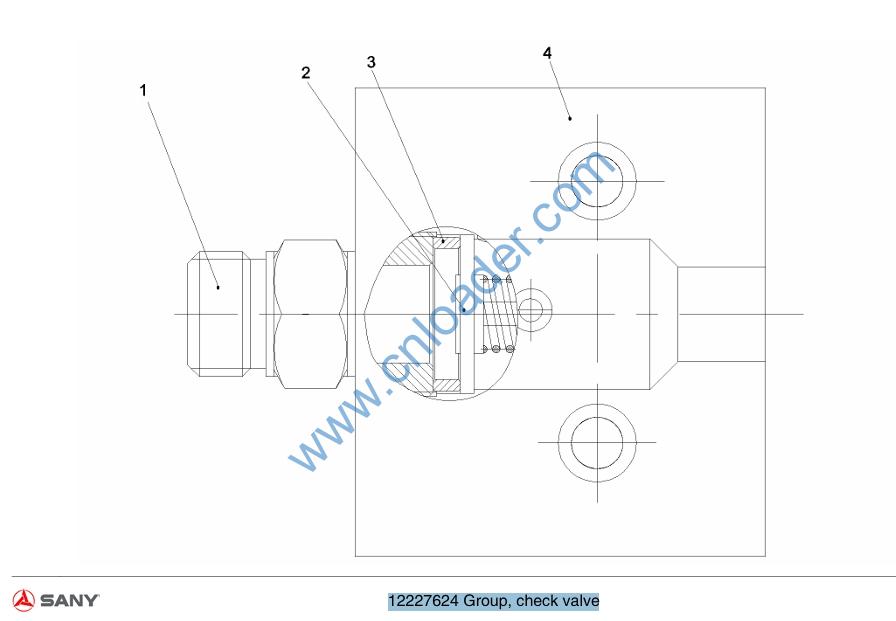

12227624 Group, check valve

1 B210780000053 Connector, pipe 1
2 B220400000421 Core, valve, check valve 1
3 10056401 Sleeve, clamp 1
4 12132531 Block, transition, check valve 1

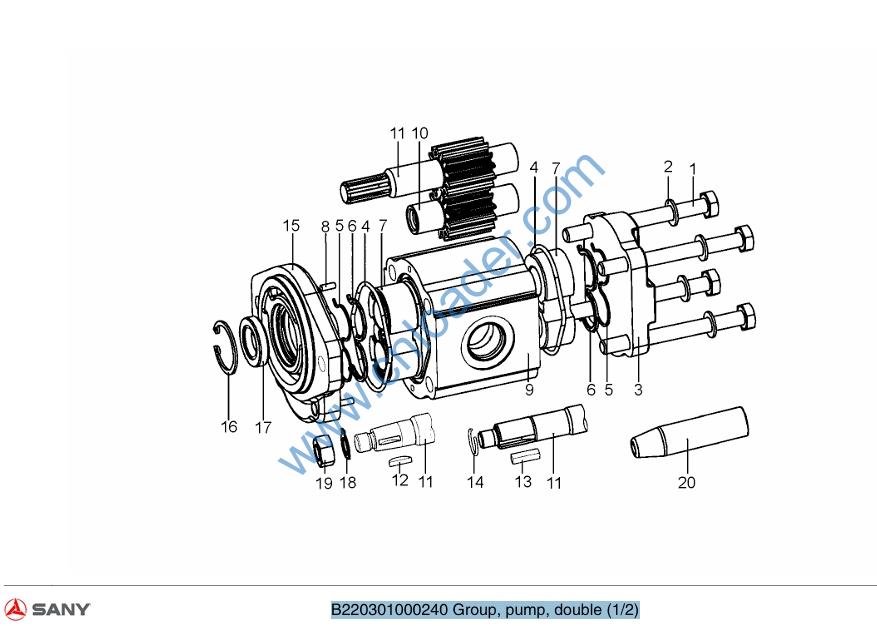

B220301000240 Group, pump, double (1/2)

1 60136677 Bolt 4
2 60136500 Pad, elastic 4
3 60136630 Cover, end 1
4 60136729 O-ring, shell body 2
5 60136497 Seal, back 2
6 60136523 Elements, seal 2
7 60136570 Bearing, thrusting 2
8 60136692 Bolt, shaft 2
9 60136651 Body, shell 1
10 60136574 Gear, driven 1
11 60136685 Axle, driving 1
12 60136578 Key, woodruff 1
13 60136683 Key, square 1
14 60136605 Ring, retaining, elastic 1
15 60136637 Flange, fixed 1
16 60136737 Seal, shaft 1
17 60136606 Ring, retaining, elastic 1
18 60136616 Washer 1
19 60136668 Nut 1
20 60136749 Tool, assemblying, shaft sleeve 1

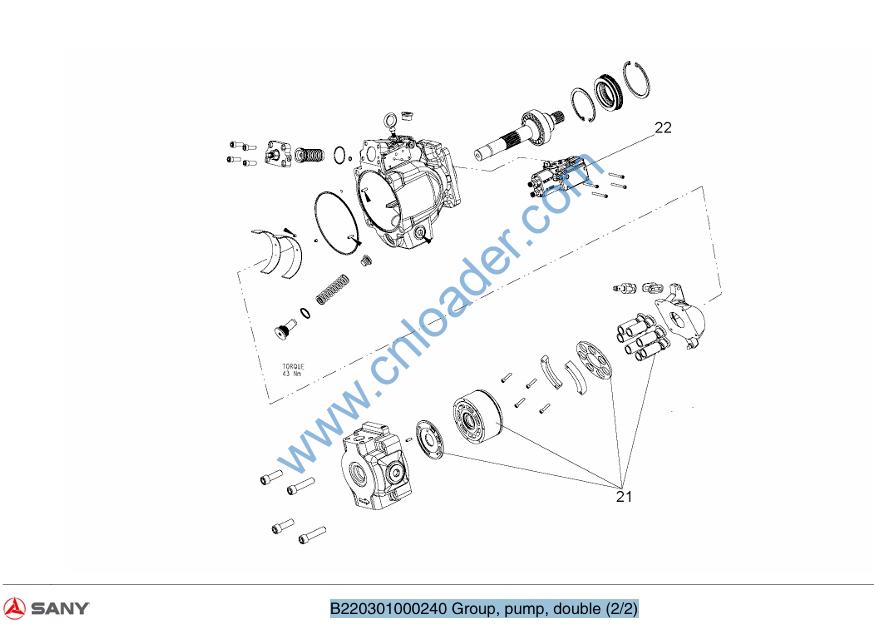

B220301000240 Group, pump, double (2/2)

21 60136526 Group, rotating, clockwise 1
22 60136499 Kits, compensater 1
