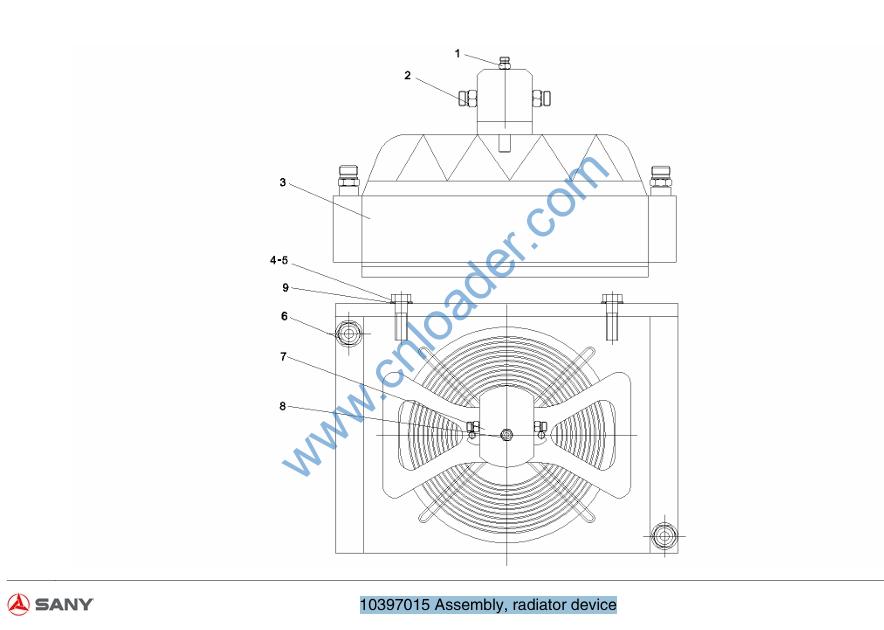

10397015 Assembly, radiator device

10397015 Assembly, radiator device

1 B210780000036 Connector, pipe 1
2 B210780000131 Connector, pipe 2
3 B229900001004 Radiator 1
4 A210111000012 Bolt 8
5 A210401000001 Washer 8
6 B210780001181 Connector, pipe 2
7 B220501000269 Motor, gear 1
8 A210111000092 Bolt 1
9 A210405000011 Washer 8

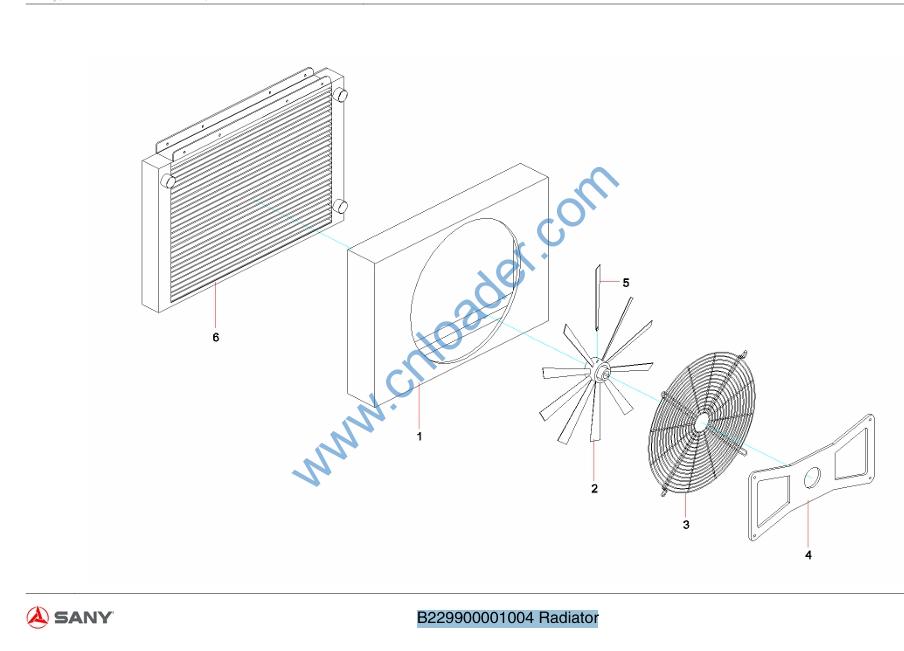

B229900001004 Radiator

1 60004227 Housing, air cooler 1
2 B249900000947 Fan 1
3 60004228 cover,fan 1
4 60004226 Plate, mounting, motor 1
5 B229900002382 Vane,air Cooler 10
6 60136520 Plate, cooling 1

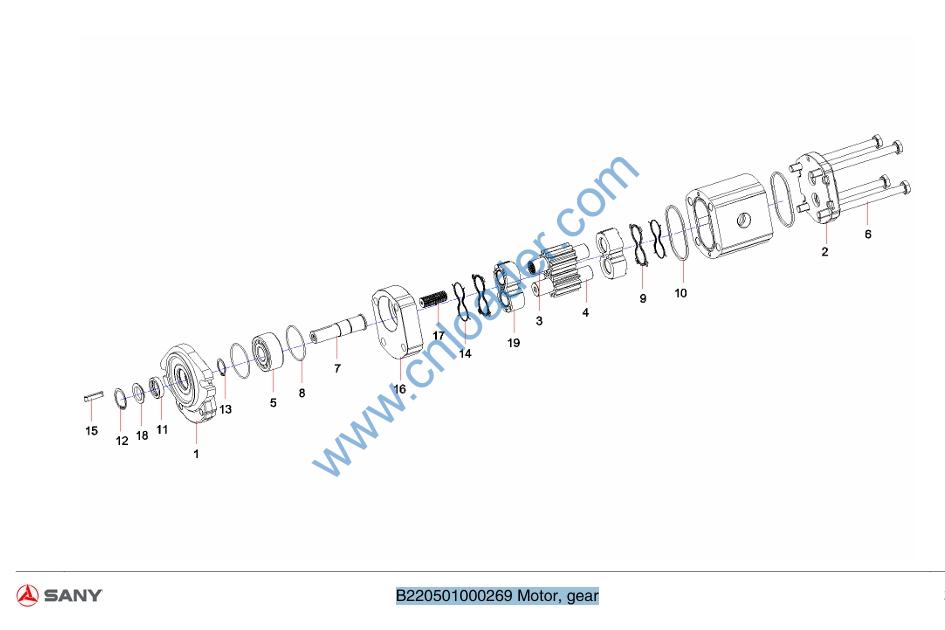

B220501000269 Motor, gear

1 60107554 Cover, front 1
2 60107625 Cover, rear 1
3 60107578 Gear, driving 1
4 60107577 Gear, driving 1
5 60123686 Bearing, ball 1
6 21008534 Screw 4
7 60107662 Washer, backup 1
8 60107673 O-ring 2
9 60107645 Device, sealing 2
10 60107544 Sealing, square 2
11 60107677 Strip, seal, shaft 1
12 60107547 Ring 1
13 60107546 Ring 1
14 60107617 Flange 2
15 60107658 Pin 1
16 60107616 Flange 1
17 60107627 Shaft, connecting, spline 1
18 60107661 Washer,backup 1
19 60107663 Rod, supporting 2

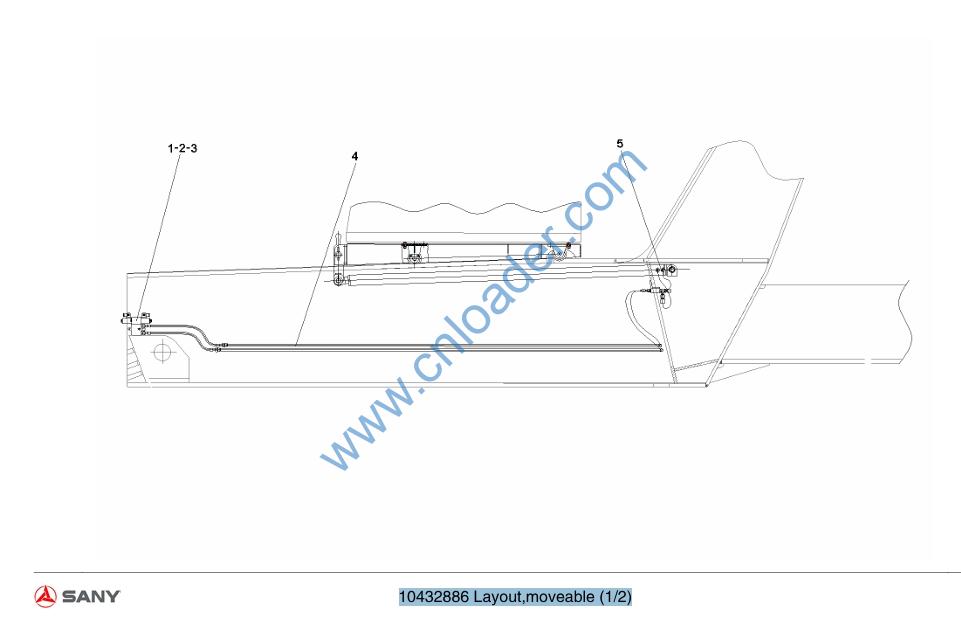

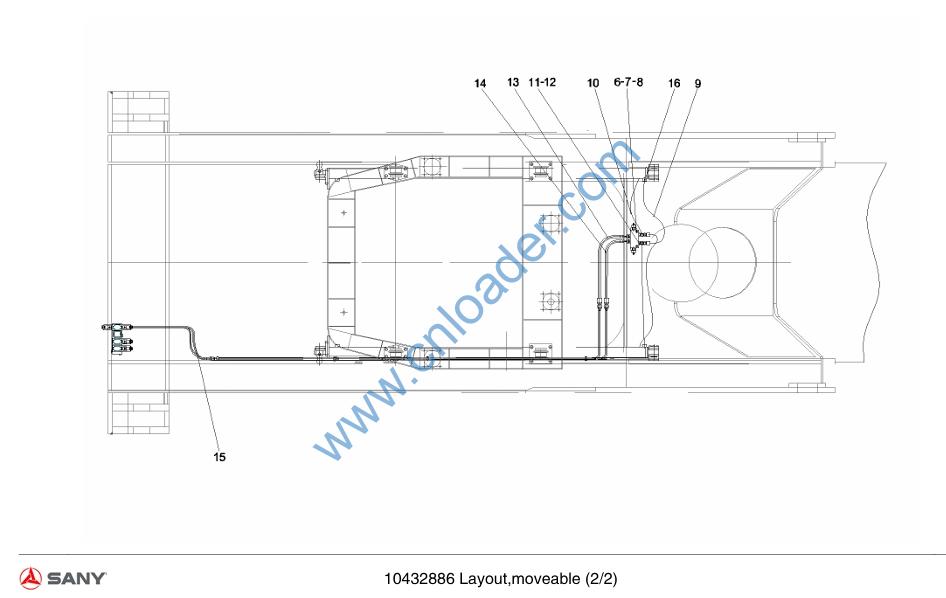

10432886 Layout,moveable (1/2)

1 12105786 Group, movable valve 1
2 A210204000019 Screw 4
3 A210401000002 Washer 4
4 10213222 Pipe A,steel 2
5 B210780000847 Connector, pipe 4

6 B220401000028 Valve, balance, double-direction, pipe type 1
7 A210204000136 Screw 2
8 A210401000017 Washer 2
9 B230103002390 Hose, rubber 2
10 60004179 Hose, rubber 2
11 B210780000016 Connector, pipe 2
12 B210780000180 Connector, pipe 4
13 B230103005168 Hose, rubber 1
14 B230103000089 Hose, rubber 1
15 B230103006930 Hose 2
16 B210780000024 Connector 2
