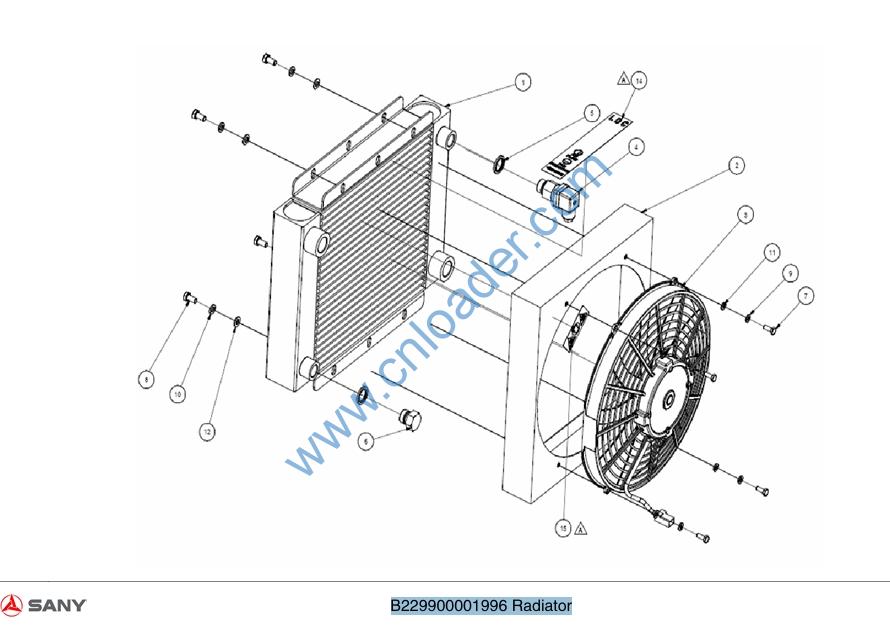

B229900001996 Radiator
1 60136567 Panel, specific, cooler 1
2 60136706 Housing, DC Motor 1
3 60136495 VA10 1
4 60136742 Switch, temperature control 1
5 60136680 Washer, seal 2
6 B210780001384 Plug, screw 1
7 A210111000079 Bolt 4
8 A210111000088 Bolt 4
9 A210401000016 Washer 4
10 A210401000017 Washer 4
11 A210405000006 Washer 4
12 A210405000007 Washer 4
14 60136751 Label 1
15 60136738 Sign, warning 1

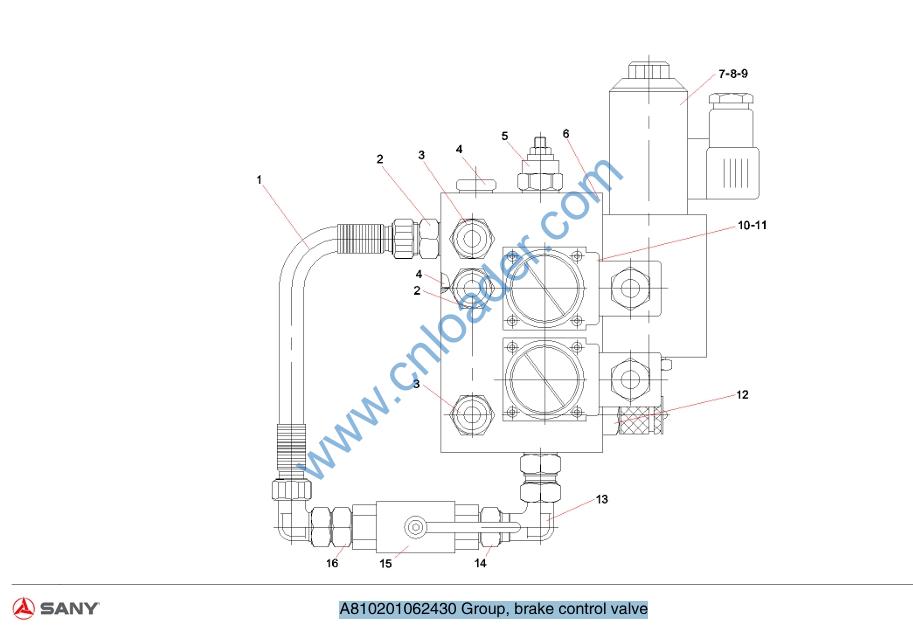

A810201062430 Group, brake control valve
1 B230103004735 Hose, rubber 1
2 B210780000036 Connector, pipe 3
3 B210780000232 Connector, pipe 2
4 B210399000003 Plug, screw 2
5 B220401000351 Valve, balance 1
6 A820199003258 Block, brake control valve 1
7 A210204000119 Screw 4
8 B220400000026 Valve, reversal, electromagnetic 1
9 A820601020466 Cover, waterproof 4
10 A210204000127 Screw 8
11 B240700000131 Relay, pressure 2
12 B210770000084 Connector, pressure measuring 1
13 B210780000636 Connector, pipe 2
14 B210780000167 Connector, pipe 1
15 B220401000263 Valve, ball 1
16 B210780000733 Connector, pipe 1

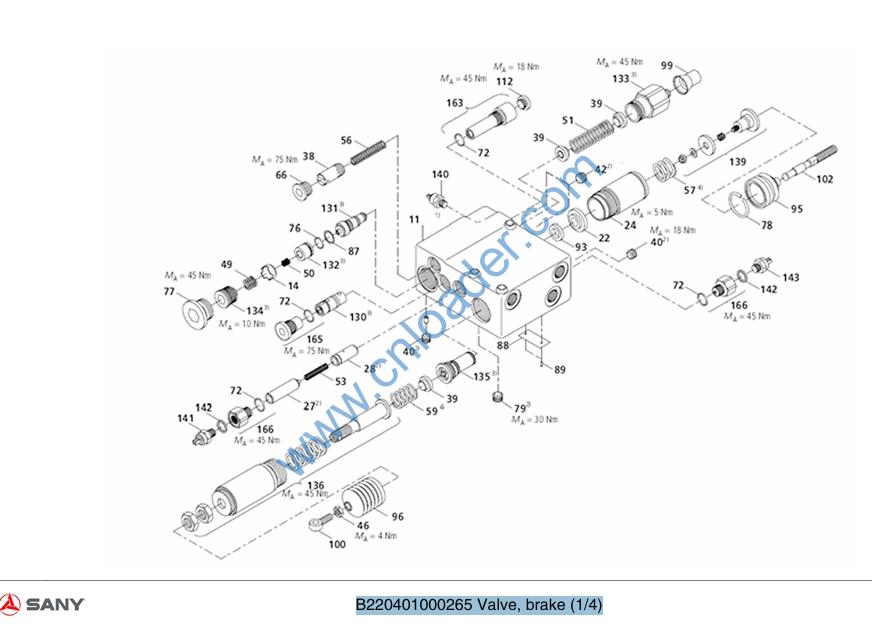

B220401000265 Valve, brake (1/4)
11 60136650 Body, shell 1
14 60136584 Bushing 1
22 60136614 Washer 1
24 60136510 Pipe 1
27 60136585 Bushing 1
28 60136552 Core, valve 1
38 60136549 Core, valve 1
39 60136600 Seat, spring 1
40 60136643 Screw, fastening 2
42 60136644 Screw, fastening 2
46 60136666 Nut 3
49 60136696 Spring, compressed 1
50 60136700 Spring, compressed 1
51 60136698 Spring, compressed 1
53 60136702 Spring, compressed 1
56 60136703 Spring, compressed 1
57 60136695 Spring, compressed 1
59 60136699 Spring, compressed 1
66 60136647 Screw, fastening 1
72 60136712 O-ring 4
76 B230101000241 O-ring 1
77 60136648 Screw, fastening 1
78 60136733 Ring, stop 1
79 60136645 Screw, fastening 1
87 60136534 Ring, thrust 1
88 60136750 Plate, identification 1
89 60136679 Rivet 1
93 60136735 Seal, shaft 1
95 60136504 Sleeve, dustproof 1
96 60136503 Sleeve, dustproof 1
99 60136505 Cover 1
100 60136619 Ring, positioning 1
102 60136519 Lever, control 1
112 60136646 Screw, fastening 1
130 60136496 Unit, WVI 1
131 60136548 Sleeve, valve 1
132 60136546 Sleeve, valve 1
133 60136545 Sleeve, valve 1
134 60136494 Unit, RV 1
135 60136547 Sleeve, valve 1
136 60136743 Controller 1
139 60136744 Controller 1
142 60136730 Ring, seal 2
163 60136498 Block, reducing 1
165 60136641 Screw, fastening 1
166 60136642 Screw, fastening 1

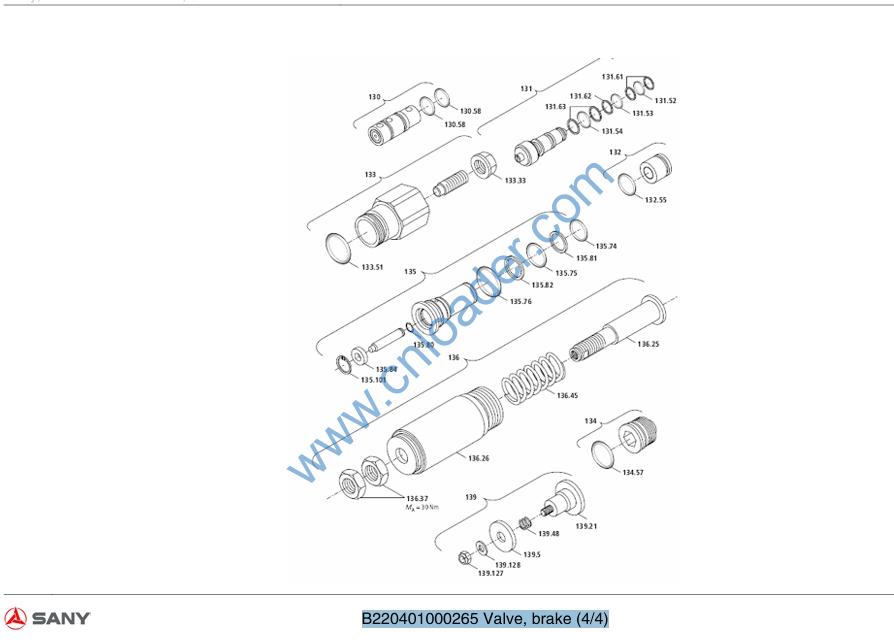

B220401000265 Valve, brake (4/4)
13058 B230101000642 O-ring 2
13152 B230101000677 O-ring 1
13153 24004993 O-ring 1
13154 B230101000093 O-ring 1
13161 60136536 Ring, thrust 2
13162 60136531 Ring, thrust 1
13163 60136532 Ring, thrust 2
13255 B230101000241 O-ring 1
13333 A210334000003 Nut 1
13351 60136713 O-ring 1
13457 B230101002239 O-ring 1
13574 24001012 O-ring 1
13575 B230101000583 O-ring 1
13576 B230101000584 O-ring 1
13580 60136734 Ring, stop 1
13581 60136533 Ring, thrust 1
13582 60136535 Ring, thrust 1
13584 60136736 Seal, shaft 1
135101 60136620 Ring, positioning 1
