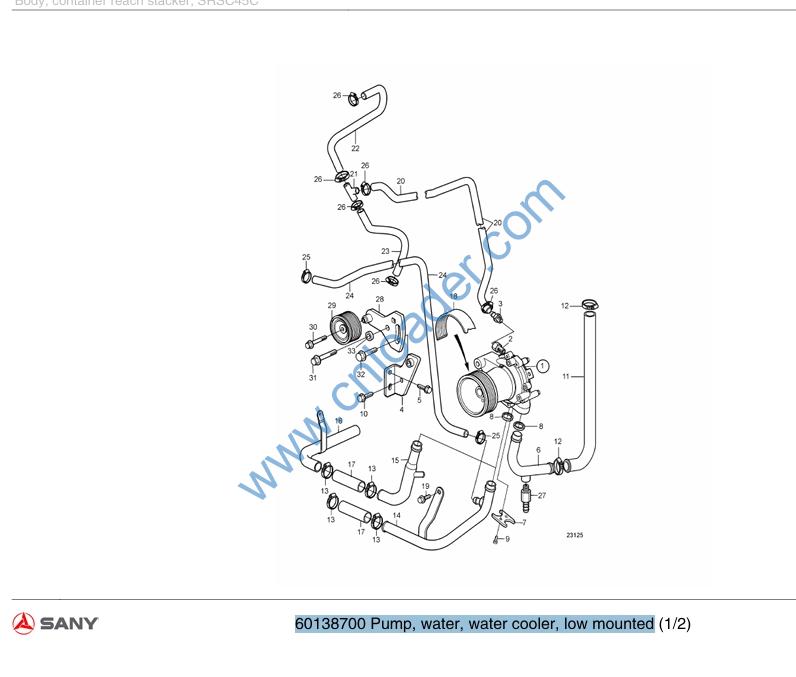

60138700 Pump, water, water cooler, low mounted

60138700 Pump, water, water cooler, low mounted

1 B220302000007 Pump,water,auxiliary 1
2 60131445 Nipple 1
3 B229900002805 Nipple 1
4 60132202 Bracket 1
5 60092478 Bolt,flange 2
6 60129979 Coolantpipe 1
7 60130018 Anchorage 1
8 60132412 Sealingring 2
9 60094292 Bolt,flange 2
10 60092468 Bolt,flange 1
11 60130139 Hose,intercooler 1
12 60131945 Hoseclamp 2
13 60094351 Lathedog 1
14 60129978 Coolantpipe,radiator 1
15 60129983 Coolantpipe 1
16 60129982 Coolantpipe 1
17 60132501 Hose 1
18 B230106000073 Belt,pump,water 1
19 60094286 Bolt, flange 1
20 60094513 Hose 1
21 60129706 T-pipe 1
22 60094513 Hose 1

23 60094513 Hose 1
24 60132527 Rubberhose 1
25 60094349 Hose clamp 1
26 60131942 Hoseclamp 2
27 60130268 Draincock 6
28 60131857 Belttensioner 1
29 60130449 Idlergear 1
30 60131049 Flangescrew 1
31 60092486 Bolt,flange 1
32 60131822 Screw 1
33 60129950 Spacertube 1

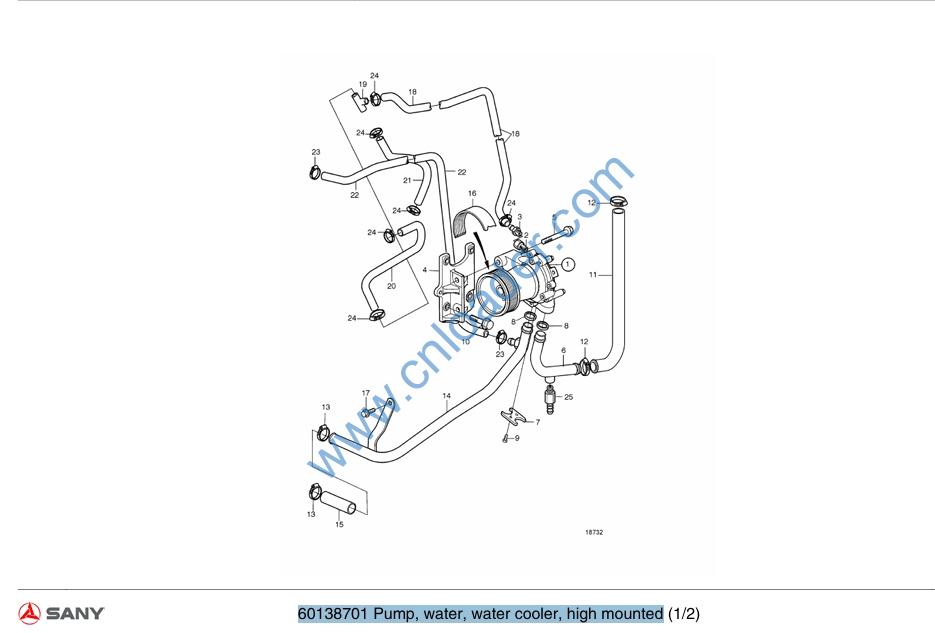

60138701 Pump, water, water cooler, high mounted

1 B220302000007 Pump,water,auxiliary 1
2 60131445 Nipple 1
3 B229900002805 Nipple 1
4 60132197 Bracket 1
5 60092468 Bolt,flange 2
6 60129979 Coolantpipe 1
7 60130018 Anchorage 1
8 60132412 Sealingring 2
9 60094292 Bolt,flange 2
10 60131082 Flangescrew 4
11 60130139 Hose,intercooler 1
12 60131945 Hoseclamp 2
13 60094351 Lathedog 2
14 60129987 Pipeset,radiator 1
15 60132501 Hose 1
16 60132578 Drivebelt 1
17 60094286 Bolt, flange 1
18 60094513 Hose 1
19 60129706 T-pipe 1
20 60094513 Hose 1
21 60094513 Hose 1
22 60132527 Rubberhose 1

60094349
60131942
Description
Hose clamp
Hoseclamp
Draincock
Pump, water, water cooler, high mounted
PARTS BOOK
Qty.
2
6
1
60138701 Pump, water, water cooler, high mounted (2/2)
Remark
60130268

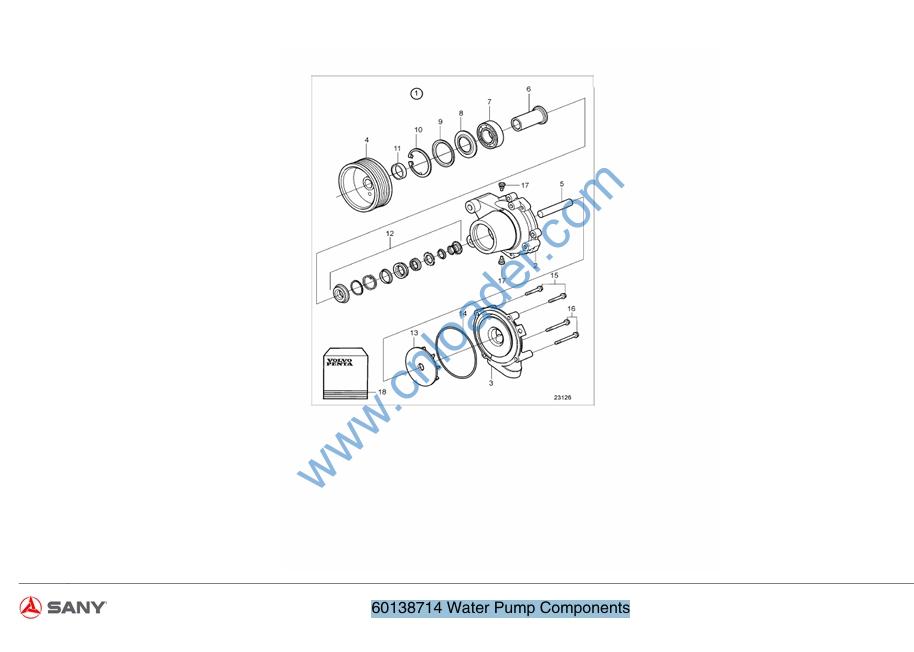

60138714 Water Pump Components

1 B220302000007 Pump,water,auxiliary 1
2 60132255 Housing 1
3 60130559 Pumphousing 1
4 60131333 Pulley 1
5 60132280 Shaft 1
6 60132286 Shaft 1
7 60130380 Ballbearing 1
8 60131280 Protectingplate 1
9 60129841 Spacerring 1
10 60132461 Snapring 1
11 60129842 Spacerring 1
12 60132417 Sealingring 1
13 60130102 Impeller 1
14 60132396 O-ring 1
15 60131823 Screw 2
16 60131694 Screw 2
17 60130653 Plasticplug 2
18 60131997 Repairkit 1
