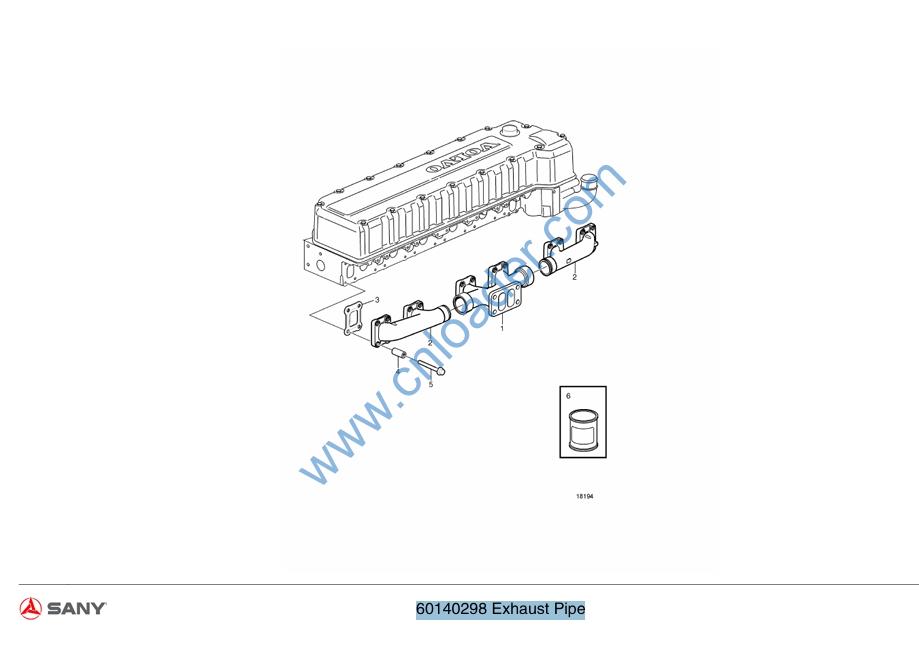

60140298 Exhaust Pipe

60140298 Exhaust Pipe

1 60129911 Manifold 1
2 60129910 Manifold 2
3 60130781 Gasket 6
4 60087331 Spacer sleeve 20
5 60092466 Bolt,flange 20
6 60133012 Sealant 1

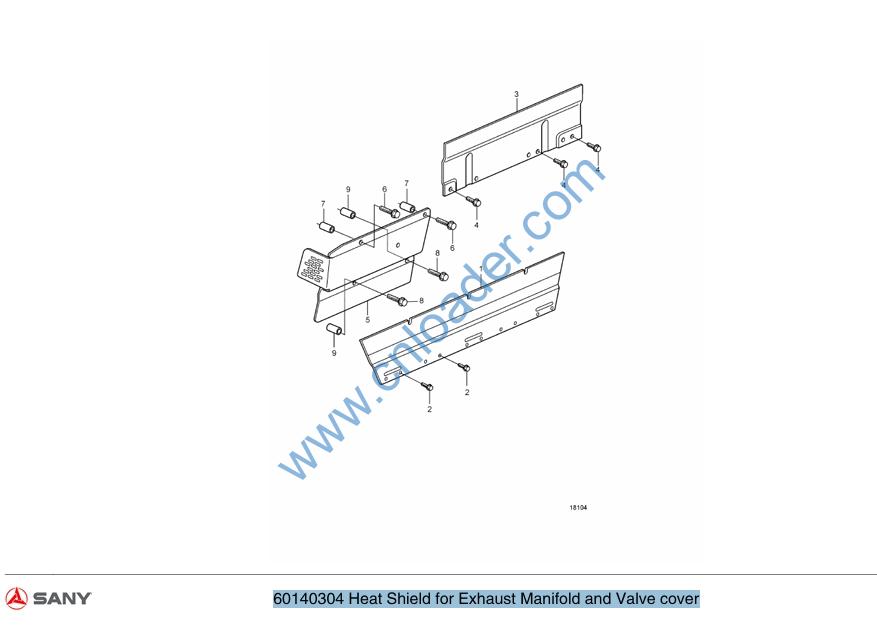

60140304 Heat Shield for Exhaust Manifold and Valve cover

1 60130119 Heatshield 1
2 60094287 Bolt,flange 2
3 60130118 Heatshield 1
4 60094287 Bolt,flange 2
5 60130125 Heatshield,exhaustmanifold 1
6 60092594 Bolt 2
7 60132287 Sleeve. 2
8 60092454 Flange 2
9 60131544 Spacersleeve 2

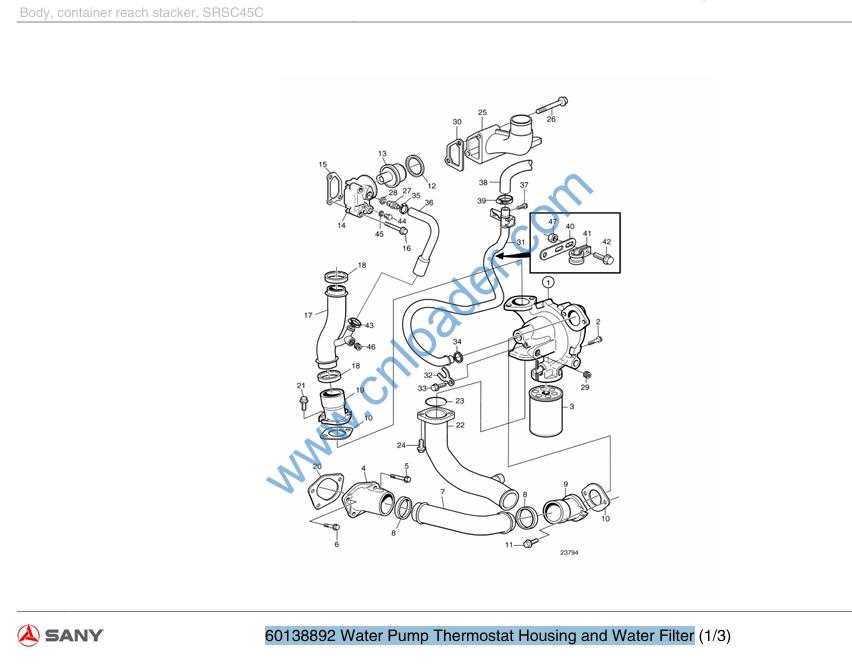

60138892 Water Pump Thermostat Housing and Water Filter

1 60130252 Waterpump 1
2 B229900002073 Screw 4
3 B222100000358 Element,filter,water 1
4 60131570 Pipeconnection 1
5 60094285 Bolt, flange 1
6 60131063 Flangescrew 2
7 60129968 Coolantpipe 1
8 60086206 Seal Ring,Water pipe 2
9 60094309 Joint,tube 1
10 60086190 Interface pad,water pipe 2
11 B229900005655 Bolt,fan 2
12 60085955 Ring,seal 1
13 60129886 Thermostat 1
14 60132857 Connector 1
15 60130779 Gasket 1
16 60092462 Bolt, flange 3
17 60129980 Coolantpipe 1
18 60086206 Seal Ring,Water pipe 2
19 60094309 Joint,tube 1
20 60130780 Gasket 1
21 B229900005655 Bolt,fan 2
22 60129977 Coolantpipe 1

23 B230101001208 Seal,O-ring 1
24 B229900005655 Bolt,fan 2
25 60129974 Coolantpipe 1
26 60094396 Bolt 4
27 60092530 Joint 1
28 60109418 Gasket 1
29 60131002 Plug 1
30 60086192 Spacer,seat,water pipe 1
31 60129880 Fillerpipe 1
32 60086174 Lock,Pipe,water,small 1
33 60094286 Bolt, flange 1
34 60086207 Ring,seal,water pipe 1
35 60131944 Hoseclamp 1
36 60132490 Hose 1
37 60094285 Bolt, flange 1
38 60132501 Hose 1
39 60094351 Lathedog 1
40 60132232 Bracket 1
41 60139366 Clamp 1
42 60094286 Bolt, flange 1
43 60094351 Lathedog 1
44 60092408 Plug 1

60085707
60130988
B229900002075

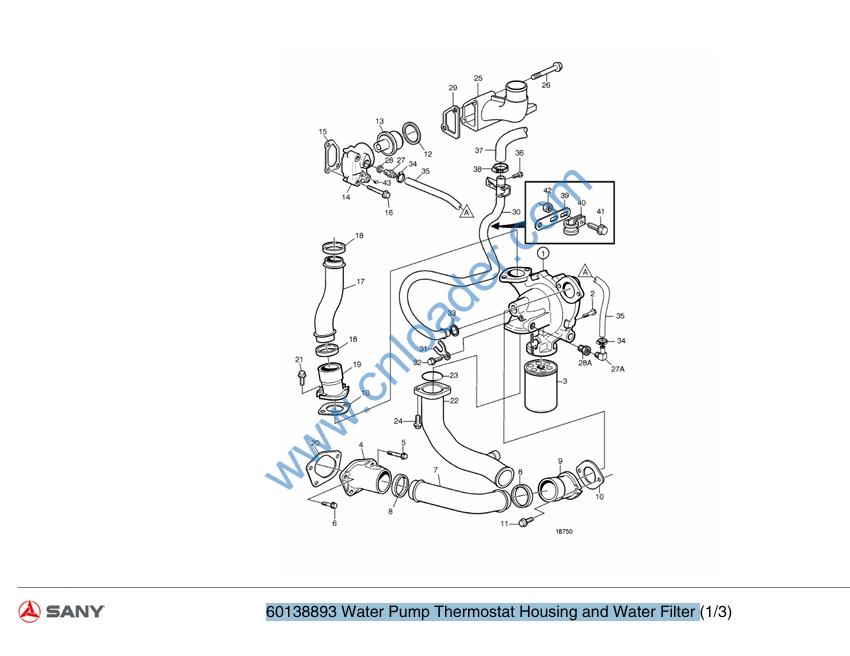

60138893 Water Pump Thermostat Housing and Water Filter

1 60130253 Waterpump 1
2 B229900002073 Screw 4
3 B222100000358 Element,filter,water 1
4 60131570 Pipeconnection 1
5 60094285 Bolt, flange 1
6 60131063 Flangescrew 2
7 60094140 Pipe,cooling 1
8 60086206 Seal Ring,Water pipe 2
9 60094309 Joint,tube 1
10 60086190 Interface pad,water pipe 2
11 B229900005655 Bolt,fan 2
12 60085955 Ring,seal 1
13 60129886 Thermostat 1
14 60132857 Connector 1
15 60086181 Pad,thermostat 1
16 60092462 Bolt, flange 3
17 60094150 Coolant pipe 1
18 60086206 Seal Ring,Water pipe 2
19 60094309 Joint,tube 1
20 60130780 Gasket 1
21 B229900005655 Bolt,fan 2
22 60129977 Coolantpipe 1

23 B230101001208 Seal,O-ring 1
24 B229900005655 Bolt,fan 2
25 60129974 Coolantpipe 1
26 60094396 Bolt 4
27 60092530 Joint 1
28 60085707 Washer 1
29 60086192 Spacer,seat,water pipe 1
30 60129880 Fillerpipe 1
31 60086174 Lock,Pipe,water,small 1
32 60094286 Bolt, flange 1
33 60086207 Ring,seal,water pipe 1
34 60131944 Hoseclamp 2
35 60132528 Rubberhose 1
36 60094285 Bolt, flange 1
37 60132501 Hose 1
38 60094351 Lathedog 1
39 60132232 Bracket 1
40 60139366 Clamp 1
41 60094286 Bolt, flange 1
42 B229900002075 Screw 1
43 60092408 Plug 1
44 60131992 Elbownipple 1

60131465
