零件代码 PART NUMBER |
名称 PART NAME |
|
60008471 |
配油盘 Tray, oil distribution |
|
60064423 |
30T柱塞组件 Plunger GP |
|

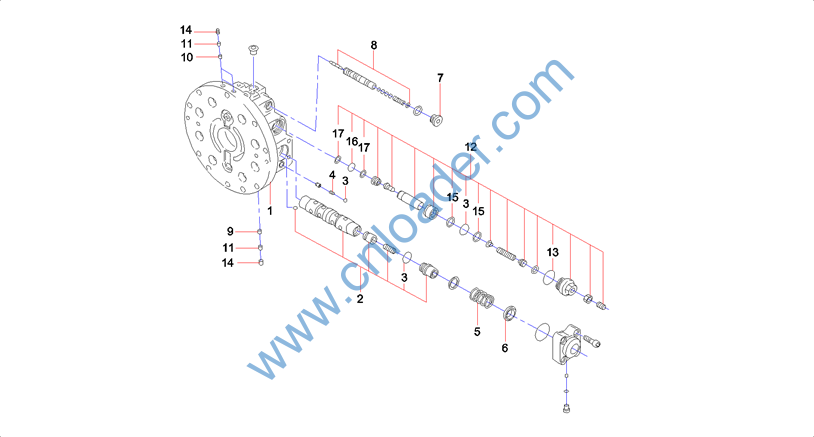

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60081406 |
固定圆板 |
Disc, fixing |
|
B220401000699 |
30T行走马达平衡阀 |
Valve, counterbalance, travel motor |
|
60081489 |
O形圈 |
O-ring |
|
60081436 |
弹簧 |
Spring |
|
60081435 |
弹簧 |
Spring |
|
60081446 |
弹簧座 |
Seat, spring |
|
60081449 |
堵头 |
Plug |
|
60064393 |
30T阀芯组件 |
Spool GP |
|
60081411 |
节流子 |
Orifice |
|
60008484 |
节流口 |
Orifice |
|
60081409 |
节流子 |
Orifice |
|
60081419 |
BP阀体 |
Valve body |
|
60081484 |
O形圈 |
O-ring |
|
60008459 |
堵头 |
Plug |
|
60065008 |
备用挡圈 |
Ring, retaining |
|
60081487 |
O形圈 |
O-ring |
|
60065007 |
备用挡圈 |
Ring, retaining |
|

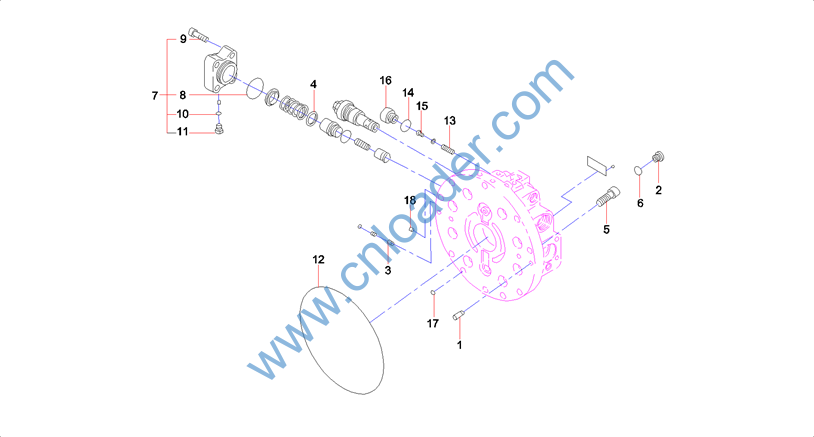

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60008464 |
销 |
Pin |
|
60008460 |
堵头 |
Plug |
|
60081413 |
BP阀体 |
Valve body |
|
60008486 |
弹簧座 |
Seat, spring |
|
60081459 |
螺钉 |
Bolt |
|
60081486 |
O形圈 |
O-ring |
|
60081452 |
盖板组件 |
Coverplate GP |
|
60081490 |
O形圈 |
O-ring |
|
60081458 |
螺钉 |
Bolt |
|
60081491 |
O形圈 |
O-ring |
|
60081450 |
堵头 |
Plug |
|
60081483 |
O形圈 |
O-ring |
|
60081434 |
弹簧 |
Spring |
|
60081488 |
O形圈 |
O-ring |
|
60081445 |
弹簧倒向环 |
Ring, guide, spring |
|
60008472 |
堵头 |
Plug |
|
60081485 |
O形圈 |
O-ring |
|
60081410 |
节流子 |
Orifice |
|

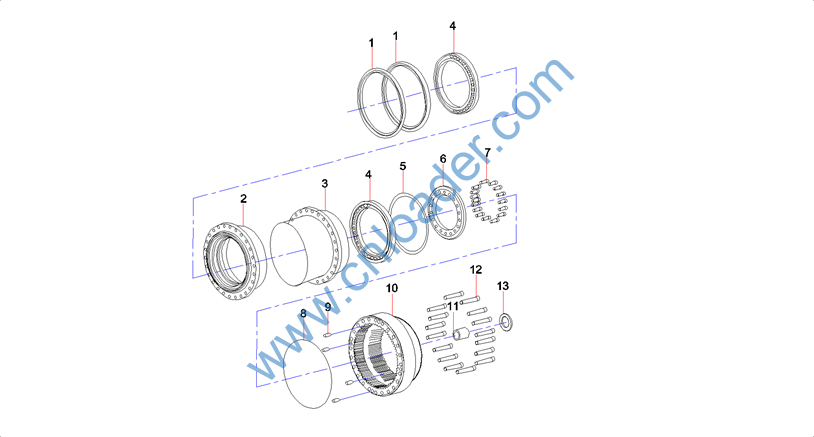

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60010933 |
行走马达浮动油封 |
Oil seal, floating, travel motor |
|
60081451 |
法兰 |
Flange |
|
60086594 |
机架 |
Frame |
|
60086574 |
轴承 |
Bearing |
|
60086583 |
垫片 |
Shim |
|
60086573 |
板 |
Plate |
|
60086598 |
螺钉 |
Bolt |
|
60086600 |
O形圈 |
O-ring |
|
60086599 |
销 |
Pin |
|
B229900005520 |
齿圈 |
Ring, gear |
|
60086575 |
联轴器 |
Coupling, shaft |
|
60086597 |
螺钉 |
Bolt |
|
60086582 |
弹性衬套 |
Sleeve, elastic |
|

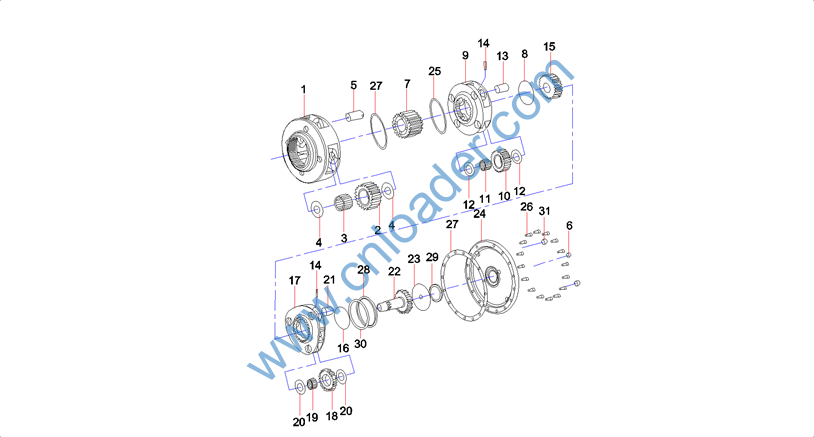

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60064455 |
支架 |
Bracket |
|
60064411 |
行星齿轮 |
Gear, planetary |
|
60086578 |
齿轮内滚针 |
Needle |
|
60086590 |
垫圈 |
Washer |
|
60064428 |
齿轮轴 |
Shaft, gear |
|
60086592 |
堵头 |
Plug |
|
60064402 |
太阳齿轮 |
Gear, sun |
|
60086595 |
卡簧 |
Spring, snap |
|
60064454 |
支架 |
Bracket |
|
60064410 |
行星齿轮 |
Gear, planetary |
|
60086577 |
齿轮内滚针 |
Needle |
|
60086589 |
垫圈 |
Washer |
|
60064427 |
齿轮轴 |
Shaft, gear |
|
60086580 |
弹簧销 |
Pin, spring |
|
60064401 |
太阳齿轮 |
Gear, sun |
|
60086596 |
卡簧 |
Spring, snap |
|
60064453 |
支架 |
Bracket |
|
60064409 |
行星齿轮 |
Gear, planetary |
|
60086576 |
齿轮内滚针 |
Needle |
|
60086591 |
垫圈 |
Washer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60086579 |
齿轮轴 |
Shaft, gear |
|
60064400 |
驱动齿轮 |
Gear, drive |
|
60086588 |
垫片 |
Shim |
|
B229900005538 |
后盖 |
Cover |
|
60086586 |
垫片 |
Shim |
|
B229900005532 |
齿圈螺栓 |
Bolt, gear ring |
|
60086584 |
垫片 |
Shim |
|
60086585 |
垫片 |
Shim |
|
60086581 |
弹性衬套 |
Sleeve, elastic |
|
60086587 |
垫片 |
Shim |
|
60086593 |
堵头 |
Plug |
|

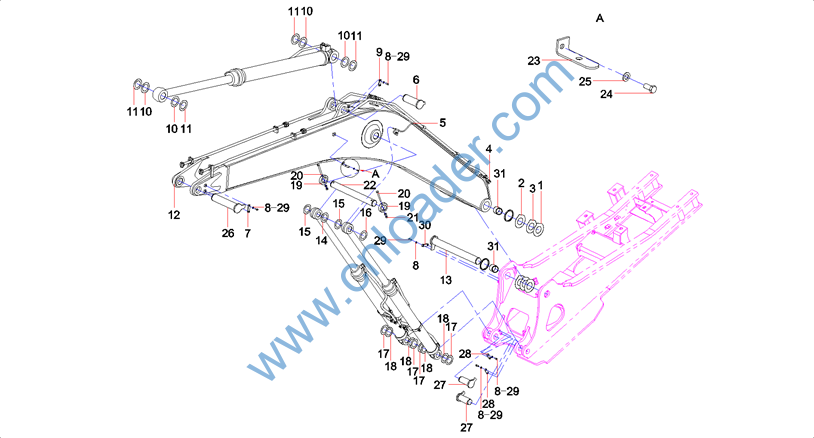

零件代码 PART NUMBER |
名称 PART NAME |
|
|
11166679 |
树脂垫片 |
Gasket, resin |
|
11078548 |
树脂垫片 |
Gasket, resin |
|
11561637 |
树脂垫片 |
Gasket, resin |
|
12174692 |
工作装置管路 |
Work device tube |
|
12127622 |
润滑管路 |
Pipeline, lubrication |
|
A810303990037 |
销轴 |
Roll, pin |
|
A820101211702 |
压板 |
Plate, pressure |
|
24000642 |
垫圈 |
washer |
|
A820101211710 |
压板 |
Plate, pressure |
|
A820102010744 |
垫片 |
Gasket |
|
A820102010760 |
垫片 |
Shim |
|
12672624 |
动臂 |
BoomSY335C9I2K.3.2H |
|
A810303990036 |
销轴 |
Roll, pin |
|
11078567 |
树脂垫片 |
Gasket, resin |
|
11169586 |
树脂垫片 |
Gasket, resin |
|
11166681 |
树脂垫片 |
Gasket, resin |
|
11041901 |
树脂垫片 |
Gasket, resin |
|
11112327 |
树脂垫片 |
Gasket, resin |
|
A820101211704 |
挡片 |
Retainer |
|
A210110000347 |
螺栓M20×200GB5782 10.9级 |
Bolt |
