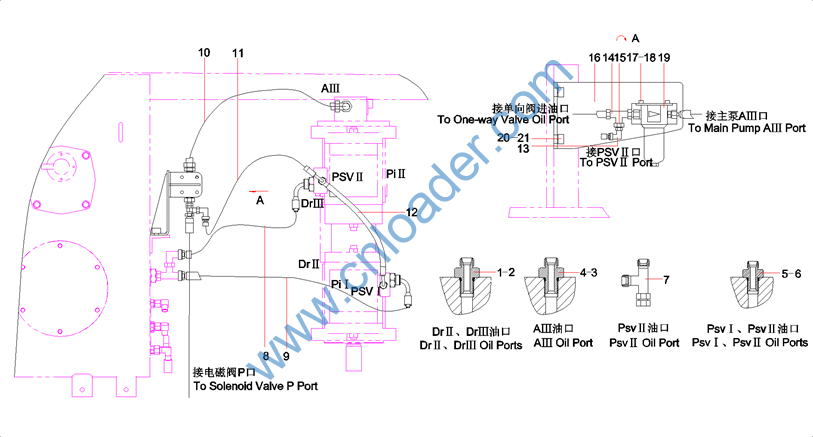

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B230103002657 |
胶管 |
Hose |
|
A820205001061 |
负流量传感器接头 |
Coupler, sensor, negative flow |
|
B220400000169 |
三通梭阀 |
Valve, shuttle, tee |
|
B210780001045 |
管接头 |
Connector, pipe |
|
A820205000947 |
堵头 |
Plug |
|
B230103003046 |
胶管 |
Hose |
|
A831213035000 |
胶管 |
Hose, rubber |
|
A820205000940 |
接头 |
Connector |
|
B230101000047 |
O形圈 |
O-ring |
|
B230101000049 |
O形圈 |
O-ring |
|
A820205000946 |
接头 |
Connector |
|
B210780000418 |
管接头 |
Connector, pipe |
|
B240600000117 |
负流量压力传感器 |
Sensor, negative flow pressure |
|
A820205001771 |
堵头 |
Plug |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
A820205000942 |
接头 |
Connector |
|
B230101000356 |
O形圈 |
O-ring |
|
A820205000941 |
接头 |
Connector |
|
B230101000090 |
O形圈 |
O-ring |
|
60020078 |
过滤接头 |
Connector, filter |
|
B230101000047 |
O形圈 |
O-ring |
|
B210780000170 |
管接头 |
Connector, pipe |
|
B230103001239 |
胶管 |
Hose |
|
B230103002446 |
胶管 |
Hose, rubber |
|
21033030 |
胶管 |
Hose, rubber |
|
A831213035000 |
胶管 |
Hose, rubber |
|
21018549 |
胶管 |
Hose, rubber |
|
B210780000418 |
管接头 |
Connector, pipe |
|
B210780000016 |
管接头 |
Connector, pipe |
|
B210780000827 |
管接头 |
Connector, pipe |
|
11213443 |
先导滤支架 |
Bracket, pilot filter |
|
24000511 |
垫圈8GB93 达克锈 |
Washer 8GB93 达克锈 |
|
A210204000146 |
螺钉 |
Screw M8×16GB70.1 |
|
B229900000063 |
压油过滤器 |
Filter, oil |
|
23000066 |
螺钉 |
Screw M10×25GB70.1 10.9 |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
24000637 |
垫圈10GB97.1 达克锈 Washer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|

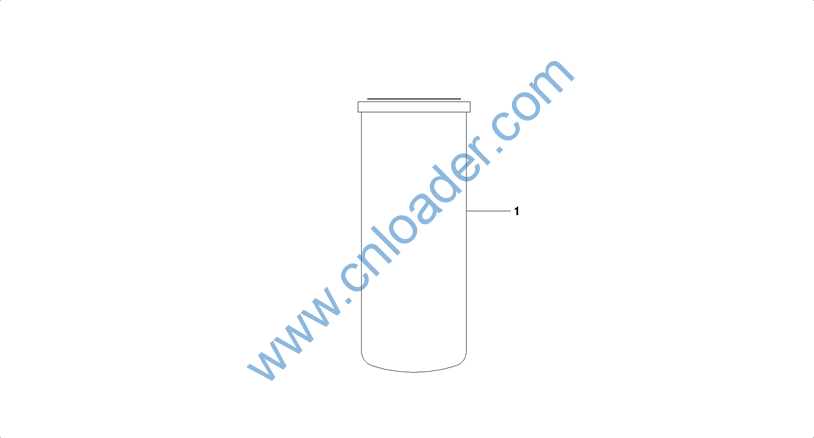

A222100000119 |
先导滤芯 Element, pilot filter |
|

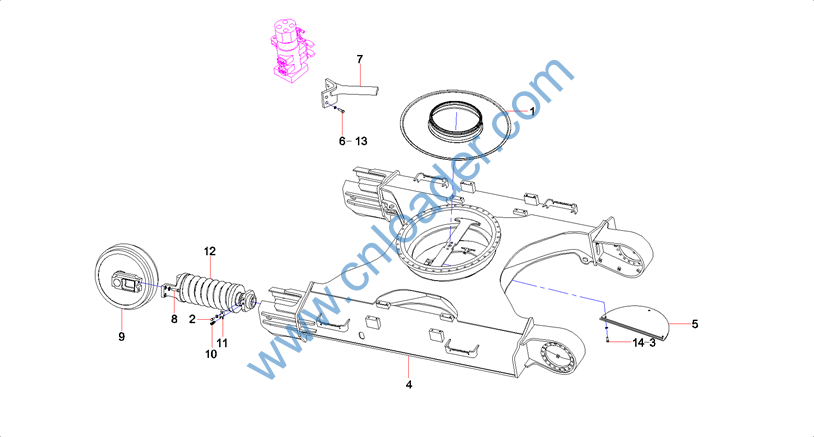

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A810401990192 |
黄油池 |
Chamber, grease |
|
A210111000101 |
螺栓M12×25GB5783 10.9级 |
Bolt M12×25GB5783 10.9 grade |
|
24000513 |
垫圈12GB93 达克锈 |
Washer 12GB93 |
|
12408629 |
履带架 |
track frameSY335C9I2K.2.1B |
|
10131971 |
盖板总成 |
Coverplate GP |
|
A210111000204 |
螺栓 |
Bolt M12×40GB5783 10.9 |
|
12804286 |
止动座 |
Seat, stopping |
|
A210110000202 |
螺栓M20×80GB5782 10.9级 |
Bolt |
|
B229900000634 |
引导轮 |
Idler |
|
B229900000862 |
黄油阀 |
Valve, grease |
|
A820101010372 |
支板 |
Plate, support |
|

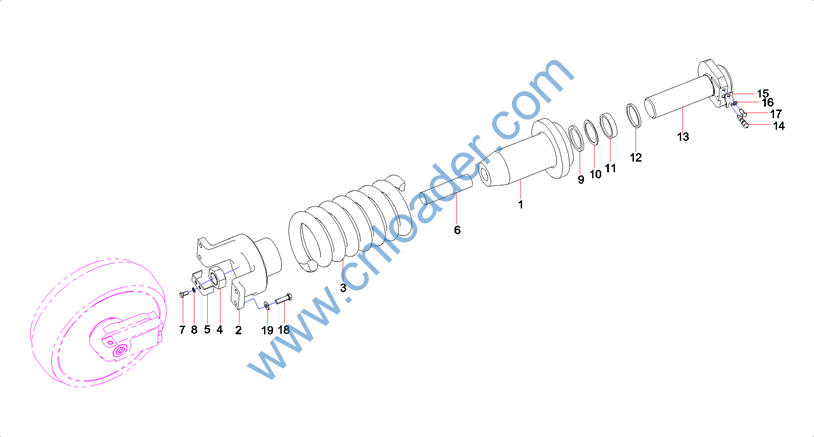

60013106 |
张紧装置 |
Tensioner |
|
A210491000121 |
垫圈 |
Washer 12GB1230 |
|
A210111000202 |
螺栓 |
Bolt M12×30GB5783 10.9 |
|

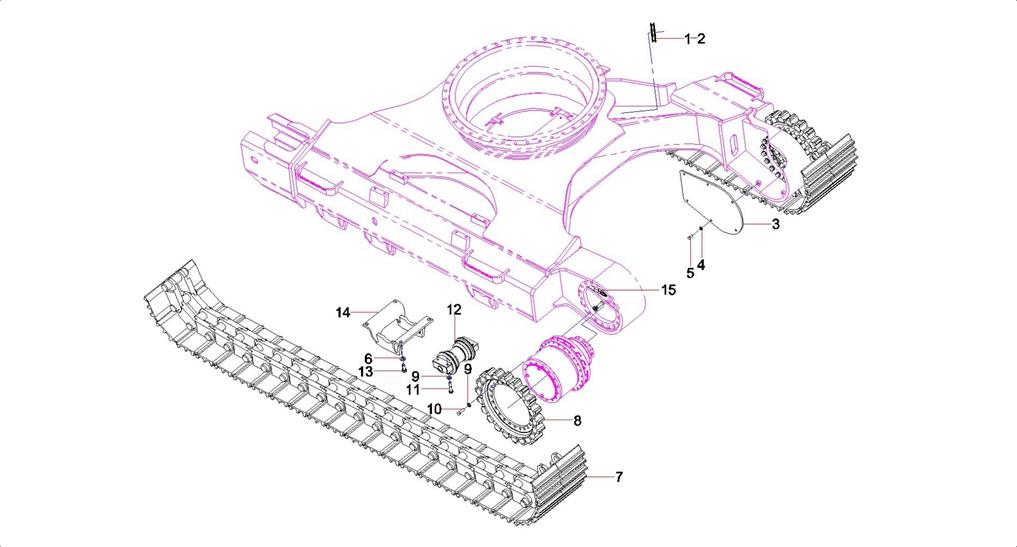

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A239900000066 |
尼龙扎带 |
Strap, nylon (black) |
|
A820606030424 |
护套 |
Sheath |
|
10505384 |
马达盖板 |
Coverplate, motor |
|
24000514 |
垫圈16GB93 达克锈 |
Washer 16GB93 |
|
A210111000212 |
螺栓M16×35GB5783 10.9级 |
Bolt M16×35GB5783 |
|
A210491000122 |
垫圈 |
Washer |
|
11296007 |
履带总成 |
Track GP |
|
A820403000681 |
驱动轮 |
Sprocket |
|
A210491000132 |
垫圈 |
Washer 20GB1230 |
|
60022786 |
螺栓 |
Bolt |
|
A210110000205 |
螺栓M20×100GB5782 10.9级 |
Bolt |
|
11358479 |
支重轮总成 |
Roller AS, track |
|
A210111000346 |
螺栓M24×55GB5783 10.9级 |
Bolt |
|
12007195 |
护板 |
Plate, guard |
|
11172918 |
行走装置液压管路 |
Pipeline, hydraulic, lower frame AS |
|

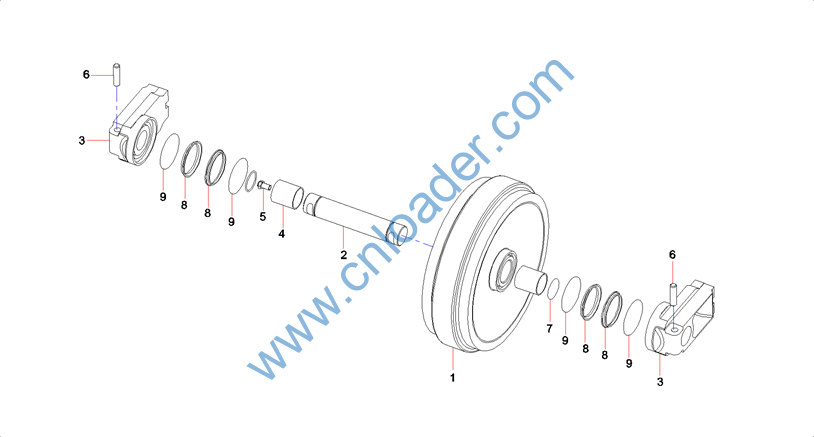

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60047974 |
引导轮 |
Wheel, idler |
|
60047975 |
引导轮轴 |
Body, idler wheel |
|
60047978 |
支座 |
Support |
|
60047982 |
轴套 |
Sleeve, shaft |
|
60047967 |
螺塞 |
Plug, screw |
|
60047972 |
销 |
Pin |
|
60047987 |
O形圈 |
O-ring |
|
60047993 |
浮动油封 |
Seal, oil |
|
60047986 |
O形圈 |
O-ring |
