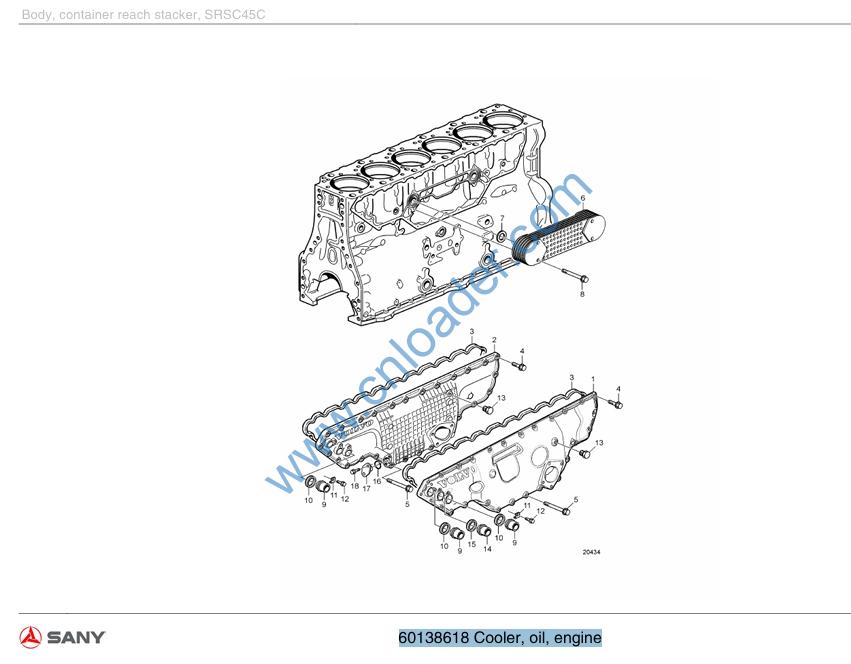

60138618 Cooler, oil, engine

60138618 Cooler, oil, engine

1 60129827 Cover 1
2 60129797 Cover 1
3 60086180 Pad,sealing,plate,radiation,oil 1
4 60094285 Bolt, flange 20
5 60066472 Threaded stud,mud guard 7
6 60129995 Oilcooler 1
7 60096079 Ring,seal 2
8 60092405 Screw 4
9 60130954 Plug 2
10 60075867 Seal ring,water pipe,gearbox 2
11 60087240 Lock brace 2
12 60092621 Bolt 2
13 60092774 Plug 1
14 60130956 Plug 1
15 60086207 Ring,seal,water pipe 1
16 60132392 O-ring 1
17 60129825 Cover 1
18 60084546 Screw,support,lock block 2

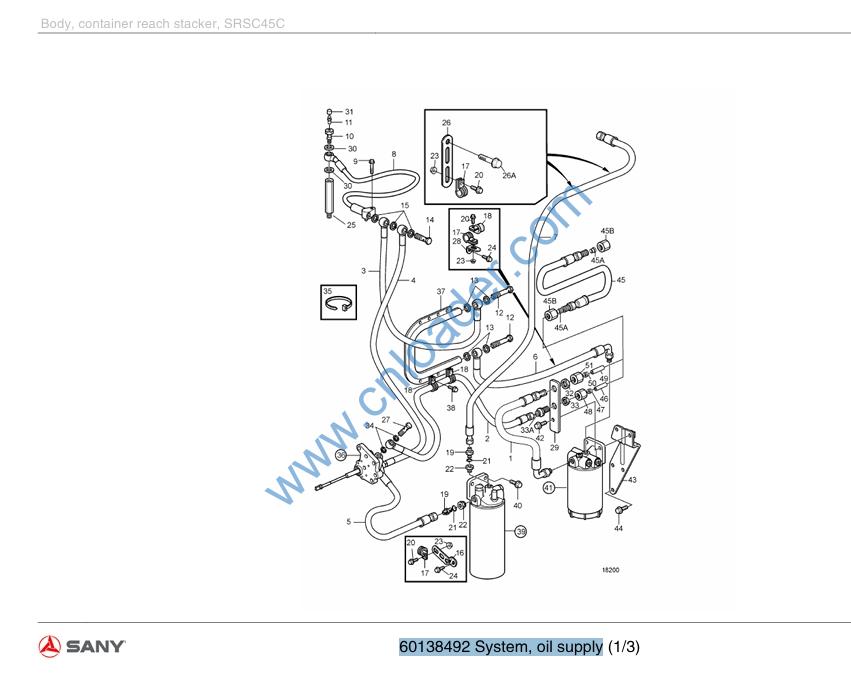

60138492 System, oil supply

1 60131491 Fuelhose,inlet 1
2 60131363 Fuelhose,return 1
3 60131977 Fuelhose,bushing 1
4 60131928 Fuelhose 1
5 60131929 Fuelhose 1
6 60131930 Fuelhose 1
7 60131931 Fuelhose 1
8 60131932 Fuelhose 1
9 60094293 Bolt,flange 1
10 60131517 Hollowscrew 1
11 60085752 Connector,valve,blow-down 1
12 60109554 Bolt, hollow 2
13 60130797 Gasket 4
14 B220401000666 Valve,oil return 1
15 60085706 Washer 3
16 60132229 Bracket 1
17 60131270 Clamp 4
18 60131269 Clamp 3
19 60092509 Joint 2
20 60084546 Screw,support,lock block 5
22 60094330 Nipple 2
23 60094382 Nut 5

24 60094286 Bolt, flange 2
25 60130913 Spacer 1
26 60132233 Bracket 2
27 60131525 Hollowscrew 1
28 60132235 Bracket 1
29 60132181 Bracket 1
31 60131279 Protectingcover 1
32 60131657 Nut 1
33 60092558 Nut 1
34 60094271 Washer 2
35 60094352 Clip 3
36 B220304000095 Pump,fuel 1
37 60138623 Radiator 1
38 60094292 Bolt,flange 8
39 60139311 Filter housing 1
40 60094289 screw 2
41 B222100000662 Filter,diesel 1
42 60094291 Bolt,flange 2
43 60140157 Bracket 1
44 60131060 Flangescrew 3
45 60132477 Fuelhose 2
46 60139877 Fuel pipe 1

49 60132088 Fuelpipe 1
50 60130080 Ferrule 1
51 60085715 Nut,joint,oil inlet pipe 1
52 60066472 Threaded stud,mud guard 2
53 60131455 Nipple 1
54 60138587 Ferrule 4
55 60092556 Nut 4

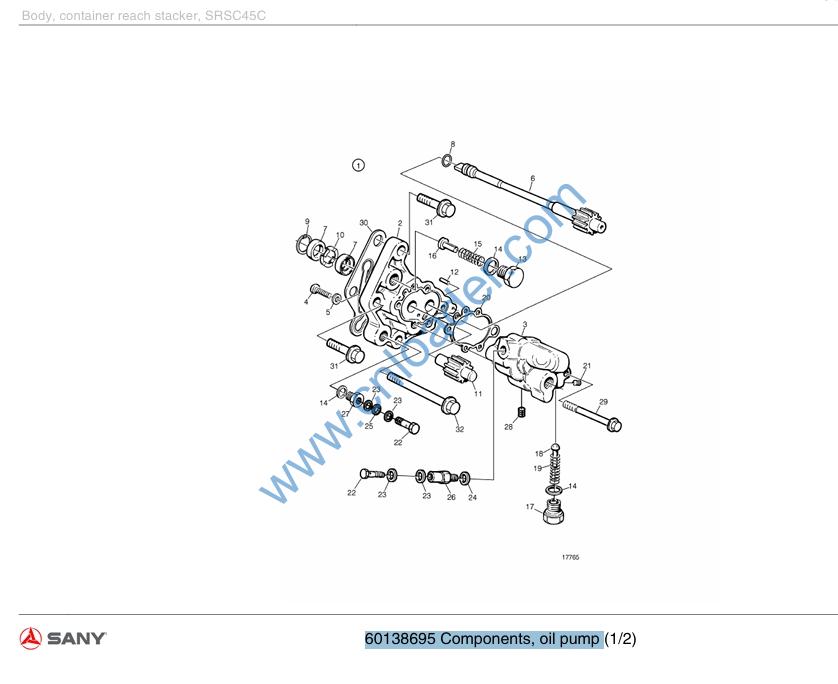

60138695 Components, oil pump

1 B220304000095 Pump,fuel 1
2 60132254 Housing 1
3 60129778 Cover 1
4 60131829 Screw 5
5 60130877 Washer 5
6 60132277 Shaft 1
7 60132455 Sealingring 2
8 60092726 O-ring 1
9 60092363 Ring,baffle 1
10 60130894 Spacerwasher 1
11 60132278 Shaft 1
12 60132021 Pin 2
13 60130955 Plug 1
14 60094273 Washer 3
15 60130638 Spring 1
16 60130285 Valve 1
17 60130982 Plug 1
18 60130289 Valvepeg 1
19 60132055 Compressionspring 1
20 60132416 Sealingring 1
21 60131840 Sealingplug 1
22 60131525 Hollowscrew 2

23 60130710 Gasket 4
24 60089106 Gasket 1
25 60130895 Spacerwasher 1
26 60095755 Valve 1
27 60130990 Plug 1
28 60131843 Sealingplug 1
29 60131056 Flangescrew 1
30 60130774 Gasket 1
31 60131068 Flangescrew 2
32 60092467 Bolt,flange 1
