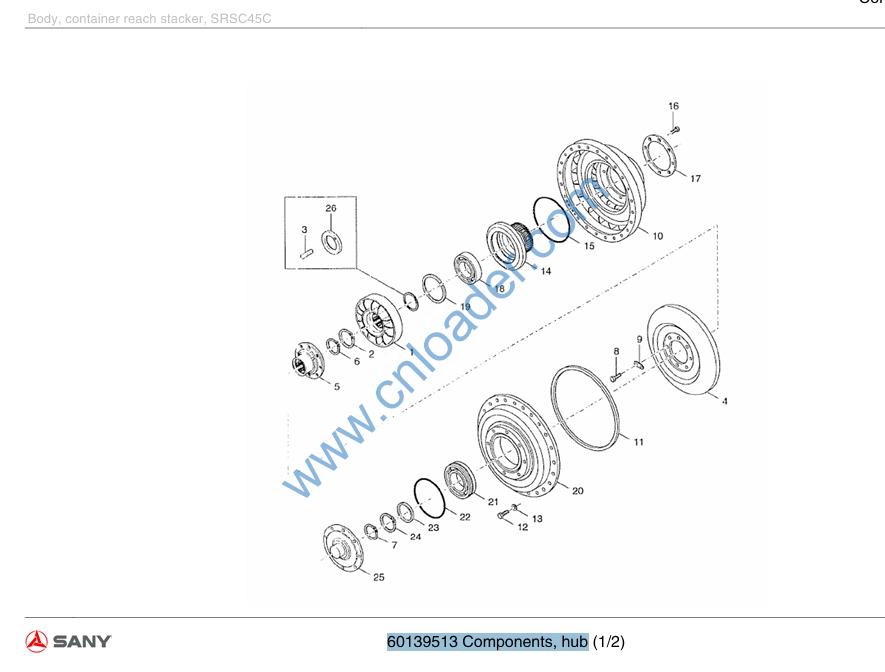

60139513 Components, hub

60139513 Components, hub

1 60099600 Wheel, guide 1
2 60099730 Ring, locating, bearing 1
3 60099602 Pin, spacer ring, guide wheel 1
4 60099510 Turbine 1
5 60099704 Hub,turbine 1
6 60099705 Ring,locating, rear, turbine hub 1
7 60099677 Ring, locating, front bearing 1
8 60099706 Screw,turbine hub 10
9 60099563 Blade,lock, screw,turbine hub 5
10 60099511 Impeller, pump 1
11 60099753 O-ring, pump impeller cover to pump impeller 1
12 60099574 Screw, pump impeller cover to pump impeller 32
13 60099700 Washer, lock 32
14 60099576 Hub, pump impeller 1
15 60099755 O-ring, hub, pump impeller 1
16 60099578 Screw, hub, pump impeller 8
17 60099579 Ring, bushing, screw, hub, pump impeller 1
18 60099533 Bearing, hub, pump impeller 1
19 60099580 Ring, clamp, bearing, hub, pump impeller 1
20 60099512 Cover, pump impeller 1
21 60099545 Bearing, turbine hub 1
22 60099754 O-ring, bearing cover, pump impeller cover 1

23 60099729 Washer, bearing 1
24 60099730 Ring, locating, bearing 1
25 60099575 Cover, bearing, pump impeller cover 1
26 60099601 Ring, spacer, guide wheel 1

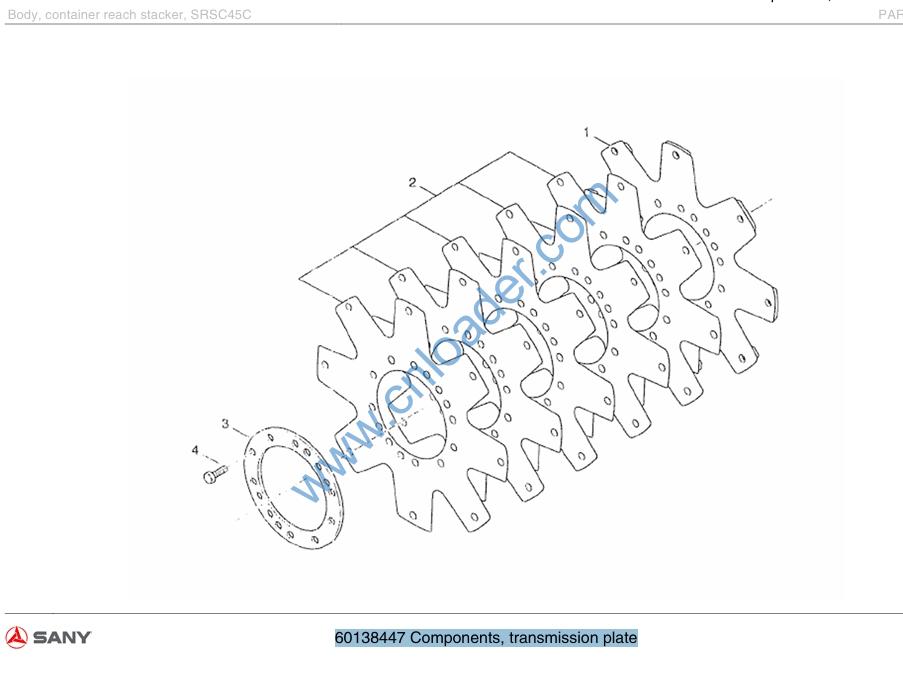

60138447 Components, transmission plate

1 B229900005481 Assembly, flexible disc 1
2 60099679 Disc, flexible 5
3 B229900005480 Disc, pressure, flexible disc 1
4 B229900005479 Screw, flat head, flexible disc 14

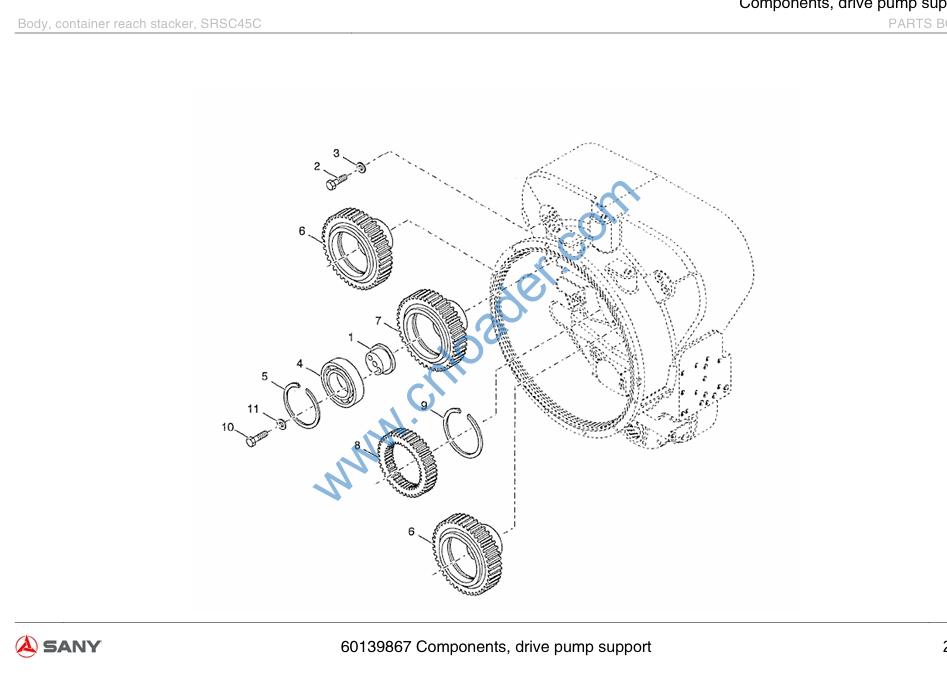

60139867 Components, drive pump support

1 60099725 Seat, bearing, driving gear, oil pump 3
2 60099673 Screw, flat head 4
3 60099668 Gasket, sealing 4
4 60099552 Bearing, driving gear, oil pump 3
5 60099724 Ring, snap, driving gear, oil pump 3
6 60099560 Gear, driven, oil pump 2
7 60099562 Gear, driving, oil pump 1
8 60099555 Gear, hub, pump impeller 1
9 60099577 Ring, snap, gear, pump impeller hub 1
10 60099740 Screw, fixing, bearing seat 2
11 60099701 Washer, lock 2

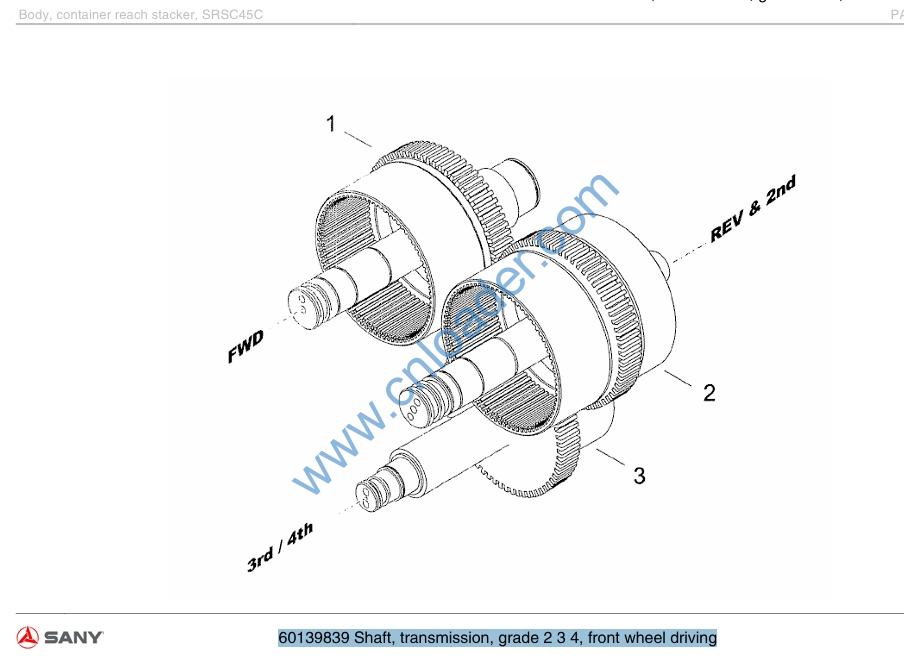

60139839 Shaft, transmission, grade 2 3 4, front wheel driving

60099566
60099564
Shaft, transmission, grade 2 3 4, front wheel driving
PARTS BOOK
Description
Assembly, clutch drum, forward gear shaft
Assembly, clutch hub, backward gear and 2nd gear shaft
Assembly, gear, high speed gear and 3rd gear shaft
60139839 Shaft, transmission, grade 2 3 4, front wheel driving
Qty.
1
1
1

60099631
