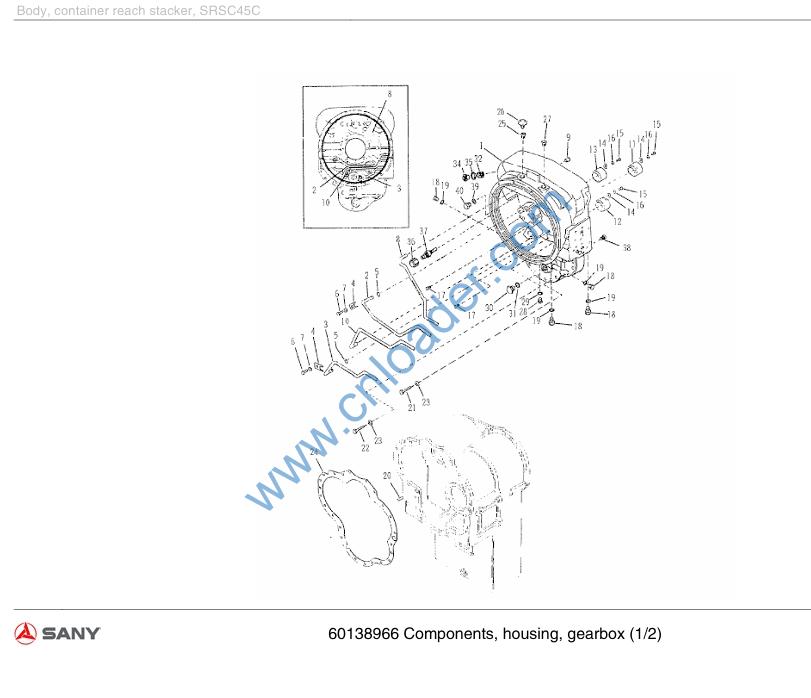

60138966 Components, housing, gearbox

60138966 Components, housing, gearbox

1 60099583 Body, shell, torque converter 1
2 60099675 Pipe, oil, forward gear 1
3 60099692 Pipe, oil, 4th gear 1
4 60099728 Clamp, fixing, oil pipe 3
5 60099742 O-ring 3
6 60099632 Screw,fixed 3
7 60099698 Washer, lock 3
8 60099645 Pipe, oil supply, control valve 1
9 60099727 Bush, oil pipe 1
10 60099683 Pipe, oil, 3rd gear 1
11 60099584 Tube, sleeve, shell body, torque converter, backward gear and 1
12 60099586 Tube, sleeve, shell body, torque converter, 4th gear shaft 1
13 60099585 Tube, sleeve, shell body, torque converter, forward gear 3
14 60099607 Washer 3
15 60099632 Screw,fixed 3
16 60099698 Washer, lock 3
17 60099508 Plug 5
18 60099780 Plug, hole, checking 5
19 60099750 O-ring 5
20 60099617 Pin, positioning 2
21 60099587 Screw, fixing, torque converter shell body to gearbox shell body 14
22 60099635 Screw, fixing, rear cover 9

23 60099700 Washer, lock 23
24 60099588 Pad, sealing, torque converter shell body to gearbox shell body 1
25 60121044 Sleeve, shaft 1
26 60099702 Breather 1
27 60099497 Plug, oil filler 1
28 60099680 Plug, oil return, lubrication oil 1
29 60099752 O-ring 1
30 60099492 Plug,cover 1
31 60099630 Pad, sealing, cover plug 1
32 60099695 Bushing, speed sensor 1
33 60099589 Gasket, thin 1
34 60099666 Plug, screw 1
35 60099743 O-ring 1
40 60099571 Pin, mounting 1

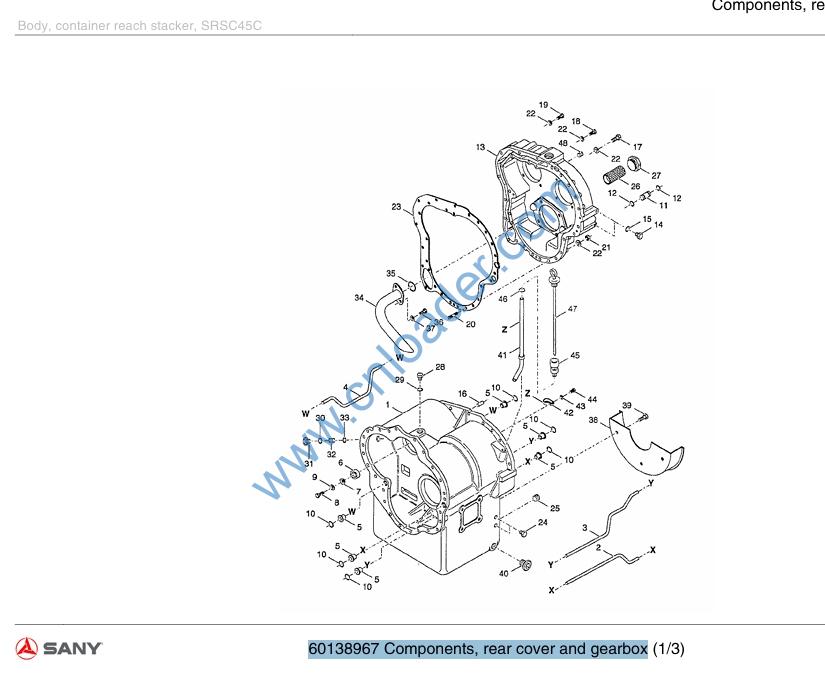

60138967 Components, rear cover and gearbox

1 B229900002896 Body, shell 1
2 60099717 Pipe, oil, 1st gear clutch 1
3 60099722 Pipe, lubrication oil pipe, rear bearing, 1st gear shaft 1
4 60099682 Pipe, oil, 3rd gear 1
5 60099727 Bush, oil pipe 6
6 60099697 Bushing, lock 1
7 60099607 Washer 1
8 60099632 Screw,fixed 1
9 60099698 Washer, lock 1
10 60099744 O-ring 6
11 60099779 Pipe, transmission, 1st gear clutch oil pipe and lubrication oil 2
12 60099747 O-ring 4
13 60099634 Cover, rear 1
14 60099571 Pin, mounting 2
15 60099751 O-ring 2
16 60099617 Pin, positioning 2
17 60099637 Screw, fixing, rear cover 16
18 60099636 Screw, fixing, rear cover 5
19 60099635 Screw, fixing, rear cover 3
20 60121041 Stud 4
21 60099640 Nut, stud, rear cover to shell body 4
22 60099700 Washer, lock 28

23 60099638 Pad, sealing, rear cover to shell body 1
24 60099781 Plug, checking hole, oil level 2
25 60099669 Plug, oil drainage 1
26 60099660 Assembly, filter screen 1
27 60099661 Plug, assembly, filter screen 1
28 60099571 Pin, mounting 2
29 60099751 O-ring 2
30 60099743 O-ring 1
31 60099666 Plug, screw 1
32 60099695 Bushing, speed sensor 1
33 60099589 Gasket, thin 1
34 60099777 Assembly,air intake pipe 1
35 60099745 O-ring 1
36 60099662 Screw 2
37 60099699 Washer, lock 2
38 60099597 Baffle 1
39 60099598 Screw, retainer plate 3
40 60099726 Plug, dipstick hole 1
41 60099501 Pipe, dipstick 1
42 60099659 Clamp, dipstick pipe 1
43 60099699 Washer, lock 2
44 60099662 Screw 2

45 60099502 Plug, dipstick 1
46 60099752 O-ring 1

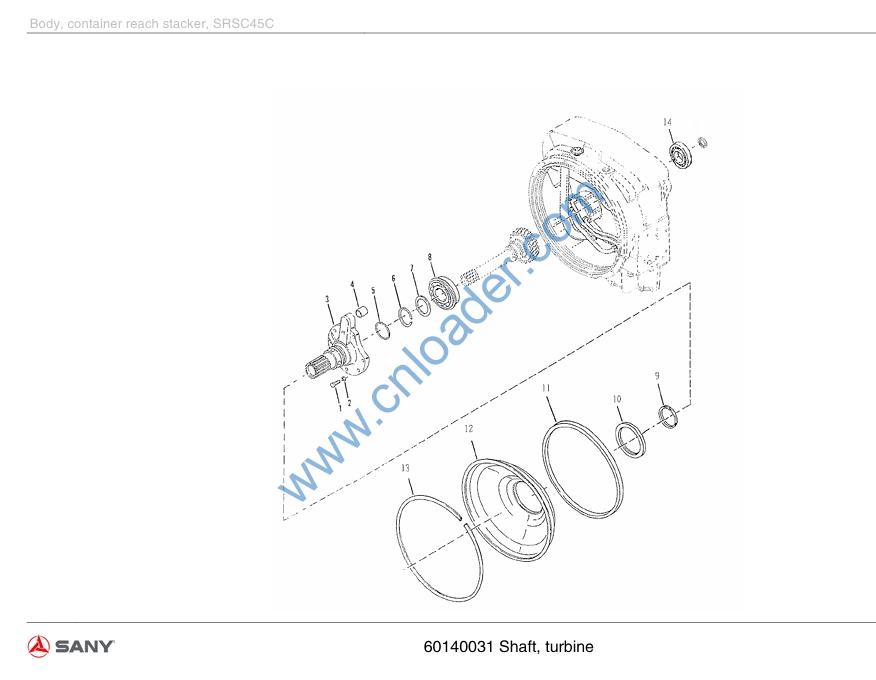

60140031 Shaft, turbine

1 60099603 Screw, guide wheel seat 7
2 60099701 Washer, lock 7
3 60099604 Assembly, guide wheel seat 1
4 60099582 Pipe, oil intake, torque converter 1
5 60099773 Seal,oil, turbine shaft 1
6 60099730 Ring, locating, bearing 1
7 60099729 Washer, bearing 1
8 60121019 Bearing 1
9 60099760 Seal, oil, guide wheel seat 1
10 60099759 Seal, oil, oil retainer disc 1
11 60099758 Ring, sealing, oil retainer disc 1
12 60099490 Disc, oil retainer 1
13 60099599 Ring, clamp, oil retainer disc 1
14 60099546 Bearing,rear, turbine shaft 1

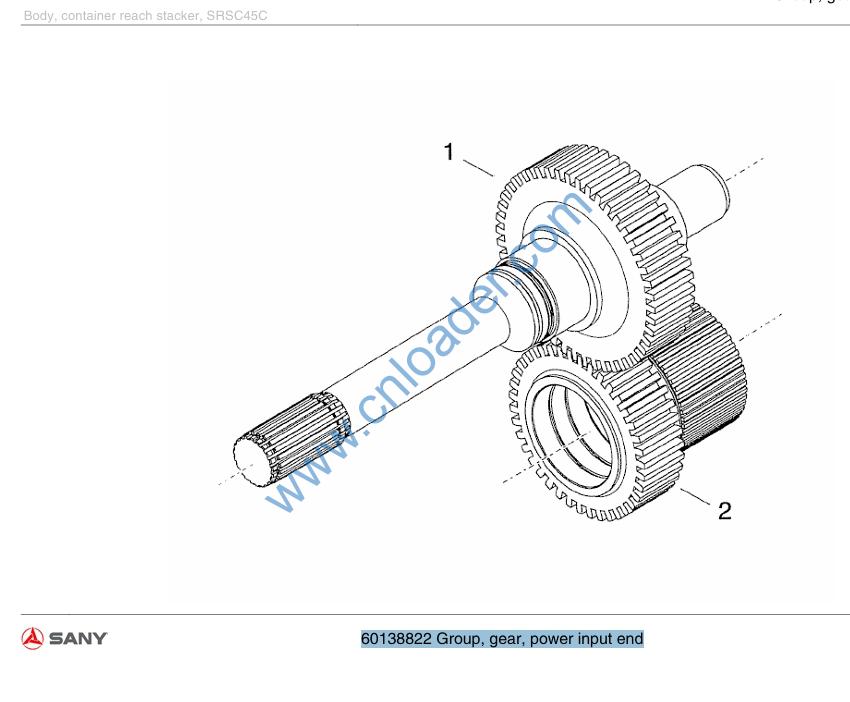

60138822 Group, gear, power input end

1 60099707 Shaft,turbine 1
2 60099561 Gear, driving, oil pump 2
