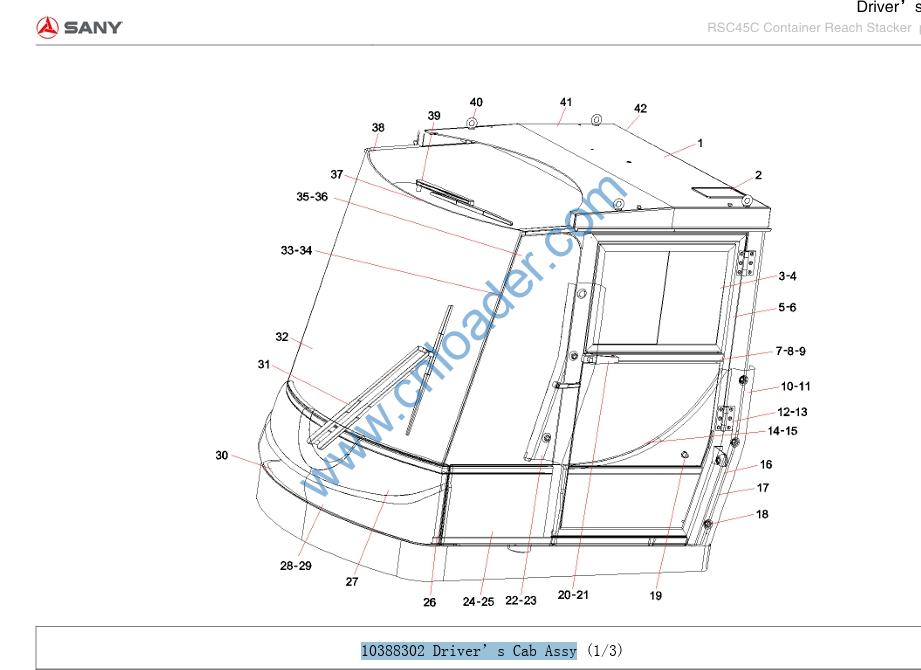

10388302 Driver’s Cab Assy

10388302 Driver’s Cab Assy

1 10185043 Cab preassemble of reach stacker 1
2 10231877 “Cap, overhaul,RSC45MⅡ.1-18” 1
3 10260234 Horizontal sliding window 1
4 10260237 Horizontal sliding window 1
5 10134881 Right door rubber strip 1
6 10134884 Left door rubber strip 1
7 A210111000029 Bolt 2
8 A210405000011 Plain washer 4
9 A210336000002 Nut 2
10 10073345 Outer covering parts -7RSC45MⅡ.10-7 1
11 10073360 Outer covering parts -1RSC45MⅡ.10-1 1
12 10907668 Door switch installation plate 2
13 A210210000006 Screw 4
14 10211575 Left door lower glass 1
15 10211578 Lower glass of right door 1
16 60014126 Acoustic complex material 4
17 10211580 Rear Window Glass 1
18 A210211000010 Screw 8
19 60014124 Fixed Pintle 15
20 A222200000009 Door lock (left) 1
21 A230199000010 Door handhold 2
22 10073347 Outer covering parts -6RSC45MⅡ.10-6 1

23 10073359 Outer covering parts -2RSC45MⅡ.10-2 1
24 10133435 Right-hand cover plate 1
25 10133434 Left-hand cover plate 1
26 10073348 Outer covering parts -5RSC45MⅡ.10-5 1
27 10902844 Washer 1
28 10073350 Outer covering parts -4RSC45MⅡ.10-4 1
29 10073358 Outer covering parts -3RSC45MⅡ.10-3 1
30 A229900007320 visor JL-Z1385×600 homemade cloth 1
31 A229900003376 Front Window Wiper 1
32 10211530 Front Window Glass 1
33 A429900000187 Exclusive bottom agent for cementing gla 1
34 A420300000087 Polyurethane Adhesive Agent 10
35 10211567 Left Side Window Glass 1
36 10211596 Right Side Window Glass 1
37 A230300000114 Inner rear view mirror HSJ151 1
38 10211574 transom window 1
39 A229900006776 Sky-light window wiper DCO-45 1
40 A210491000001 Screw 4
41 A290000000354 Gas Spring 2
42 A229900002144 Rear window screen wiper 1

43 A241100000498 Auman roof lamp SH297 2
44 10572423 Top decorative parts 1
45 10227673 Trimmings of back board 1
46 10231843 Decorative part of right door 1
47 10231625 Left door decorating part 1
48 60014125 Thermal insulation sponge 3
49 11040455 Implement control seat 1
50 10970285 Display mounting plate 1
51 A210299000037 tapping bolt 4
52 60014123 Floor leather 3
53 10073368 Instrument panel assembly 1
54 11081454 Panel 1
55 11157309 Cover Plate 1
56 59001329 “Fire extinguisher, dry-powder, ABC ” 2
57 59001251 Bracket, fire extinguisher, 1 kilogram 2
58 A229900005559 hat-and-coat hook SH(black) 2
