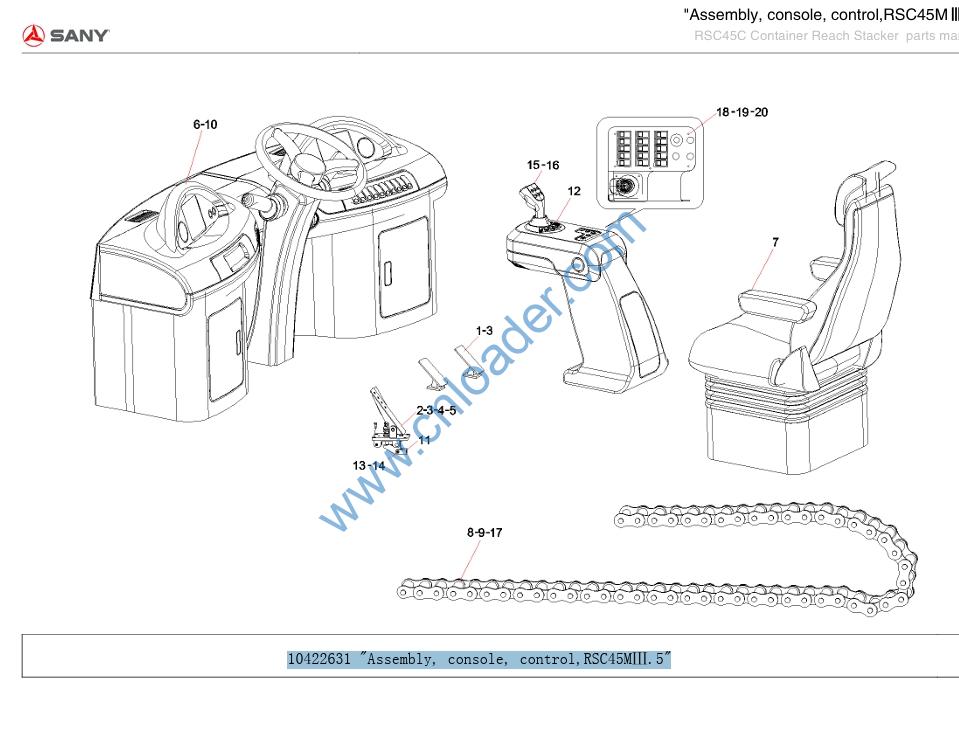

10422631 “Assembly, console, control,RSC45MⅢ.5”

10422631 “Assembly, console, control,RSC45MⅢ.5”

1 B229900001282 Accelerator pedal 1
2 10254333 Refashioned pedal 1
3 A210111000091 Bolt 8
4 A210405000007 Plain washer 16
5 A210401000017 Spring washer 16
6 B229900002282 Steering control assembly 1
7 60039729 Mechanical Suspension Driver seat 1
8 B229900003089 Drag-chain 2
9 B229900002838 Drag-chain connector 4
10 A210204000147 Screw 8
11 A820199003254 Connection fork 1
12 11076756 “Supporting,electric handle,RSC45C5.5.1” 1
13 A210508000001 Pin shaft 1
14 A210507000014 Pin 1
15 A230199000024 Adjustable set handle M16×63 B model 2
16 A210404000008 Washer 2
17 A210111000090 Bolt 4
18 A210111000070 Bolt 6
19 A210405000005 Plain washer 6
20 A210401000015 Spring washer 6

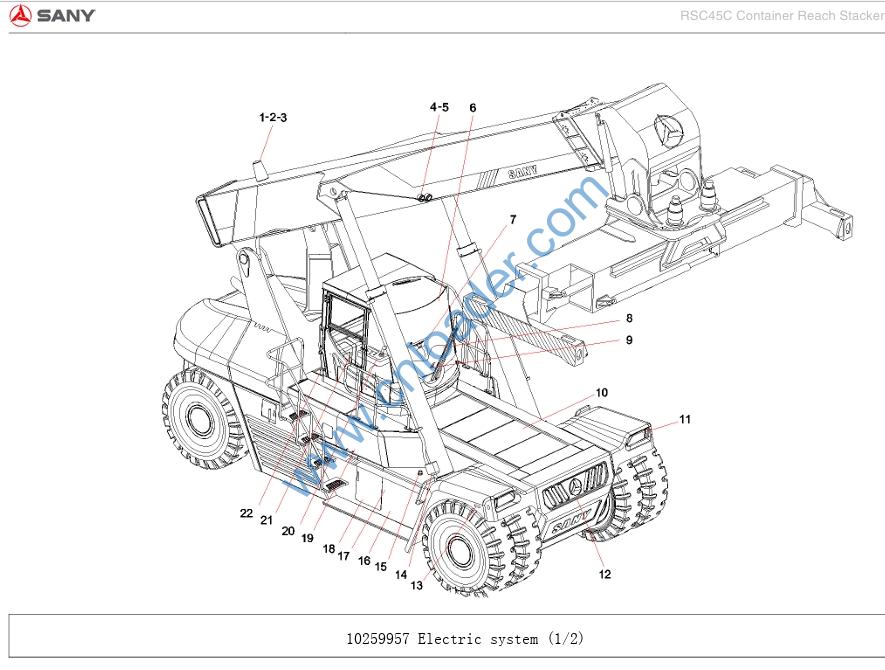

10259957 Electric system

1 60013779 “Lamp, alarm, LED, FB04150003” 1
2 A229900010725 Alarm light support 1
3 B241100000421 Working Lamp 4
4 B241100000047 Bulb 4
5 60006476 Horn 1
6 A810201055622 Steering gear display control panel asse 1
7 A810201055623 Front operation display panel assembly 1
8 B241200001083 Foot switch 1
9 B240600000249 Pressure Sensor 1
10 A241100000353 Front headlight assembly T850 2
11 B249900000090 Horn 1
12 A241100000555 LED Side indication light 43-4210 4
13 B240600000248 Pressure Sensor 4
14 60000468 Fuel Sensor 1
15 B240600000172 Temperature Sensor 1
16 B241200000614 Battery switch 1
17 60018857 Battery12V-180AH(free of maintenance) 2
18 A810201052817 Terminal case assembly 1
19 A810201055624 Right operation panel assembly 1
20 A810201052818 Control box assembly 1
21 A810201058728 Inner connecting harness of cab 1
22 60006479 Radio Antenna Assy 1

23 B240600000272 Length and angle sensor 1
24 B241100000208 Head lamp 2
25 B241100000122 Bulb 2
26 A241100000414 Right rear combinated lamp 1
27 B241200000884 Proximity Switch 1
28 A241100000413 Left rear combinated lamp 1
29 60005770 Video reversing radar 1
30 B240500000007 Backup warner 1
31 A810201058729 Outer connecting harness of cab 1
32 B240600000031 Temperature Sensor 2
33 A810201055737 Truck body cable support assembly drawin 1
34 A820101010676 One-way pipe clamp 3
