Body,container reach stacker, SRSC45H1 T





Item No.

Part No.

Description

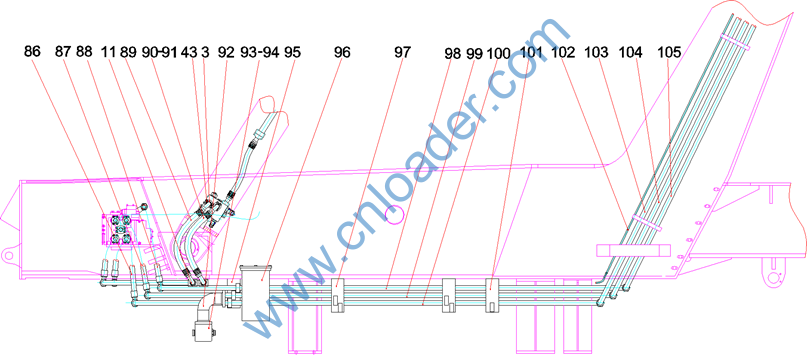

3

B230101000215

O-ring

11

B210780001241

Fitting, Elbow

43

A210204000354

Screw

86

B230103006397

Rubber hose

87

21022127

Rubber hose

88

B230103006331

Rubber hose

89

B230103004971

Hose, rubber

90

B230103007449

Hose, rubber

91

B210780000244

Flange, Split

92

13123175

Tube, bending, oil return

93

A810299000203

Group, back pressure valve

94

A210609000088

O-ring

95

10422781

Support, telescopic steel pipe

96

60193266

Element, Filter

97

13558909

Support, radiator pipe

98

14206602

Steel tube asemmbly

99

14206869

Steel tube asemmbly

100

14206987

Steel tube asemmbly

101

13581333

Support, extension pipe

102

14131239

Steel tube asemmbly

103

14036558

Tube assembly

104

14036517

Tube assembly


























Item No.

Part No.

Description

105

14036465

Tube assembly






















Item No.

Part No.

Description

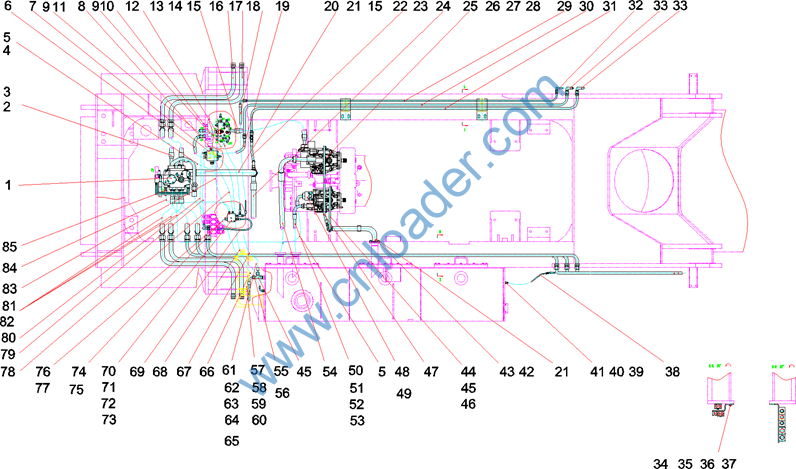

1

10409053

Diagram, assemblying, components, main valve

2

21029612

Hose, rubber

3

B230101000215

O-ring

4

21030917

Hose, rubber

5

B230101000091

O-ring

6

B230103007393

Hose, rubber

7

A819700001390

Body, multi-channel, spreader

8

B210780000015

Fitting, Tee

9

60156200

Hose, rubber

10

B230103000469

Hose, rubber

11

B210780001241

Fitting, Elbow

12

12728265

Hose, rubber

13

B230103008169

Rubber tube

14

B210780000006

Split Flange

15

A210204000462

Bolt

16

14226708

Steel tube asemmbly

17

14226810

Steel tube asemmbly

18

B230103006773

Hose, rubber

19

B230103000960

Hose, rubber

20

A810399000718

Pipe, oil-return, main valve

21

B230101000348

O-ring

22

B230103000166

Hose, rubber






















Item No.

Part No.

Description

23

21051021

Swivel Elbow Connector-L

24

A831A13120000

Hose, rubber

25

B220301000240

Group, pump, double

26

B210780001749

Connector, pressure measuring

27

A229900005971

Bolt

28

24001381

Fitting, Adapter

29

14158954

Steel tube asemmbly

30

14158005

Steel tube asemmbly

31

14158010

Steel tube asemmbly

32

14159174

Steel tube asemmbly

33

14159096

Steel tube asemmbly

34

10410182

Support, steel pipe, spreader

35

A210111000366

Bolt M16×25GB5783 Grade 10.9

36

A210401000004

Washer

37

A210405000003

Washer

38

B230103005084

Hose, rubber

39

B210780000683

Fitting, Adapter

40

B210780000089

Choke plug

41

B210334000012

Nut-M15

42

A810399000566

Pipe, steel

43

A210204000354

Screw

44

B230103001377

Hose, rubber






















Item No.

Part No.

Description

45

B210780000018

Fitting, Tee

46

A230200000489

Sleeve, protective, plastic (arc)

47

B230103001595

Hose, rubber

48

B220301000262

Pump, plunger

49

A819700001385

Body, seat, check valve

50

60343765

Hose, rubber

51

B230101002072

O-ring

52

60024155

Split Flange

53

A210204000338

Screw

54

60240433

Hose, rubber

55

61014896

Rubber hose

56

B210780000028

Fitting, Elbow

57

13123178

Pipe, steel, oil return, main

58

60165345

Body, pipe clamp

59

12872331

Board, supporting, pipeline, oil-return

60

13390268

Support, steel pipe, oil returm

62

A210401000002

Washer

63

A210404000004

Washer

64

A210111000053

Bolt

65

A210307000040

Nut

66

B230103000104

Hose, rubber

67

B230103000803

Hose, rubber






















Item No.

Part No.

Description

68

B230103002500

Hose, rubber

69

B230103000483

Hose, rubber

70

A810399000723

Body, multi-ported, oil-draining

71

A210204000153

Screw

72

A210405000007

Washer

73

A210401000017

Washer

74

B210780000016

Fitting, Tee

75

B210780000024

Fitting, Elbow

76

B210780001246

Fitting, Adapter

77

B210780000017

Fitting, Tee

78

B230103000481

Hose, rubber

79

B230103000467

Hose, rubber

80

B230103008200

Hose, rubber

81

60268669

Hose, rubber

82

60343772

Hose, rubber

83

B230103001669

Hose, rubber

84

B230103000465

Hose, rubber

85

B210780000636

Fitting, Elbow




















Item No.

Part No.

Description

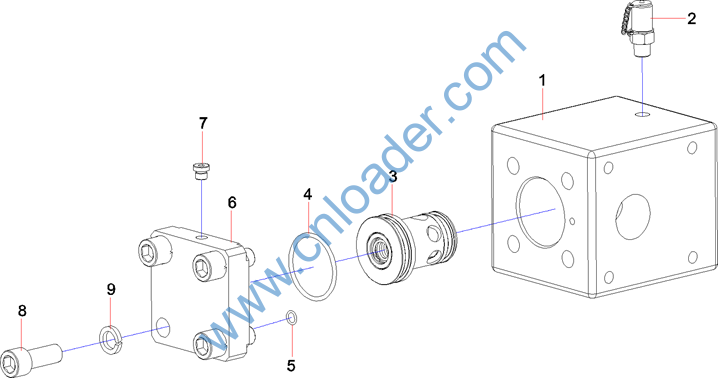

1

A820199003187

Block, back pressure valve

2

B210770000084

Connector, pressure measuring

3

B220400000033

Valve, cartridge

4

A210609000199

O-ring

5

A210609000085

O-ring

6

10675203

Plate, cover, standard

7

B210399000003

Plug

8

A210204000165

Screw M16×40GB70.1

9

A210401000004

Washer
























Item No.

Part No.

Description

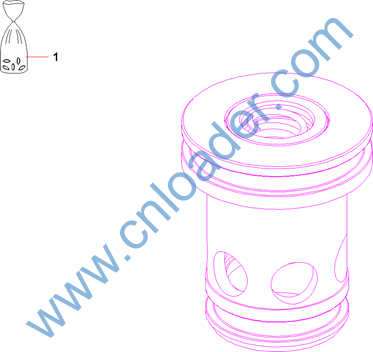

1

60222334

Package, repair kit, seal
