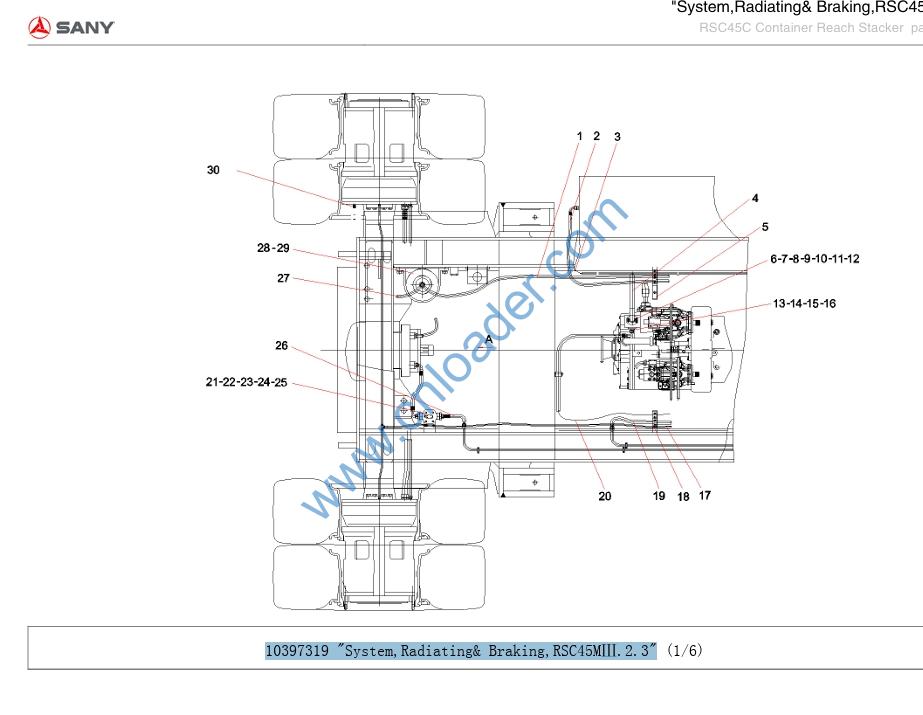

10397319 “System,Radiating& Braking,RSC45MⅢ.2.3”

10397319 “System,Radiating& Braking,RSC45MⅢ.2.3”

1 B230103003338 Rubber Hose 1
2 B230103008137 Rubber hose 1
3 B230103005168 Rubber Hose 1
4 60030416 Rubber Hose 1
5 10263816 Board,trailing chain hose,right,RSC45.2. 1
6 A820199003370 Oil suction flange 1
7 A210204000162 Screw 4
8 A820199003371 Transitional block 1
9 A210609000185 O-ring 2
10 B210780000244 Split flange 2
11 A210609000045 O-ring 1
12 A210204000354 Screw 4
13 A820203002556 Flange 1
14 B230101000482 O-ring 1
15 A210204000162 Screw 4
16 B210780000316 Pipe joint 2
17 B230103003394 Rubber Hose 1
18 10263822 Board,trailing chain hose,left 1
19 23001224 Hydraulic rubber hose 1
20 B230103005525 Rubber Hose 1
21 A222100000281 Oil Return Filter 1
22 A210111000090 Bolt 4

23 A210401000017 Spring washer 6
24 A820501004250 Joint-body 2
25 A210434000018 Washer 2
26 B230103002039 hose 1
27 B230103005168 Rubber Hose 1
28 10266030 Assembly, partial, accumulator 1
29 B210780000016 Pipe joint 3
30 B210770000084 Pressure measuring joint 1

31 10743910 “Tube,steel,RSC45.2.1.46” 1
32 A819700001629 Cooling switching valve group 2
33 A210204000149 Screw 4
34 B230103004374 Rubber Hose 2
35 B230103002376 Rubber Hose 1
36 B230103002504 Rubber hose 1
37 B230103002504 Rubber hose 1
38 21021927 Rubber Hose 1
39 B230103000383 Rubber hose 1
40 B210780001310 Pipe joint 2
41 A832613120000 Rubber Hose 2SN16-DKOL-DKOL90-1200 1
42 B230103000396 Rubber hose 1
43 A810299000247 Steel tube 1
44 A810299000246 Steel tube 1

45 B230103005271 Rubber Hose 1
46 B210780001310 Pipe joint 5
47 B229900001996 Air cooler 1
48 A210204000147 Screw 6
49 A210401000017 Spring washer 4
50 B210780000184 Pipe joint 2
51 B230103001528 Rubber hose 1
52 B230103000466 Rubber hose 1
53 B210780000636 Pipe joint 1
54 B210780001048 Pipe joint 1
55 A810201062430 Assembly, slide block, upper,RSC45.10.14 1
56 A210111000089 Bolt 2
57 B230103005873 Rubber Hose 1
58 B210780000024 Pipe joint 4
59 B230103006977 Rubber Hose 1
60 B230103005281 Rubber Hose 1
61 B230103008138 Rubber hose 1
62 B210780000228 Pipe joint 1
63 B210780000131 Pipe joint 1
64 A820199002902 Oil collection block 1
65 A210111000089 Bolt 4
66 A210401000017 Spring washer 4

67 A820101320053 Mounting plate 1
68 A210209000005 Screw 2
69 B220400000106 One-Way Valve 1
70 B210780000040 Pipe joint 1
71 B210780000054 Pipe joint 2
72 B210780000712 Pipe joint 2
73 B230103002330 Rubber hose 1
74 60008114 “Hose,2SN32-DKOL-DKOL90-1600Q/SY1102” 1
75 A810299000245 Steel tube 1
76 B210780000054 Pipe joint 3
77 A810299000244 Steel tube 1
78 B210780000712 Pipe joint 2
79 A810399000553 Steel tube 1
80 B210780000036 Pipe joint 2
81 B210780000015 Pipe joint 2
82 A810312990132 Steel tube 1

83 B220401000265 Brake valve 1
84 A210204000154 Screw 3
85 B210780000037 Pipe joint 4
86 B210780001026 Pipe joint 1
87 B210780000316 Pipe joint 1
88 B210399000002 Screw plug 1
89 10397015 Assembly,radiating device,RSC45MⅢ.2.3.3 2
90 B230103002915 Rubber Hose 1
91 B230103002530 Rubber Hose 1
92 B230103006522 Rubber Hose 1
93 B210399000003 Screw plug 1
