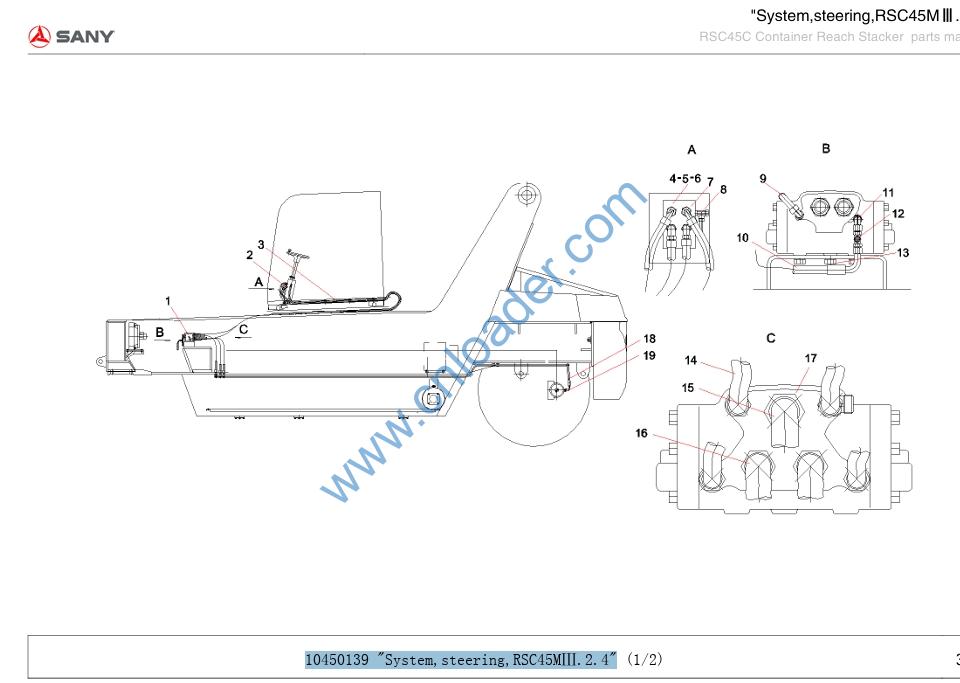

10450139 “System,steering,RSC45MⅢ.2.4”

10450139 “System,steering,RSC45MⅢ.2.4”

1 A810201062404 Flow amplifier assembly 1
2 B210780000179 Pipe joint 4
3 A239900000066 Nylon belting 80
4 A210204000181 Screw 4
5 A210401000001 Spring washer 7
6 A210405000011 Plain washer 4
7 B229900001281 Steering device 1
8 B210780000733 Pipe joint 1
9 B230103004781 Rubber Hose 1
10 B230103008139 Rubber hose 1
11 B210780000636 Pipe joint 2
12 B210780000015 Pipe joint 1
13 A210111000197 Bolt 3
14 B230103005878 Rubber Hose 4
15 B230103002447 Rubber Hose 1
16 B230103005357 Rubber Hose 2
17 A210434000013 Washer 2
18 B210780000049 Pipe joint 2
19 B230103000960 Rubber hose 2

20 A230200000350 Plastic protective sleeve 40
21 A230200000490 Plastic protective sleeve 60
22 A230200000489 Plastic protective sleeve 70
23 A810201022541 Steel tube 1
24 A810312019052 Steel tube 1
25 A810312019053 Steel tube 1
26 A810312019054 Steel tube 1
27 A810299000235 Steel tube 1
28 A810299000236 Steel tube 1

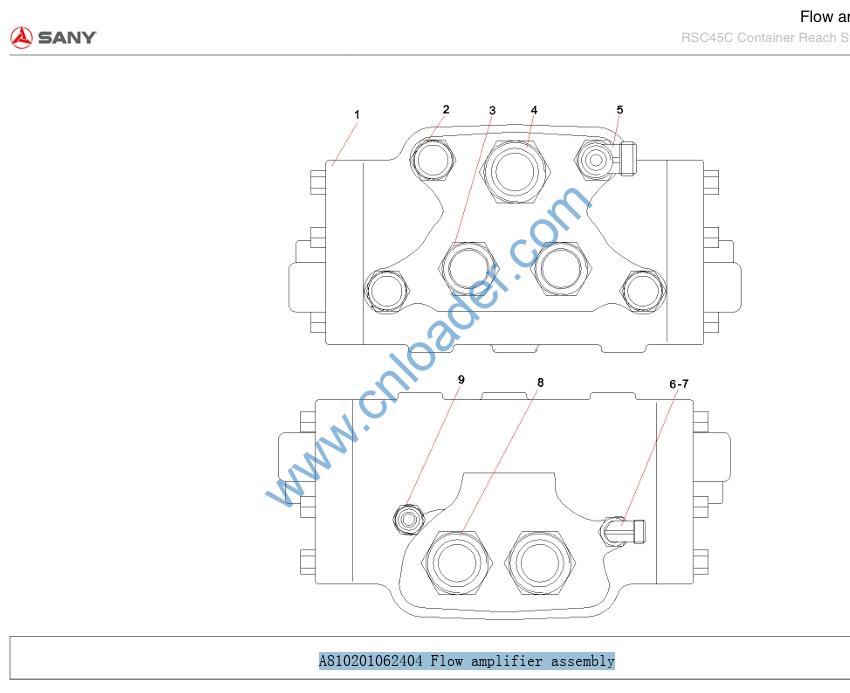

A810201062404 Flow amplifier assembly

1 B229900001280 Flow amplifier 1
2 B210780000179 Pipe joint 4
3 B210780000421 Pipe joint 2
4 B210780000626 Pipe joint 1
5 B210780000016 Pipe joint 1
6 B210780000024 Pipe joint 1
7 B210780000847 Pipe joint 1
8 A820205001729 Joint-body 2
9 B210780000733 Pipe joint 1
