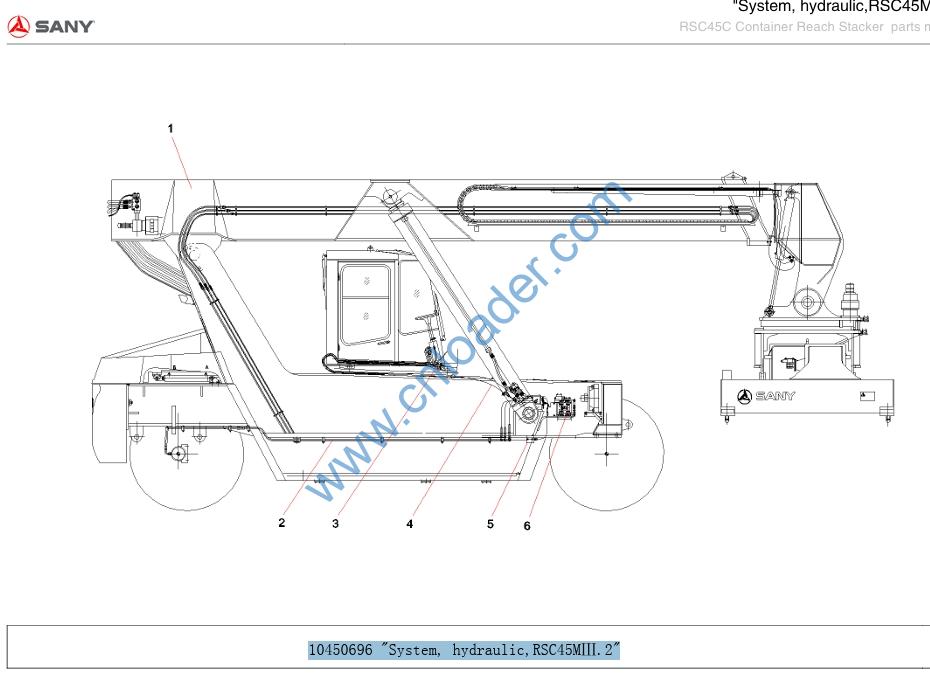

10450696 “System, hydraulic,RSC45MⅢ.2”

10450696 “System, hydraulic,RSC45MⅢ.2”

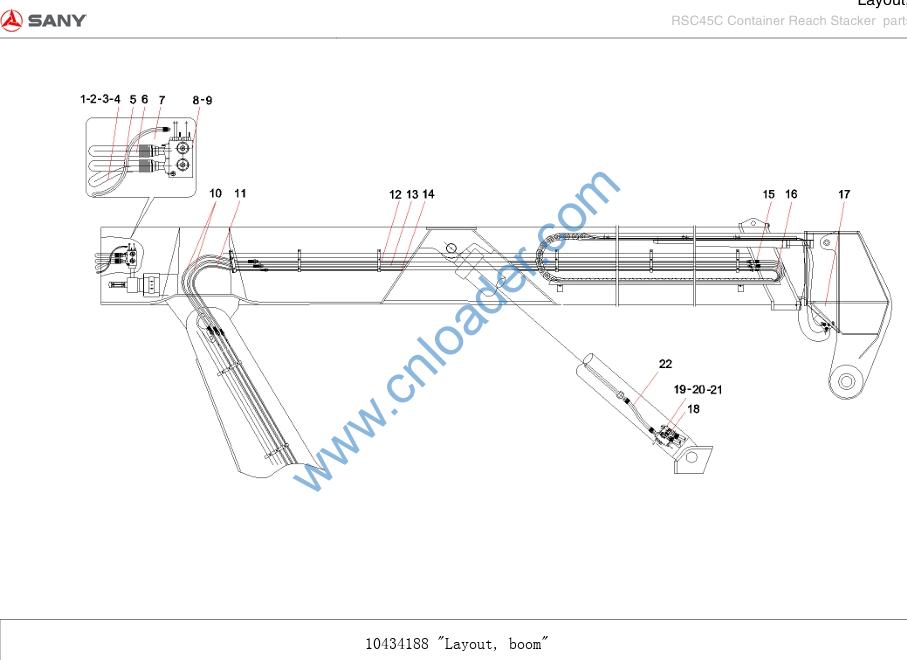

1 10434188 “Layout, boom” 1
2 10450139 “System,steering,RSC45MⅢ.2.4” 1
3 10397319 “System,Radiating& Braking,RSC45MⅢ.2.3” 1
4 10432886 “Layout, moveable,RSC45MⅢ.2.5” 1
5 10427001 “System,control,RSC45MⅢ.2.6” 1
6 10450647 “Layout, frame, pipeline,RSC45MⅢ.2.1” 1

1 B230103004966 Rubber Hose 1
2 A210204000354 Screw 28
3 B210780000244 Split flange 14
4 B230101000215 O-ring 7
5 B230103004967 Rubber Hose 1
6 B230103004968 Rubber Hose 1
7 B230103003409 Rubber Hose 1
8 A810299000205 Telescopic cylinder valve body 1
9 A210204000337 Screw 8
10 B230103005881 Rubber Hose 2
11 B230103002747 Rubber Hose 1
12 A810312990137 Steel tube assembly 1
13 A810312019055 Steel tube assembly 1
14 A810312019056 Steel tube assembly 1
15 B230103004767 Rubber Hose 2
16 B230103004768 Rubber Hose 1
17 A810201060300 Antiswing hydraulic system 1
18 A810201062373 Right valve block of pitching cylinder 1
19 A210204000025 Screw 8
20 A210609000121 O-ring 2
21 A810201062372 Left valve block of pitching cylinder 1
22 60016784 “Hose,4SH25-SFL-950Q/SY1102” 2

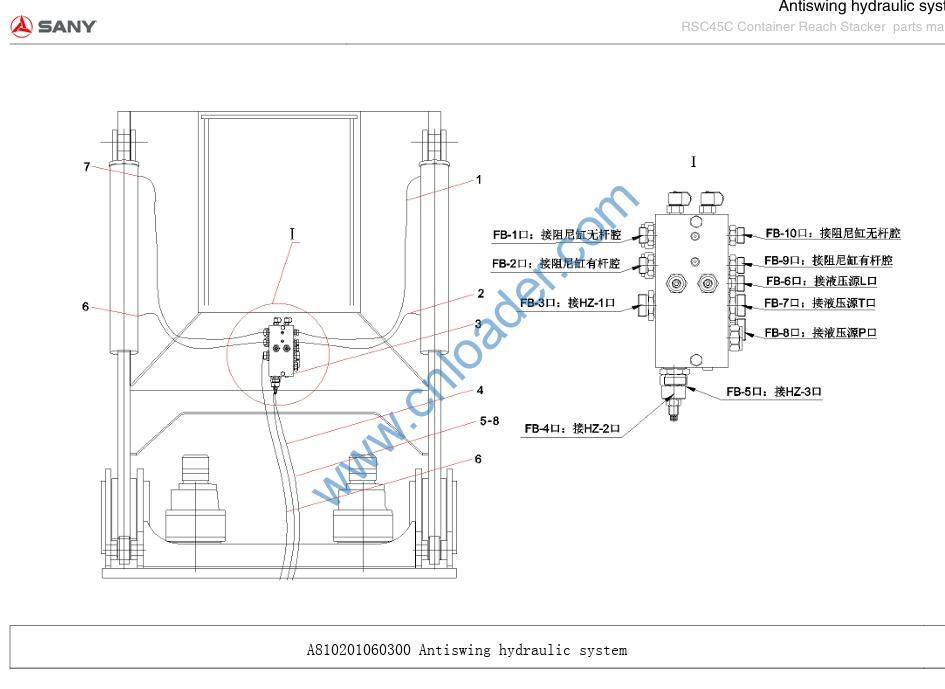

A810201060300 Antiswing hydraulic system

1 B230103000335 Rubber Hose 2SN12-DKOL-1200 2
2 A832511054000 Rubber hose 2SN12-DKOL-540 2
3 A810201062339 Antiswing valve group 1
4 B230103005623 Rubber Hose 2
5 B230103000098 Rubber Hose 2SN12-DKOL-800 1
6 B210780000042 Pipe joint 5
7 B210780000025 Pipe joint 2
8 B210780000421 Pipe joint 2

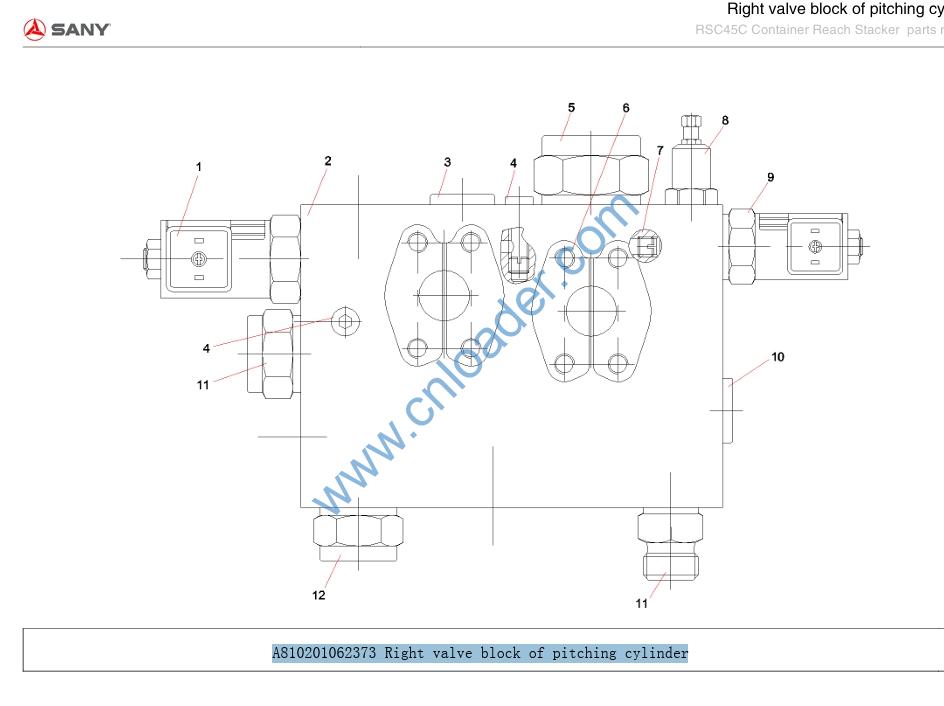

A810201062373 Right valve block of pitching cylinder

1 B220401000542 Electromagnetic Steering Valve 1
2 A829900002298 Right valve body 1
3 B210780000799 Screw plug 1
4 B210399000003 Screw plug 4
5 B220401000544 Logic valve 1
6 A820301017328 Damping hole 1
7 10477764 “Hole,damping,RSC45.2.2.8-3” 1
8 B220402000035 One-way overflow valve 1
9 B220401000541 Electromagnetic Steering Valve 1
10 B210780000896 Screw plug 1
11 B210780000899 Pipe joint 1
12 B220401000540 Check valve 2

1 B220401000541 Electromagnetic Steering Valve 1
2 A829900002297 Left valve body 1
3 B220402000035 One-way overflow valve 1
4 B210399000003 Screw plug 3
5 10477764 “Hole,damping,RSC45.2.2.8-3” 1
6 B220401000544 Logic valve 1
7 A820301017328 Damping hole 1
8 B210780000799 Screw plug 1
9 B220401000542 Electromagnetic Steering Valve 1
10 B220401000540 Check valve 2
11 B210780000899 Pipe joint 1
12 B210780000896 Screw plug 1
