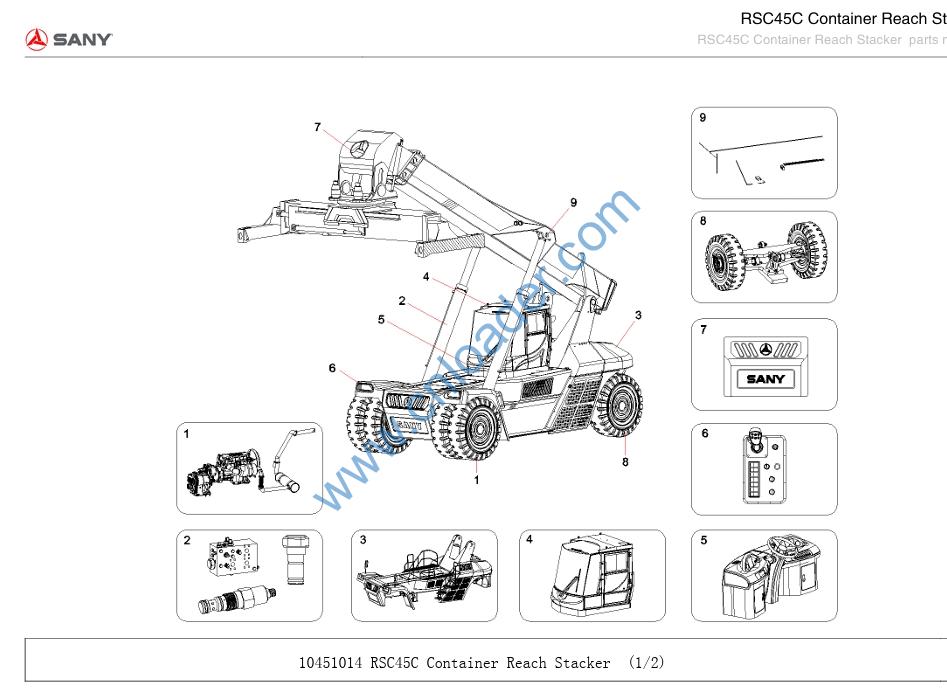

10451014 RSC45C Container Reach Stacker

10451014 RSC45C Container Reach Stacker

1 10440611 “System,power,RSC45Ⅲ.1” 1
2 10450696 “System, hydraulic,RSC45MⅢ.2” 1
3 10441205 Carriage assembly 1
4 10388302 Driver’s Cab Assy 1
5 10422631 “Assembly, console, control,RSC45MⅢ.5” 1
6 10259957 Electric system 1
7 10117173 Nameplate assembly 1
8 10424819 “Axle,steering,RSC45Ⅲ.8” 1
9 10697674 “System,lubrication,RSC45C.9” 1

10 A810312000280 Spreader assembly 1
11 10419481 “Assembly, boom,RSC45Ⅲ.10” 1
12 A810103070033 Traveling systerm 1
13 10945117 “Assembly,working tank,RSC45C.13” 1
14 10945119 “Assembly,tank,fuel,RSC45C.14” 1
15 10679877 “Mechanism,movement,cab,RSC45C.15” 1
16 10084878 Air conditioning 1
17 10557614 “System,fire,RSC45C.20” 1

10440611 “System,power,RSC45Ⅲ.1”

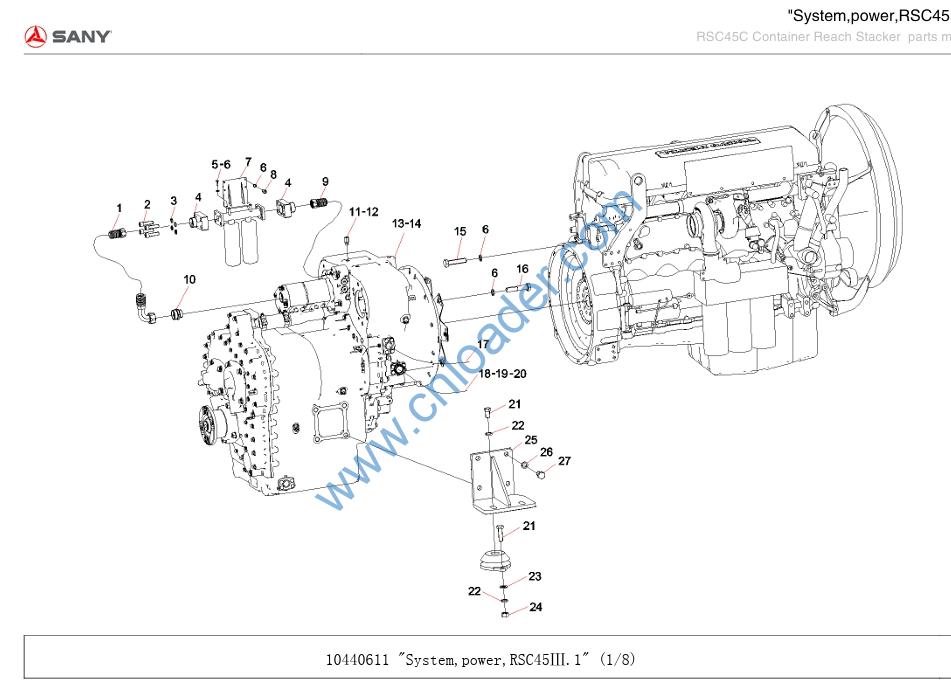

1 B230103003567 Rubber hose 1
2 A229900005971 Bolt 8
3 A210401000003 Spring washer 8
4 A820205001462 Oil-out tube adaptor 2
5 A829900001449 Bolt 4
6 A210401000001 Spring washer 53
7 A810102060047 Oil filter bracket 1
8 A210204000262 Screw 1
9 B230103004784 Rubber hose 1
10 B210780000671 Joint 4
11 A210434000006 Washer 1
12 A820205001862 Pressure Sensor Joint 1
13 10514236 Filler opening 1
14 B220801000002 torque converter-transmission 1
15 A210111000120 Bolt 12
16 A210113000266 Bolt 8
17 60032045 Rubber Hose 1
18 60013088 “Hose,2SN32-DKOL-DKOL90-3500Q/SY1102” 1
19 A210434000015 Washer 2
20 B210780000030 Pipe joint 1
21 A210110000058 Bolt 12
22 A210401000005 Spring washer 12

23 A210402000044 Plain washer 12
24 A210307000004 Nut 12
25 A810103041008 Gearbox supporting 2
26 A210401000006 Spring washer 12

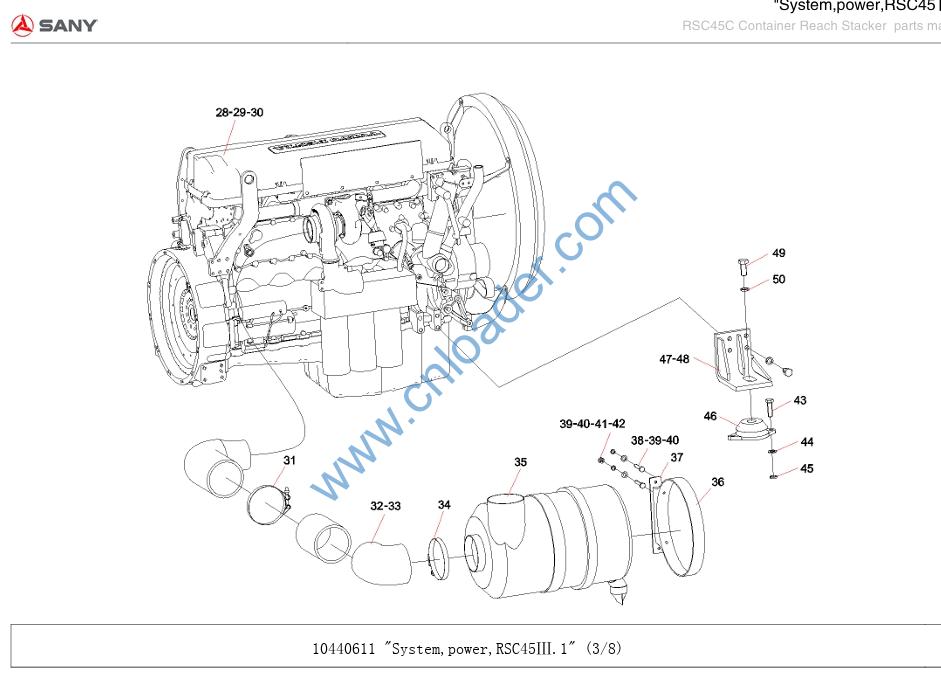

27 A829900001453 Bolt 8

28 10659775 Reducing rubber tube 1
29 A229900002263 T-type anchor ear 1
30 B220200000054 Engine 1
31 23005190 T-type anchor ear 1
32 B230103005004 Connecting Rubber Hose 1
33 B240600000220 Sensor 1
34 A229900006719 T-type anchor ear 2
35 B222100000391 Air cleaner 4580092941 Volvo 1
36 B229900002508 Bracket 1
37 A820101346368 Mounting plate for air cleaner 1
38 A210111000091 Bolt 4
39 A210401000017 Spring washer 13
40 A210405000007 Plain washer 13
41 A210204000320 Screw 1
42 A210307000055 Nut 1
43 A210111000224 Bolt 2
44 A210401000007 Spring washer 2
45 A820102010510 Washer 2
46 A222000000039 damper 2
47 10185387 Engine’s right support 1
48 10185414 Engine’s left support 1
49 A210111000243 Bolt 8

A210401000004

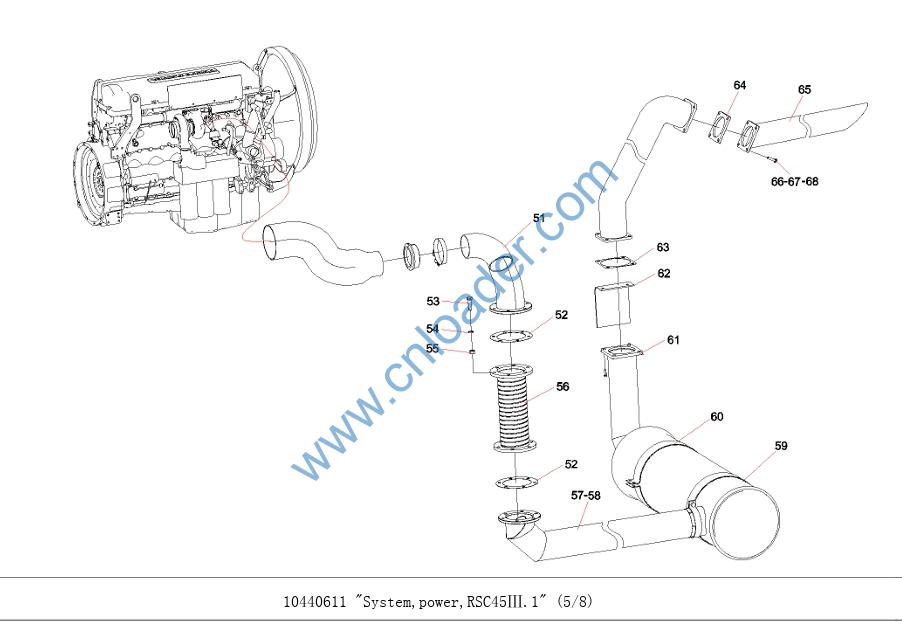

51 A810102071156 Exhaust tube Ⅱ 1
52 A820603000140 Combined seal pad 2
53 A210111000204 Bolt 1
54 A210401000002 Washer12GB93 28
55 A210307000001 Nut 20
56 B229900001197 Exhaust metal hose 1
57 10204394 Exhaust tube Ⅰ 1
58 A829900001456 Exhaust tube clamp Ⅰ 2
59 A220202000050 Muffler 1
60 10186111 Fixed clip of muffler 2
61 10204867 Exhaust tube Ⅲ 1
62 10808146 Gearbox oil pipe fixing 1
63 A820603000141 Gasket ring Ⅱ 1
64 A820603000236 Tail pipe gasket ring 1
65 A810102071161 Exhaust Tail Pipe 1
66 A210111000027 Bolt 13
67 A210405000011 Plain washer 28
68 A210307000017 Nut 13

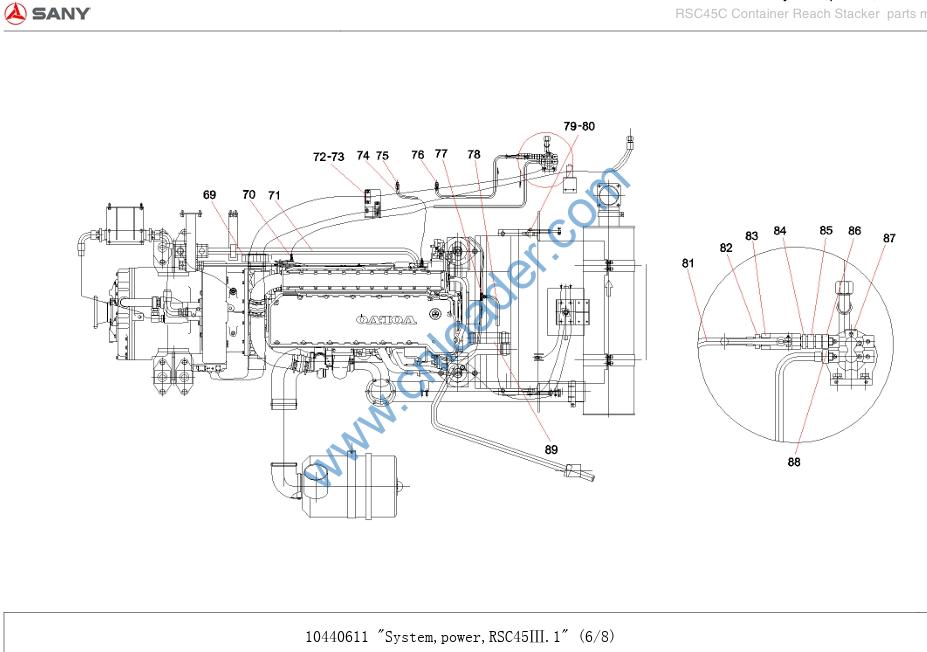

69 10223499 pipe clamp support abutment 1
70 11087280 fuel plastic tube 1
71 10958211 oil filler assembly 1
72 11055423 pipe clamp support abutment 1
73 A210204000167 Screw 1
74 11087279 fuel plastic tube 1
75 11087278 pipe connector 1
76 11087284 pipe connector 1
77 A810102099096 THREE-WAY Joint 1
78 10351448 Rubber Hose 1
79 A210307000040 Nut 4
80 A210405000003 Plain washer 4
81 11087283 fuel plastic tube 1
82 11087282 pipe connector 1
83 A220400000129 Ball valve 1
84 B210780000228 Pipe joint 1
85 B210780000829 Pipe connector 1
86 B210780000037 Pipe joint 1
87 A222100000198 Oil Water Separator 1
88 11087281 pipe connector 1
89 10413007 Water tank lower Water pipe 1

90 A210855000048 Throat Collar 1
91 A820606011124 Rubber hose 2
92 10413010 Upper water rubber tube 1
93 A220201000060 Radiator Assy. 1
94 A229900003104 T-type anchor ear 4
95 10733478 Supporting Lever(1) 2
96 A820302010400 Left rotating nut 2
97 A820202005885 Adustable rod 2
98 10351846 Rubber Hose 1
99 A210308000007 Nut 2
100 10733315 Supporting Lever2 2
101 10671695 Installation of expansion water tank 1
102 A229900002838 Throat collar 6
103 10720043 Rubber Hose 1
104 A210111000090 Bolt 2
105 10819431 wind board 1
106 A210111000293 Bolt 1
107 A210307000012 Nut 3
108 10221781 Rubber Hose 1
109 11056785 “Bracket,blast pipe,RSC45.1.26” 1
110 A820606010610 Water tank damper pad 2
111 10470991 Dust board

112 10468012 Rubber plate 1
113 10031160 Board 2
114 10490665 Rubber plate 1
115 B230101000244 O-ring 2
