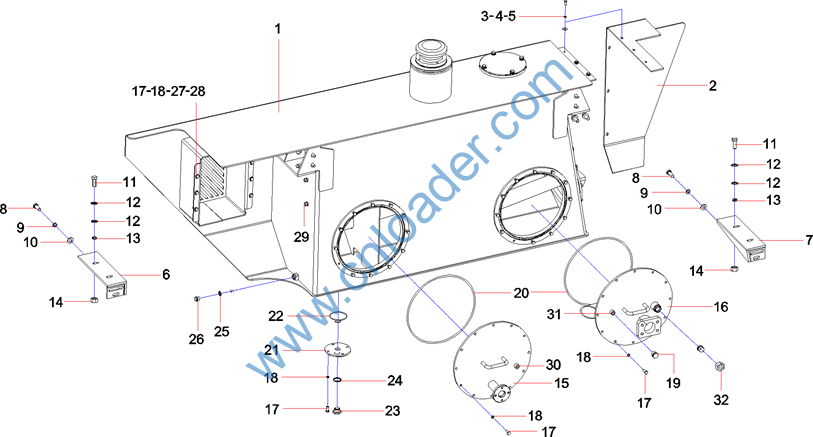

Body,container reach stacker, SRSC45H1 HTL




















Item No.

Part No.

Description

Qty.

1

13061002

Body, working oil tank

1

2

13060564

Cover, front, left

1

3

A210111000089

Bolt

6

4

A210404000005

Washer

18

5

A210401000017

Washer

12

6

10187917

Support, front, fuel tank

1

7

12378350

Support, rear, fuel tank

1

8

A210111000112

Bolt

6

9

A210401000004

Washer

6

10

A210491000118

Washer 16GB1230

6

11

A210111000041

Bolt

4

12

A210404000004

Washer

12

13

A210401000002

Washer

12

14

A210307000001

Nut

4

15

13060517

Assembly, oil-suction cover plate

1

16

13060532

Plate, cover, oil-suction pipe

1

17

A210111000018

Bolt

49

18

A210401000001

Washer

43

19

B210780000091

Plug

1

20

A210609000295

O-ring

3

21

10774636

Plate, cover, oil washing hole

1

22

A210609000082

O-ring

1






















Item No.

Part No.

Description

Qty.

23

21051814

Plug, screw

1

24

A210434000015

Washer

1

25

A210434000009

Washer 18JB982

1

26

A210333000011

Plug

1

27

A210307000017

Nut

6

28

A210405000011

Washer

15

29

B210780000712

Fitting, Adapter

1

30

B210780000201

Plug

1

31

B210399000002

Plug, Screw

1

32

B210780000112

Nut M28

1

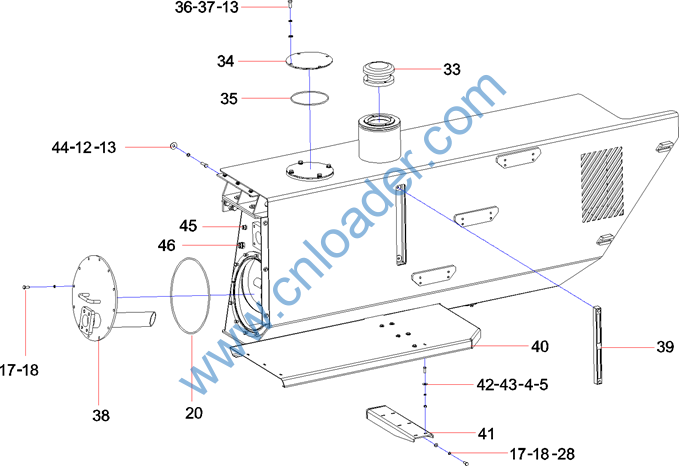

Item No.

Part No.

Description

Qty.

4

A210404000005

Washer

18

5

A210401000017

Washer

12

12

A210404000004

Washer

12

13

A210401000002

Washer

12

17

A210111000018

Bolt

49

18

A210401000001

Washer

43

20

A210609000295

O-ring

3

28

A210405000011

Washer

15

33

A222100000264

Cleaner, air

1

34

13060459

Cover, filter, oil return

1

35

A210609000260

O-ring

1

36

A210111000038

Bolt

4

37

A210405000001

Washer

4

38

13060487

Plate, cover, oil-suction tube

1

39

A250100000041

Gauge, liquid level and temperature

1

40

13061020

Pedal

1

41

13060463

Support, pedal

1

42

A210111000090

Bolt

6

43

A210307000012

Nut

6

44

A210111000040

Bolt

4

45

B210780000266

Fitting, Adapter

2

46

B210780000746

Connector

1

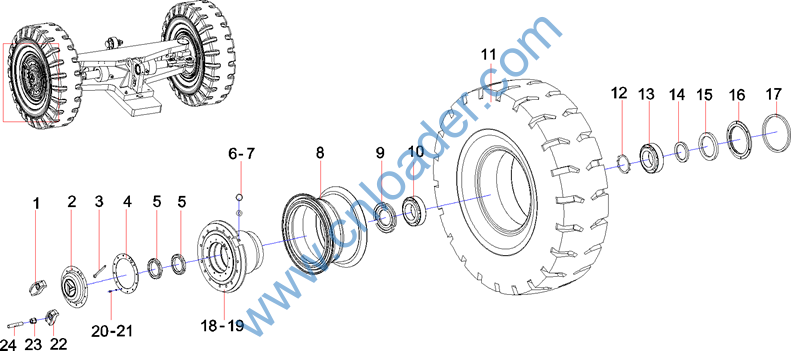

Group 4 Axle, steering






















Item No.

Part No.

Description

Qty.

1

10478964

Plate, pressure

10

2

10038314

Cover

2

3

21012612

Pin

2

4

A820606020254

Pad, sealing

2

5

A210304000025

Nut

4

6

A210332000004

Plug, screw

2

7

A210405000011

Washer

2

8

A229900002057

Rim

2

9

12994678

Gasket, bearing

2

10

A210604002226

Bearing, rolling

2

11

A210881000093

Tyre

2

12

A210412000137

Washer

2

13

A210604002227

Bearing, rolling

2

14

A230101000029

Seal, oil

2

15

A820102010514

Ring, retaining

2

16

A820101314668

Cover, pressure, oil seal

2

17

A820199003228

Ring, felt

2

18

10195270

Hub

2

19

A229900010158

Cup, oil

10

20

A210111000088

Bolt

42

21

A210401000017

Washer

92

22

10023808

Plate, pressure

20






















Item No.

Part No.

Description

Qty.

23

10075008

Nut, hub

30

24

10075009

Stud

30

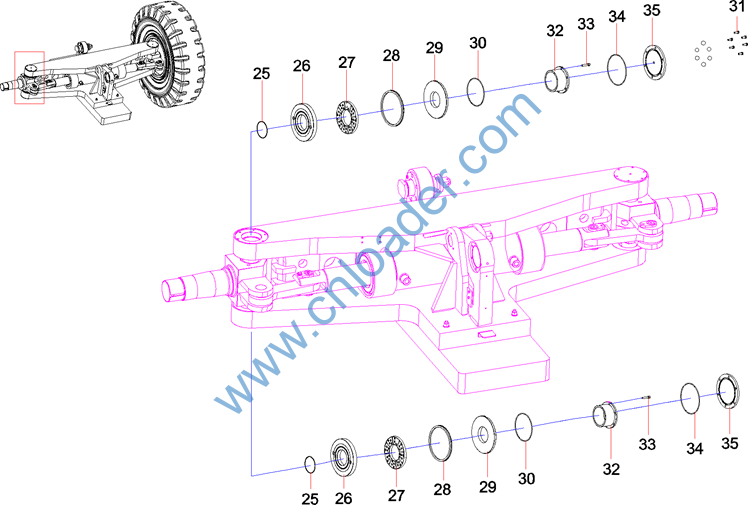

Item No.

Part No.

Description

Qty.

25

A210609000007

O-ring 110×3.55GB3452.1

4

26

10423038

Plate, backup

4

27

10351520

Gasket, sliding bearing

4

28

A230101000674

Seal, oil, VDA

4

29

10863275

Plate, back-up, lower

4

30

A210609000174

O-ring

4

31

A210111000089

Bolt

24

32

10764188

Sleeve, shaft

4

33

24000431

Screw M8×30GB70.1 10.9

24

34

A210609000014

O-ring

4

35

10825203

Cover, shaft pin

4
