Body,container reach stacker, SRSC45H1 GRH














Item No.

Part No.

Description

Qty.

1

60099744

O-ring

7

2

60099588

Pad, sealing, torque converter shell body to gearbox shell body

1

3

60099773

Seal, oil, turbine shaft

1

4

60099760

Ring, Piston

1

5

60121017

Oil

1

6

60099758

Ring, sealing, oil retainer disc

1

7

60099755

O-ring, hub, pump impeller

1

8

60099753

O-ring, pump impeller cover to pump impeller

1

9

60099754

O-ring, bearing cover, pump impeller cover

1

10

60099591

Bushing

1

11

60121054

O-ring

1

12

60099770

O-ring, connecting parts

1

13

60121029

Washer

2

14

60121037

Washer

1

15

60121034

Washer

1

16

60099667

Pad, liner, sealing plate

2

17

60121072

Washer

1

18

60121048

O-ring

5

19

60099748

O-ring

5

20

60099747

O-ring

5

21

60121045

O-ring

1

22

60121033

Washer

1
















Item No.

Part No.

Description

Qty.

23

60121032

Washer

1

24

60121068

Seal

2

25

60121052

O-ring

3

26

60121050

O-ring

2

27

60099742

O-ring

3

28

60099756

Seal

1

29

60099757

Seal, Pump Shaft

2

30

60099761

O-ring, brake block, pressure regulating valve

1

31

60099764

O-ring

1

32

60121036

Washer

1

33

60121066

Seal, oil

2

34

60121067

Seal, oil

2

36

60121065

Seal, oil

1

37

60121035

Washer

1

38

60121030

Washer

1

39

60121031

Washer

1

40

60099743

O-ring

2

41

60121073

Ring, oil seal, piston

2

42

60121058

Ring, oil seal, piston

1

43

60121055

O-ring

1

44

60121057

Ring, oil seal, piston

1

45

60099774

O-ring, from coil to nut

8
















Item No.

Part No.

Description

Qty.

46

60121049

O-ring

1

47

60121038

Washer

1

48

60099752

O-ring

1

49

60099752

O-ring

1

50

60099630

Gasket

1

51

60121060

Ring, seal

1

52

60099592

Gasket

1

53

60121047

O-ring

1

54

60121056

O-ring

1

55

60121061

Ring, seal

1

56

60121051

O-ring

1

57

60121016

Ring

1

58

60121063

Ring, seal

1

59

60099590

Gasket

1


















Item No.

Part No.

Description

Qty.

1

B230103004055

Hose, rubber

1

2

11087279

Hose, rubber, fuel

1

3

11087284

Connector, pipe

1

4

A210434000007

Washer

1

5

B210780000232

Fitting, Adapter

2

6

A210855000003

Clamp

2

7

13888777

Support

1

8

60014673

Body, pipe clamp

1

9

A229900002419

Clamp, Tube, Single

1


















Item No.

Part No.

Description

Qty.

1

13572218

Pipe, water inlet, engine

1

2

13572144

Pipe, water outlet, engine

1

3

60000075

Radiator

1

4

11597891

Assembly, expansion water tank

1

5

A210111000283

Bolt

4

6

A210401000004

Washer

4

7

A210405000003

Washer

4

8

A210307000040

Nut

4

9

10348513

Pad, damping, water tank

2

10

A210111000011

Bolt

2

11

B229900003113

Fan

1

12

12067121

Disc, transition, fan

1

13

A210111000089

Bolt

6

14

A210405000007

Washer

6

15

A210401000017

Washer

6

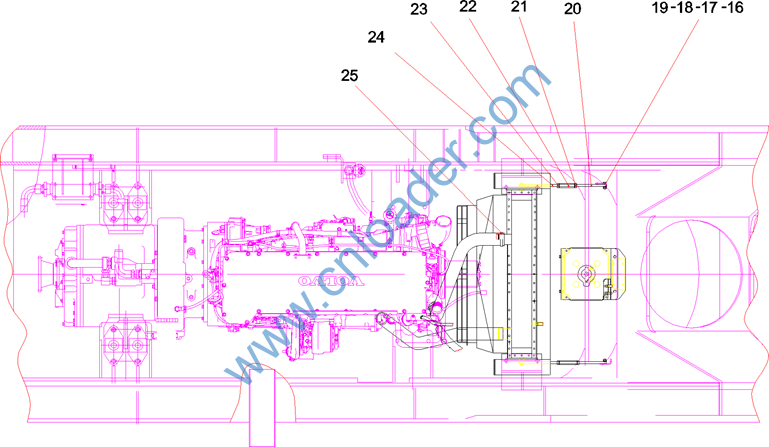

Item No.

Part No.

Description

Qty.

16

A210401000001

Washer

2

17

A210405000011

Washer

2

18

A210307000017

Nut

2

19

A210111000025

Bolt

2

20

10840468

Rod, support 2

2

21

A210308000007

Nut M12×1.5GB6171

2

22

A820202005885

Rod, adjusting

2

23

A820302010400

Nut, rotating, left

2

24

13816368

Support

2

25

A229900003104

Clamp

4






















Item No.

Part No.

Description

Qty.

1

60198298

Tank, expansion

1

2

A210855000003

Clamp

4

3

11595253

Hose, rubber

1

4

12842901

Hose, rubber

1

5

A210111000081

Bolt

4

6

A210405000006

Washer

4

7

A210401000016

Washer

4

8

A210307000016

Nut

4

9

11595177

Support, expansion water tank

1

10

A229900002838

Hoop

2

11

11597884

Hose, rubber

1

12

60028239

Body, pipe clamp

1

13

13572948

Pad, rubber

2
