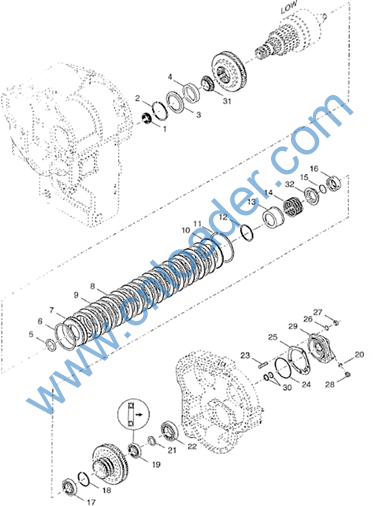

Body,container reach stacker, SRSC45H1 DGR














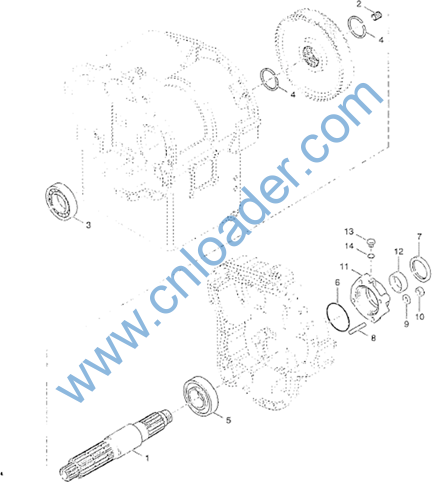

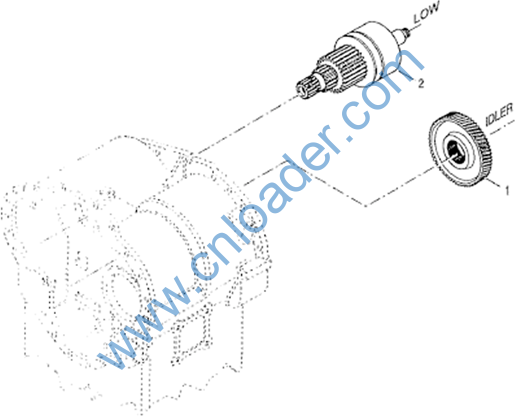

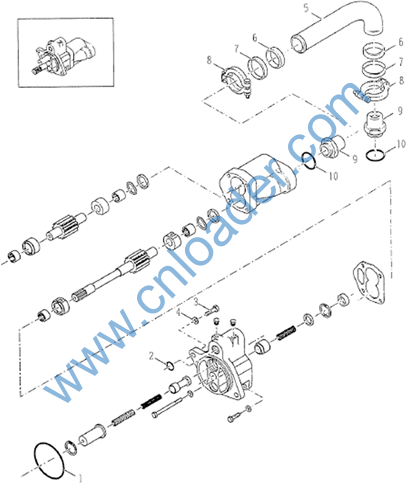

Item No.

Part No.

Description

Qty.

24

60099776

O-ring, bearing end cap

1

25

60099731

Gasket, thin, end cap, bearing

1

26

60099700

Washer, Lock

4

27

60099640

Nut

4

28

60099780

Plug, hole, checking

2

29

60099721

Cover, end, rear bearing, first gear shaft

1

30

60099769

Seal, Piston

2

31

60099550

Bearing, front, cone-shape, first gear clutch shaft

1

32

60099650

Seat, spring, clutch

1




















Item No.

Part No.

Description

Qty.

1

60099762

Assembly, 2nd gear clutch piston and seals

1

2

60099763

Ring, seal, outer, 3nd gear clutch piston

1

3

60021238

Ring, seal, piston ring

1

4

60099654

Plate, friction, inner, clutch

6

5

60099655

Plate, friction, outer, clutch

6

6

60099622

Disc, pressure, friction plate, 2nd gear clutch

1

7

60099712

Ring, clamp, pressure disc

1

8

60099670

Retainer, Spring

1

9

60099651

Spring, disc, return, clutch piston

1

10

60099596

Ring, Snap

1

11

60099671

Retainer, Spring

1

12

60099544

Bearing, front, gear 4

1

13

60099694

Ring, Snap

1

14

60099693

Ring, locating, front bearing, gear 4

1

15

60099567

Hub, 4th gear clutch

1

16

60099691

Ring, locating, hub, gear 4 clutch

1

17

60099769

Seal, Piston

2


























Item No.

Part No.

Description

Qty.

1

60099556

Gear, idler

1

2

60099720

Shaft GP,first gear clutch

1


















Item No.

Part No.

Description

Qty.

1

60099688

Shaft, output

1

2

60099541

Bearing, Guide, Output Shaft

1

3

60099543

Bearing, front, output shaft

1

4

60099687

Ring, locating, output gear

2

5

60099542

Bearing, rear, output shaft

1

6

60099765

O-ring, end cover, rear bearing

1

7

60020025

Seal, oil, output flange

1

8

60099736

Stud, end cap, bearing

4

9

60099739

Lock washer, stud, bearing end cap

4

10

60099738

Nut, stud, bearing end cap

4

11

60099641

Cover, end, rear bearing

1

12

60099689

Ring, spacer, flange, output shaft

1

13

60099666

Plug, Screw

1

14

60099743

O-ring

1




















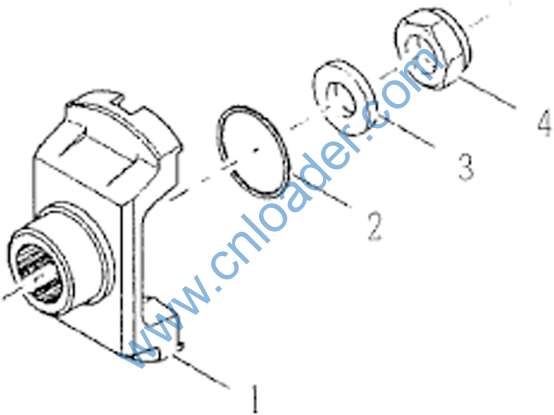

Item No.

Part No.

Description

Qty.

1

60099776

O-ring, bearing end cap

1

2

60099744

O-ring

1

3

60099613

Screw, pressure regulating valve to torque converter shell body

2

4

60099701

Washer, Lock

2

5

60121043

Tube, intake

1

6

60099591

Bushing

2

7

60099493

Ring, fixed

2

8

60099572

Ear, anchor

2

9

60099658

Parts, connecting

2

10

60099770

O-ring, connecting parts

2


















Item No.

Part No.

Description

Qty.

1

60099647

Assembly, shell, control valve

1

2

60099524

Assembly, cover, control valve

1

3

60099504

Plate, sealing

1

4

60099667

Pad, liner, sealing plate

2

5

60099648

Pad, sealing, control valve

1

6

60099496

Plug, pipe

1

8

60099528

Assembly, valve core, throw-out of gear valve

1

9

60099507

Plug

1

10

60099527

Plate, stop, valve core, throw-out of gear valve

1

11

60099703

Spring, valve core, throw-out of gear valve

1

12

60099663

Screw

1

13

60099665

Screw, Cap

5

14

60099699

Washer, Lock

14

15

60099649

Screw, shell, control valve to torque converter

2

16

60099644

Screw, shell, control valve cover to torque converter

2

17

60099723

Screw, Cap

4

18

60099664

Screw

2

19

60099628

Plate, cover

1

20

60099629

Screw, cover plate

4

21

60099764

O-ring

1

22

60099624

Cover, dustproof

1

23

60121042

Stud

3


















Item No.

Part No.

Description

Qty.

24

60099627

Nut, stud, dustproof cover

3

25

60099625

Washer, dustproof cover

3

26

60099531

Core, iron, electromagnetic valve

5

27

60099778

Coil, electromagnetic valve

5

28

60099605

Nut, electromagnetic valve

5

29

60099774

O-ring, from coil to nut

5

30

60099774

O-ring, from coil to nut

5

31

60099747

O-ring

5

32

60099748

O-ring

5

33

60099749

O-ring

5
