Body,container reach stacker, SRSC45H1 GRH


















Item No.

Part No.

Description

Qty.

1

60099603

Screw, guide wheel seat

7

2

60099701

Washer, Lock

7

3

60099604

Assembly, guide wheel seat

1

4

60099582

Pipe, oil intake, torque converter

1

5

60099773

Seal, oil, turbine shaft

1

6

60099730

Ring, locating, bearing

1

7

60099729

Washer, bearing

1

8

60121019

Bearing

1

9

60099760

Ring, Piston

1

10

60099759

Seal, Oil Retainer Disc

1

11

60099758

Ring, sealing, oil retainer disc

1

12

60099490

Disc, oil retainer

1

13

60099599

Ring, clamp, oil retainer disc

1

14

60099546

Bearing, rear, turbine shaft

1

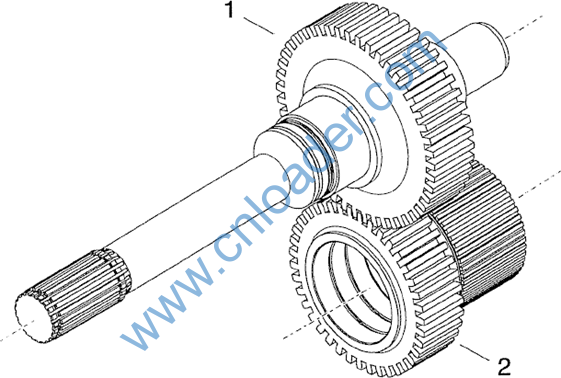

Item No.

Part No.

Description

Qty.

1

60099707

Shaft, turbine

1

2

60099561

Gear, driving, oil pump

2




















Item No.

Part No.

Description

Qty.

1

60099600

Wheel, guide

1

2

60099730

Ring, locating, bearing

1

3

60099602

Pin, spacer ring, guide wheel

1

4

60099510

Turbine

1

5

60099704

Hub, turbine

1

6

60099705

Ring, locating, rear, turbine hub

1

7

60099677

Ring, locating, front bearing

1

8

60099706

Screw, turbine hub

10

9

60099563

Blade, lock, screw, turbine hub

5

10

60099511

Impeller, pump

1

11

60099753

O-ring, pump impeller cover to pump impeller

1

12

60099574

Screw, pump impeller cover to pump impeller

32

13

60099700

Washer, Lock

32

14

60099576

Hub, pump impeller

1

15

60099755

O-ring, hub, pump impeller

1

16

60099578

Screw, hub, pump impeller

8

17

60099579

Ring, bushing, screw, hub, pump impeller

1

18

60099533

Bearing, hub, pump impeller

1

19

60099580

Ring, clamp, bearing, hub, pump impeller

1

20

60099512

Cover, pump impeller

1

21

60099545

Bearing, turbine hub

1

22

60099754

O-ring, bearing cover, pump impeller cover

1




















Item No.

Part No.

Description

Qty.

23

60099729

Washer, bearing

1

24

60099730

Ring, locating, bearing

1

25

60099575

Cover, bearing, pump impeller cover

1

26

60099601

Ring, spacer, guide wheel

1
























Item No.

Part No.

Description

Qty.

1

B229900005481

Assembly, flexible disc

1

2

60099679

Disc, flexible

5

3

B229900005480

Disc, pressure, flexible disc

1

4

B229900005479

Screw, flat head, flexible disc

14
























Item No.

Part No.

Description

Qty.

1

60099725

Seat, bearing, driving gear, oil pump

3

2

60099673

Screw, flat head

4

3

60099668

Gasket, sealing

4

4

60099552

Bearing, driving gear, oil pump

3

5

60099724

Ring, Snap

3

6

60099560

Gear, driven, oil pump

2

7

60099562

Gear, driving, oil pump

1

8

60099555

Gear, hub, pump impeller

1

9

60099577

Ring, clamp, gear, hub, pump impeller

1

10

60099740

Screw, fixing, bearing seat

2

11

60099701

Washer, Lock

2






















Item No.

Part No.

Description

Qty.

1

60099566

Assembly, clutch drum, forward gear shaft

1

2

60099564

Assembly, clutch hub, backward gear and 2nd gear shaft

1

3

60099631

Assembly, gear, high speed gear and 3rd gear shaft

1
