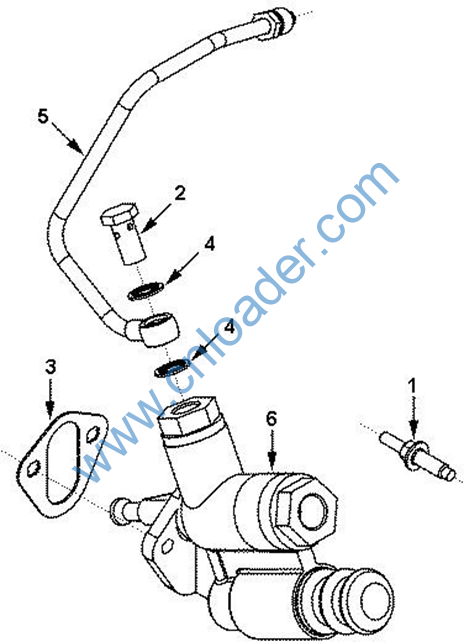

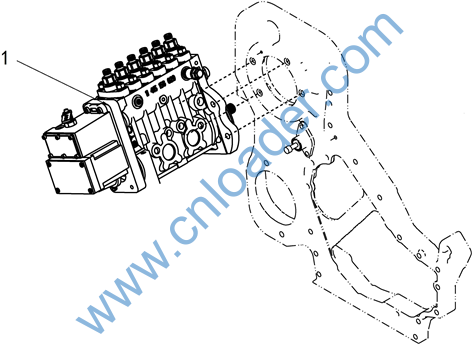

C5442830 Y 燃油泵

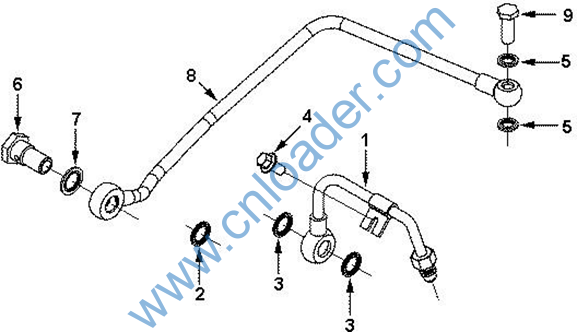

C3909310 Y 六角头螺栓
SCREW,STUDDED HEXAGON CA
C3916361 Y 琶形接头螺栓
SCREW,BANJO CONNECTOR
C3939258 Y 盖板密封垫
GASKET,COVER PLATE
C3963983 Y 密封垫圈
WASHER,SEALING
C3971124 Y 燃油输油管
TUBE,FUEL SUPPLY
C4988747 Y 输油泵
PUMP,FUEL TRANSFER
C3415562
C3863988
C3863988
C3900626
C3918188
C3957290
C3963983
C3971125
C4931051

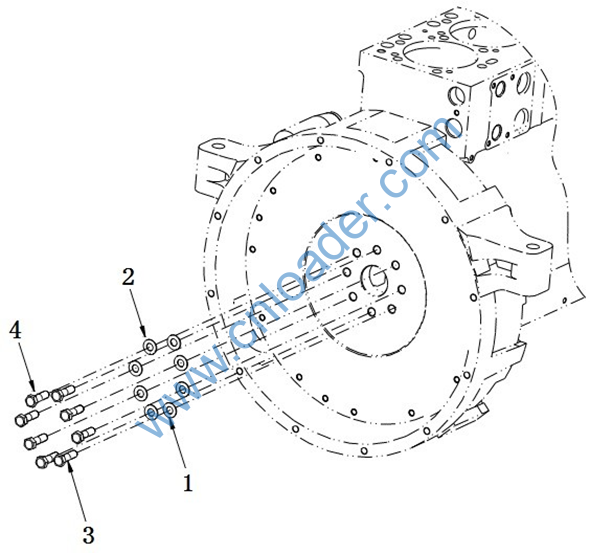

C3900269 Y 平垫圈
WASHER,PLAIN
C3977274 Y 六角头螺栓
SCREW,HEXAGON HEAD CAP

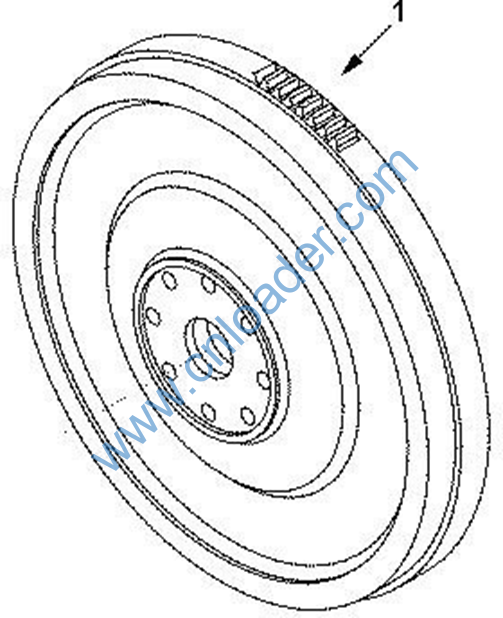

C4994787 Y 飞轮
C3900631 Y 六角法兰面螺栓
C3900631
C3926863
C3938077
C3942535
C3941786
C3968562
C3943813

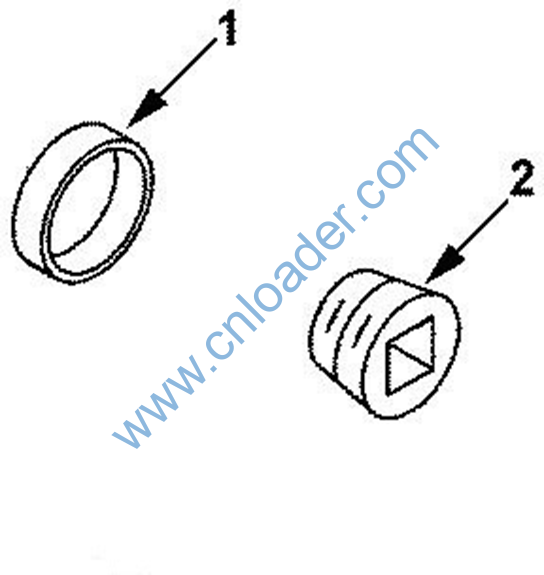

C156075 Y 碗形塞
PLUG,EXPANSION
C3008469 Y 螺塞
PLUG,PIPE

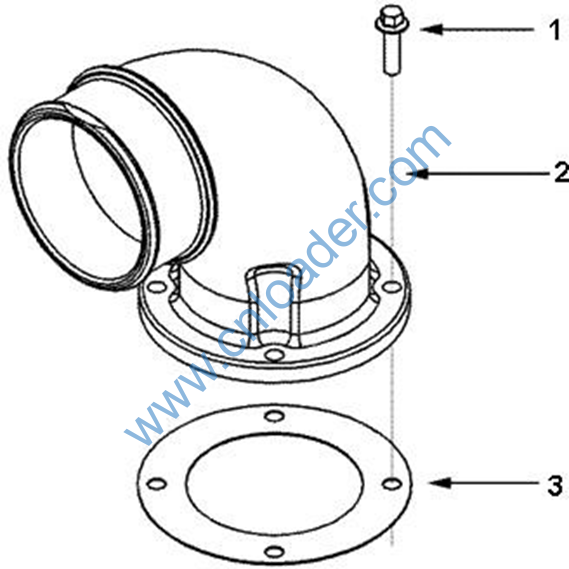

C3900631 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CAP

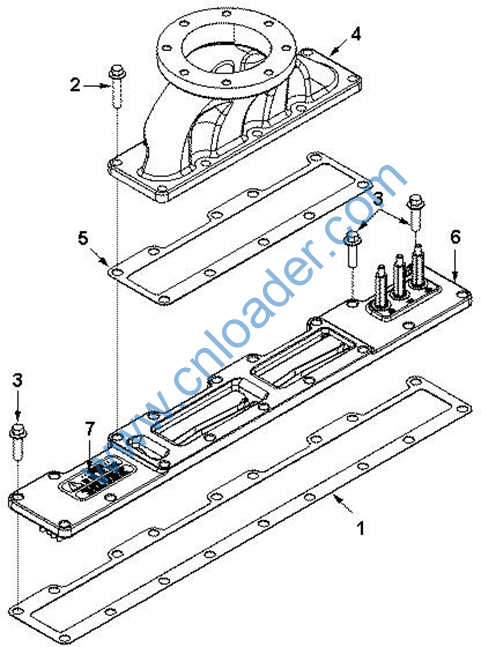

C3928519 Y 进气连接件
CONNECTION,AIR INTAKE
D3917892 Y 密封垫
GASKET,CONNECTION

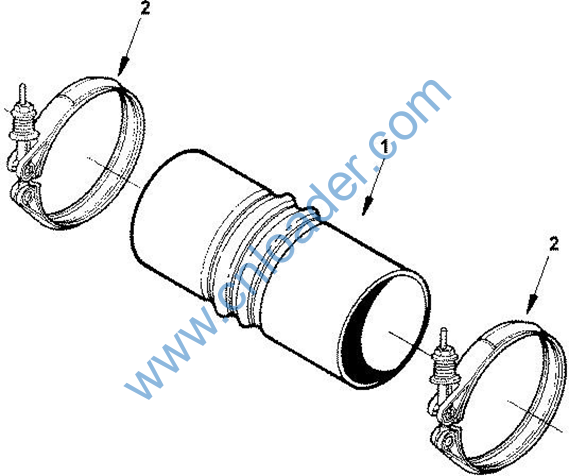

C3071049 Y 波纹管
HOSE,HUMP
C3415597 Y 钢丝型弹性环箍
CLAMP,SPRING HOSE
3944646
C3900678
C3902114
C3943613
C3992090
C4940600
C4943187

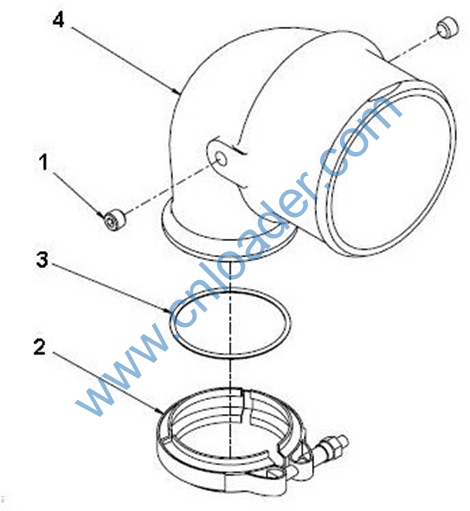

C3008465 Y 螺塞
PLUG,PIPE
C3415547 Y V型卡箍
CLAMP,V BAND
C3883284 Y O形密封圈
SEAL,O RING
C3883977 Y 出气连接件
CONNECTION,AIR TRANSFER

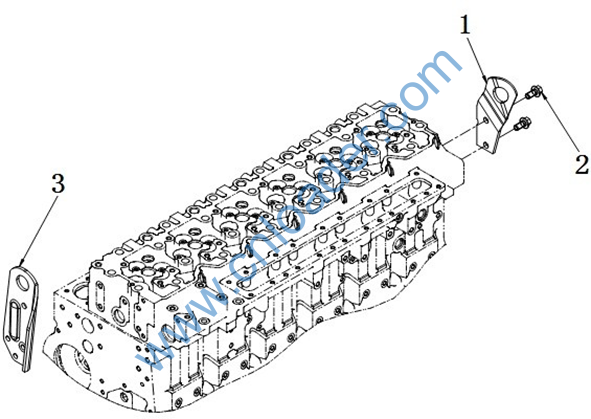

C4935680 Y 发动机吊耳
BRACKET,ENGINE LIFTING
C4940240 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CAP
C4983728 Y 发动机吊耳
BRACKET,ENGINE LIFTING
C3903990 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CAP
C4078617 Y 六角法兰面螺栓
SCREW,STUDDED FLANGE CAP

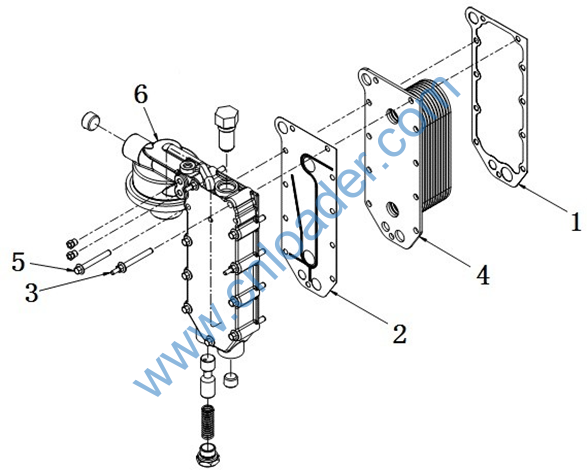

C3918174 Y 机油冷却器芯密封垫
GASKET,OIL COOLER CORE
C3929011 Y 机油冷却器座密封垫
GASKET,LUB OIL CLR COVER
C3944874 Y 六角法兰面螺栓
SCREW,STUDDED FLANGE CAP
C5284362 Y 机油冷却器芯
CORE,COOLER
C3966976 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CAP
C4936582 Y 机油滤清器座
HEAD,LUB OIL FILTER

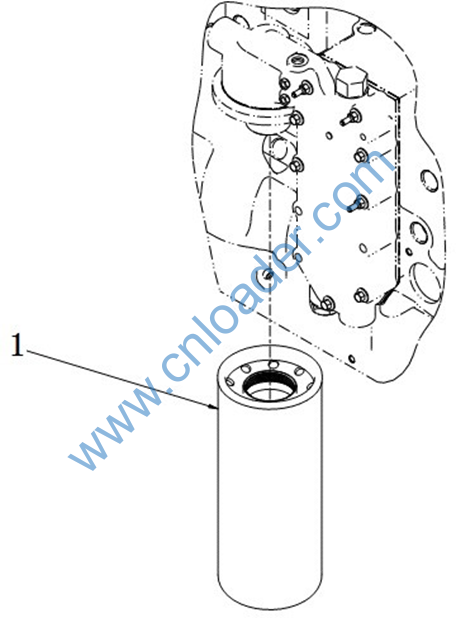

C3401544 Y 机油滤清器

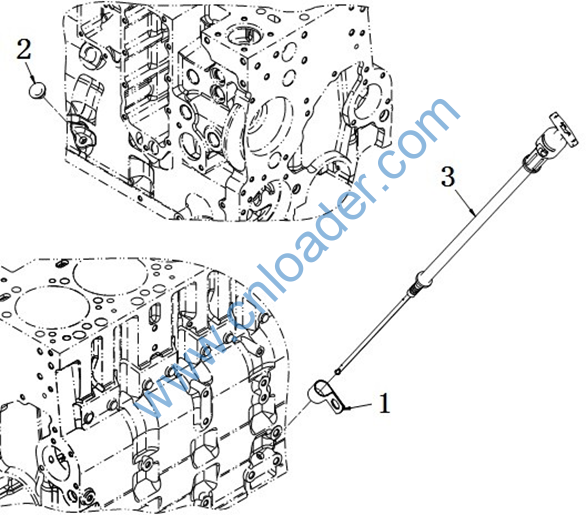

C202888 Y 管夹
CLIP
C3943808 Y 碗形塞
PLUG,EXPANSION
C5338276 Y 机油标尺
DIPSTICK

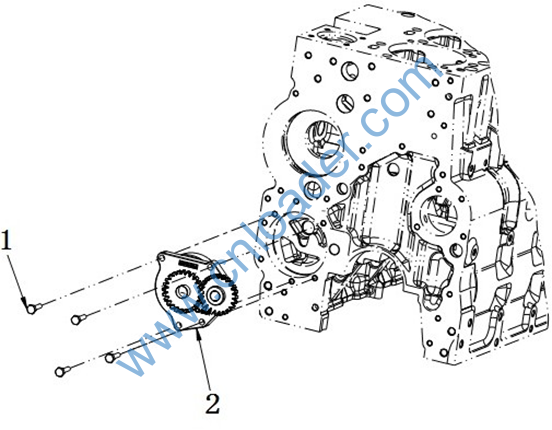

C3900677 Y 六角头螺栓
SCREW,HEXAGON HEAD CAP
C4941464 Y 机油泵
PUMP,LUBRICATING OIL

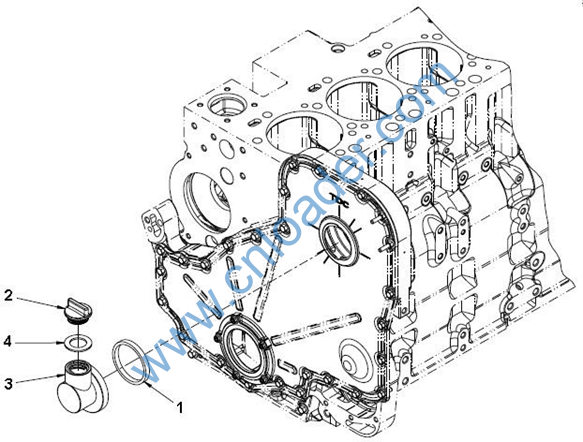

C3903475 Y 矩形密封圈
SEAL,RECTANGULAR RING
C3914136 Y 加机油口盖
CAP,FILLER
C3921644 Y 加机油连接管
CONNECTION,OIL FILLER
C3936876 Y 矩形密封圈
SEAL,RECTANGULAR RING
