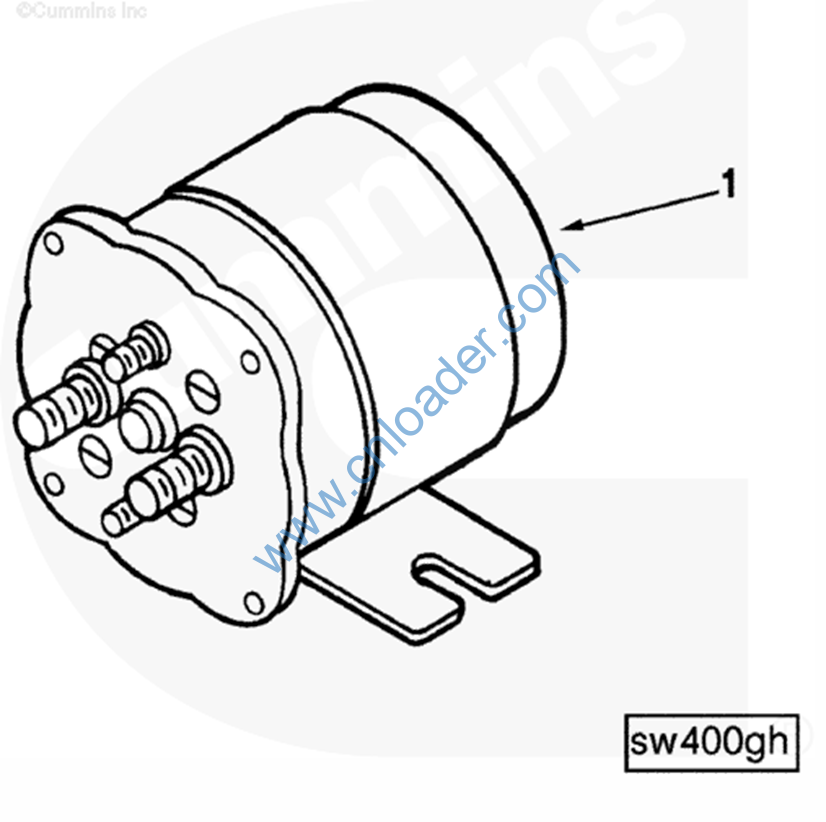

ES 8003 磁力开关
MAGNETIC SWITCH
3050692-20 电磁开关20
SWITCH MEGIC

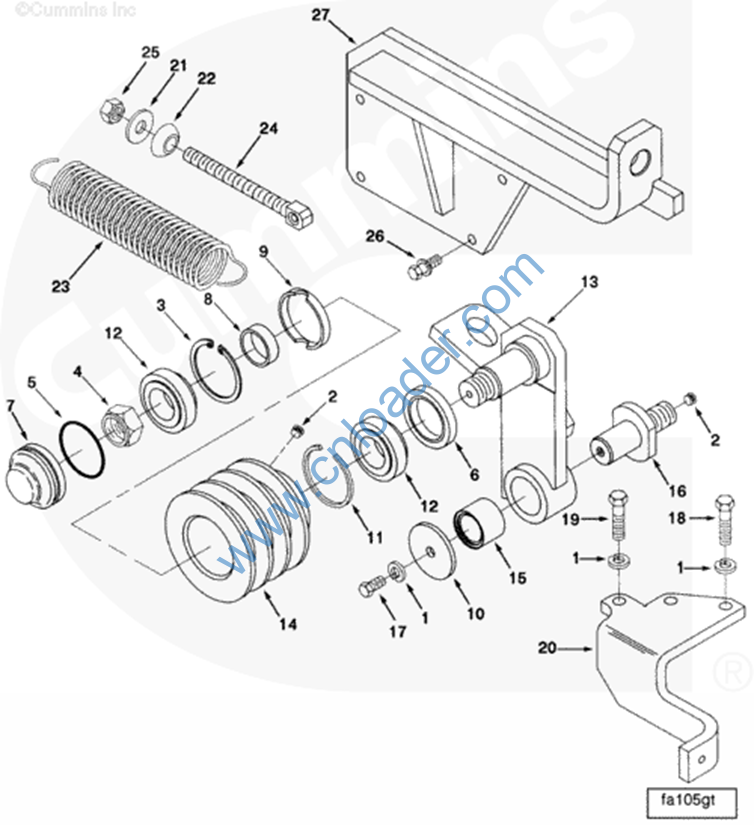

FA 1170 风扇布置
FAN ARRANGMENT
3250950-20 风扇轮毂张紧轮
IDLER FAN HUB
3260626-40 弹簧拉紧机构
SPRING TENSION
146163-20 平垫圈20
WASHER PLAIN
423280-20 平垫圈20
WASHER PLAIN
3250956-20 拉紧弹簧20
SPRING
3325952-20 螺栓20
BOLT HOOK
3335066-20 螺母20
NUT
3260648-40 弹簧支架
BRACKET SPRING SU
3251051-20 弹簧支架20
BRACKET SPRING
3600283-20 平垫圈
WASHER,PLAIN
S 108 A-20 六角螺栓20
SCREW,HEX HEAD CAP
S 155-20 六角螺栓20
SCREW,HEX HEAD CAP
S 610-20 弹簧垫圈20
WASHER LOCK
S 622-20 平垫圈20
WASHER PLAIN
3260649-40 枢轴支架
BRACKET PIVOT
3011715-20 带垫螺栓20
SCREW CAPTIVE WASHER CAP
3326142-20 张紧轮支架20
BRACKET TDLER PUL
3325107-20 滚针轴承20
BEARING NEEDLE
3325495-20 枢轴20
SHAFT PIVOT
3335055-20 六角螺栓20
SCREW,HEX HEAD CAP
3250949 张紧轮20
PULLEY IDLER
3250930-20 张紧杠杆20
LEVER IDLER
3655115-20 滚动轴承20
BEARING ROLLER
3001280-20 挡圈20
RING RETAINING
423260-20 夹板20
PLATE CLAMPING
217011-20 隔套20
SPACER
217008-20 轴承隔套20
SPACER
200310 盖子
cover fan hub
200307 油封90
SEAL OIL
142176-20 锁紧螺母20
NUT LOCK
145551 O形密封圈
SEAL ,O RING
16255 挡圈
RING,RETAINING
S 911 B-20 管塞20
PLUG PIPE
S 610-20 弹簧垫圈20
WASHER LOCK

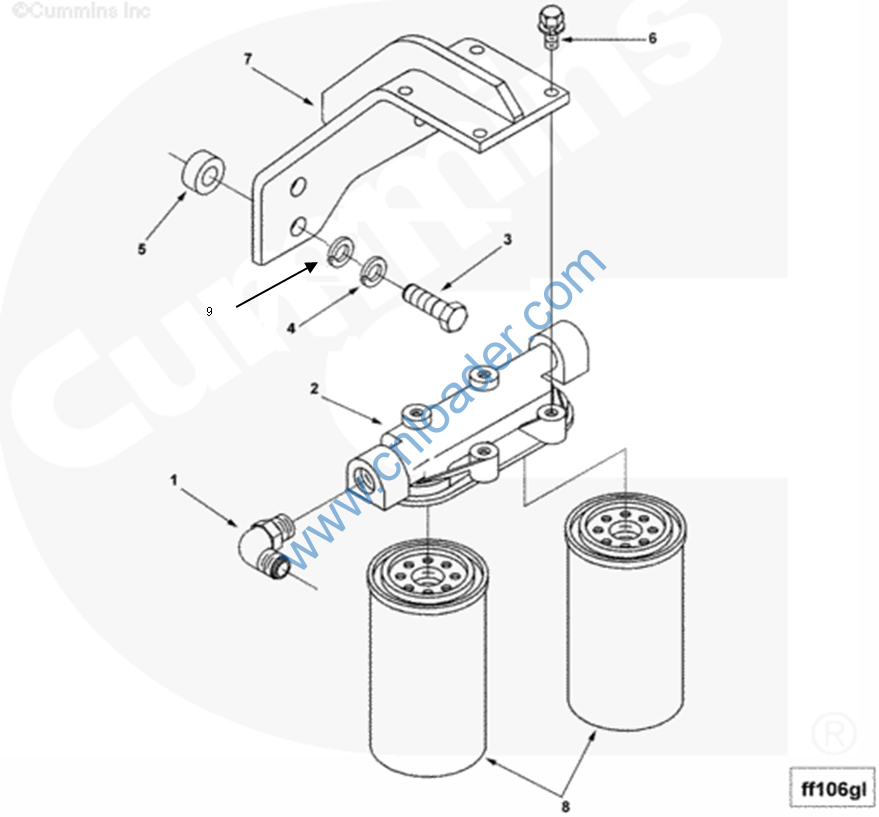

FF 102 燃油滤清器
FULE FILTER
3260634-40 滤清器支架及安装
FILTER FUFL MTG
68252 A-20 隔套20
SPACER EXH MANF
S 689-20 平垫圈20
WASHER PLAIN
3010595-20 带垫螺栓20
SCREW,CAPTIVE WASHER CAP
3250969-20 滤清器支架20
BRACKET FILTER
S 187 A-20 六角螺栓20
SCREW,HEX HEAD CAP
S 602-20 平垫圈20
WASHER PLAIN
S 609-20 弹簧垫圈20
WASHER LOCK
3315843-29 燃油滤清器
FILTER,FUEL
BM79886-40 燃油滤清器座及接头
FILTER FUEL
129859-20 阳性接头
ELBOW,MALE UNOIN
212013-20 燃油滤清器座20
HEAD FUEL FILTER

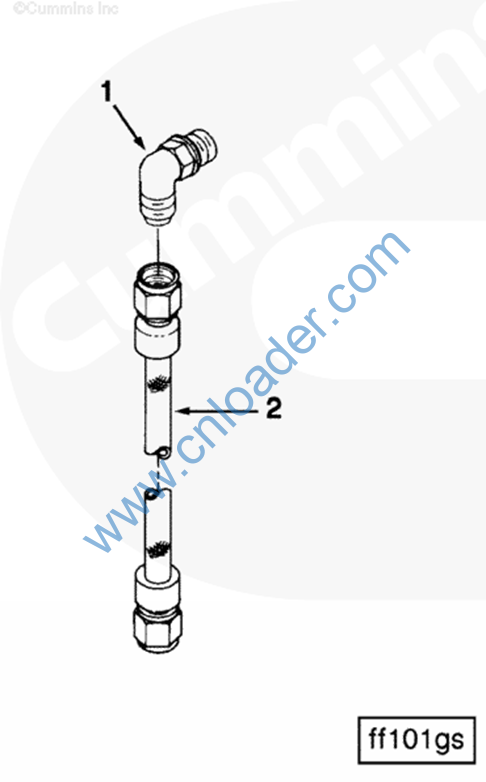

FF 1707 燃油滤清器接头
FUEL FILTER HOSE
129859-20 阳性接头
ELBOW,MALE UNOIN
AS10020 SS-20 软管20
HOSE FLEXIBLE

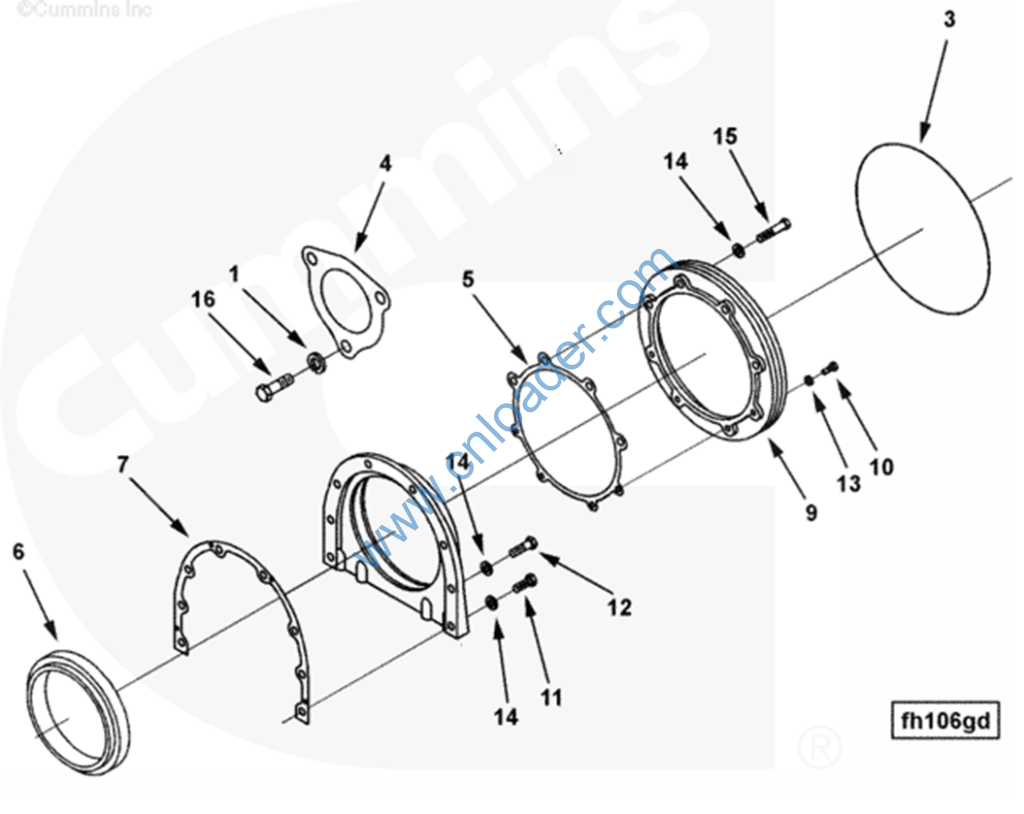

FH 1400 飞轮壳
FLYWHEEL HOUSING
S 603-20 弹簧垫圈20
WASHER LOCK
409191 O型圈90
SEAL O RING
3031007-20 衬垫20
GESKET STARTER
3165857-20 螺栓20
SCREW
3260620-40 后盖板
PLATE REAR COVER
3001772 油封90
SEAL OIL
3350448-20 后盖板20
COVER REAR
3260621-40 后盖板安装
MTG REAR COVER PLATE
3067616-20 垫片20
GASKET,REAR COVER
400540-20 后盖垫片20
GASKET,REAR COVER
3655943-20 油封座护圈20
RETAINER SEAL
S 121-20 六角螺栓20
SCREW,HEX HEADCAP
S 129-20 六角螺栓20
SCREW,HEX HEADCAP
S 194-20 六角螺栓20
SCREW,HEX HEADCAP
S 600-20 弹簧垫圈20
WASHER LOCK
S 604-20 弹簧垫圈20
WASHER LOCK
106549-20 六角螺栓20
SCREW,HEX HEADCAP

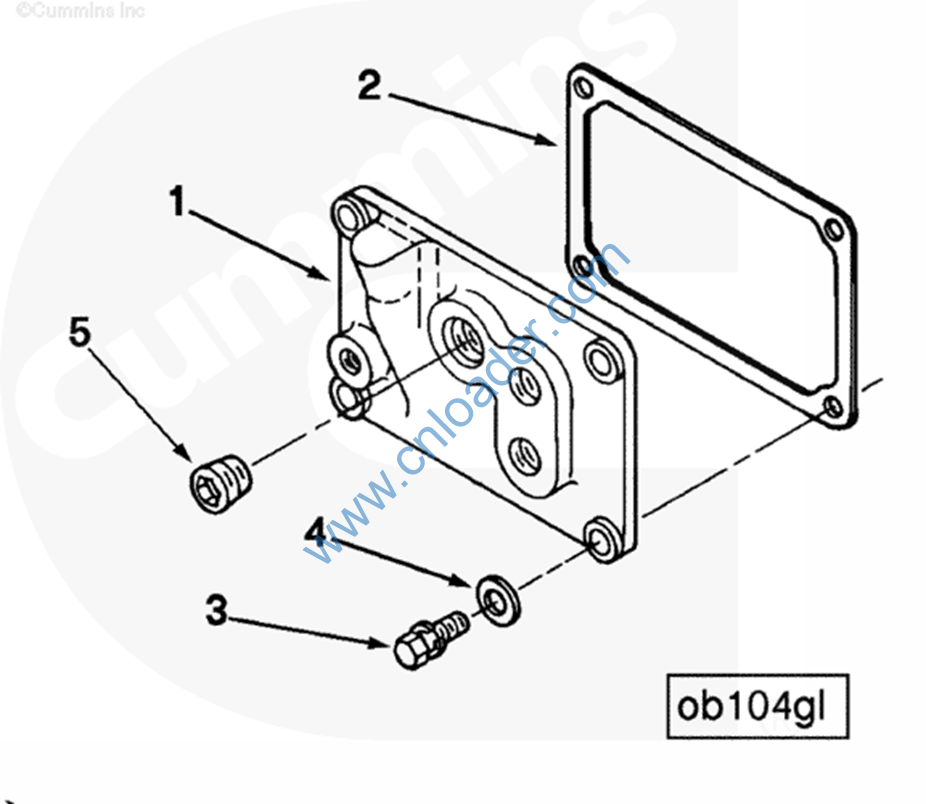

FO 1027 手孔盖
HAND HOLE COVER
186239-20 手孔盖20
COVER HEAD HOLE

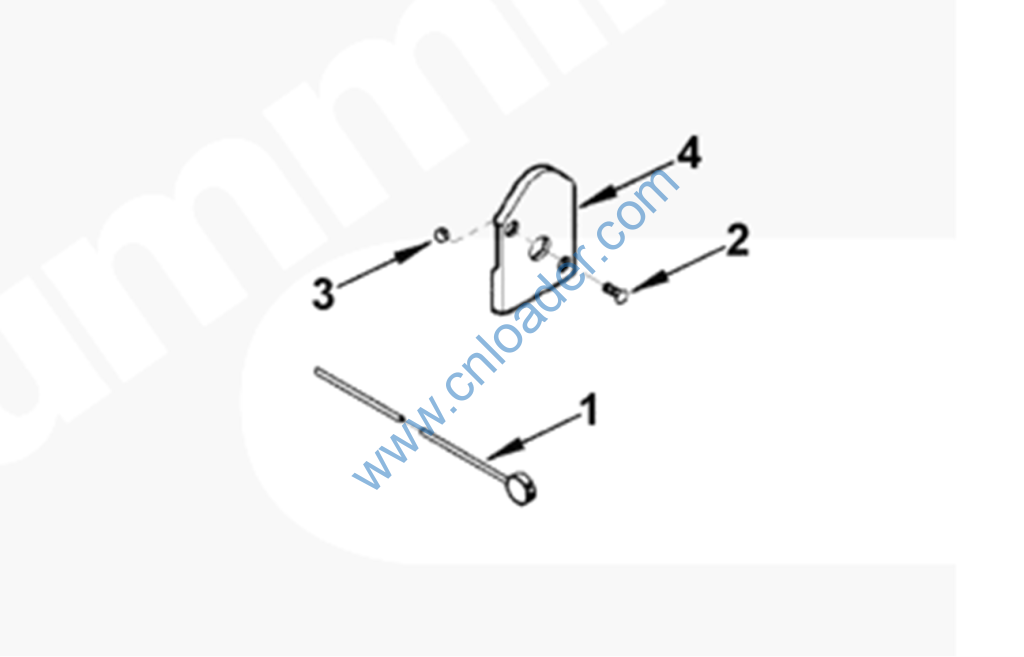

3009581-40 机油尺支架安装
BRACKET OIL GAGE MTG
3069097-20 手孔盖衬垫20
GASKET HADE HOLE
3010595-20 带垫螺栓20
SCREW,CAPTIVE WASHER CAP
3008469-20 管塞20
PLUG PIPE

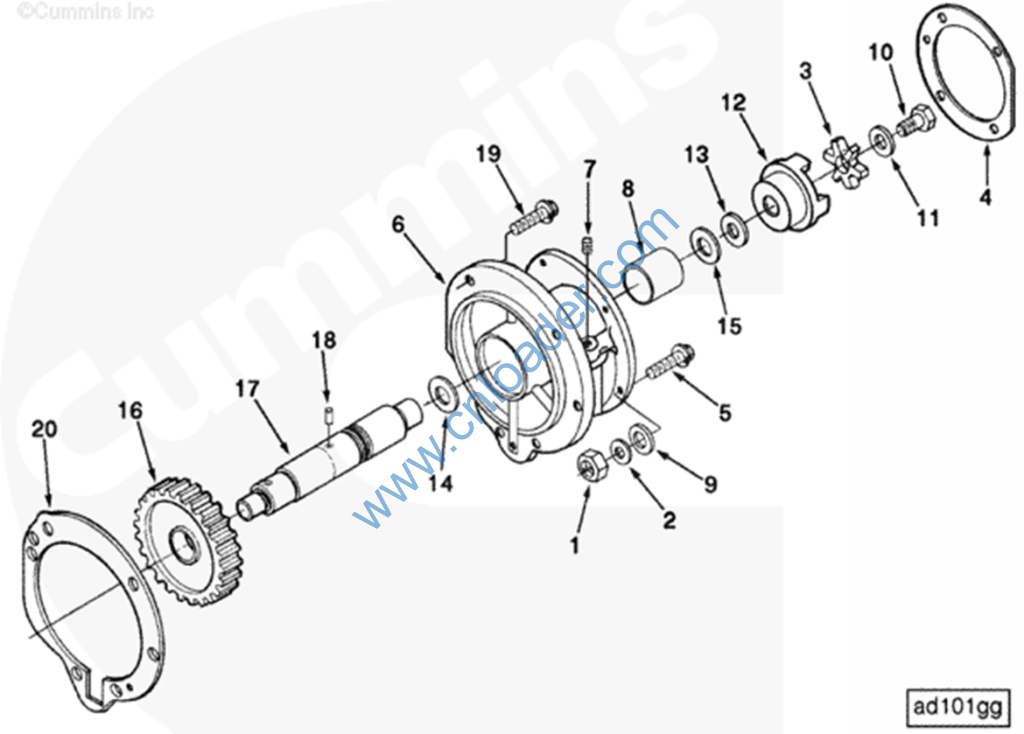

FP 1519 附件驱动安装
ACCESSORY DRIVE MTG
3005131-10 辅助驱动总成10
DRIVE ACCESSORY
129510-20 六角螺栓20
SCREW,HEX HEAD CAP
142689-20 齿轮20
GEAR ACCESSORY DRIVE
170664-20 平垫圈20
WASHER PLAIN
3000171-20 辅助驱动轴20
SHAFT ACCESSORY DRIVE
3000175-20 燃油泵传动轴接合爪20
COUPLING,F P DRI
3014103-20 平垫圈
WASHER,PLAIN
3026556-20 止推片
THRUST
3026557-20 止推片20
BEARING,TRUST
3034438-20 定位销20
DOWEL PIN
AR45728-40 辅助驱动壳体
HOUSING ACCESSORY
116391-20 衬套20
BUSHING
3002170-20 辅助驱动支承20
SUPPORT FUEL PUMP
S 911 B-20 管塞20
PLUG PIPE
3007821-40 辅助驱动安装
MTG ACCESSORY DRIVE
3010590-20 带垫螺栓20
SCREW CAPTIVE WAS
3076225-20 辅助传动室垫片
SHIM
BM95029-40 燃油泵安装
PUMP FUEL MTG
69324-20 平垫圈20
WASHER PLAIN
3046200-20 爪式联轴节缓冲片20
SPIDER JAW COUPLING
3818599-20 螺栓
SCREW
4026171 燃油泵衬垫
GASKET,FUEL PUMP
S 274-20 螺母20
NUT HEAVY HEXAGON
S 690-20 平垫圈
WASHER PLAIN
FP 1647 燃油泵铅封
SEAL
4915246-10 燃油泵铅封
SEAL,FUEL PUMP
213769 钢球90
PLUG BALL
3000446-20 油门盖板20
COVER FUEL CONTROL
3003156-20 铅封20
SEAL WIRE
S 2286-20 自攻螺钉20
SCREW DRIVE
