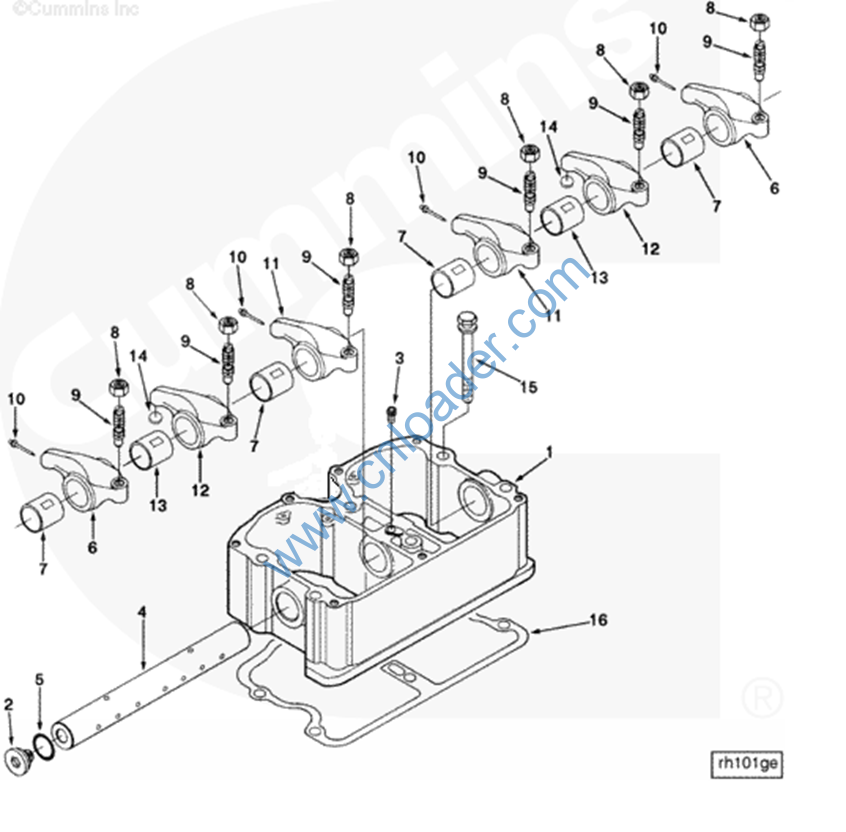

4915262-10 摇臂室及安装
HOUSING,ROCKER ARM
3010589-20 带垫螺栓20
SCREW
3017750 摇臂室衬垫90
GASKET RKR LEVER HOUSING
3418522-10 摇臂室10
RKR HSG
168319-20 摇臂轴固定螺钉20
SET SCREW
3038903-20 摇臂轴堵塞20
PLUG ROCKER LEVER SHAFT
3038904-20 摇臂轴20
SHAFT ROCKER LEVER
3058653 O型密封圈90
SEAL O RING
3418752-20 摇臂室20
LEVER ROCKER
AR 2308-20 喷油摇臂20
LEVER ROCK
S 212 正六角螺母
168306 Screw, Slotted Set
218152 Lever, Rocker
218153 Bushing, Lever
194037 Socket, Rocker Lever
BM95161-20 后摇臂20
LEVER ROCK
140330 Bushing, Lever
S 212 正六角螺母
168306 Screw, Slotted Set
208084 Rivet
169704 Lever, Rocker
BM95162-20 前摇臂20
LEVER ROCK
169705 Lever, Rocker
140330 Bushing, Lever
S 212 正六角螺母
168306 Screw, Slotted Set
208084 Rivet
AR 9759-40 汽缸套
LINER，CYLINDER
215090 缝隙密封圈90
SEAL
3032874 O型密封圈90
SEAL O RING
3055099-20 气缸套20
LINER CYLINDER

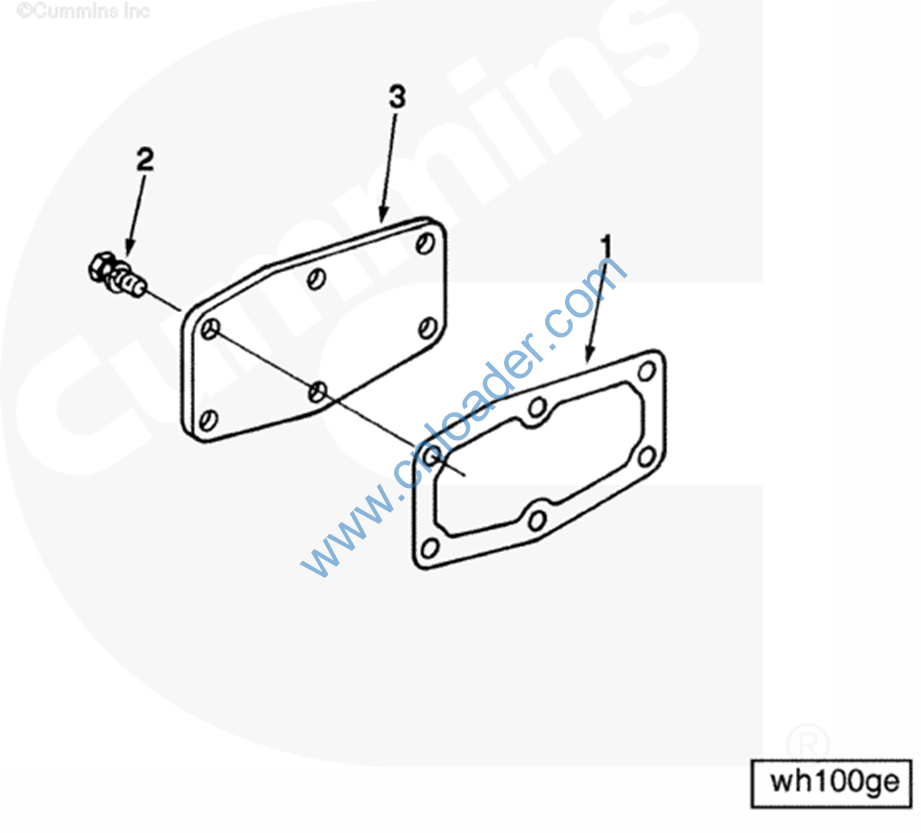

AR10070-40 总水管盖
COVER WATER HEADER
3069098-20 盖板衬垫20
GASKET COVER PLATE
132019-20 总水管盖20
COVER WATER HEAD
3013904-20 带垫螺拴20
SCREW CAPTIVE WAHER
BM73331 CE-40 燃油跨越管
CROSSOVER FUEL
70772-20 园头带槽及带垫螺栓20
SCREW FILLISTER HEAD CAP
131026 O型密封圈90
SEAL O RING
135308-20 盖板20
PLATE COVER
147100-20 燃油跨越管20
CROSSOVER FUEL
MP 4053-40 铭牌安装
MTG NAMEPLATE
S 2286-20 自攻螺钉20
SCREW DRIVE

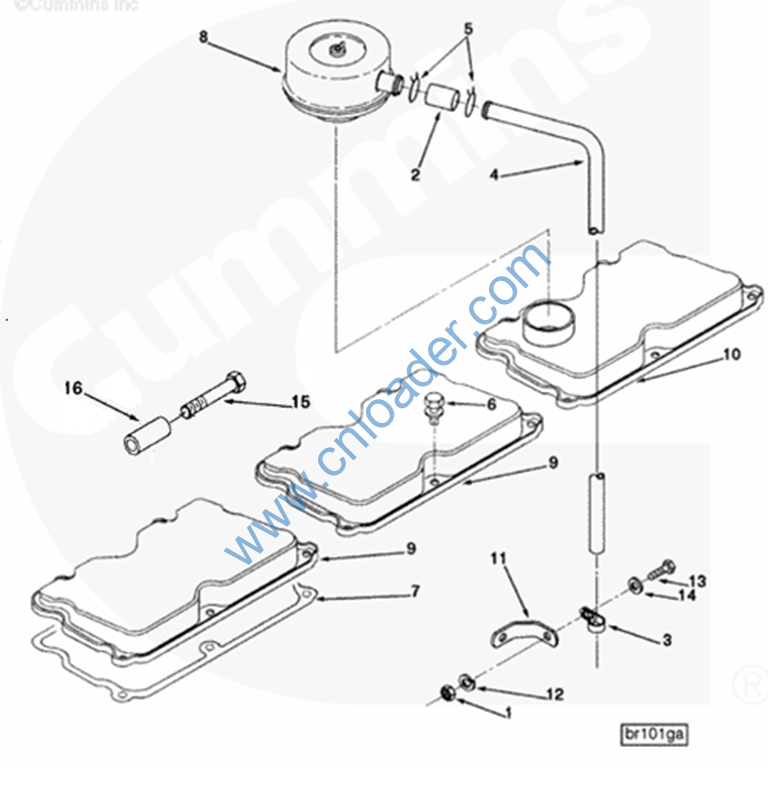

BR 1087 通风口位置
BREATHER & VENT COVER
3006183-20 摇臂室盖20
COVER ROCKER LEVER
3260666-40 通风管组件
TUBE VENT
43828-20 软管夹20
CLAMP HOSE
62906 C-20 隔套20
SPACER
64775-20 软管20
HOSE
69911 A-20 夹子20
CLIP
214096-20 隔音板支架20
SUPPORT NOISE PA
3010596-20 带垫圈螺栓20
SCREW CAPTIVE WASHER CAP
3012476-20 带垫螺栓20
SCREW CAPTIVE WAS
3022589-20 带垫螺栓20
SCREW CAPTIVE WASHER
3250977-20 通风管20
TUBE BREATHER
S 223-20 六角厚螺母20
NUT HEAVY HEXAGON
4913633-10 曲轴箱通风器总成10
BREATHER CRANKCASE
255180-20 曲轴箱通风器20
BREATHER CRANKCASE
3006358-20 摇臂室盖20
COVER ROCKER LEVER
MP 3887-40 摇臂室盖安装
COVER ROCKER HOUSING MTG
3038076-20 带垫螺栓20
SCREW
3067459-20 摇臂室盖密封垫
GASKET ROCKER COVER

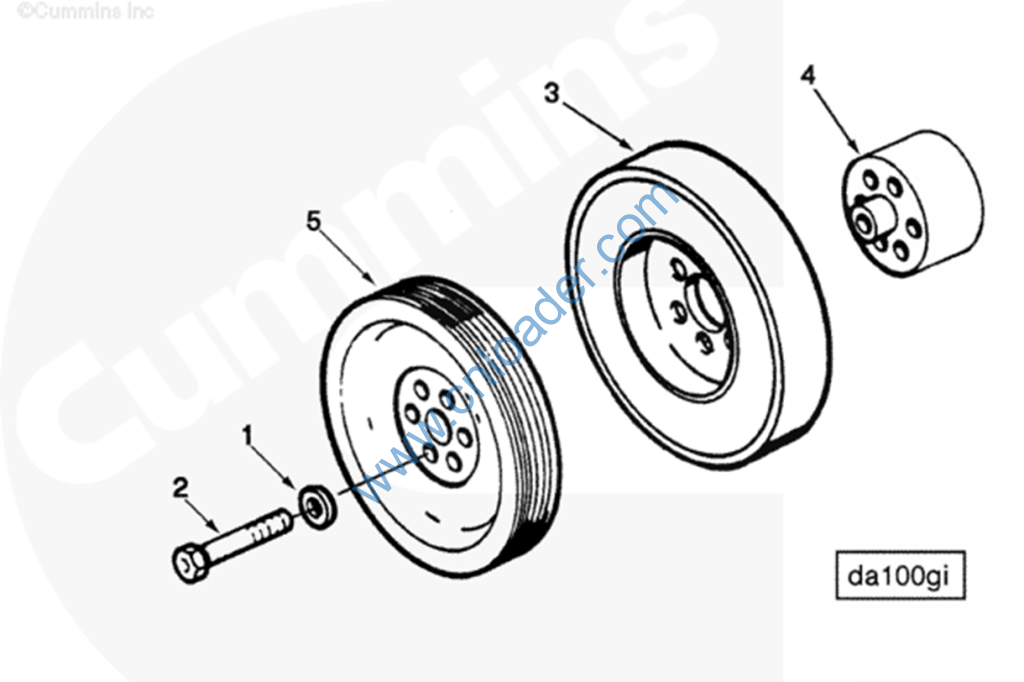

DA 1137 硅油减振器
VIBRATION DAMPER
3511727-10 13 9/16#×1 3/4#减振器10
DAMPER VIBRATION
127316-20 平垫圈20
WASHER PLAIN
212114-20 十二角螺栓20
SCREW TWELVE POINT
3326140-20 曲轴皮带轮20
PULLEY CRANKSHAFT
3326141-20 曲轴隔套20
SPACER CRANKSHAFT

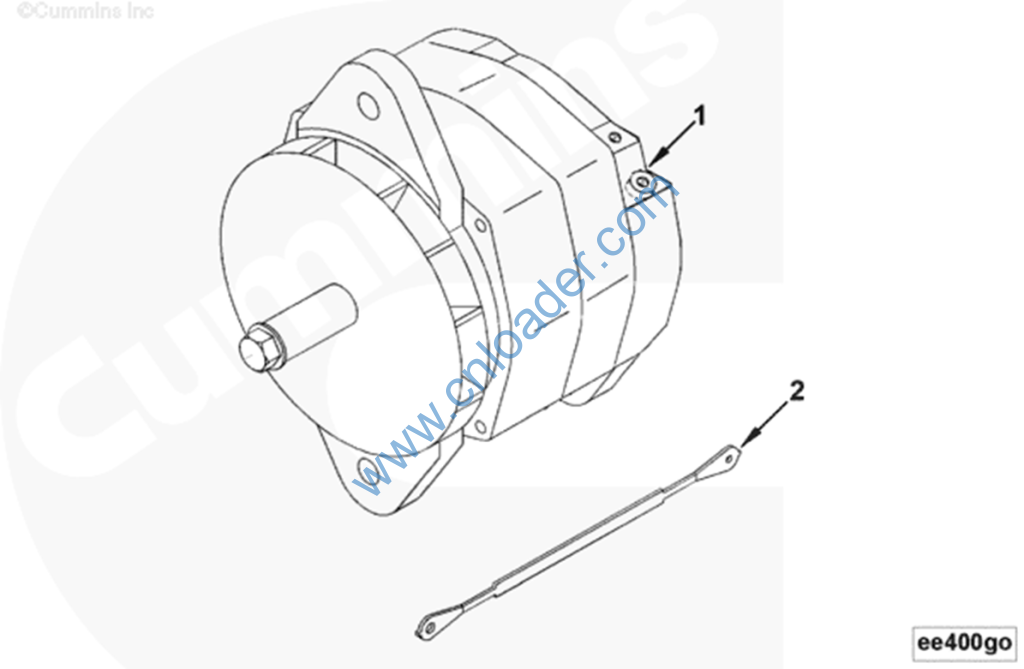

EE 801 充电机
ALTERNATOR
4060811-20 充电机
ALTERNATOR
3202162-20 地线20
WIRE GROUND

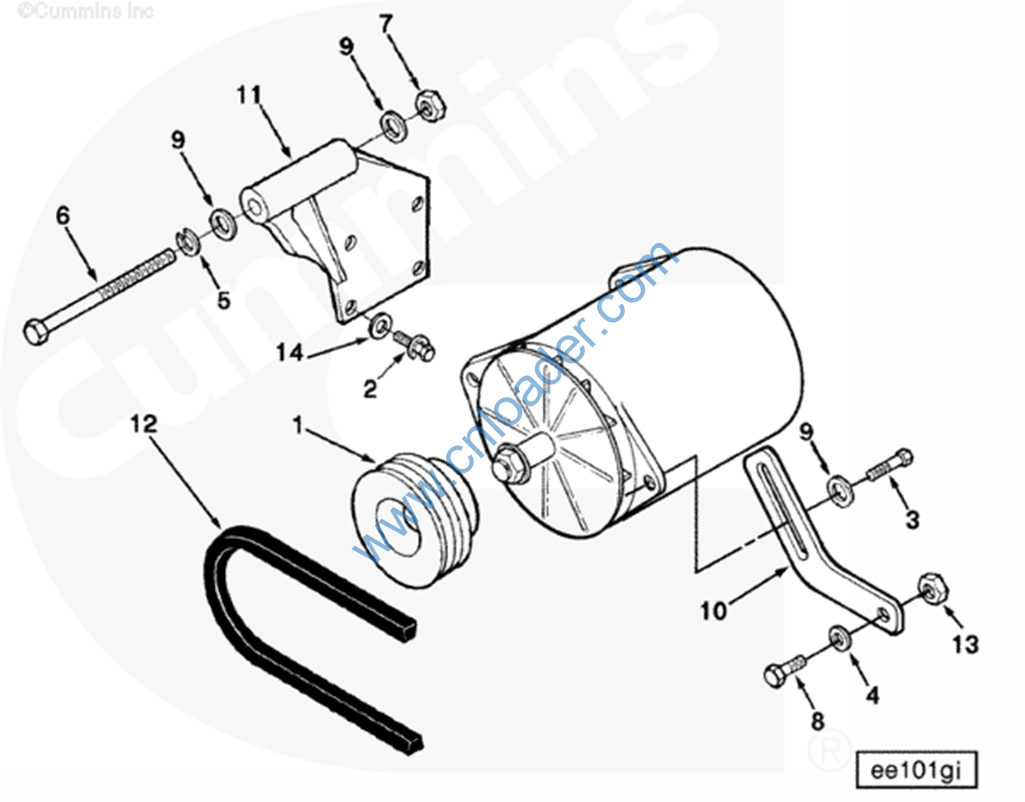

EE 1155 发电机安装
“ALTERNATOR MTG “
213326-20 发电机皮带轮20
“PULLEY ALTERNATOR “
3040292-20 多槽皮带20
“BELT V”
3261135-40 发电机安装
“MTG ALTERNATOR “
70897-20 锁紧螺母20
“NUT LOCK “
158829-20 六角螺栓20
“SCREW,HEXAGON HEAD CAP “
203310-20 平垫圈20
“WASHER PLAIN “
203760-20 平垫圈20
“WASHER PLAIN “
3010373-20 发电机支架20
“BRACKET ALTERNATOR “
3010595-20 带垫螺栓20
“SCREW,CAPTIVE WASHER CAP “
3250968-20 调节杆20
“LINK ADJUSTING “
S 145-20 六角螺栓20
“SCREW,HEX HEAD CAP “
S 183A-20 六角螺栓20
“SCREW,HEX HEAD CAP “
S 230A-20 螺母
“NUT “
S 608-20 弹簧垫圈20
EM 121 发动机前支架
ENGINE SUPPORT
3166098-40 后起吊支架
BACK LIFTING
65434-20 减压支架隔套20
SPACER MOUTING
120516-20 六角螺拴20
SCREW HEXAGON
3001726-20 后起吊支架20
BRACKET LIFING
AR 6059-40 起吊支架
BRACKET LIFTIN
170226-20 起吊支架20
BRACKET LIFTIN
S 176-20 六角螺栓20
SCREW,HEX HEAD

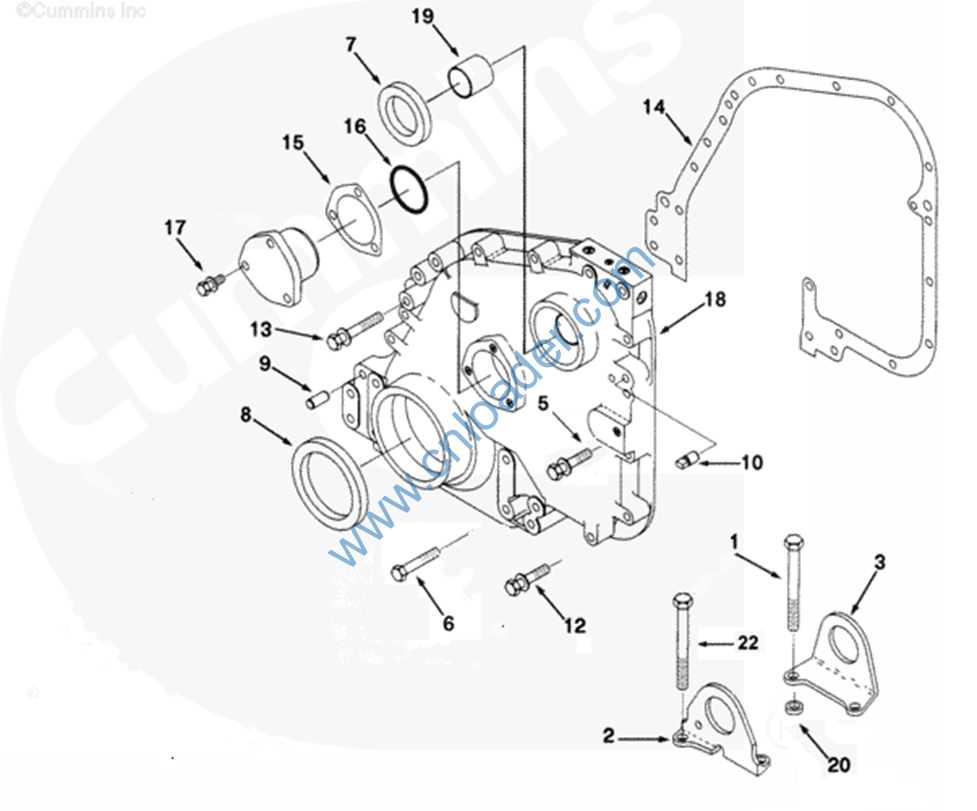

3419270-40 齿轮室盖总成
ASSY GEAR HOUS
3020185 油封90
SEAL OIL
3020186 油封90
SEAL OIL
3325683-40 齿轮室盖
COVER,GEAR
132770-20 衬套20
BUSHING
3418659-20 正时齿轮室盖20
COVER GEAR
4915275-10 齿轮室盖安装
MTG GEAR COVER
60408-20 定位销20
PIN DOWL
70653-20 定位销20
DOWEL
215705 O型密封圈90
SEAL O RING
3011712-20 带垫螺栓20
SCREW CAPTIVE
3011713-20 带垫螺栓20
SCREW CAPTIVE
3011714-20 带垫螺栓20
SCREW CAPTIVE
3011715-20 带垫螺栓20
SCREW CAPTIVE
3021704-20 垫片20
GASKET,GEAR COVER
65259 C-20 调整垫片20
SHIM
4913819-20 调整垫
SHIM
4913820-20 调整垫
SHIM
100915-20 六角螺栓20
SCREW,HEX HEAD
S 610-20 弹簧垫圈20
WASHER LOCK
3013786-20 管塞20
PLUG PIPE
3008466-20 管塞20
PLUG PIPE
S 911 B-20 管塞20
PLUG PIPE
3054889-20 六角螺栓20
SCREW,HEX HEAD
3058664-20 十二角螺栓20
SCREW TWELVE P
3600283-20 平垫圈
WASHER,PLAIN
3600285-20 六角螺栓20
SCREW,HEX HEAD
3000082-20 平垫圈20
WASHER
