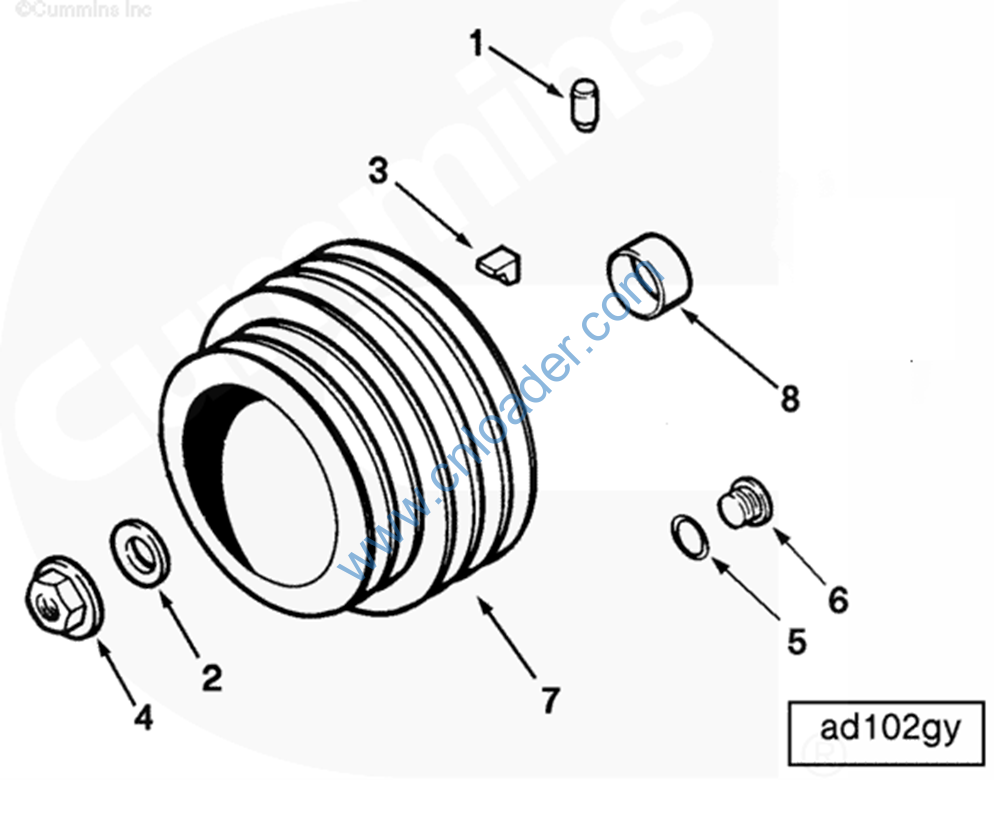

AD 115 附件驱动皮带轮
PULLEY,ACCESSORY DRIVE
3012602-40 附件驱动皮带轮安装
PULLEY ACCESSORY MTG
70550-20 定位销20
PIN
193136-20 平垫圈20
WASHER PLAIN
3008947 键槽密封90
SEAL,KEYWAY
3012526-20 六角螺母20
NUT HEXAGON FLANGE
3037537 O型密封圈90
SEAL O RING
3040813-20 螺塞20
PLUG THREADED
3013538-20 附件驱动皮带轮20
PULLEY ACCESSORY
3076346-20 耐磨套
SLEEVE WEAR
BP 109 基础件
PARTS,BASE

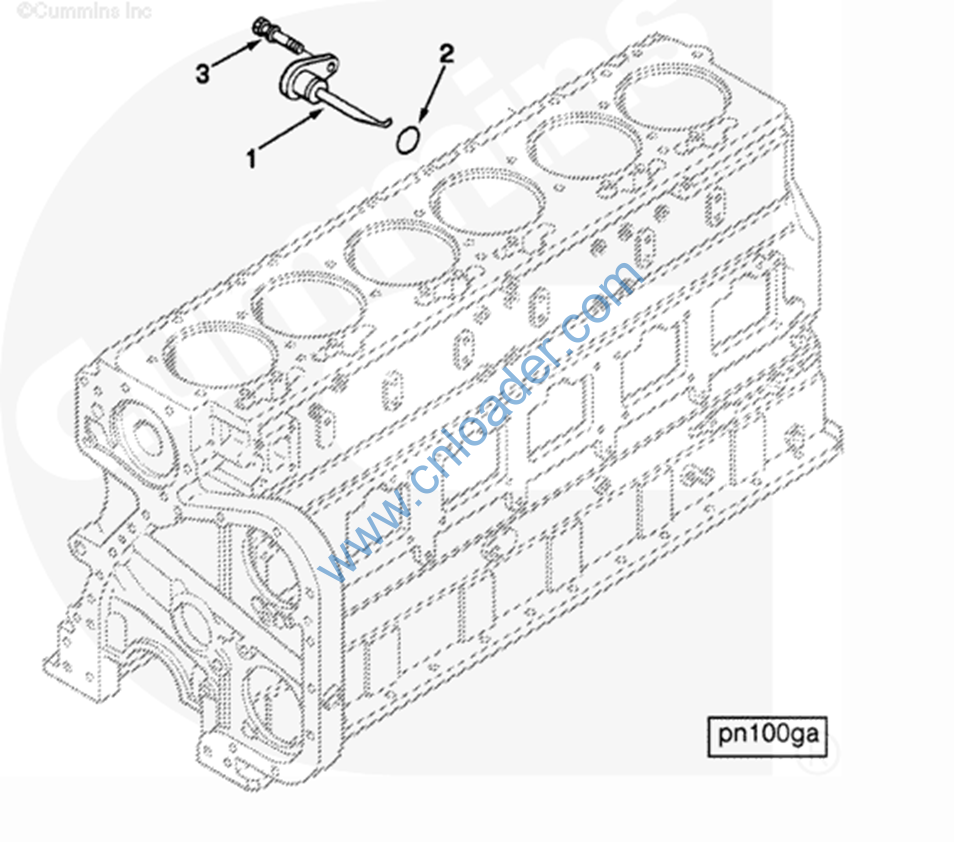

3014404-40 活塞冷却喷嘴
NOZZLE PISTON COOLING
3013591-20 活塞冷却喷嘴20
NOZZLE PISTON COOLING1 3013590-20 活塞冷却喷嘴20
NOZZLE PISTON COOLING
2 3007442 O 型圈
SEAL, O RING
3 3033822-20 带垫圈螺栓20
SCREW CAPTIVE WAS
3024832-40 水泵安装
MTG WATER PUMP
3002385-20 垫片20
GASKET, WATER PUMP
3012468-20 带垫螺栓20
SCREW CAPTIVE WAS
3012469-20 带垫螺栓20
SCREW，CAPTIVE
182706-20 六角螺栓20
SCREW，HEX HEAD CAP
217638-20 多槽皮带20
BELT,V RIBBED

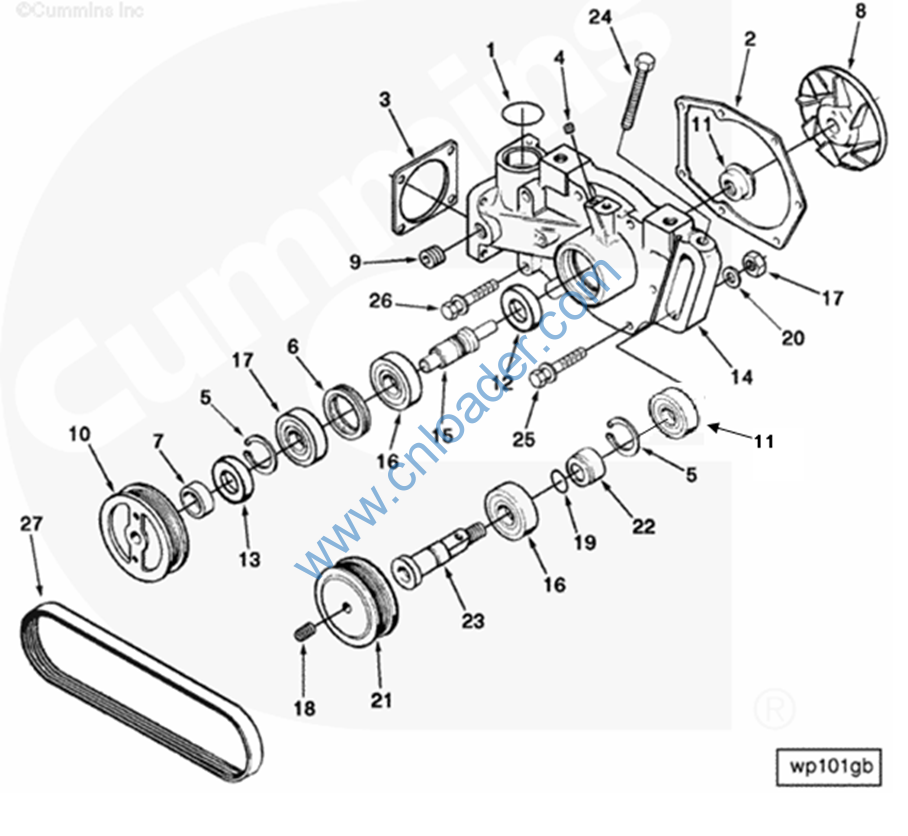

4915264-10 水泵总成
PUMP,WATER
196844-20 隔套20
SPACER
3000888 水泵叶轮90
IMPELLER WATER PUMP
3013786-20 管塞20
PLUG PIPE
3025935-20 水泵皮带轮20
PULLEY WATER PUMP
3045163-10 水泵壳体10
BODY WATER PUMP
3050394-20 水泵轴20
SHAFT WATER PUMP
3063246-20 轴承20
BEARING BALL
4060899-20 水封20
SEAL，WATER
S 911 B-20 管塞20
PLUG PIPE
S 16255-20 挡圈20
RING RETAINING
AR45189-10 水泵张紧轮总成10
IDLER WATER PUMP
145506 O型密封圈90
SEAL O RING
208119-20 张紧轮轴20
SHAFT IDLER
208120-20 隔套20
SPACER
213082-20 平垫圈20
WASHER PLAIN
215397-20 张紧轮20
PULLEY IDLER
3038998 油封90
SEAL OIL
3063246-20 轴承20
BEARING BALL
S 201-20 六角螺母20
NUT HEAVY HEXAGON
S 965 E-20 管塞20
PLUG PIPE
S 16255-20 挡圈20
RING RETAINING

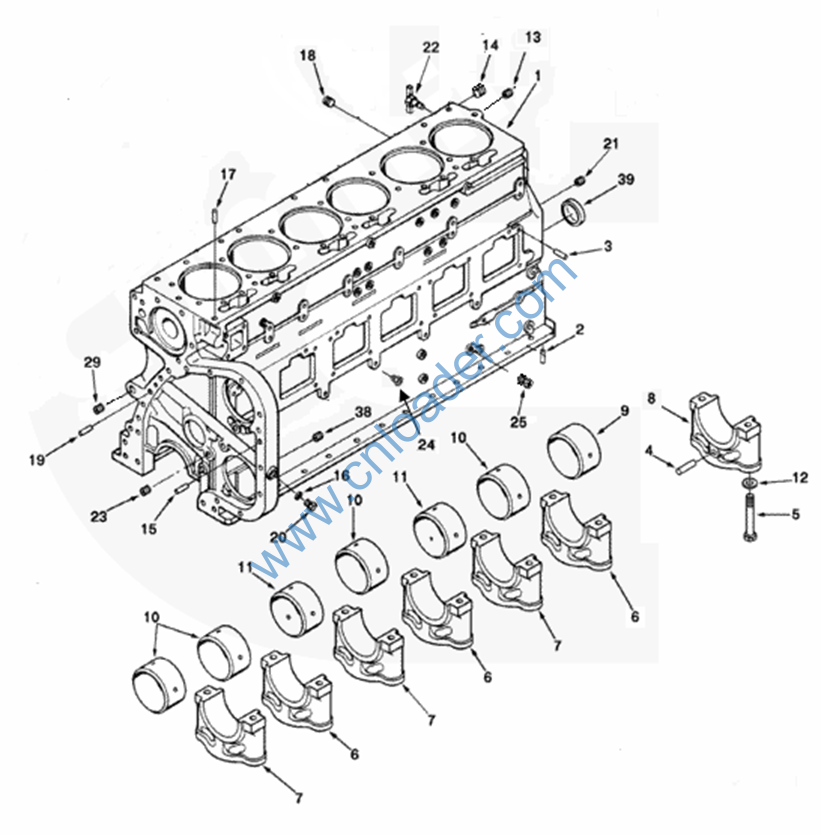

3032187-10 气缸体10
BLOCK CYLINDER
3031156-10 气缸体10
BLOCK CYLINDER
3165262 A-20 镶套
SLEEVE
67211-20 后主轴承定位销20
DOWEL,REAR MAIN BEARING
68585-20 定位销
DOWEL PIN
208346-20 六角螺栓20
SCREW，HEX HEAD CAP
3008047-20 主轴承盖20
CAP MAIN BEARING(1# 3# 5#)
3008048-20 主轴承盖20
CAP MAIN BEARING(2# 4# 6#)
3008049-20 主轴承盖20
CAP MAIN BEARING(7#)
3011951 衬套90
BUSHING(7#)
3028075 衬套90
BUSHING(1# 2# 4# 6#)
3028269 衬套90
BUSHING(3# 5#)
3039305-20 垫圈20
WASHER PLAIN
4915265-10 气缸体安装
BLOCK,CYL.MTG
66292-20 平垫圈20
WASHER PLATE
68445-20 带槽圆柱销20
PIN GROOVE
69901-20 管塞20
PLUG PIPE
202903-20 园型销20
PIN POLL
210884-20 锥型螺塞20
PLUG THREADED
3011952-20 碗型塞20
PLUG EXPENSION
3013786-20 管塞20
PLUG PIPE
4931643-20 管塞
PIPE PLUG
S 966 E-20 锥型螺塞20
PLUG
214327-20 放水开关20
DRAINCOCK

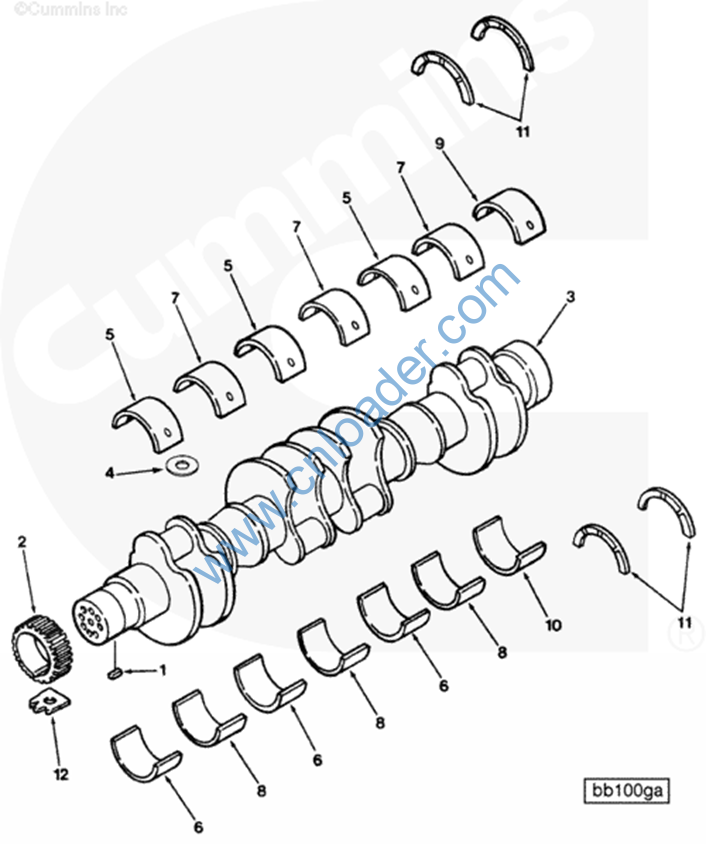

3054866-40 整体式曲轴总成
CRANKSHAFT
210179-20 曲轴齿轮键
KEY RECTANGULAR
3014614-20 曲轴齿轮20
GEAR CRANKSHAFT
3608833-10 曲轴10
CRANKSHAFT ENGINE
3037046-40 主轴瓦组件
SET MAIN BEARING
3019174-20 主轴瓦20
BEARING，MAIN
3019180-20 主轴瓦20
BEARING，MAIN
3019186-20 主轴瓦20
BEARING，MAIN
3019192-20 主轴瓦20
BEARING，MAIN
3019198-20 主轴瓦20
BEARING，MAIN
3019204-20 主轴瓦20
BEARING，MAIN
3037045-20 主轴承定位圈20
RING MAIN BEARING
3067568-20 止推片90
BEARING THRUST

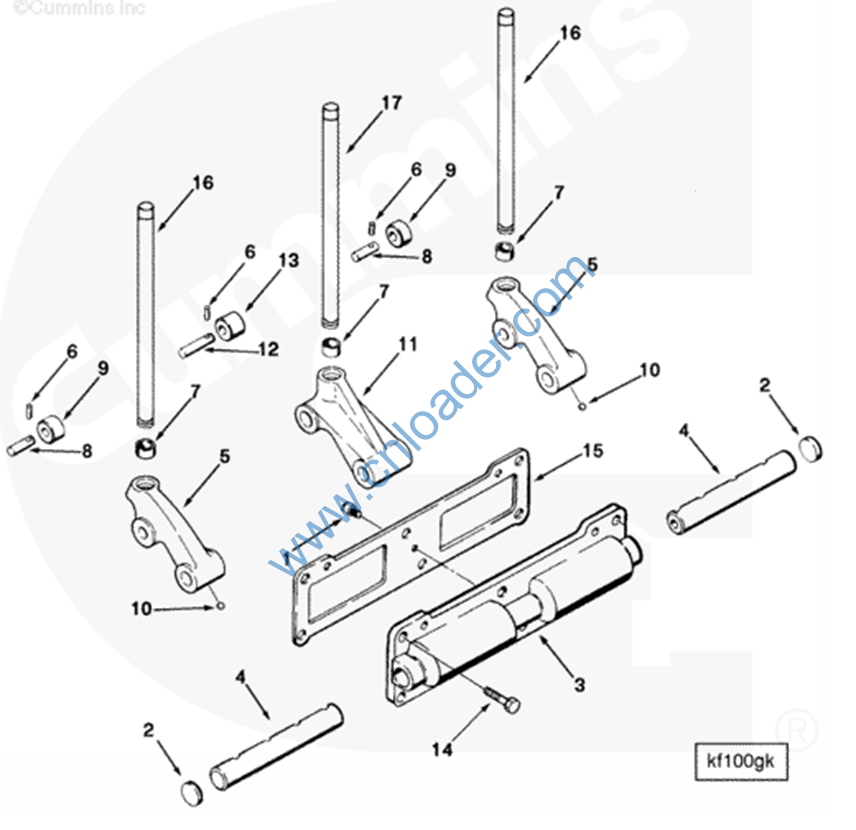

3418660-20 凸轮从动件总成
HOUSING, CAM FOLLOWER
3046420-20 推杆20
ROD PUSH
3046430-20 推杆20
ROD PUSH
3063612-40 凸轮从动件室安装
BOX CAM MTG.
3074400-20 衬垫20
GASKET CAM FOL HOUSING
3074401-20 衬垫20
GASKET CAM FOL HOUSING
3074402-20 衬垫20
GASKET CAM FOL HOUSING
3074403-20 衬垫20
GASKET CAM FOL HOUSING
S 120 A-20 六角螺栓20
SCREW，HEX HEAD CAP
