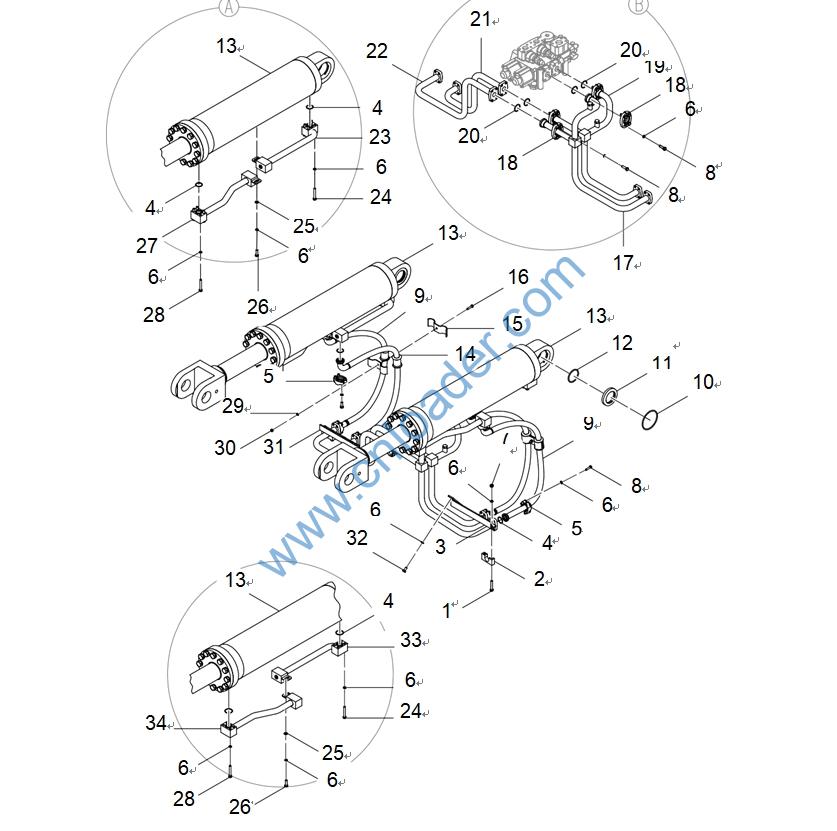

51203101914 螺栓M10×65 BOLT M10×65 GB/T5782
30893100009 管夹 CLAMP LG50EX.07-005
30807000034 动臂钢管固定板 FIXING PLATE, BOOM PIPE LG50EX.07.14
56900000401 O形圈32.92×3.53 O-RING, 32.92×3.53 AS568
60911011234 法兰夹 FLANGE CLAMP FL-16
51401100107 垫圈10 WASHER 10 GB/T93
51307001019 螺母M10 NUT M10 GB/T6170
51204101314 螺栓M10×35 BOLT M10×35 GB/T5783
17272008077 胶管总成 87311-16/87391-16R1716
1600
56145013901 O形圈95×5.3 O-RING 95×5.3 GB/T3452.1
30807100341 动臂油缸连接密封座 SEAL SEAT, BOOM CYLINDER LG853.07-006
56145013701 O形圈71×5.3 O-RING 71×5.3 GB/T3452.1
16608101250 动臂油缸 LG855.07Ⅱ.02A(LGH)
60922010042 橡胶垫 RUBBER SHIM LG6360.15-04
30807100566 管夹 CLAMP LG855DⅡ.07.01-001
51204091414 螺栓M8×40 BOLT M8×40 GB/T5783
30893000424 钢管焊合 PIPE FABRICATE CDM856DⅠ.07Ⅰ.03
30807100343 压板 PLATE LG853.07-007
30893000425 钢管焊合 PIPE FABRICATE CDM856DⅠ.07Ⅰ.04
56900001001 O形圈37.69×3.53 O-RING, 37.69×3.53 AS568
30893000427 钢管焊合 PIPE FABRICATE CDM856DⅠ.07Ⅰ.06
30893000426 钢管焊合 PIPE FABRICATE CDM856DⅠ.07Ⅰ.05
30807000207 钢管焊合 PIPE FABRICATE LG855DⅡ.07.01.03
51203102014 螺栓M10×70 BOLT M10×70 GB/T5782
51420100121 垫圈10 WASHER 10 GB/T96.1
51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
30807000205 钢管焊合 LG855DⅡ.07.01.01
51203101714 螺栓M10×55 BOLT M10×55 GB/T5782
51401090107 垫圈8 WASHER 8 GB/T93
51307000919 螺母M8 NUT M8 GB/T6170
30807000033 动臂钢管固定板焊合 FIXING PLATE, BOOM PIPE LG50EX.07.13
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
30807000208 钢管焊合 LG855DⅡ.07.01.04
30807000206 钢管焊合 LG855DⅡ.07.01.02
51204111114 螺栓M12×25 BOLT M12×25 GB/T5783
51401110107 垫圈12 WASHER 12 GB/T93
51421110115 垫圈12 WASHER 12 GB/T97.1
17601000531 过渡接头 TRANTITION CONNECTOR L1QH-16-22

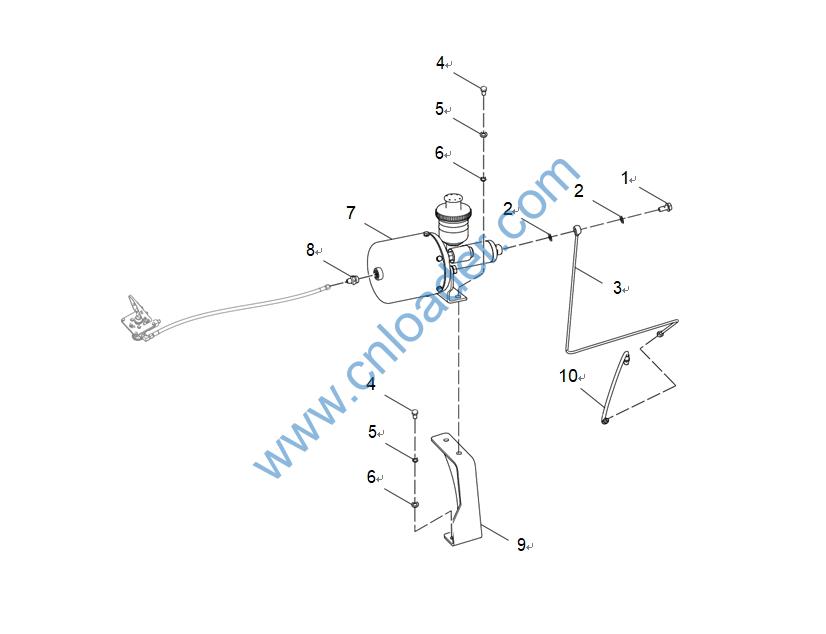

60500008038 加力泵总成 LG855NGⅩⅥ.08.01.01

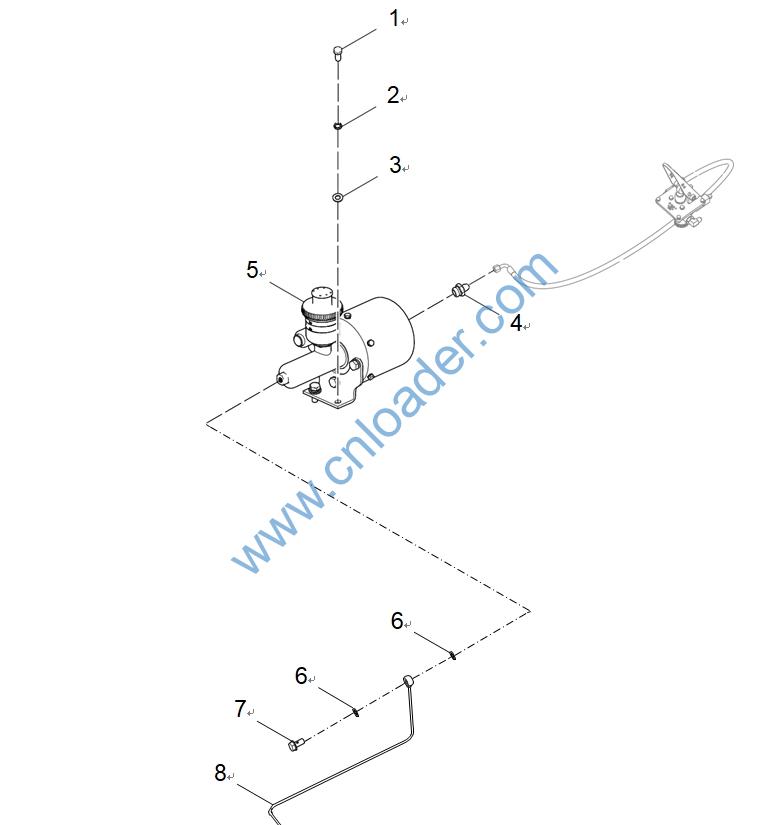

30808100054 垫圈 WASHER LG853.08-005
30808101089 联接螺栓 CONNECTING BOLT LG853.08-004
30808013055 钢管总成 PIPE ASSEMLY CDM855NⅡ.08.01.02
30808101089 联接螺栓 CONNECTING BOLT LG853.08-004
30808100054 垫圈 WASHER LG853.08-005
30808000396 钢管总成 LG855N.08.03
51204111114 螺栓M12×25 BOLT M12×25 GB/T5783
51401110107 垫圈12 WASHER 12 GB/T93
51421110115 垫圈12 WASHER 12 GB/T97.1
60500008038 加力泵总成 LG855NGⅩⅥ.08.01.01
17601000531 过渡接头 TRANTITION CONNECTOR L1QH-16-22
30808000509 后加力泵支架焊合 LG855.08.01
60911010174 制动软管总成 HOSE ASSEMBLY, SERVICE BRAKE LG853.08.11
17601000531 过渡接头 TRANTITION CONNECTOR L1QH-16-22

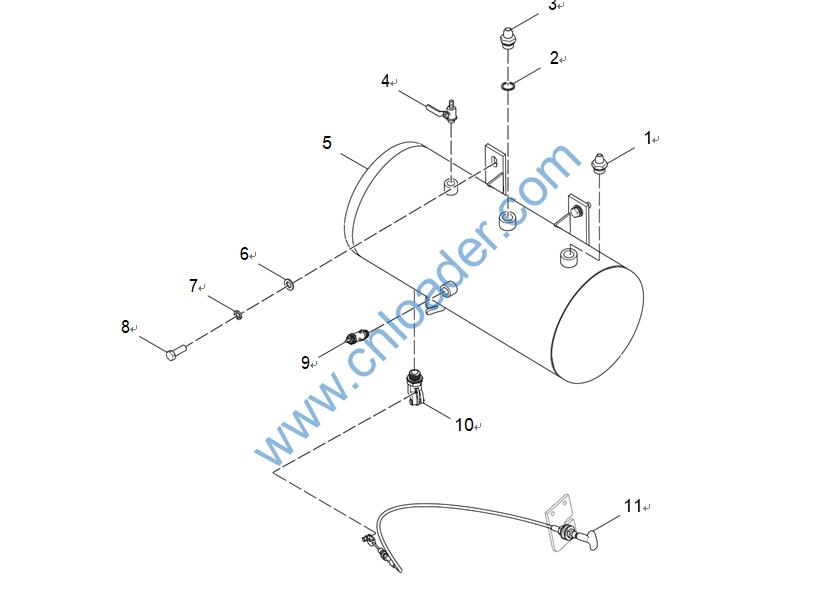

56901000401 垫圈22 WASHER 22 JB/T966
17601000543 过渡接头 TRANTITION CONNECTOR L1QL-18-22
60304000046 充气阀(1/4) AIR CHARGING VALVE(1/4) LG853.08.01.02
30808000037 储气筒焊合 AIR TANK FABRICATE LG853.08.01.01
51421110115 垫圈12 WASHER 12 GB/T97.1
51401110107 垫圈12 WASHER 12 GB/T93
51204111214 螺栓M12×30 BOLT M12×30 GB/T5783
60304000048 安全阀 SAFETY VALVE LG853.08.01.04
60304000431 放水阀LYG-1305002 WATER DRAIN VALVE LYG-1305002 LG833B.08Ⅵ.03
60304100074 放水阀拉线 CABLE, WATER DRAIN VALVE LG853D.08.05(S)

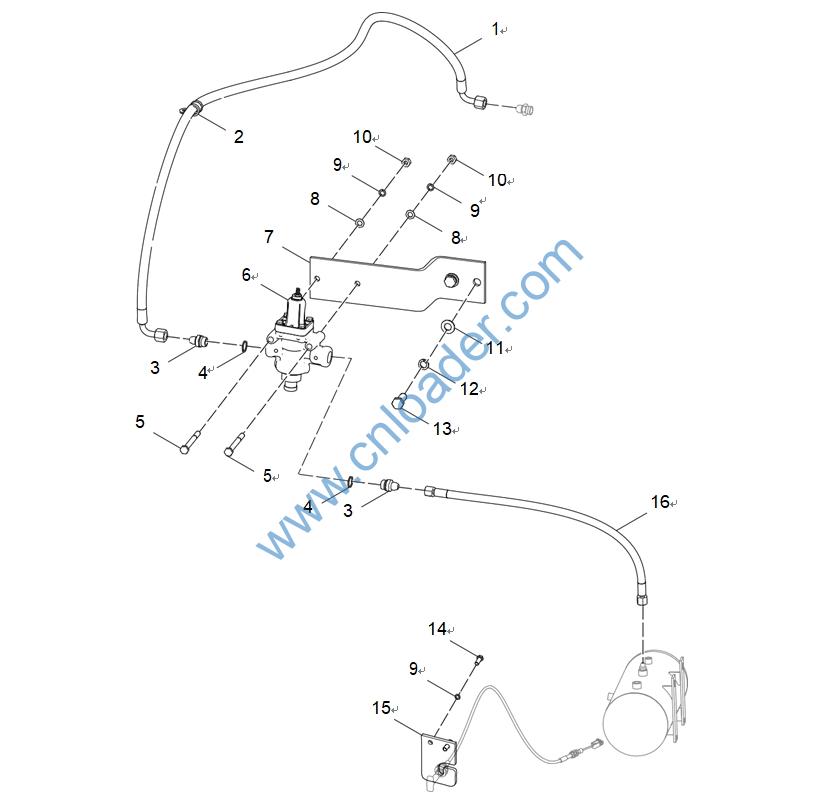

17272002466 胶管总成 20791-18JS061400
60911013718 线夹20 HARNESS CLIP 20-1 LG855BⅡ.15Ⅰ.17
17601000543 过渡接头 TRANTITION CONNECTOR L1QL-18-22
56901000401 垫圈22 WASHER 22 JB/T966
51203092514 螺栓M8×85 BOLT M8×85 GB/T5782
60304000049 卸荷阀总成EQ135 RELIEF VALVE ASSEMBLY EQ135 LG853.08.08
30808113966 组合阀支架 LG50CⅩⅩ.08.03-001
51421090115 垫圈8 WASHER 8 GB/T97.1
51401090107 垫圈8 WASHER 8 GB/T93
51307000919 螺母M8 NUT M8 GB/T6170
51421110115 垫圈12 WASHER 12 GB/T97.1
51401110107 垫圈12 WASHER 12 GB/T93
51204111214 螺栓M12×30 BOLT M12×30 GB/T5783
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
30808100177 固定板 FIXING PLATE LG833B.08Ⅵ-001
60300002896 钢丝软管总成 WIRED HOSE ASSEMBLY 20711-18TJS05910
17601000531 过渡接头 TRANTITION CONNECTOR L1QH-16-22
17272000484 胶管总成 20711-16T/20791-16T*1W05
*2100

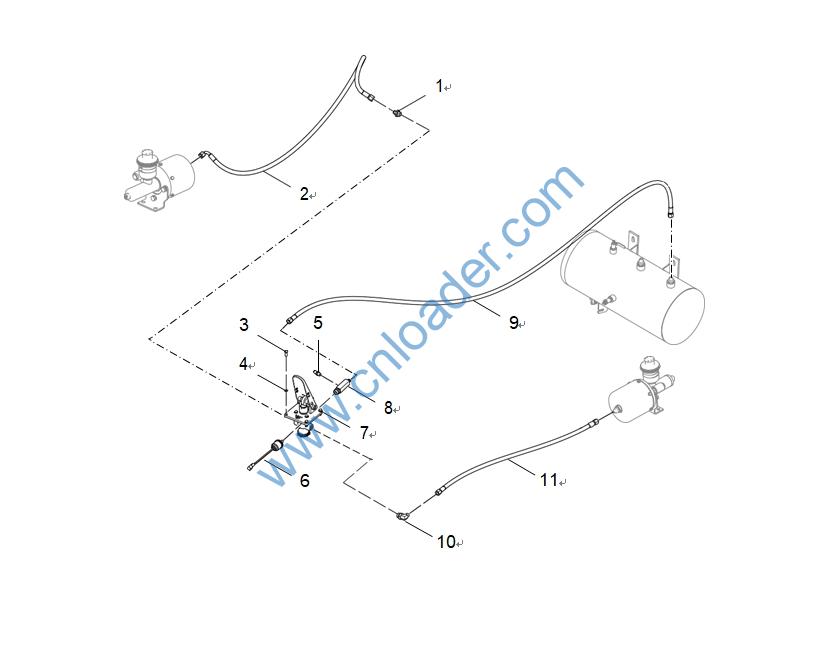

51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
30801100970 测压接头 CONNECTOR, MANOMETRY LG853.01-002
60900005964 制动灯开关总成 BRAKE LAMP SWITCH ASSEMBLY LG50CⅤ.08.06.01.02
60300000546 制动阀总成 BRAKE VALVE ASSEMBLY LG50CⅤ.08.06.01
30808000250 过渡接头 TRANTITION CONNECTOR LG855BⅣ.08.03
17272000166 胶管总成 HOSE ASSEMBLY 20711-16T1W053200
17601001343 过渡接头 TRANTITION CONNECTOR L1QH9-16-22OG
17272012390 胶管总成 20711-16T1W051150
30808100054 垫圈 WASHER LG853.08-005

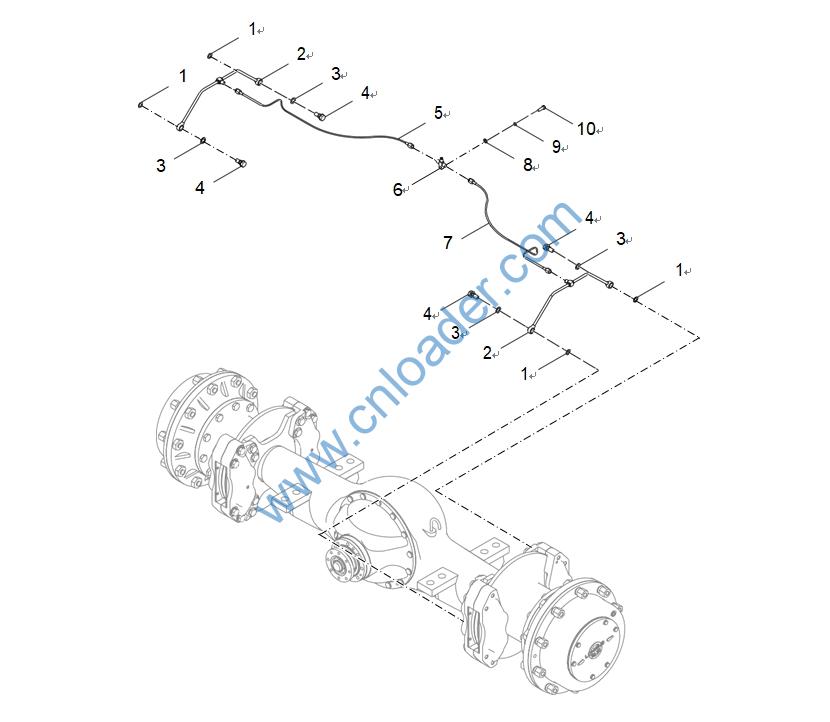

30808000234 钢管焊合 PIPE FABRICATE LG50C.08.04
30808100012 垫圈 WASHER LG853.08-011
30893100632 管接头 PIPE CONNECTOR LG853.08-010
30893900023 钢管总成 PIPE ASSEMLY LG853.08.06
30808100016 三通接头 T-CONNECTOR LG853.08-014
30893900025 钢管总成 PIPE ASSEMLY LG853.08.14
51421090115 垫圈8 WASHER 8 GB/T97.1
51401090107 垫圈8 WASHER 8 GB/T93
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783

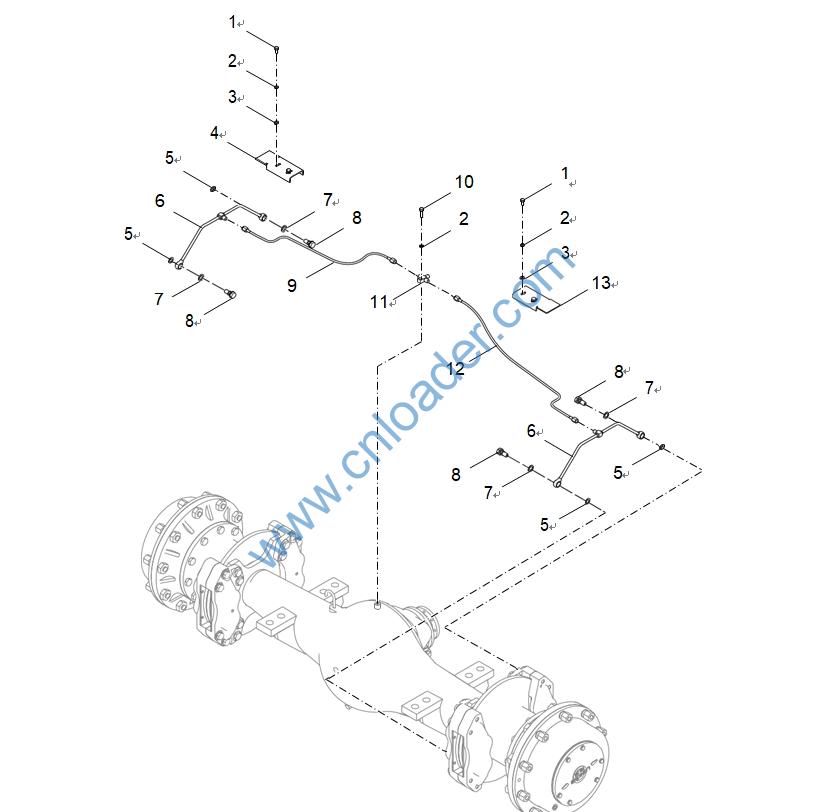

51204090914 螺栓M8×16 BOLT M8×16 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
51421090115 垫圈8 WASHER 8 GB/T97.1
30808100487 护板 PROTECTION PLATE LG853.08-015
30808100054 垫圈 WASHER LG853.08-005
30808000234 钢管焊合 PIPE FABRICATE LG50C.08.04
30808100012 垫圈 WASHER LG853.08-011
30893100632 管接头 PIPE CONNECTOR LG853.08-010
30893900433 钢管总成 PIPE ASSEMLY LG853.08.17
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
30808100014 三通接头 T-CONNECTOR LG853.08-012
30893900026 钢管总成 PIPE ASSEMLY LG853.08.16
30808100055 护板 PROTECTION PLATE LG853.08-016

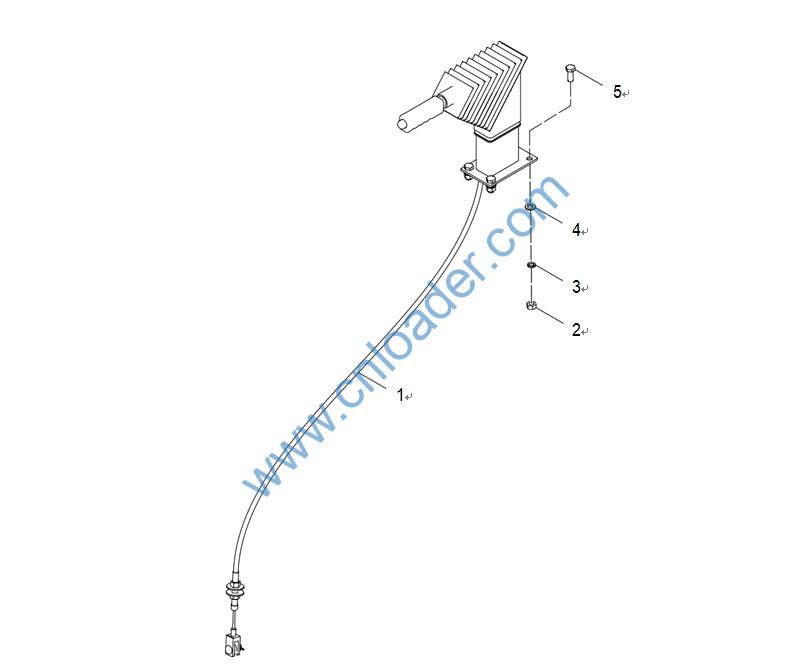

60200000212 手刹总成 LG855BⅣ.09.01
51307001019 螺母M10 NUT M10 GB/T6170
51401100107 垫圈10 WASHER 10 GB/T93
51421100115 垫圈10 WASHER 10 GB/T97.1
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783

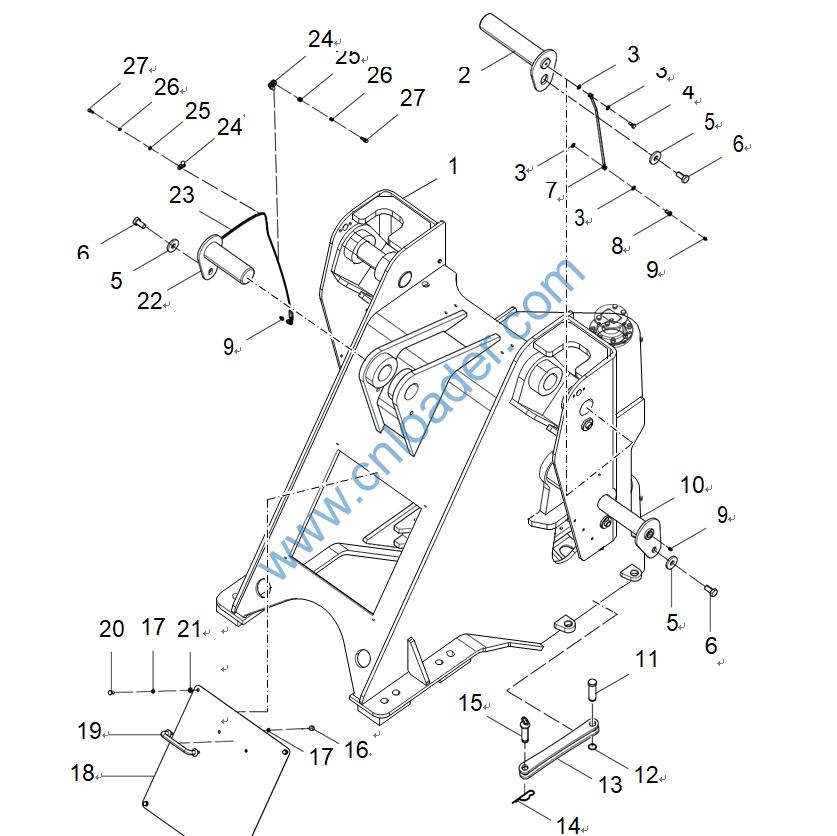

30810019584 前车架焊合 LG855NGcⅠ.10.01
30890000068 动臂上销轴焊合 UPPER PIN, BOOM LG50CKⅠ.10.04
60980000179 垫圈10 WASHER 10 LG853.10.06-005
30893100787 通油螺栓 BOLT LG853.10.06-001
30811103028 垫圈16 WASHER 16 LG50CKⅠ.11-001
51204134714 螺栓M16×25 BOLT M16×25 GB/T5783
60900004639 动臂上销注油软管总成 HOSE, UPPER PIN, BOOM LG855NⅠ.10.06
30810102330 油嘴螺栓 BOLT LG855BⅣ.10-002
56201000301 油杯M10×1 OIL CUP M10×1 JB/T7940.1
30890000069 动臂缸后销轴焊合 PIN, BOOM CYLINDER REAR LG50CKⅠ.10.05
30810118399 销轴 LG955HG.10-001
51453270107 挡圈30 CIRCLIP 30 GB/T894.1
30810013911 固定杆焊合 LG50NCU.10.06
51536000101 销4×44 PIN 4×44 DIN11024
30890900232 销轴焊合 PIN FABRICATE LG853.10.08
51307001019 螺母M10 NUT M10 GB/T6170
51401100107 垫圈10 WASHER 10 GB/T93
30810101351 盖板 COVER PLATE LG855.10.15-001
60907000001 扶手总成 HANDRAIL ASSEMBLY LG853.13.07.01.02
51204101014 螺栓M10×20 BOLT M10×20 GB/T5783
51421100115 垫圈10 WASHER 10 GB/T97.1
30890000067 翻斗缸后销轴焊合 PIN, TILT CYLINDER REAR LG50CKⅠ.10.03
60911010972 翻斗缸后销轴注油管总成 PIN, TILT CYLINDER REAR LG855.10Ⅰ.07
60911010971 注油管夹总成 CLAMP ASSEMBLY LG855.10Ⅰ.06
51421090115 垫圈8 WASHER 8 GB/T97.1
51401090107 垫圈8 WASHER 8 GB/T93
51204091014 螺栓M8×20 BOLT M8×20 GB/T5783
