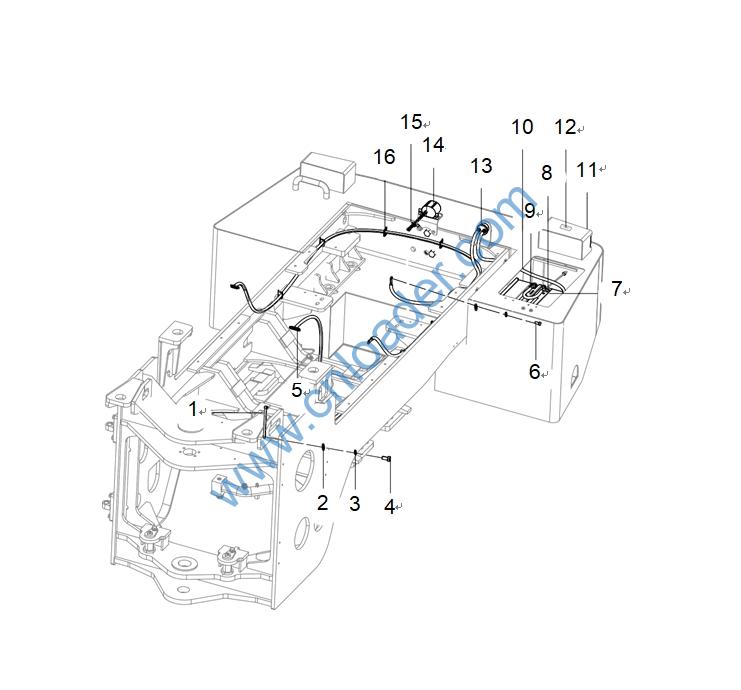

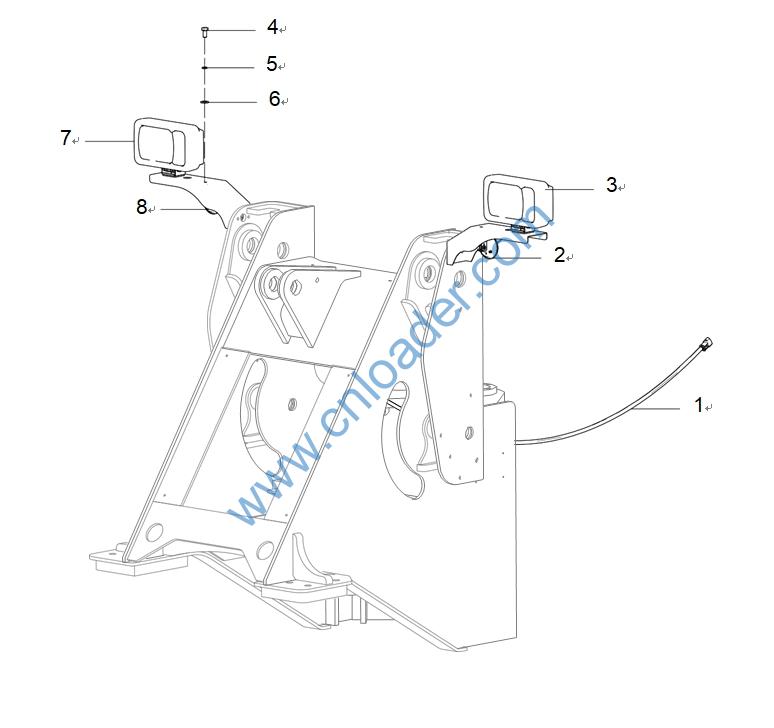

60400000600 前车架线束 HARNESS, FRONT FRAME LG833BG.15Ⅸ.01
60401050112 左电喇叭(高音) HORN, L.H. LG855DⅢ.15Ⅱ.09.01
60400000844 左前组合大灯 COMBINED LAMP, L.H. CDM856Ⅴ.15.18.02
51204090914 螺栓M8×16 BOLT M8×16 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
51421090115 垫圈8 WASHER 8 GB/T97.1
60400000843 右前组合大灯 COMBINED LAMP, R.H. CDM856Ⅴ.15.18.01
60401050113 右电喇叭(低音) HORN, R.H. LG855DⅢ.15Ⅱ.09.02
60400001034 搭铁线 GRANDING HARNESS CDM856Ⅴ.15.12
51421090115 垫圈8 WASHER 8 GB/T97.1
51401090107 垫圈8 WASHER 8 GB/T93
51204090914 螺栓M8×16 BOLT M8×16 GB/T5783
60400008328 后车架线束 HARNESS, REAR FRAME LG833NTGⅥ.15.03
51204091014 螺栓M8×20 BOLT M8×20 GB/T5783
60401030006 蓄电池105E41R/12V105Ah BATTERY 105E41R/12V105Ah LG30F.15.26
51307000919 螺母M8 NUT M8 GB/T6170
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
60400000718 电瓶线 BATTERY HARNESS CDM835EⅤ.15.05
60402050183 后尾灯SY-022A REAR TAIL LAMP SY-022A LG833B.15Ⅰ.28
60400001156 三色后尾灯 REAR TAIL LAMP, TRI-COLOR LG50NCT.15Ⅰ.28
60402050248 牌照灯 NAMEPLATE LIGHT CDM856DⅠ.15.50
60400002342 牌照灯连接线 CONNECTING HARNESS,
NAMEPLATE L IGHT LG833BGⅣ.15.10
60405020184 电源总开关34B0087 MAIN POWER SWITCH 34B0087 LG853B.15.40
60980000164 倒车蜂鸣器JWL-FM212/24V BACK UP BUZZER JWL-FM212/24V CDM855E.15Ⅱ.20
30815100341 插接件支架 BRACKET, HARNESS CONNECTOR CDM856DⅠ.15-001
60980000190 尼龙扎带ZD250×5 NYLON TIE-WRAP LG853.15-001

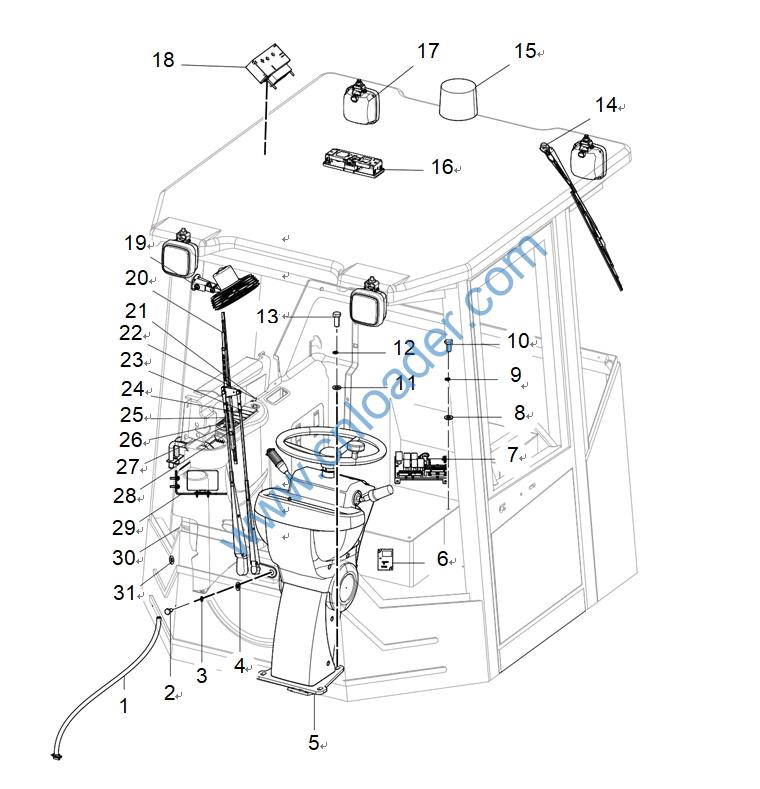

60400000546 驾驶室线束 HARNESS, CABIN LG855BⅣ.15.02
51204091014 螺栓M8×20 BOLT M8×20 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
51421090115 垫圈8 WASHER 8 GB/T97.1
60400010120 独立仪表台总成 INSTRUMENT BRACKET
ASSEMBLY LG833NGⅩⅩⅩⅤ.15.60
60400010121 独立仪表台总成 INSTRUMENT BRACKET
ASSEMBLY LG833NGⅩⅩⅩⅤ.15.70
60400010241 独立仪表台总成 INSTRUMENT BRACKET
ASSEMBLY LG833NGⅩⅩⅩⅤ.15.80
60980000071 冷启动系统YRZZ2455-7 COLD START SYSTEM CDM833.15Ⅴ.50
60400009933 冷启动过渡线束 TRANSITION HARNESS, COLD
START DEVICE CDM833.15Ⅴ.52
60400000576 保险盒总成 FUSE BOX ASSEMBLY LG855DS.15.37
51420080121 垫圈6 WASHER 6 GB/T96.1
51401080107 垫圈6 WASHER 6 GB/T93
51204080814 螺栓M6×12 BOLT M6×12 GB/T5783
51421110115 垫圈12 WASHER 12 GB/T97.1
51401110107 垫圈12 WASHER 12 GB/T93
51222113414 螺栓M12×35 BOLT M12×35 GB/T16674.1
60400000572 后雨刮器总成 REAR WIPER ASSEMBLY LG855DS.15.34
60400000553 警示灯 WARNING LAMP LG855DS.15.17
60402050240 吸顶灯 CEILING LAMP CDM835EⅠ.15.25
60404011580 拖方大灯WD105X105B LAMP WD105X105B LG850Ⅱ.15Ⅰ.12
60400001155 工作灯WDL80×80 WORKING LAMP WDL80×80 LG50NCT.15Ⅰ.12
60400000727 Mp3 MP3 CDM835EⅤ.15.18
60401050021 电风扇SGF-03A FAN SGF-03A LG855.15.45
60400000569 前雨刮器总成 FRONT WIPER ASSEMBLY LG855DS.15.32
60400008154 操作台线束 HARNESS, CONTROL PANEL LG855BⅥ.15.08(S)
60400000752 后窗加热连接线 CONNECTING HARNESS, REAR
WINDOW HEATING CDM856Ⅴ.15.55
60400000670 12V充电座 CHARGER SEAT 12V LG853DⅠ.15.33
60404011588 充电座8JB008023-001 CHARGING SEAT 8JB008023-001 LG855BⅡ.15.33
60400000551 翘板开关 PANEL SWITCH LG855BⅣ.15.34
60400000736 警示灯开关 SWITCH, WARNING LAMP LG855BⅣ.15.52
60400000737 雨刷开关 SWITCH, WIPER LG855BⅣ.15.53
60400000751 后窗加热开关 HEATING SWITCH, REAR WINDOW CDM856Ⅴ.15.54
60400009932 冷启动选择开关 SELECTING SWITCH, COLD START
DE VICE CDM833.15Ⅴ.51
60402010078 摄像视屏系统 CAMARA SYSTEM LG50CⅢ.15Ⅲ.18
30815000256 暖风机装配总成 HEATER ASSEMBLY LG833BG.15Ⅸ.55
60400000641 空调总成 A.C. ASSEMBLY CDM856DⅢ.15S.19
51420090121 垫圈8 WASHER 8 GB/T96.1

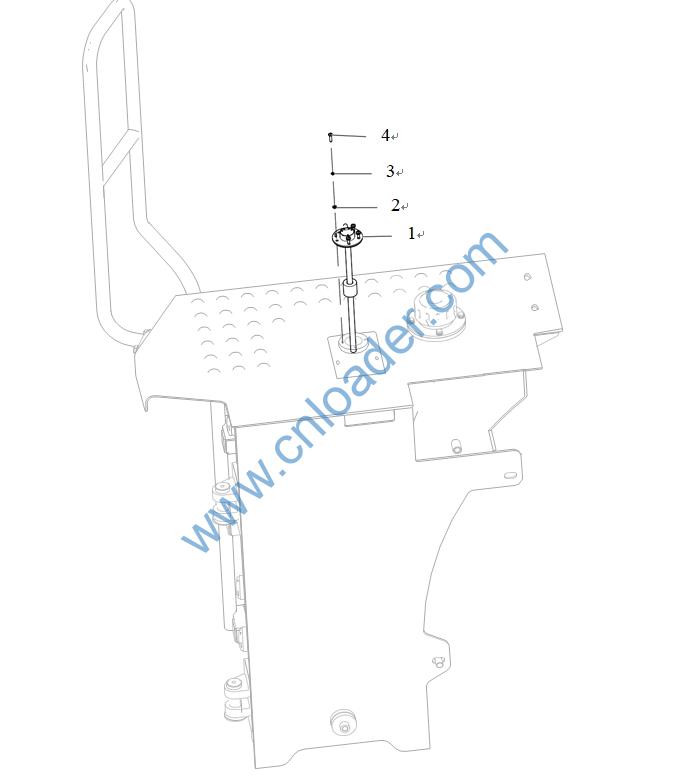

60400000566 燃油液位传感器 FUEL LEVEL SENSOR LG855DS.15.29
51421070115 垫圈5 WASHER 5 GB/T97.1
51401070107 垫圈5 WASHER 5 GB/T93
51158171304 螺钉M5×18 SCREW M5×18 GB/T818
60402020050 温度传感器WG-5(Z3/8) TEMPERATURE SENSOR
WG-5(Z3/8) LG855BⅠ.15.16
60400000563 压力开关 PRESSURE SWITCH LG855DS.15.26
60400000562 压力开关 PRESSURE SWITCH LG855DS.15.25
60405020055 低压报警开关SH361 LOW PRESSURE ALARMER LG853.15.27

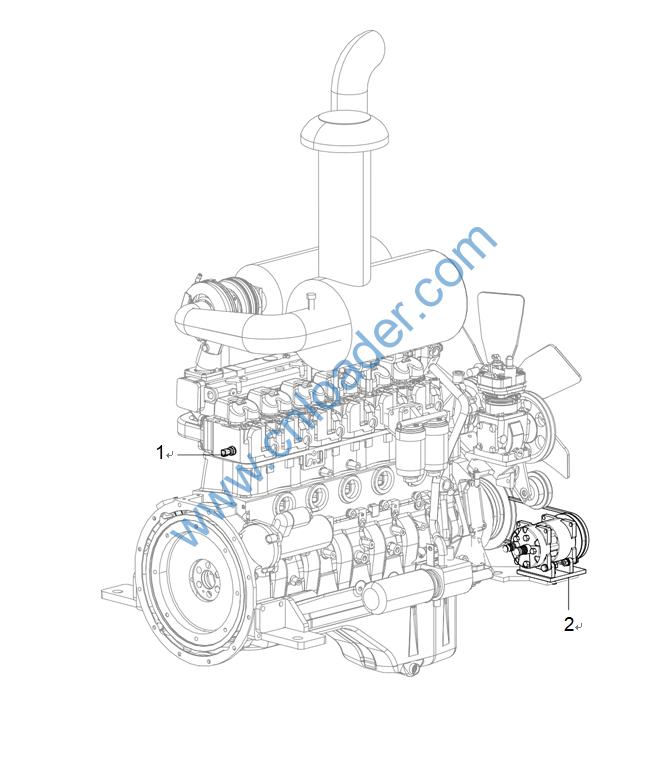

60402020050 温度传感器WG-5(Z3/8) TEMPERATURE SENSOR
WG-5(Z3/8) LG855BⅠ.15.16
30815000025 压缩机支架 BRACKET, COMPRESSOR LG835.15Ⅰ.46

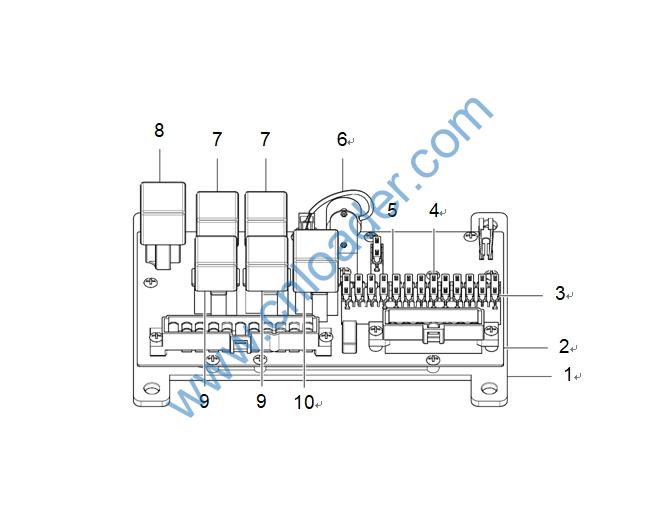

60400001279 支架 BRACKET LG855DS.15.37.02
60400001278 线路板 BREADBOARD LG855DS.15.37.01
60900002953 保险丝 FUSE 10A
60400001280 保险丝 FUSE 15A
60900002954 保险丝 FUSE 20A
60402020193 低压报警蜂鸣器 LOW PRESSURE BUZZER LG853B.15.31
60405030036 继电器HD4195B/024-1H9M1/F RELAY HD4195B/024-1H9M1/F LG853B.15.17
60401800001 电子闪光器SGD258-24V FLASHER SGD258-24V LG853.15.33
60400008038 继电器
HD4195K/024-1H/9M1LC-F RELAY HD4195K/024-1H/9M1LC-F CDM855NⅡ.15.25
60405030122 继电器HD4195C/024-1H/9M1/F RELAY HD4195C/024-1H/9M1/F LG855BⅡ.15Ⅰ.25

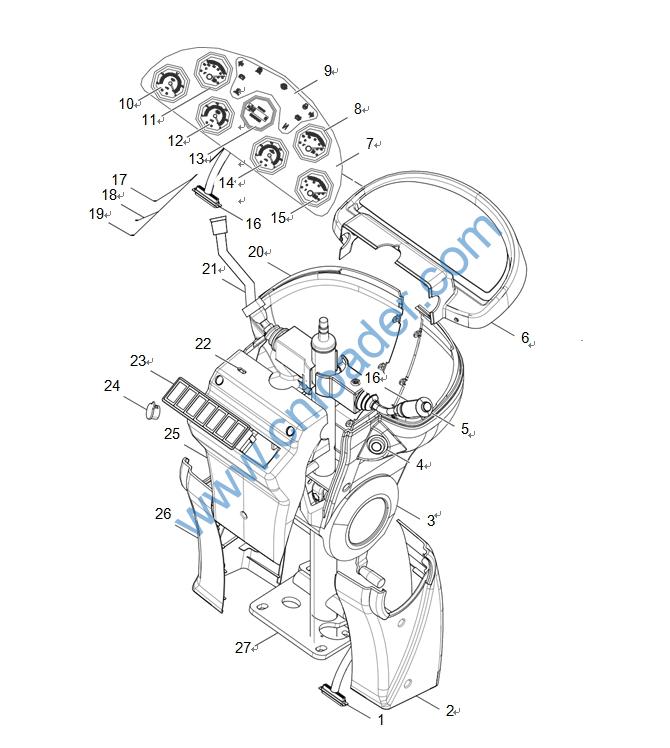

60400000578 仪表台线束 HARNESS, INSTRUMENT BRACKET LG855DS.15.60.01
60400000614 右下壳 LOWER SHELL, R.H. LG855DS.15.60.19
60400000619 右上壳 UPPER SHELL, R.H. LG855DS.15.60.17
60405020243 起动开关JK435 START SWITCH JK435 LG850Ⅲ.15.14
60405020346 组合开关 COMBINED SWITCH CDM835EⅠ.15.42
60400000612 仪表框 INSTRUMENT FRAME LG855DS.15.60.15
60400000611 仪表面板 INSTRUMENT PANEL LG855DS.15.60.14
60400000581 油温表 OIL TEMPERATURE SENSOR LG855DS.15.60.04
60400000610 指示灯组(16个) INDICATE LAMP LG855DS.15.60.13
60400000587 燃油表 FUEL LEVEL GAUGE LG855DS.15.60.10
60400000580 水温表 WATER TEMPERATURE SENSOR LG855DS.15.60.03
60400000584 机油压力表 ENGINE OIL PRESSURE GAUGE LG855DS.15.60.07
60400000582 计时表 HOUR METER LG855DS.15.60.05
60400000583 气压表 AIR PRESSURE GAUGE LG855DS.15.60.06
60400000587 燃油表 FUEL LEVEL GAUGE LG855DS.15.60.10
60400000579 仪表线束 HARNESS, INSTRUMENT LG855DS.15.60.02
60911010428 气压表接管总成 AIR PRESSURE GAUGE HOSE
ASSEMBLY LG853.08.12
60400000877 双变油压表胶管 HOSE, TRANSMISSION OIL
PRESSURE GAUGE LG833BG.00Ⅸ.60.35
60911010162 机油压力表胶管3900mm HOSE, ENGINE OIL PRESSURE
GAUGE L3900 LG855.15.36
60400000617 左上壳 UPPER SHELL, L.H. LG855DS.15.60.16
60400009165 变速软轴 SPEED CONTROL CABLE LG833NGⅩⅩⅥ.15.60.12
60100002753 橡胶堵头 RUBBER PLUG LG855DS
60400000608 翘板开关 PANEL SWITCH LG855DS.15.60.11
60404011588 充电座8JB008023-001 CHARGING SEAT 8JB008023-001 LG855BⅡ.15.33
60400000616 后壳 REAR SHELL LG855DS.15.60.20
60400000615 左下壳 LOWER SHELL, L.H. LG855DS.15.60.18
60400000613 内支架总成 INNER BRACKET ASSEMBLY LG855DS.15.60.22

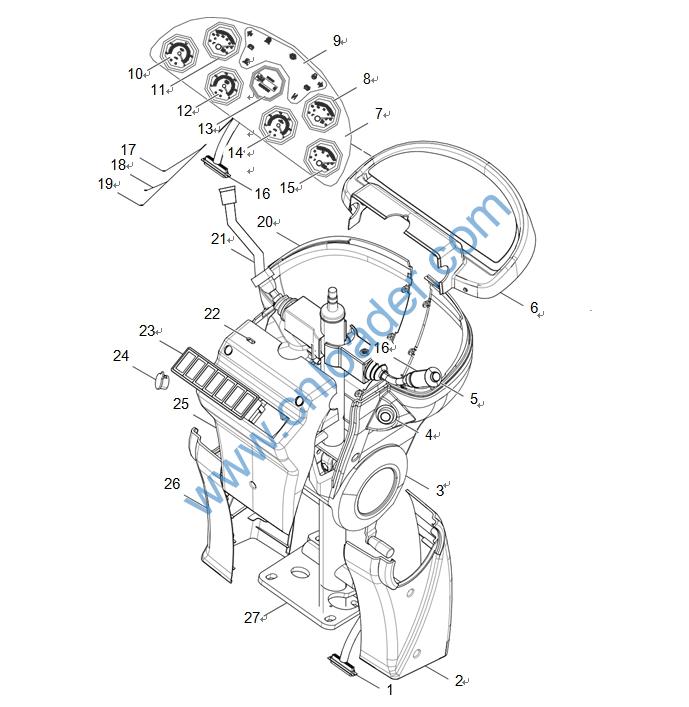

60400010120 独立仪表台总成 INSTRUMENT BRACKET
ASSEMBLY LG833NGⅩⅩⅩⅤ.15.60
60400000578 仪表台线束 HARNESS, INSTRUMENT BRACKET LG855DS.15.60.01
60400000614 右下壳 LOWER SHELL, R.H. LG855DS.15.60.19
60400000619 右上壳 UPPER SHELL, R.H. LG855DS.15.60.17
60405020243 起动开关JK435 START SWITCH JK435 LG850Ⅲ.15.14
60405020346 组合开关 COMBINED SWITCH CDM835EⅠ.15.42
60400000612 仪表框 INSTRUMENT FRAME LG855DS.15.60.15
60400000611 仪表面板 INSTRUMENT PANEL LG855DS.15.60.14
60400000581 油温表 OIL TEMPERATURE SENSOR LG855DS.15.60.04
60400000610 指示灯组(16个) INDICATE LAMP LG855DS.15.60.13
60400000586 电压表 VOLTAGE GAUGE LG855DS.15.60.09
60400000580 水温表 WATER TEMPERATURE SENSOR LG855DS.15.60.03
60400000584 机油压力表 ENGINE OIL PRESSURE GAUGE LG855DS.15.60.07
60400000582 计时表 HOUR METER LG855DS.15.60.05
60400000583 气压表 AIR PRESSURE GAUGE LG855DS.15.60.06
60400000587 燃油表 FUEL LEVEL GAUGE LG855DS.15.60.10
60400000579 仪表线束 HARNESS, INSTRUMENT LG855DS.15.60.02
60911010428 气压表接管总成 AIR PRESSURE GAUGE HOSE
ASSEMBLY LG853.08.12
60400000877 双变油压表胶管 HOSE, TRANSMISSION OIL
PRESSURE GAUGE LG833BG.00Ⅸ.60.35
60911010162 机油压力表胶管3900mm HOSE, ENGINE OIL PRESSURE
GAUGE L3900 LG855.15.36
60400000617 左上壳 UPPER SHELL, L.H. LG855DS.15.60.16
60400009165 变速软轴 SPEED CONTROL CABLE LG833NGⅩⅩⅥ.15.60.12
60100002753 橡胶堵头 RUBBER PLUG LG855DS
60400000608 翘板开关 PANEL SWITCH LG855DS.15.60.11
60404011588 充电座8JB008023-001 CHARGING SEAT 8JB008023-001 LG855BⅡ.15.33
60400000616 后壳 REAR SHELL LG855DS.15.60.20
60400000615 左下壳 LOWER SHELL, L.H. LG855DS.15.60.18
60400000613 内支架总成 INNER BRACKET ASSEMBLY LG855DS.15.60.22
60400000578 仪表台线束 HARNESS, INSTRUMENT BRACKET LG855DS.15.60.01
60400000614 右下壳 LOWER SHELL, R.H. LG855DS.15.60.19
60400000619 右上壳 UPPER SHELL, R.H. LG855DS.15.60.17
60405020243 起动开关JK435 START SWITCH JK435 LG850Ⅲ.15.14
60405020346 组合开关 COMBINED SWITCH CDM835EⅠ.15.42
60400000612 仪表框 INSTRUMENT FRAME LG855DS.15.60.15
60400000611 仪表面板 INSTRUMENT PANEL LG855DS.15.60.14
60400000581 油温表 OIL TEMPERATURE SENSOR LG855DS.15.60.04
60400000610 指示灯组(16个) INDICATE LAMP LG855DS.15.60.13
60400000586 电压表 VOLTAGE GAUGE LG855DS.15.60.09
60400000580 水温表 WATER TEMPERATURE SENSOR LG855DS.15.60.03
60400000584 机油压力表 ENGINE OIL PRESSURE GAUGE LG855DS.15.60.07
60400000582 计时表 HOUR METER LG855DS.15.60.05
60400000583 气压表 AIR PRESSURE GAUGE LG855DS.15.60.06
60400000585 变速油压表 OIL PRESSURE GAUGE,
TRANSMISSION LG855DS.15.60.08
60400000579 仪表线束 HARNESS, INSTRUMENT LG855DS.15.60.02
60911010428 气压表接管总成 AIR PRESSURE GAUGE HOSE
ASSEMBLY LG853.08.12
60400000877 双变油压表胶管 HOSE, TRANSMISSION OIL
PRESSURE GAUGE LG833BG.00Ⅸ.60.35
60911010162 机油压力表胶管3900mm HOSE, ENGINE OIL PRESSURE
GAUGE L3900 LG855.15.36
60400000617 左上壳 UPPER SHELL, L.H. LG855DS.15.60.16
60400009165 变速软轴 SPEED CONTROL CABLE LG833NGⅩⅩⅥ.15.60.12
60100002753 橡胶堵头 RUBBER PLUG LG855DS
60400000608 翘板开关 PANEL SWITCH LG855DS.15.60.11
60404011588 充电座8JB008023-001 CHARGING SEAT 8JB008023-001 LG855BⅡ.15.33
60400000616 后壳 REAR SHELL LG855DS.15.60.20
60400000615 左下壳 LOWER SHELL, L.H. LG855DS.15.60.18
60400000613 内支架总成 INNER BRACKET ASSEMBLY LG855DS.15.60.22

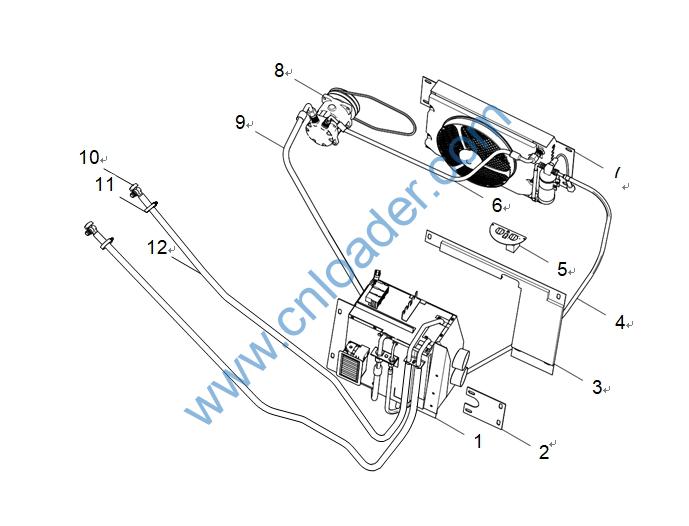

60900003002 蒸发器总成(右侧置式) EVAPORATOR ASSEMBLY (RIGHT
SIDE TYPE) 050109002
60100002686 蒸发器固定板 FIXING PLATE, EVAPORATOR 41509003
60100002687 密封板 SEAL PLATE 041009003
60100002653 FE管 TUBE FE 50609009
60100002618 控制面板 CONTROL PANEL 12400017
60100002638 KC管 TUBE, KC 50609011
60100002345 冷凝器总成 CONDENSER ASSEMBLY LG855DS.15.19.02
60100002594 压缩机 COMPRESSOR 01010001
60100002661 EK管 TUBE EK 50609013
60100002632 水阀 WATER VALVE 010803005
60100002629 管扣 PIPE CLIP 020600033
60100002665 暖风水管 TUBE, HEATER 020502002
