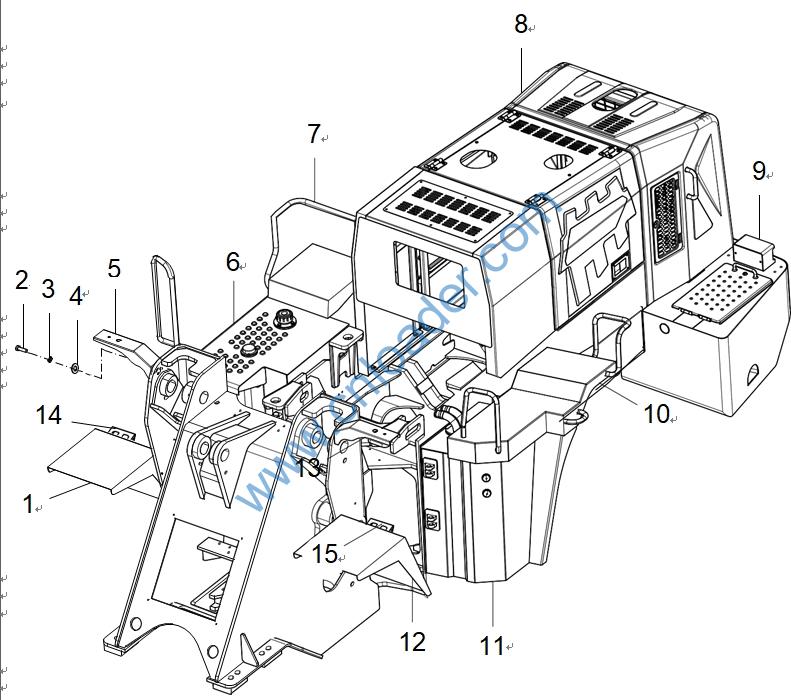

30884000811 前右挡泥板总成 MUDGUARD ASSEMBLY, R.H.
FRONT CDM853.13.02
30884900001 前右挡泥板总成 MUDGUARD ASSEMBLY, R.H.
FRONT LG853.13.02
51204111014 螺栓M12×20 BOLT M12×20 GB/T5783
51401110107 垫圈12 WASHER 12 GB/T93
51421110115 垫圈12 WASHER 12 GB/T97.1
30813000536 组合灯右支架焊合 BRACKET FABRICATE, R.H.,
COMBIN ED LAMP LG855DⅡ.13.03.02
30813001014 组合右灯罩焊合 LAMP HOOD, R.H. LG833NYC.13.02.01
30888913006 燃油箱总成 FUEL TANK ASSEMBLY LG833NGⅩⅦ.13.08
30885900057 后右挡泥板总成 MUDGUARD, R.H. REAR LG833NGⅤ.13.05
30886015360 机罩总成 LG833NGc.13.06
30887900087 平衡重总成 COUNTER WEIGHT ASSEMBLY LG833NⅥ.13.07
30887000269 平衡重总成 COUNTER WEIGHT ASSEMBLY LG833B.13Ⅵ.07
30885900056 后左挡泥板总成 MUDGUARD, L.H. REAR LG833NGⅤ.13.04
30889913020 液压油箱总成 HYDRAULIC TANK ASSEMBLY LG833NGⅩⅦ.13.09
30884000810 前左挡泥板总成 MUDGUARD ASSEMBLY, L.H.
FRONT CDM853.13.01
30884900000 前左挡泥板总成 MUDGUARD ASSEMBLY, L.H.
FRONT LG853.13.01
30813001013 组合左灯罩焊合 LAMP HOOD, L.H. LG833NYC.13.01.01
30813000535 组合灯左支架焊合 BRACKET FABRICATE, L.H.,
COMBIN ED LAMP LG855DⅡ.13.03.01
30816000001 右随机三角铁总成 TRIANGLE IRON, R.H. CDM853.16.05
30816000000 左随机三角铁总成 TRIANGLE IRON, L.H. CDM853.16.04

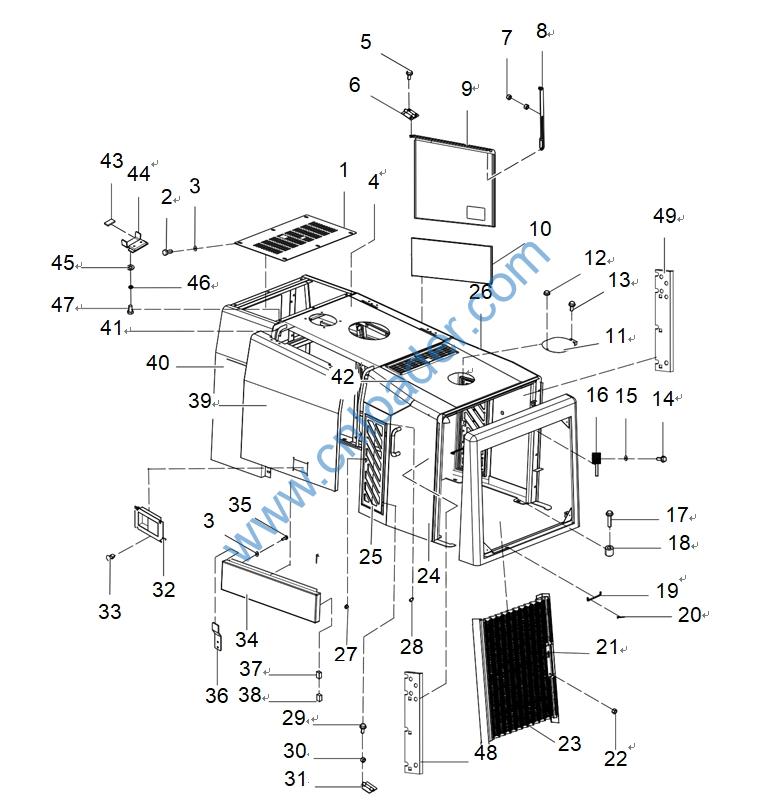

30886102624 上盖板 UPPER COVER PLATE CDM835EⅤ.13.06-001
51220091014 螺栓M8×20 BOLT M8×20 GB/T5789
51420090121 垫圈8 WASHER 8 GB/T96.1
30886000924 上罩焊合 UPPER HOOD FABRICATE LG833NGⅠ.13.06.03
51318000318 螺母M8 NUT M8 GB/T6177.1
30886000777 合页总成 HINGE ASSEMBLY LG833BS.13.06.20
51307001119 螺母M12 NUT M12 GB/T6170
30886102693 机罩门支撑杆 BRACE, ENGINE HOOD DOOR LG855BⅣ.13.06-003
30886115364 右机罩门焊合 LG833NGc.13.06.02
30886000838 右下侧板焊合 LOWER SIDE PLATE, R.H. LG833BG.13Ⅸ.06.05
30886102930 加水口盖板 WATER FEEDING COVER PLATE LG855NⅠ.13.06-004
51354001804 螺母M8 NUT M8 GB/T62.1
51307000919 螺母M8 NUT M8 GB/T6170
51307001019 螺母M10 NUT M10 GB/T6170
51421100115 垫圈10 WASHER 10 GB/T97.1
30886000790 减震垫 SHOCK ABSORBER SHIM CDM856DⅠ.13Ⅶ.06.08
51220131818 螺栓M16×60 BOLT M16×60 GB/T5789
30886113063 M16螺栓固定座 M16 BOLT FIXING SEAT LG876N.13.06-020
30886102777 支撑杆 SUPPORTING ROD LG833BG.13Ⅸ.06-001
51512081401 销3.2×32 PIN 3.2×32 GB/T91
30886000988 机罩后门锁总成 DOOR LOCK, ENGINE HOOD REAR LG855BⅣ.13.06.16
51341000719 螺母M12 NUT M12 GB/T889.1
30886115366 后盖板焊合 LG833NGc.13.06.03
30886000840 后罩焊合 REAR COVER FABRICATE LG833BG.13Ⅸ.06.10
30886102849 左后罩小门 SMALL DOOR, REAR ENGINE
HOOD, L .H. LG855NⅠ.13.06.11-001
30886102850 右后罩小门 SMALL DOOR, REAR ENGINE
HOOD, R .H. LG855NⅠ.13.06.11-002
60900006614 后罩侧门锁 DOOR LOCK, REAR COVER SIDE LG855NⅠ.13.06.15
60900006848 橡胶尖块 RUBBER TIP LG855NⅠ.13.06-005
51204080814 螺栓M6×12 BOLT M6×12 GB/T5783
51307000819 螺母M6 NUT M6 GB/T6170
30886001036 合页总成 HINGE ASSEMBLY LG855NⅠ.13.06.09
60701010145 机罩门锁总成 DOOR LOCK, ENGINE HOOD LG853.13.06.09
51569000801 抽芯铆钉5×12 RIVET 5×12 GB/T12618.1
30886000839 左下侧板焊合 LOWER SIDE PLATE, L.H. LG833BG.13Ⅸ.06.06
30886000901 固定杆焊合 FIXING ROD FABRICATE LG833BG.13Ⅸ.06.11
30886102425 锁挡铁锁板 LOCK PLATE LG855DⅨ.13.06.05-003
30886102871 减轻板下缓冲垫 LOWER SHOCK ABSORBER LG833BG.13Ⅸ.06.08-002
30886102870 减轻板上缓冲垫 UPPER SHOCK ABSORBER LG833BG.13Ⅸ.06.08-001
30886115362 左机罩门焊合 LG833NGc.13.06.01
30886013042 前罩焊合 FRONT ENGINE HOOD LG833NGⅩⅦ.13.06.01
30886000923 机罩门架焊合 ENGINE HOOD DOOR BRACKET
FABRIC ATE LG833NGⅠ.13.06.02
30886000844 机罩吸音海绵总成 SOUND-ABSORBING SPONGE,
ENGINE HOOD LG833BG.13Ⅸ.06.20
30886102879 缓冲垫二 BUFFER PAD 2 LG855NⅠ.13.06-003
30886102876 缓冲槽钢二 BUFFER U-BAR 2 LG855NⅠ.13.06-001
51204101014 螺栓M10×20 BOLT M10×20 GB/T5783
51401100107 垫圈10 WASHER 10 GB/T93
51420100121 垫圈10 WASHER 10 GB/T96.1
30886113061 后罩左侧吸音海绵 SOUND-ABSORBING SPONGE,
REAR CO VER, L.H. LG833NGⅩⅦ.13.06-002
30886113060 后罩右侧吸音海绵 SOUND-ABSORBING SPONGE,
REAR CO VER, R.H. LG833NGⅩⅦ.13.06-001
51204081014 螺栓M6×20 BOLT M6×20 GB/T5783
51401080107 垫圈6 WASHER 6 GB/T93
51420080121 垫圈6 WASHER 6 GB/T96.1
30810100600 电源总开关固定板 PLATE, MAIN POWER SWITCH CDM856E.10Ⅰ-002

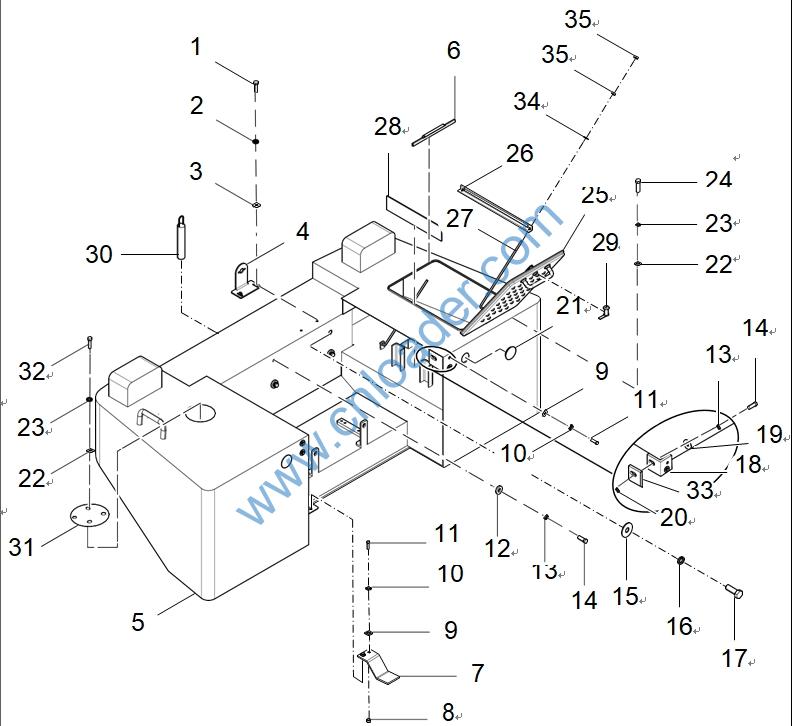

30887000270 平衡重焊合 COUNTER WEIGHT FABRICATE LG833B.13Ⅵ.07.60
60919010041 平衡重胶条 COUNTER WEIGHT RUBBER LG50C.13Ⅳ.07.10
30887100789 放水阀保护板 PROTECTION PLATE, WATER
DRAIN V ALVE LG833B.13Ⅵ.07-001
51307001019 螺母M10 NUT M10 GB/T6170
51421100115 垫圈10 WASHER 10 GB/T97.1
51401100107 垫圈10 WASHER 10 GB/T93
51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
30887100219 垫圈 WASHER LG30F.13.07-003
51401130107 垫圈16 WASHER 16 GB/T93
51204135014 螺栓M16×55 BOLT M16×55 GB/T5783
51420170121 垫圈24 WASHER 24 GB/T96.1
51401170107 垫圈24 WASHER 24 GB/T93
51204171814 螺栓M24×60 BOLT M24×60 GB/T5783
30887101198 锁板 LOCK PLATE CDM835EⅠ.13.07-031
51420130121 垫圈16 WASHER 16 GB/T96.1
51307001319 螺母M16 NUT M16 GB/T6170
30887100429 橡胶套 RUBBER SLEEVE LG50C.13Ⅳ.07-030
51421090115 垫圈8 WASHER 8 GB/T97.1
51401090107 垫圈8 WASHER 8 GB/T93
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
30887000388 电瓶箱左盖总成 LEFT COVER, BATTERY BOX LG50C.13Ⅳ.07.07
30887100936 角铁总成 ANGLE IRON ASSEMBLY LG50C.13Ⅳ.07.12
30887100042 电瓶拉丝 BATTERY DRAWING LG50C.13Ⅳ.07-009
60922010024 电瓶胶垫 RUBBER GASKET, BATTERY LG50C.13Ⅳ.07-005
30887000345 电瓶盖锁 LOCK, BATTERY COVER LG855DⅢ.13.07.04
30890000005 牵引销焊合 TRACTION PIN FABRICATE LG30F.13.07.03
30887101397 盖板 COVER PLATE LG855DⅦ.13.07-001
51204091014 螺栓M8×20 BOLT M8×20 GB/T5783
30887102216 锁角垫板 SHIM PLATE LG833B.13Ⅵ.07-002
51420090121 垫圈8 WASHER 8 GB/T96.1
51307000919 螺母M8 NUT M8 GB/T6170
51204091014 螺栓M8×20 BOLT M8×20 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
51421090115 垫圈8 WASHER 8 GB/T97.1

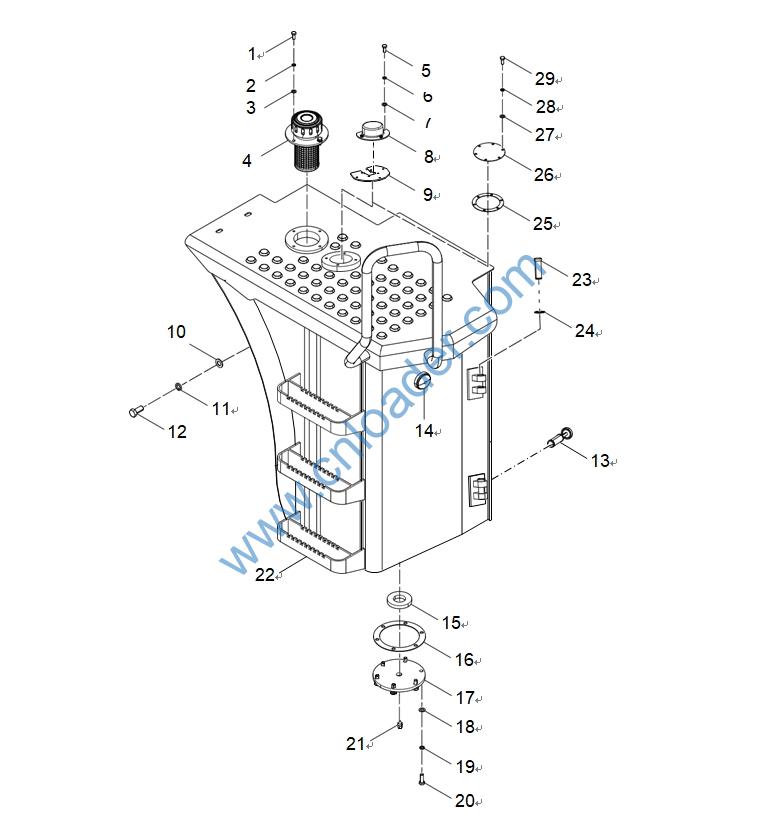

60401080175 空气滤清器 AIR FILTER LG50C.13Ⅳ.08.04
60308000028 空气滤清器 AIR FILTER LG853.13.08.04
51158190304 螺钉M6×12 SCREW M6×12 GB/T818
51401080107 垫圈6 WASHER 6 GB/T93
51420080121 垫圈6 WASHER 6 GB/T96.1
30888102443 液位计盖板 COVER PLATE, LIQUID LEVEL
GAUGE CDM856E.13Ⅰ.08-001
30888100332 保护罩安装板 PLATE, PROTECTION COVER LG855BⅣ.13.08-001
51421130115 垫圈16 WASHER 16 GB/T97.1
51401130107 垫圈16 WASHER 16 GB/T93
51204132514 螺栓M16×35 BOLT M16×35 GB/T5783
60300000931 吸油滤油器 OIL SUCTION FILTER LG833NGⅠ.13.08.02
60307010012 圆形油标 OIL INDICATER LG853.13.08.05
60980000189 磁铁φ80Xφ40X12 MAGNET φ80Xφ40X12 LG853.13.08-003
60922010032 垫片 SHIM LG853.13.08-002
30888000071 放油盖焊合 OIL DRAIN COVER LG853.13.08.03
51421100115 垫圈10 WASHER 10 GB/T97.1
51401100107 垫圈10 WASHER 10 GB/T93
51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
30813100211 堵头 PLUG LG853.13.08-001
30888013007 燃油箱焊合 FUEL TANK FABRICATE LG833NGⅩⅦ.13.08.01
30888100154 销轴 PIN CDM835EⅠ.13.08-001
51453270107 挡圈30 CIRCLIP 30 GB/T894.1
30888100008 垫片 SHIM CDM860.13.08-001
30888100009 盖板 COVER PLATE CDM860.13.08-002
51421070115 垫圈5 WASHER 5 GB/T97.1
51401070107 垫圈5 WASHER 5 GB/T93
51158171304 螺钉M5×18 SCREW M5×18 GB/T818
51204091014 螺栓M8×20 BOLT M8×20 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
51421090115 垫圈8 WASHER 8 GB/T97.1

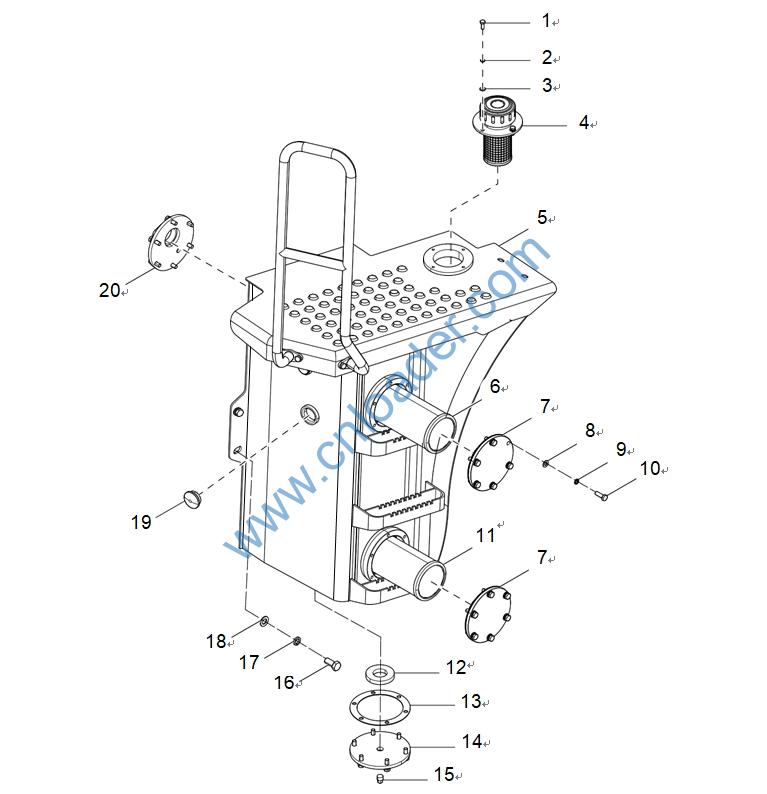

60401080175 空气滤清器 AIR FILTER LG50C.13Ⅳ.08.04
60101100556 空气滤清器 AIR FILTER LG853.13.09.06
30889013021 液压油箱体焊合 HYDRAULIC OIL TANK LG833NGⅩⅦ.13.09.01
60308000038 回油滤芯器 OIL RETURN FILTER LG835.13.09.01
30889000089 法兰盖总成 FLANGE COVER ASSEMBLY LG843.13.09.04
51421100115 垫圈10 WASHER 10 GB/T97.1
51401100107 垫圈10 WASHER 10 GB/T93
51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
60308000039 吸油滤芯器 OIL SUCTION FILTER LG835.13.09.02
60980000189 磁铁φ80Xφ40X12 MAGNET φ80Xφ40X12 LG853.13.08-003
60922010032 垫片 SHIM LG853.13.08-002
30888000071 放油盖焊合 OIL DRAIN COVER LG853.13.08.03
30813100211 堵头 PLUG LG853.13.08-001
51204132514 螺栓M16×35 BOLT M16×35 GB/T5783
51401130107 垫圈16 WASHER 16 GB/T93
51421130115 垫圈16 WASHER 16 GB/T97.1
60307010012 圆形油标 OIL INDICATER LG853.13.08.05
30889000088 回油法兰焊合 OIL RETURN FLANGE FABRICATE LG833B.13Ⅵ.09.02

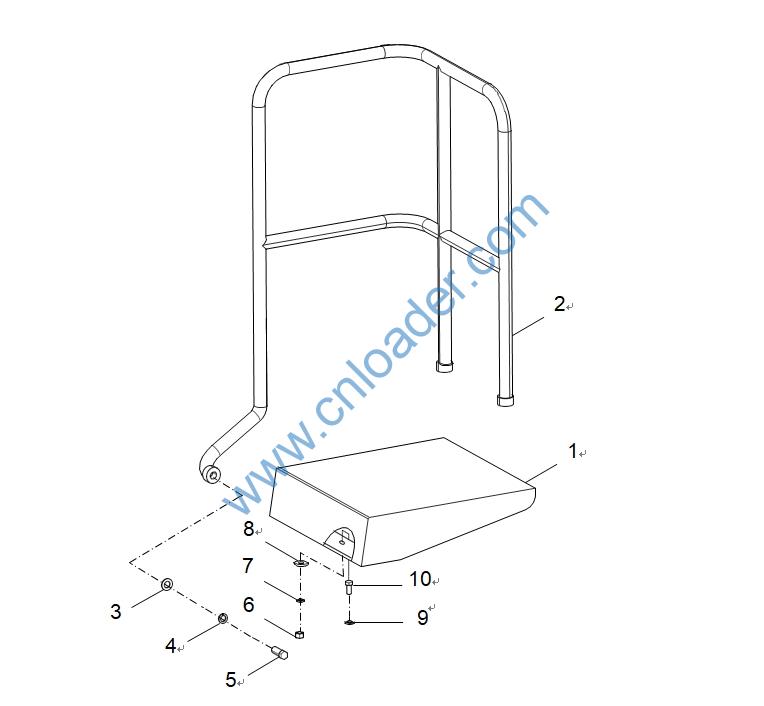

30885000126 后右挡泥板焊合 MUDGUARD, R.H. REAR CDM835EⅢ.13S.05.01
30885000099 右扶手焊合 HANDRAIL, R.H. CDM835EⅢ.13S.05.02
51421130115 垫圈16 WASHER 16 GB/T97.1
51401130107 垫圈16 WASHER 16 GB/T93
51204132514 螺栓M16×35 BOLT M16×35 GB/T5783
51307001119 螺母M12 NUT M12 GB/T6170
51401110107 垫圈12 WASHER 12 GB/T93
51420110121 垫圈12 WASHER 12 GB/T96.1
51421110115 垫圈12 WASHER 12 GB/T97.1
51204111314 螺栓M12×35 BOLT M12×35 GB/T5783

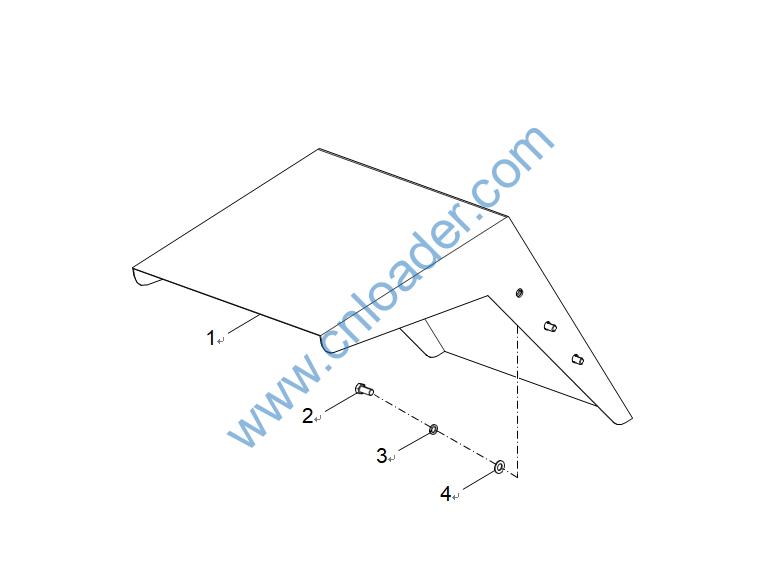

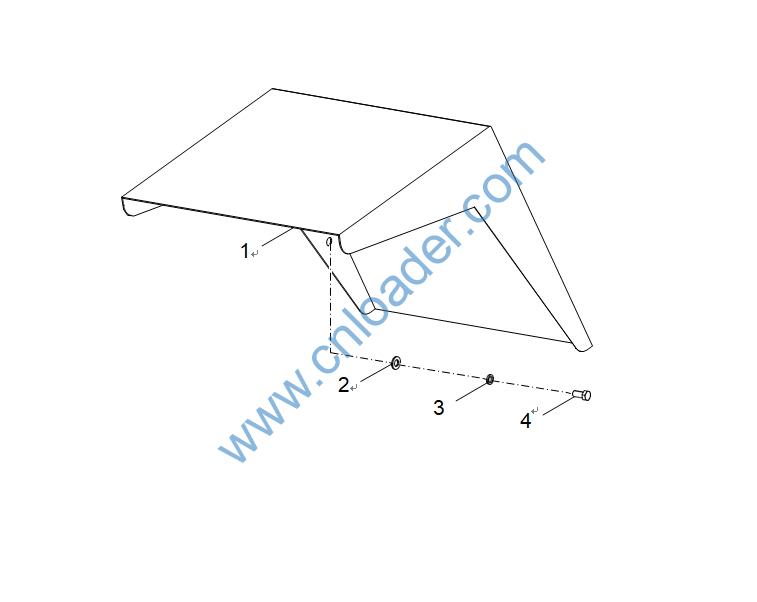

30813000055 前右挡泥板焊合 MUDGUARD FABRICATE, R.H.
FRONT LG853.13.02.01
51204111214 螺栓M12×30 BOLT M12×30 GB/T5783
51401110107 垫圈12 WASHER 12 GB/T93
51421110115 垫圈12 WASHER 12 GB/T97.1

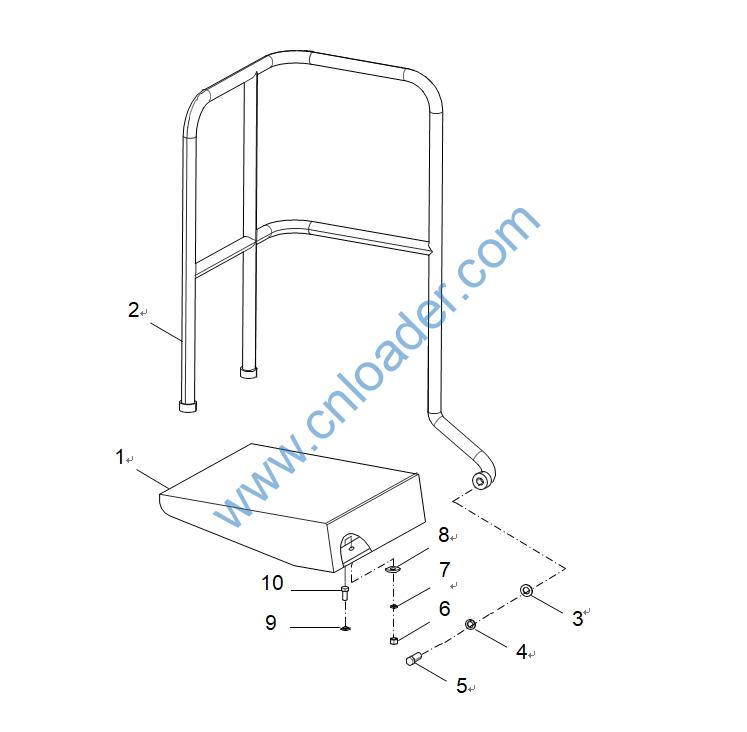

30885000125 后左挡泥板焊合 MUDGUARD, R.H. REAR CDM835EⅢ.13S.04.01
30885000098 左扶手焊合 HANDRAIL, L.H. CDM835EⅢ.13S.04.02
51421130115 垫圈16 WASHER 16 GB/T97.1
51401130107 垫圈16 WASHER 16 GB/T93
51204132514 螺栓M16×35 BOLT M16×35 GB/T5783
51307001119 螺母M12 NUT M12 GB/T6170
51401110107 垫圈12 WASHER 12 GB/T93
51420110121 垫圈12 WASHER 12 GB/T96.1
51421110115 垫圈12 WASHER 12 GB/T97.1
51204111314 螺栓M12×35 BOLT M12×35 GB/T5783

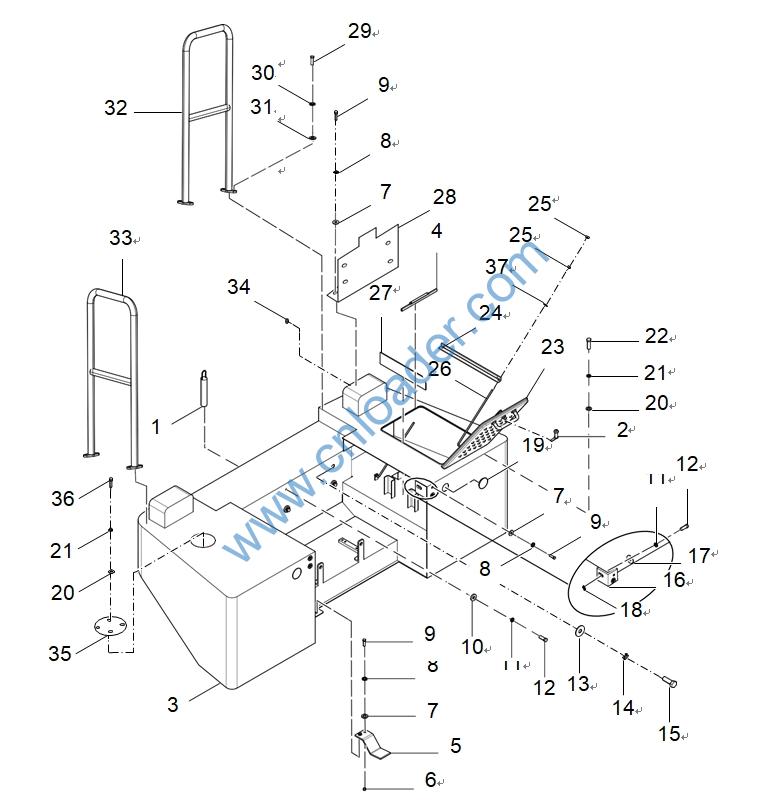

30890000005 牵引销焊合 TRACTION PIN FABRICATE LG30F.13.07.03
30887000345 电瓶盖锁 LOCK, BATTERY COVER LG855DⅢ.13.07.04
30887000667 平衡重焊合 COUNTER WEIGHT FABRICATE LG833NⅥ.13.07.60
60919010041 平衡重胶条 COUNTER WEIGHT RUBBER LG50C.13Ⅳ.07.10
30887100789 放水阀保护板 PROTECTION PLATE, WATER
DRAIN V ALVE LG833B.13Ⅵ.07-001
51307001019 螺母M10 NUT M10 GB/T6170
51421100115 垫圈10 WASHER 10 GB/T97.1
51401100107 垫圈10 WASHER 10 GB/T93
51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
30887100219 垫圈 WASHER LG30F.13.07-003
51401130107 垫圈16 WASHER 16 GB/T93
51204135014 螺栓M16×55 BOLT M16×55 GB/T5783
51420170121 垫圈24 WASHER 24 GB/T96.1
51401170107 垫圈24 WASHER 24 GB/T93
51204171814 螺栓M24×60 BOLT M24×60 GB/T5783
30887101198 锁板 LOCK PLATE CDM835EⅠ.13.07-031
51420130121 垫圈16 WASHER 16 GB/T96.1
51307001319 螺母M16 NUT M16 GB/T6170
30887100429 橡胶套 RUBBER SLEEVE LG50C.13Ⅳ.07-030
51421090115 垫圈8 WASHER 8 GB/T97.1
51401090107 垫圈8 WASHER 8 GB/T93
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
30887000388 电瓶箱左盖总成 LEFT COVER, BATTERY BOX LG50C.13Ⅳ.07.07
30887100936 角铁总成 ANGLE IRON ASSEMBLY LG50C.13Ⅳ.07.12
51307000919 螺母M8 NUT M8 GB/T6170
30887100042 电瓶拉丝 BATTERY DRAWING LG50C.13Ⅳ.07-009
60922010024 电瓶胶垫 RUBBER GASKET, BATTERY LG50C.13Ⅳ.07-005
30887000617 牌照固定板焊合 FIXING PLATE, NAMEPLATE CDM835EⅨ.13.07.01
51204111214 螺栓M12×30 BOLT M12×30 GB/T5783
51401110107 垫圈12 WASHER 12 GB/T93
51421110115 垫圈12 WASHER 12 GB/T97.1
30887000668 左扶手焊合 HANDRAIL, L.H. LG833NⅥ.13.07.01
30887000669 右扶手焊合 HANDRAIL, R.H. LG833NⅥ.13.07.02
51338000819 螺母M5lmax:12 NUT M5lmax:12 GB/T17880.3
30887101397 盖板 COVER PLATE LG855DⅦ.13.07-001
51204091014 螺栓M8×20 BOLT M8×20 GB/T5783
51420090121 垫圈8 WASHER 8 GB/T96.1
30813000044 前左挡泥板焊合 MUDGUARD FABRICATE, L.H.
FRONT LG853.13.01.01
51421110115 垫圈12 WASHER 12 GB/T97.1
51401110107 垫圈12 WASHER 12 GB/T93
51204111214 螺栓M12×30 BOLT M12×30 GB/T5783
