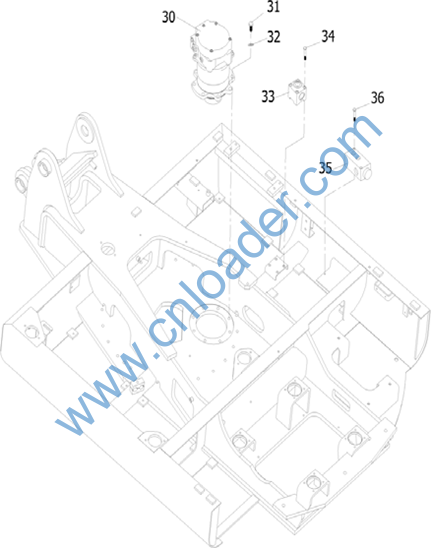

730250000524 S1 SWING MOTOR 回转马达
701104016030 S1 BOLT 螺栓
701508016002 S1 WASHER 垫圈
307010000912 A2 BRANCH JOINT OIL COLLECTING BLOCK 三通合流块
701302006011 S1 SCREW 螺钉
730301000182 S1 OIL COLLECTING BLOCK 复合回油块
701302008023 S1 SCREW 螺钉

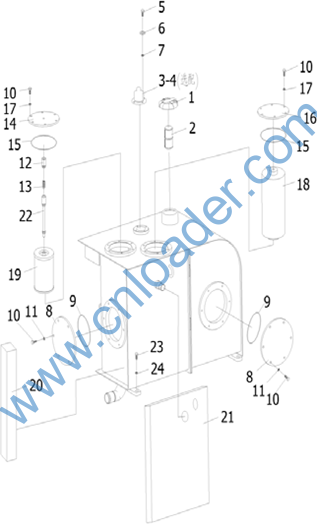

750906000309 S1 LOCK CAP, FUEL TANK 燃油箱锁盖
730401000391 S1 FILTER ELEMENTS 滤网总成
730402000229 S1 AIR CLEANER 空气滤清器
730402000239 S1 PRECOMPRESSED AIR FILTER 空气滤清器
701302006038 S1 SCREW 螺钉
701504006002 S1 WASHER 垫圈
701510006003 S1 WASHER 垫圈
305020800021 A3 OIL SUCKING FILTER COVER 法兰
703201180001 S1 O-RING O形圈
701104010003 S1 BOLT 螺栓
701508010001 S1 WASHER 垫圈
305060400004 A2 SPRING SEAT 弹簧座
301030000245 S1 SPRING 弹簧
852813110000 A2 OIL SUCKING FILTER COVER 吸油法兰盖组件
730603000384 S1 O SEAL RING O形圈
305020000829 A2 OIL RETURN FILTER COVER 回油法兰盖
701504010004 S1 WASHER 垫圈
730401000302 S1 OIL RETURN FILTER 回油过滤器
730403000028 S1 FILTER CARTRIDGE 滤芯

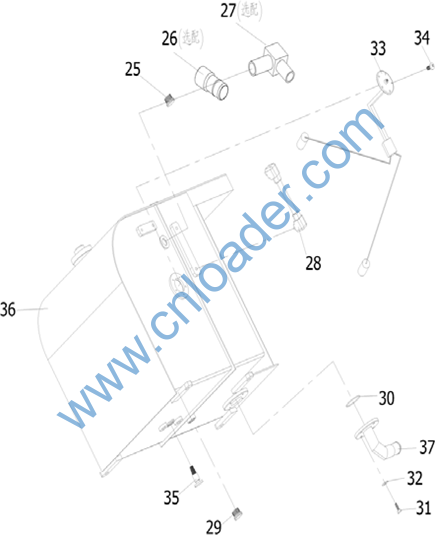

302030031097 S1 OIL TANK-INSULATED SPONGE 油箱驾驶室隔热海绵
302030031172 S2 OIL TANK SPONGE 油箱后侧面隔热海绵
304110000707 S3 SUCKER ROD 60机吸油杆
701104014021 S1 BOLT 螺栓
701508014002 S1 WASHER 垫圈
739806000036 S1 PLUG 内六角油口堵头
730101000025 S1 DIRECT JOINT 端直通接头
815414101000 A5 CONNECTOR 过渡接头
739801000013 S1 LIQUID LEVEL METER 液位计
739806000006 S1 PLUG 堵头
703201060001 S1 O SEAL RING O形圈
701302008020 S1 SCREW 螺钉
701504008005 S1 WASHER 垫圈
720212000599 S1 LIQUID LEVEL SENSER 摆杆式液位传感器
701309006001 S1 SCREW 螺钉
730309000068 S1 DRAINAGE SWITCH 排水开关
873313100000 S4 OIL TANK BODY 油箱焊接
869213010000 S2 OIL SUCKING PORT 自制油箱吸油钢管

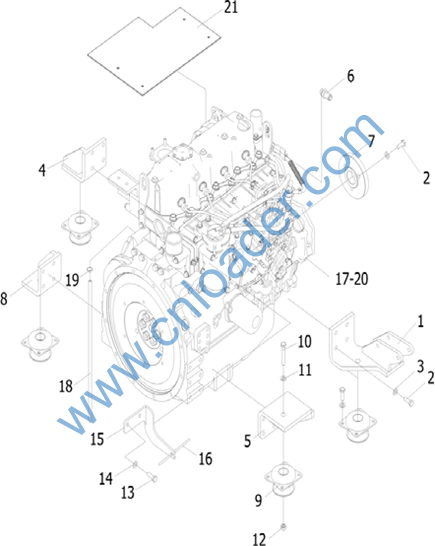

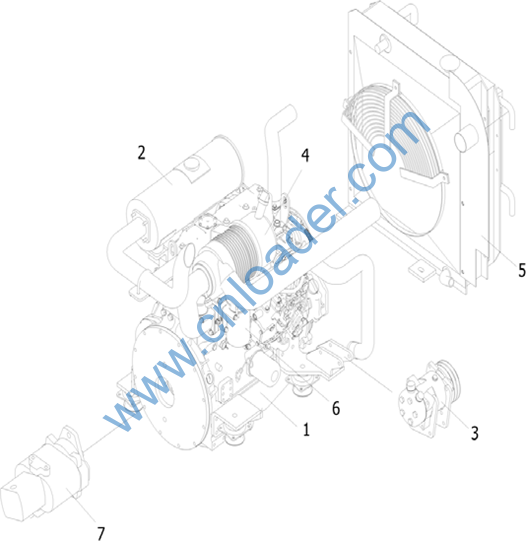

813912010004 S5 DIESEL ENGINE ASSEMBLY 发动机安装

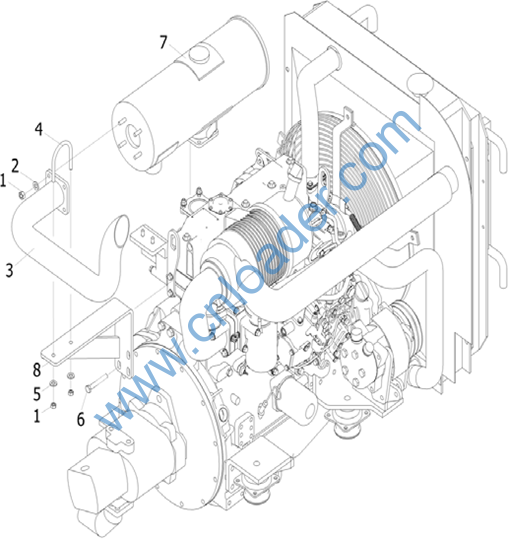

852812200000 A6 MUFFLER ASSEMBLY 消声器安装
852812300000 A4 COMPRESSOR ASSEMBLY 压缩机安装

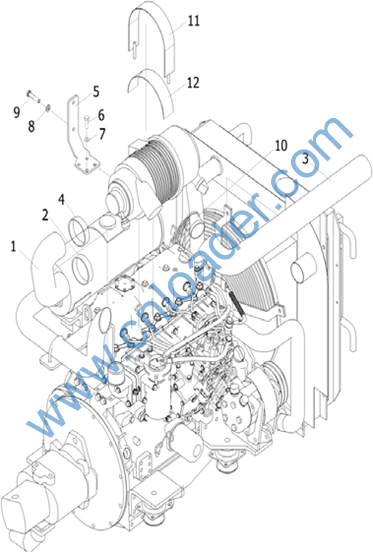

813912500001 A6 AIR FILTER ASSEMBLY 空滤器安装
852812400001 A9 COOLING SYSTEM ASSEMBLY 冷却系统总成
852812600000 A3 FUEL TUBES ASSEMBLY 燃油管路安装
813912700001 S2 HYDRAULIC PUMP PARTS ASSEMBLY 主泵安装
813912700001 S3 HYDRAULIC PUMP PARTS ASSEMBLY 主泵安装

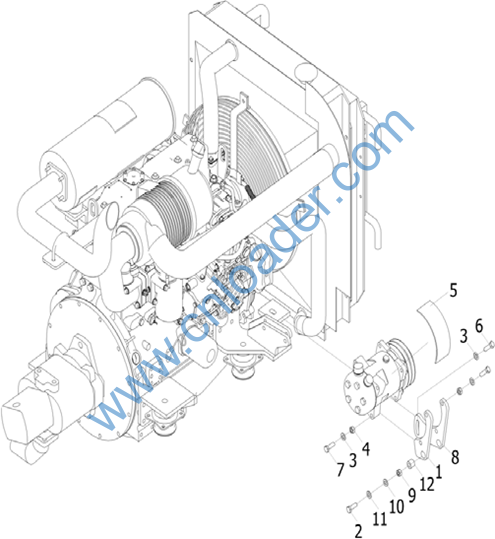

813912010405 S6 BRACKET 压缩机支架
701104010034 S1 BOLT 螺栓
701508010001 S1 WASHER 垫圈
813912010304 S1 ENGINE RIGHT FRONT BRACKET 发动机右前支架
813912010204 S1 ENGINE LEFT BACK BRACKET 发动机左后支架
307990000104 A2 ENGINE HOT WATER JOINT 发动机热水接头
306070000009 A2 BAND WHEEL 带轮
813912010104 S1 ENGINE LEFT FRONT BRACKET 发动机左前支架
750602000241 S1 ENGINE SHOCK ABSORBER 发动机减震器
701103016075 S1 BOLT 螺栓
701508016002 S1 WASHER 垫圈
701406016001 S1 NUT 螺母
701104008027 S1 BOLT 螺栓
701506008002 S1 WASHER 垫圈
302990000111 A4 ACCELROGRAPH PULL WIRE BRACKET 油门拉线支架
750202000035 S1 ACCELROGRAPH PULL WIRE BRACKET 油门拉线
750201000145 S1 DIESEL ENGINE ASSEMBLY 发动机
320040000645 S1 DRAIN PIPE 排水管
751011000026 S1 CLAMP 卡箍
750202000094 S1 ACCELROGRAPH PULL WIRE BRACKET 油门拉线
302030044881 S1 PROTECTIVE PAD 启动马达防护垫
701406008004 S1 NUT 螺母
701508008001 S1 WASHER 垫圈
873312200400 S2 MUFFLER BLAST PIPE 排气管
301020000043 A4 BAR CLASP 卡箍
701506008002 S1 WASHER 垫圈
701104008027 S1 BOLT 螺栓
302030044836 S1 ASBESTOS PAD SWE60E消音器石棉
852812200301 A1 BRACKET MODULE 排气管支架
302490000612 A7 BRACKET PLATE 压缩机安装板
701104014021 S1 BOLT 螺栓
701508010001 S1 WASHER 垫圈
701406010006 S1 NUT 螺母
813912300100 A2 DEFEND COVER 防护罩
701104010034 S1 BOLT 螺栓
701104010038 S1 BOLT 螺栓
302490000613 A2 BRACKET PLATE 压缩机安装板
701406014001 S1 NUT 螺母
701510014003 S1 WASHER 垫圈
701504014002 S1 WASHER 垫圈
305040002530 A1 FLANGE BUSH 轴套
320020000191 A4 AIR IN CONNECTION PIPE 进气连接管
751011000001 S1 T ANCHOR EAR T型抱箍
320020000190 A4 AIR IN PIPE 进气管
751011000005 S1 T TYPE HOOP T型抱箍
302990005149 S1 AIR FILTER BRACKET 空滤器支架
701104010003 S1 BOLT 螺栓
701508010001 S1 WASHER 垫圈
701508008001 S1 WASHER 垫圈
701104008031 S1 BOLT 螺栓
305060001136 A1 AIR FILTER BUSH 空滤衬套
873312050012 A1 EAR 空滤抱箍焊接

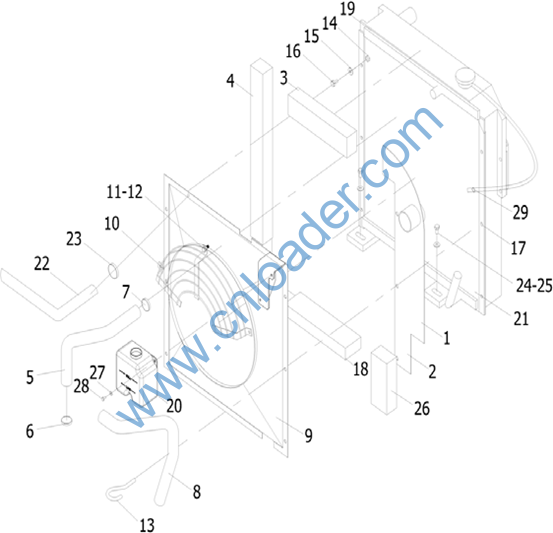

302490042916 S1 RUBBER SHEET 橡胶垫
750001000056 S1 RUBBER 组合胶条
852812401000 A4 PLATE 挡板
302490023228 A3 UP SEAL 上密封
334020000087 A1
INSULATION SPONGE OF RIGHT SIDE OF WATER TANK 水箱右侧隔热海绵
320040000227 A3 ENGINE OUTLET PIPE 发动机出水管
751011000003 S1 BAR CLASP 卡箍
751011000009 S1 BAR CLASP 卡箍
320040000228 A3 ENGINE OUTLET PIPE 发动机进水管
852812400100 A4 GUIDE COVER 导风罩焊接
813912070202 A4 DEFEND COVER 防护罩
701104008028 S1 BOLT 螺栓
701508008001 S1 WASHER 垫圈
301020000650 A1 DRAW HOOK 进水管拉钩
701406010006 S1 NUT 螺母
701506010003 S1 WASHER 垫圈
701104010034 S1 BOLT 螺栓
302490023141 A2 GUIDE COVER SIDE SEAL 导风罩侧密封
302490027620 A1 UNDER TANK 下海绵
302490023142 A1 GUIDE COVER SEAL 导风罩上下密封
750203000255 S1 AUXILIARY RADIATOR 副水箱
750203000189 S1 BANKED RADIATOR 散热器

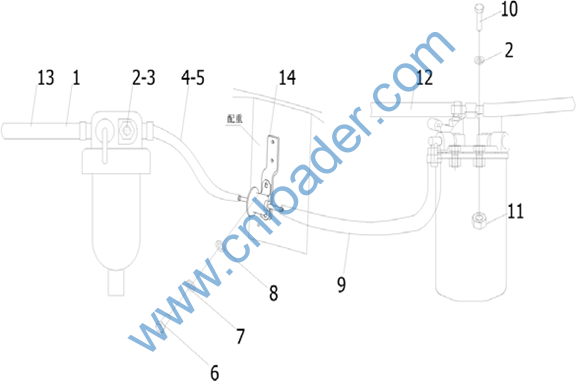

320010005321 A1 FEUL PIPE 回油胶管
751011000024 S1 T HOOP T型抱箍
701104012030 S1 BOLT 螺栓
701508012002 S1 WASHER 垫圈
302490027592 A1 TANK 海绵1
701104006023 S1 BOLT 螺栓
701504006002 S1 WASHER 垫圈
751011010018 S1 HOOP 单弹簧卡箍
730599000467 S1 PRODUCTION LINE 出油胶管
701508008001 S1 WASHER 垫圈
701103008030 S1 BOLT 螺栓
730599000488 S1 DIESEL PIPE 柴油管
751011000026 S1 CLAMP 卡箍
701302006038 S1 SCREW 螺钉
701510006003 S1 WASHER 垫圈
701504006002 S1 WASHER 垫圈
730599000489 S1 DIESEL PIPE 中间油管
701104008034 S1 BOLT 螺栓
701406008004 S1 NUT 螺母
730599000490 S1 PRODUCTION LINE 回油胶管
703202014002 S1 WASHER SET 组合垫圈
302490026595 A1 ELECTROINC PUMP PATCH BAY 电子泵安装板

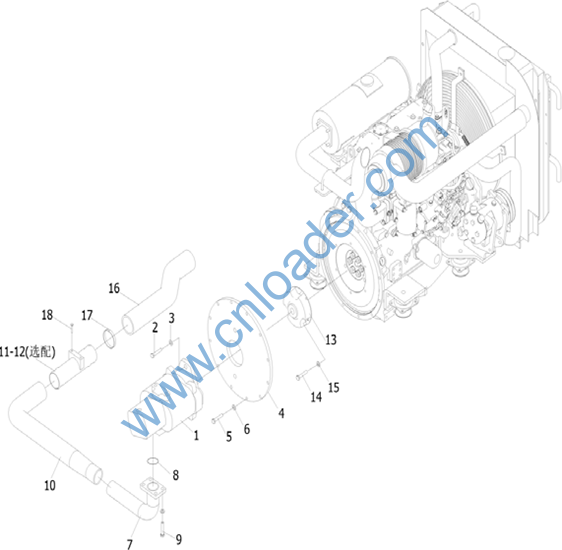

730201000045 S1 HYDRAULIC PUMP 液压泵
701104016024 S1 BOLT 螺栓
701508016002 S1 WASHER 垫圈
305030000134 A3 CONNECT PLATE 65-4连接盘
701104010037 S1 BOLT 螺栓
701508010001 S1 WASHER 垫圈
813912700101 S2 OIL SUCKTION HOSE 主泵吸油钢管
703201050002 S1 O-SEALING RING O形密封圈
701302012042 S1 SCREW 螺钉
320010004646 S2 OIL SUCKTION HOSE 吸油胶管1
730540000319 S1 TRANSITION STEEL PIPE 过渡钢管
813912700100 A2 TRANSITION STEEL PIPE 过渡钢管
750310000132 S1 COUPLER 联轴器
701302014051 S1 BOLT 螺钉
701508014002 S1 WASHER 垫圈
320010004959 S2 OIL SUCKTION HOSE 吸油胶管2
751008000219 S1 CLAMP 重型软管卡箍
701104010048 S1 BOLT 螺栓
730201000400 S1 HYDRAULIC PUMP 液压泵
701104016024 S1 BOLT 螺栓
701508016002 S1 WASHER 垫圈
305030000134 A3 CONNECT PLATE 65-4连接盘
701104010037 S1 BOLT 螺栓
701508010001 S1 WASHER 垫圈
813912700101 S2 OIL SUCKTION HOSE 主泵吸油钢管
703201050002 S1 O-SEALING RING O形密封圈
701302012042 S1 SCREW 螺钉
320010004646 S2 OIL SUCKTION HOSE 吸油胶管1
730540000319 S1 TRANSITION STEEL PIPE 过渡钢管
813912700100 A2 TRANSITION STEEL PIPE 过渡钢管
750310000132 S1 COUPLER 联轴器
701302014051 S1 BOLT 螺钉
701508014002 S1 WASHER 垫圈
320010004959 S2 OIL SUCKTION HOSE 吸油胶管2
751008000219 S1 CLAMP 重型软管卡箍
701104010048 S1 BOLT 螺栓

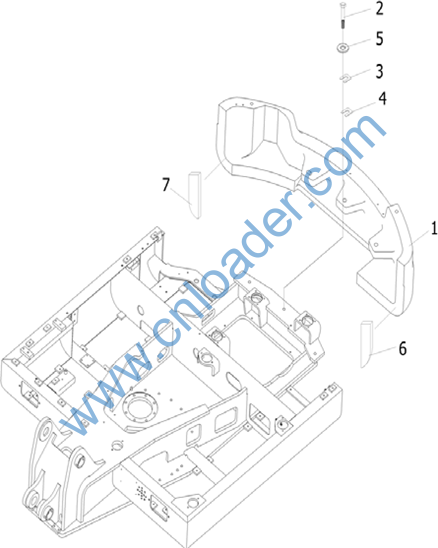

307990001253 S4 COUNTERWEIGHT 60机配重
701103020033 S1 BOLT 螺栓
302030017930 A1 ADJUSTING WASHER 调整垫2
302030017911 A1 ADJUSTING WASHER 调整垫
302010200004 A3 WASHER 配重螺栓垫片
302490045371 S1 SPONGE 配重海绵1
302490045372 S1 SPONGE 配重海绵2

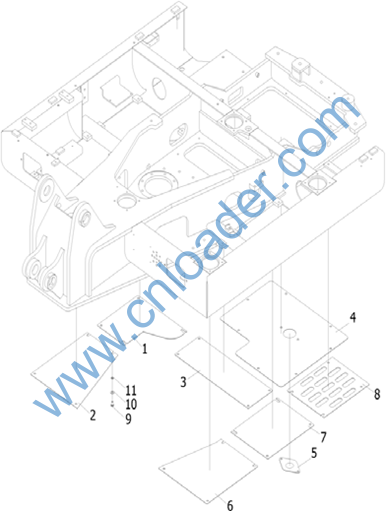

302490046111 S1 CHASSIS 右中底封板
302030043573 S1 CHASSIS 右前底封板
302030043574 S1 CHASSIS 中间底封板
873310200001 S1 CHASSIS 发动机底封板焊接1
305030000188 A1 CHASSIS 油口封板
302030043575 S1 CHASSIS 左前底封板
302030043577 S1 CHASSIS 左中底封板
302030043578 S1 CHASSIS 左后底封板
701104010003 S1 BOLT 螺栓
701506010003 S1 WASHER 垫圈
701510010004 S1 WASHER 垫圈
