Sunward SWE25UF HYDRAULIC EXCAVATOR PARTS BOOK U

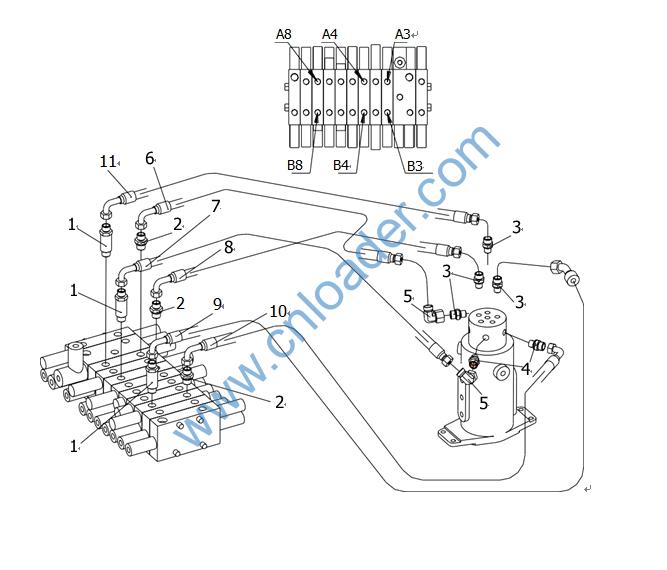

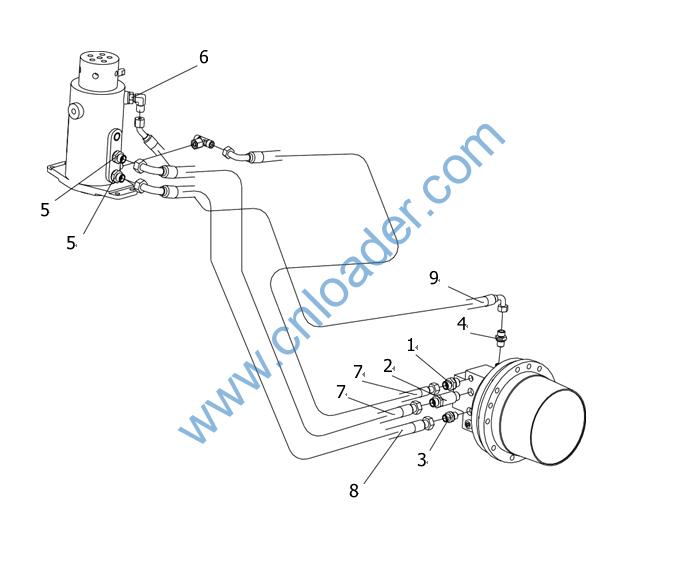

730101000080 730101000113 730101000349 730101000661 730101000044 730102000017 730501001632 730502000450 730502000337

1 1 1 1 1 1 1 1 1

JIONT JIONT JIONT JIONT JIONT JIONT HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY

端直通GEO08LROMDA3C端直通GEO12LROMDA3C端直通GEO12LROMDA3C/35直接头G1/4-M14X1.5 端直通GE12LM14X1.5EDOMDA3C 可调向直角接头WEE08LMOMDA3C胶管总成F481CACE080804-880胶管总成F431CACE121206-900胶管总成F481CACF080804-1060

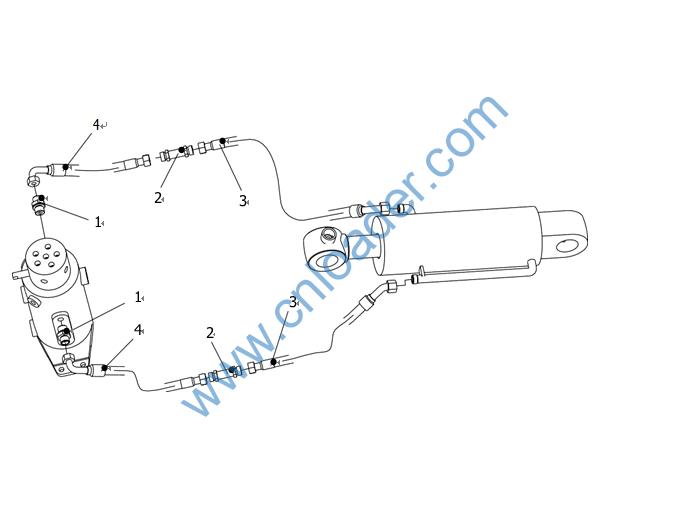

730101000130 730101000372 730502008654 730501003460

1 1 1 1

JIONT JIONT HOSE ASSEMBLY HOSE ASSEMBLY

端直通GE08LM14X1.5EDOMDA3C 隔板接头SV12LOMDA3C 胶管总成F431CACE121206-550-SG-550   胶管总成F431CACF121206-300

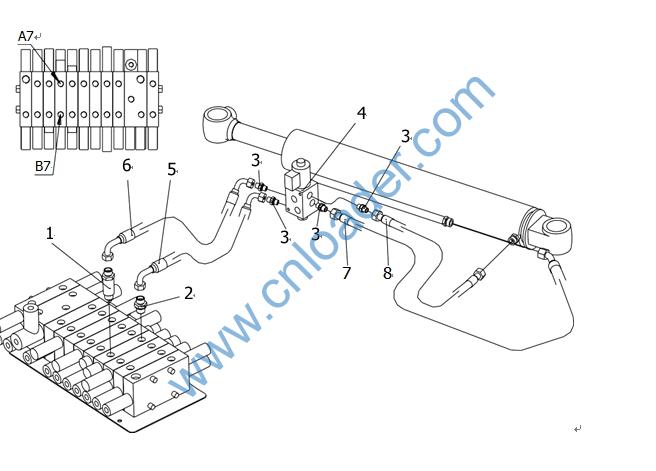

730101000349 730101000113 730101000044 730101000005 730102000008 730502002762 730502000107 730502009835 730503001418 730503001417 730502002366

1 1 1 1 1 1 1 1 1 1 1

JOINT JOINT JOINT JOINT JOINT HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY

端直通GEO12LROMDA3C/35 端直通GEO12LROMDA3C 端直通GE12LM14X1.5EDOMDA3C 端直通GE10LMEDOMDA3C 接头EW12LOMDA3C 胶管总成F431CACF121206-470胶管总成F431CACF121206-560胶管总成F431CACF121206-500胶管总成F431CECF101005-550胶管总成F431CFCF101005-500胶管总成F431CACF121206-600

730101000193 730101000066 730101000010 730305000002 730504000294 730504004223 730502009096 730501005081

1 1 1 1 1 1 1 1

JOINT JOINT JOINT JOINT HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY

端直通GEO10LR3/8OMDA3C/35端直通GEO10LR3/8OMDA3C端直通GE10LREDOMDA3C 选择阀L7102106AIOB020 胶管总成F431CFCF101005-670-90°胶管总成F431CFCF101005-750-90°胶管总成F431CACE101005-550-PG-550 胶管总成F431CACA101005-500-PG-500

730101000080 730101000079 73050200A218 730501005474 73050200A219 73050200A220 73050200A217 730309000322

1 1 1 1 1 1 1 1

JOINT JOINT HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY LEFT PILOT CONTROL VALVE

端直通GEO08LROMDA3C 端直通GE08LREDOMDA3C胶管总成F481CACF080803-2100胶管总成F481CACA080803-1600胶管总成F481CACF080803-1200胶管总成F481CACF080803-1600胶管总成F481CACF080803-1350 左先导阀HC-RCY 60130874LR

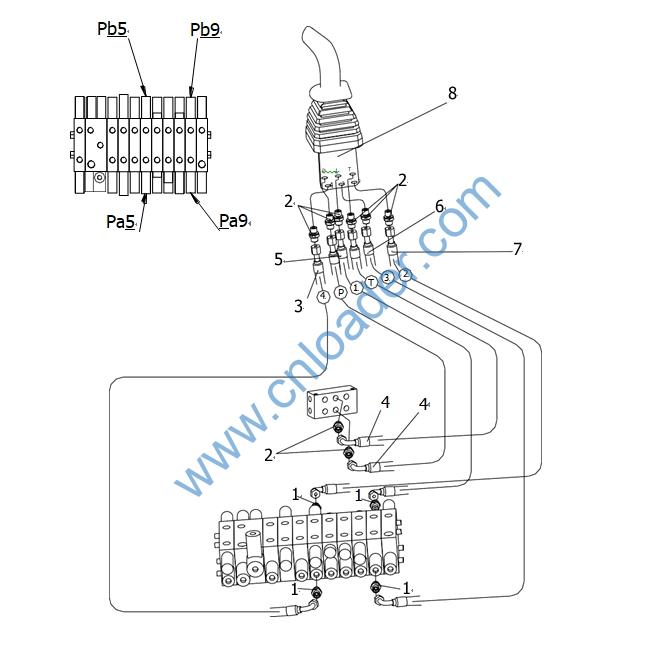

730101000080 730104000020 730101000079 73050200A169 73050200A220 730309000323

1 1 1 1 1 1

JOINT JOINT JOINT HOSE ASSEMBLY HOSE ASSEMBLY RIGHT PILOT CONTROL VALVE

端直通GEO08LROMDA3C三通接头EL08LOMDA3C端直通GE08LREDOMDA3C 胶管总成F481CACF080803-2150胶管总成F481CACF080803-1600右先导阀HC-RCY 60110330DD

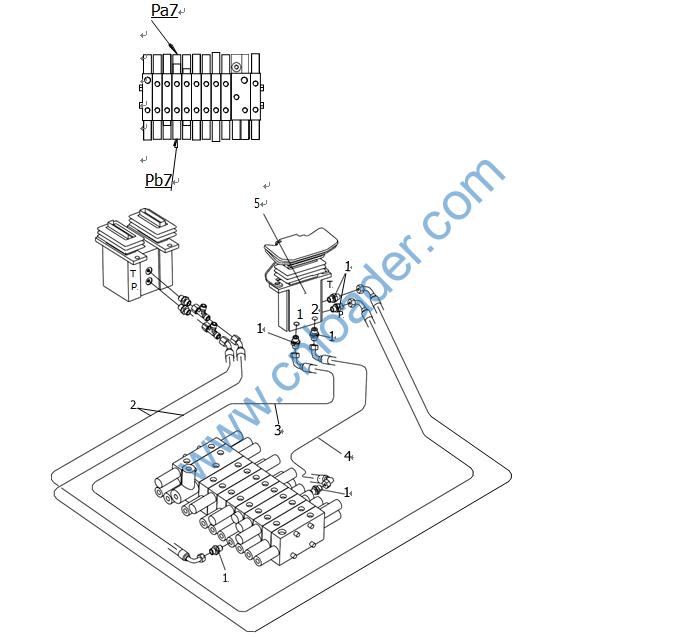

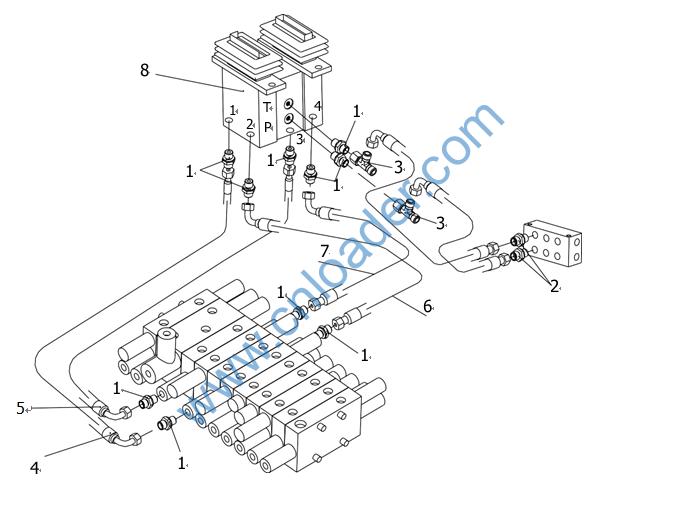

730101000080 730101000079 730104000020 730503001432 730504004396 73050200A159 73050200A222 862110210002

1 1 1 1 1 1 1 1

JOINT JOINT JOINT HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY TRAVEL PILOT VALVE

端直通GEO08LROMDA3C端直通GE08LREDOMDA3C三通接头EL08LOMDA3C 胶管总成F481CFCF080803-600-0°胶管总成F481CFCF080803-640-90°胶管总成F481CACF080803-350胶管总成F481CACF080803-400 双联脚踏阀总成(811000050)

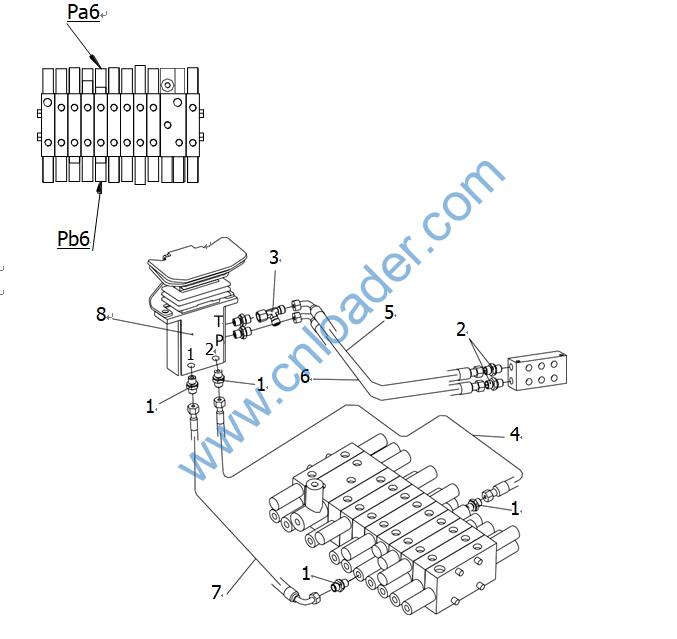

730101000080 730101000079 730104000020 73050200A200 73050200A221 73050200A163 73050200A224 730309000290

1 1 1 1 1 1 1 1

JOINT JOINT JOINT HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY PEDAL VALVE

端直通GEO08LROMDA3C端直通GE08LREDOMDA3C三通接头EL08LOMDA3C 胶管总成F481CACF080803-550胶管总成F481CACF080803-300胶管总成F481CACF080803-250 胶管总成F481CACF080803-650 单联脚踏阀811000025

730101000080 730504004395 730504004397 730503001456 730309000290

1 1 1 1 1

JOINT HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY PEDAL VALVE

端直通GEO08LROMDA3C 胶管总成F481CECF080803-600-90°胶管总成F481CFCF080803-1200-270°胶管总成F481CFCF080803-900-0° 单联脚踏阀811000025

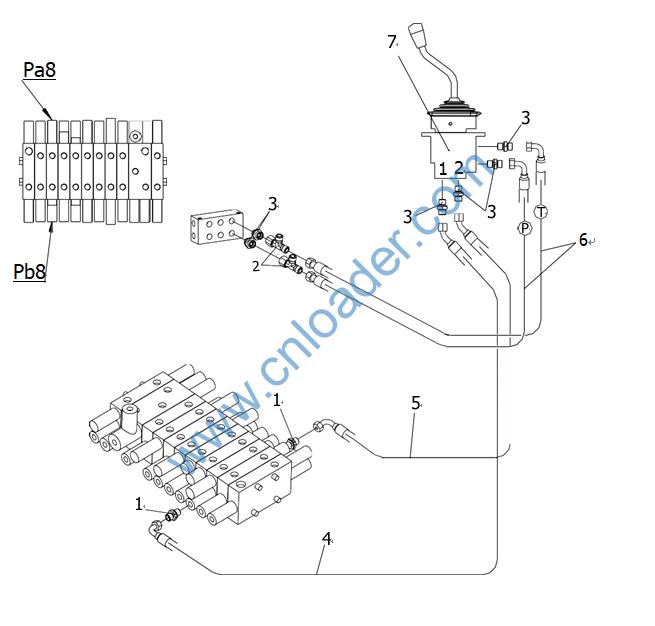

730101000080 730104000020 730101000079 730503001439 73050200A216 73050200A207 730309000352

1 1 1 1 1 1 1

JOINT JOINT JOINT HOSE ASSEMBLY HOSE ASSEMBLY HOSE ASSEMBLY DOZERING PILOT VALVE

端直通GEO08LROMDA3C三通接头EL08LOMDA3C端直通GE08LREDOMDA3C 胶管总成F481CFCF080803-1700-0°胶管总成F481CACF080803-1400胶管总成F481CACE080803-1650 推土先导操纵阀811200055

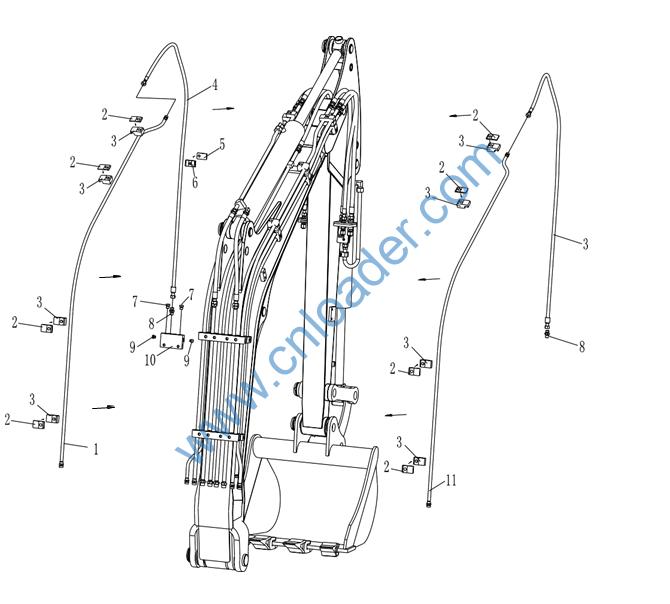

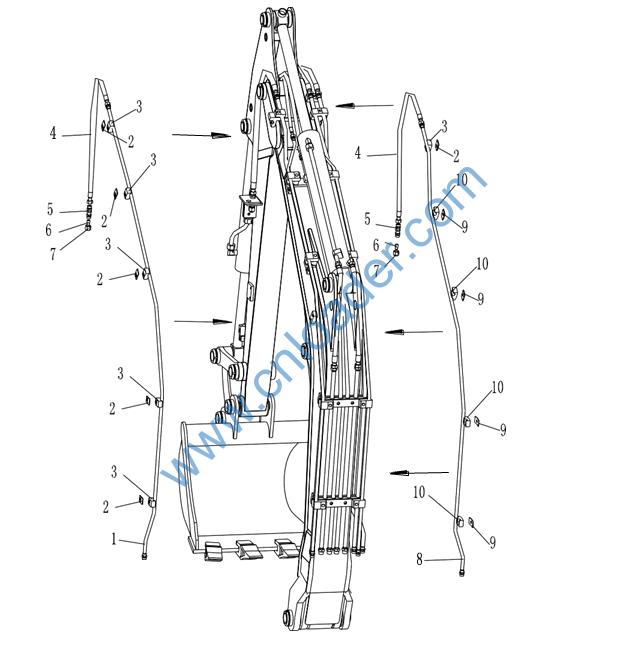

862196301011 751008000112 751008000304 730501005445 730101000224 739806000030 730199000055 862196301021 751008000085 751008000292

S1 1 1 1 1 1 1 S1 1 1

AUX LEFT STEEL PIPE TUBE COVER PLATE CLAMP HOSE ASSEMBLY JIONT END CAP NUT AUX RIGHT STEEL PIPE TUBE COVER PLATE CLAMP

辅具左侧钢管总成管夹07盖板 管夹13 胶管总成F431CACA101005-740-SG-740 接头SV10LOMDA3C堵头VKA10A3C 螺母M10LA3CX 辅具右侧钢管总成动臂管夹01盖板管夹10

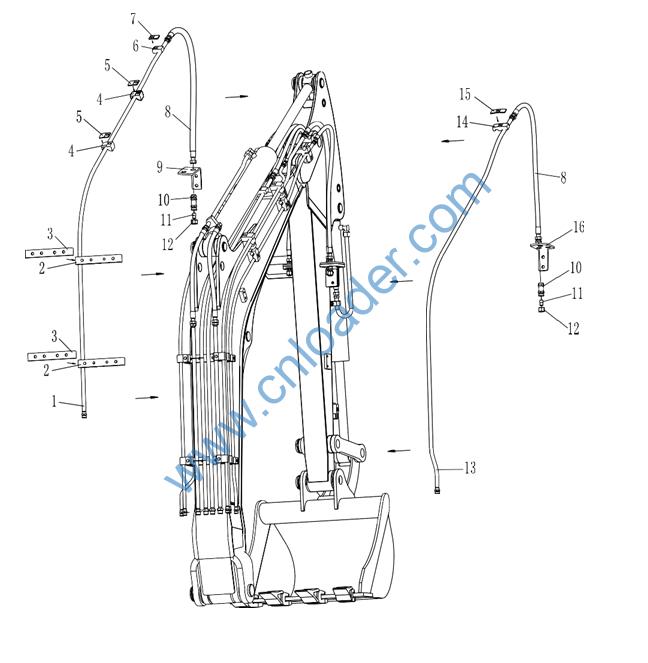

862196301031 302030016645 302510002740 751008000113 751008000114 751008000303 751008000112 730501005444 302040002944 730101000372 739806000032 730199000056 862196301041 751008000305 751008000311 302040002945

S1 1 1 1 1 1 1 1 S1 1 1 1 S1 1 1 S1

HAMMER LEFT STEEL PIPE CLAMP TUBE COVER PLATE CLAMP TUBE COVER PLATE CLAMP TUBE COVER PLATE HOSE ASSEMBLY BRACKET LEFT JIONT END CAP NUT HAMMER RIGHT STEEL PIPE CLAMP TUBE COVER PLATE BRACKET RIGHT

破碎左侧钢管总成橡胶块 管夹座盖板管夹08 管夹08盖板管夹12 管夹07盖板 胶管总成F431CACA121206-800-SG-800 隔板接头安装左支架 隔板接头SV12LOMDA3C堵头VKA12A3C 螺母M12LA3CX 破碎右侧钢管总成管夹14 管夹14盖板 隔板接头安装右支架

862196301071 751008000087 751008000293 730501005443 751008000081 751008000080 730199000321 730101000119 739806000032 307090000886 862196301081

S2 1 1 1 1 1 1 1 1 S3 S2

QUICK COUPLER LEFT STEEL PIPE TUBE COVER PLATE CLAMP HOSE ASSEMBLY TUBE COVER PLATE CLAMP END CAP JIONT END CAP CONNECTED VALVE QUICK COUPLER RIGHT STEEL PIPE

辅具左侧钢管总成管夹04盖板 管夹11 胶管总成F481CACA080804-1450-PG-1450 管夹02盖板管夹02 堵头VSTI1/8EDA3C 端直通GE08LR1/8EDA3C 堵头VKA12A3C 两通组合块 液压快换锁右侧钢管总成

862196301061 730501000627

S1 1

ARM LEFT STEEL PIPE HOSE ASSEMBLY

斗杆钢管总成 胶管总成F431CACA121206-450-PG-450

862196301091 730501005444 730101000372 739806000032 730199000056

S1 1 1 1 1

LARGE DRAIN LEFT STEEL PIPE HOSE ASSEMBLY JIONT END CAP NUT

大回油钢管总成 胶管总成F431CACA121206-800-SG-800 隔板接头SV12LOMDA3C 堵头VKA12A3C螺母M12LA3CX

703101010001	1	GREASE CUP
703102010002	1	GREASE CUP
720211000008	1	FUSE PLATE
720211000009	1	FUSE PLATE
720211000010	1	FUSE PLATE
720211000011	1	FUSE PLATE
720211000018	1	FUSE PLATE
750401000009	1	GREASE GUN
750401000039	1	GREASE GUN
790010000001	1	WORK CLOTHES
720245010004	1	KEY
