Sunward SWE18UF crawler hydraulic excavator parts catalog T

819161000003 S4 DOZER ASSEMBLY 推土装置

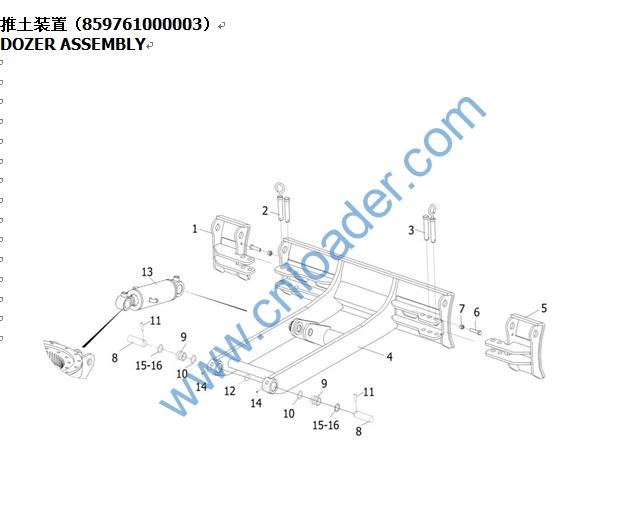

859761000003 A4 DOZER ASSEMBLY 推土装置
750101000061 S1 BELT TRACK 履带总成
750101000191 S1 DOZER ASSEMBLY 履带总成
302530000509 A2 LEFT GUIDE PLATE 左导向板
701510012004 S1 WASHER 垫圈
701104012023 S1 BOLT 螺栓
750102000097 S1 THRUST WHEEL SWE18UF支重轮（通用）
701104012022 S1 BOLT 螺栓
750105000117 S1 IDLE WHEEL 导向轮SWE18UF
872041000002 S2 THE LEFT SIDE FRAME 左履带架
302030020813 A1 COVER PLATE 盖板
701104008026 S1 BOLT 螺栓
701508008001 S1 WASHER 垫圈
750106000091 S1 TURGOR CYLINDER 涨紧油缸
701104010034 S1 BOLT 螺栓
304020402016 A3 SHAFT 2 轴2
701104014021 S1 BOLT 螺栓
701508014002 S1 WASHER 垫圈
304050304004 A6 LONGER BOLT 长螺栓
701406016001 S1 NUT 螺母
872042000002 S3 MIDDLE FRAME 中间架
872043000002 S2 RIGHT FRAME 右履带架
306060000030 A1 DRIVING WHEEL 18驱动轮
701302010045 S1 SCREW 螺钉
730250000579 S1 TREAD MOTOR 行走马达
730250000751 S1 TREAD MOTOR 行走马达
730250000753 S1 TREAD MOTOR 行走马达
810240100600 A1 LIFT THE MOTOR COVER BOARD 左马达盖板总成
701104010036 S1 BOLT 螺栓
701508010001 S1 WASHER 垫圈
302030052064 S2 BASE PLATE 垫板
751106000199 S1 BOLT 内六角螺栓M8X20 DIN 7984
302030052040 S1 COVER PLATE 盖板
739802000134 S1 CENTER SWIVEL JOINT 中央回转接头
701104008028 S1 BOLT 螺栓

750550000091 S1 SLEWING BEARING 回转支承
701103012035 S1 BOLT 螺栓
846596860000 S104 TELESCOPIC CYLINDER 伸缩油缸
872044000002 S1 PROTECT COVER 油缸防护罩
810240100500 A1 RIGHT THE MOTOR COVER BOARD 右马达盖板总成
304020402015 A3 SHAFT 1 轴1

859761120003 A3 LEFT DOZER 左推土铲
859761400000 A2 PIN SHAFT ASSEMBLY 销轴总成
304080002030 A3 SHAFT 销轴
859761100003 A2 DOZER 推土铲
859761110003 A3 RIGHT DOZER 右推土铲
701104012030 S1 BOLT 螺栓
701419121001 S1 NUT 螺母
304020402017 A6 SHAFT 轴
305040400005 S1 AXLE SLEEVE 轴套
730652000004 S1 DUSTBAND 防尘圈
701702010002 S1 ROUND PIN 圆柱销
305070500060 A2 STEEL WIRE RING 钢丝挡圈

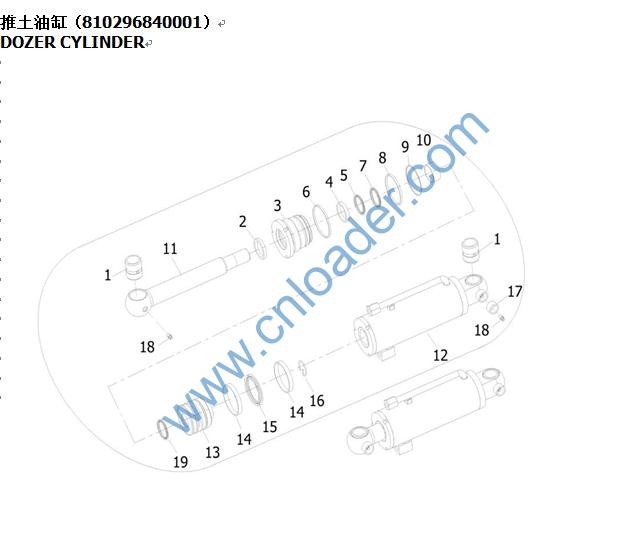

810296840001 A4 DOZER CYLINDER 推土油缸
750911000019 S1 RESIN ADJUSTING PAD 树脂调整垫
750911000020 S1 RESIN ADJUSTING PAD 树脂调整垫

305040401002 A5 BUSH 衬套
730652000230 S1 DUSTBAND 防尘圈
305090601006 A4 CYLINDER HEAD 缸头
730604000038 S1 U-RING U形圈
730654000074 S1 STOP COLLAR 挡圈
730603000011 S1 O-RING O形圈
730601000361 S1 PISTON ROD SEAL 活塞杆密封
730603000026 S1 O-RING O形圈
730654000006 S1 STOP COLLAR 挡圈
750502000029 S1 SELF LUBRICATING SHAFT BEARING 自润轴承
810296840101 A2 PISTON ROD ASSEMBLY 活塞杆组件
810296840201 A5 CYLINDER BARREL UNIT 缸筒组件
305090002329 A1 PISTON 活塞
730651000021 S1 BEARING RING 填充POM支承环-填充POM
730602000319 S1 PISTON SEAL 活塞密封
301020000402 S1 LOCK RING 锁圈
305060400003 A1 JACKET 护套
730603000617 S1 O-RING O形圈

701406008004 S1 NUT 螺母
701504008005 S1 WASHER 垫圈
302030039131 S2 RUBBER TIE-PLATE 1 橡胶垫1
302030022547 A1 RUBBER TIE-PLATE Ⅱ 橡胶垫Ⅱ
302540026279 S2 THE BATTERY HOLDER 电瓶压板
720406000109 S1 ACCUMULATOR L2-400（H5）蓄电池
301010000556 S1 SCREW 螺杆
701104008031 S1 BOLT 螺栓

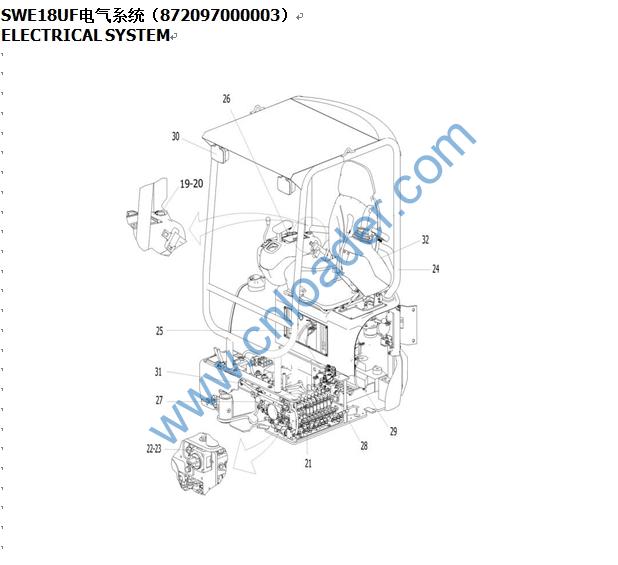

872097100012 S2 THE POSITIVE CABLE 18UF正极电缆
872097100600 S3 THE CATHODE CABLE 18UF蓄电池负极电缆
720308000040 S1 THE CATHODE SWITCH 负极开关
872097100110 S3 CABLE 18UF搭铁电缆
720407000068 S1 LOUDSPEAKER 电喇叭
872297100011 S1 ELECTRIC CONTROL BOX 电控盒
302040004832 S3 FIXED TRESTLE 18UF线束固定支架
872097100103 S3 PLATEFORM WIRING HARNESS SWE18UF平台线束
872097100105 S2 PLATEFORM WIRING HARNESS(AMERICA) SWE18UF平台线束（美国）
720212001221 S1 COOLANT TEMPERATURE SENSOR 水温传感器
720245000043 S1 IGNITION SWITCH 点火开关（不带钥匙）
720245010002 S1 START SWITCH COVER 点火锁盖
302040003093 A1
OIL SOURCE BLOCK SOLENOID VALVE PLUG-IN SUPPORT 油源块电磁阀插件支座
701510000501 S1 SPRING WASHER 304弹垫
701302005022 S1 SCREW 螺钉
301010000639 S2 PLATEFORM WIRING HARNESS 18UF警示灯及外接电源线束
301010000638 S2
ELECTERICAL PROPORTIONAL HANDLE WIRING 18UF电比例手柄选配线束
720401000105 S1 NUMERIC METER 微挖仪表
720212000335 S1 PRESSURE SWITCH 压力开关PS11-09SG14HR 15BAR定值常开
720211000001 S1 FUSIBLE WIRE 易熔线
872097100111 S1 EARTHED CABLE 新18UF发动机搭铁电缆
720214000189 S1 LED WORK LIGHTS LED工作灯
301010000607 S1 WIRES SWE18U动臂灯线束

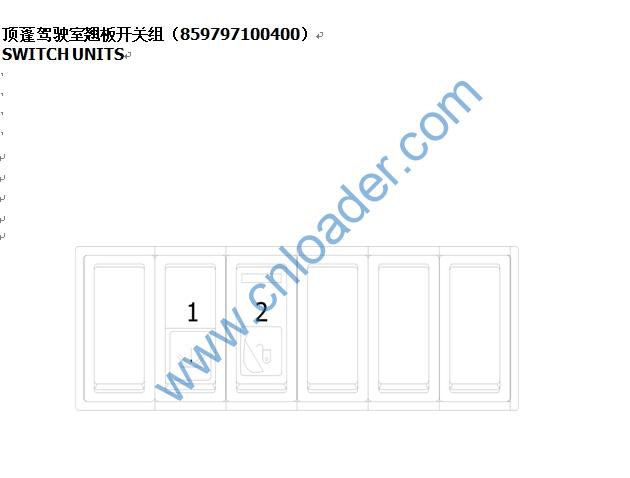

859797100400 A3 SWITCH UNITS 顶蓬驾驶室翘板开关组

720236000135 S1 BREAKER SELECTOR SWITCH 破碎器选择开关
720236000931 S1 MOVELLING/STRETCHING 翘板开关JK992-106-7.97 推土/伸缩
720236000209 S1 FAST SWTITCHING LOCK SWITCH 快换锁止开关
720236000811 S1 FAST SWTITCHING LOCK SWITCH 翘板开关快换锁止
720236000229 S1 SWITCH FOR WARNING LIGHT 翘板开关(警示灯)

872096100003 S2
UPPER CARRIAGE HYDRAULIC PIPELINE ASSEMBLY 上车其它主管路安装
872096200002 S1
UNDER CARRIAGE HYDRAULIC PIPELINE ASSEMBLY 下车液压管路安装
872096400003 S2 PILOT CONTROL PIPELINE ASSEMBLY 先导控制液压胶管安装(标配）
872296300000 S2 WORKING DEVICE PIPELINE ASSEMBLY 工作装置液压管路安装
872096500003 S2 ATTCHMENT DEVICE PIPELINE ASSEMBLY 液压元件接头安装

872096101003 S4

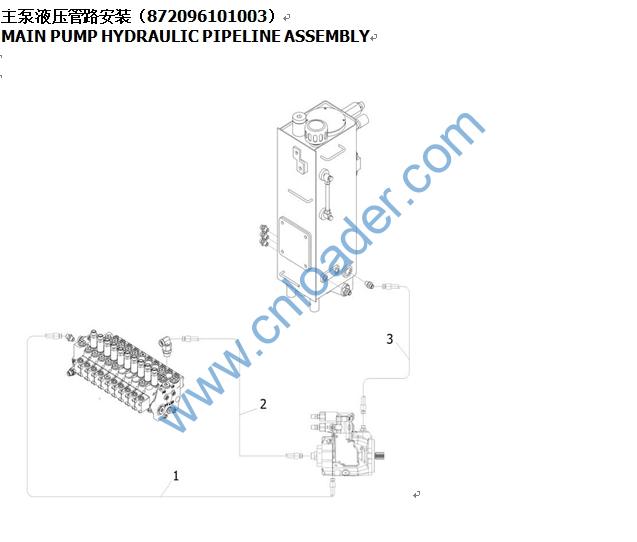

MAIN PUMP HYDRAULIC PIPELINE ASSEMBLY 主泵液压管路安装

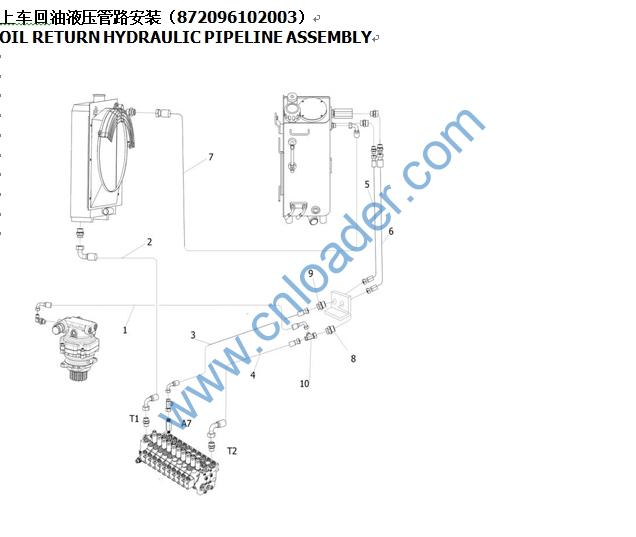

872096102003 S3 OIL RETURN HYDRAULIC PIPELINE ASSEMBLY 上车回油液压管路安装
872096103003 S3
MAIN VALVE HYDRAULIC PIPELINE ASSEMBLY 主阀主管路安装

73050200C241 S1 HOSE ASSEMBLY 胶管总成F431CACF080804-1470
730503001905 S1 HOSE ASSEMBLY 胶管总成F431CFCF151508-760-0°
730502001176 S1 HOSE ASSEMBLY 胶管总成

730502003589 S1 HOSE ASSEMBLY 胶管总成F481CACE101005-550
730504006292 S1 HOSE ASSEMBLY 胶管总成F481CFCF181810-830-180°
730501001522 S1 HOSE ASSEMBLY 胶管总成F431CFCF121206-450-90°
730504006221 S1 HOSE ASSEMBLY 胶管总成F481CFCF151508-560-90°
730504006540 S1 HOSE ASSEMBLY 胶管总成F431CFCF121206-310-270°
730504006230 S1 HOSE ASSEMBLY 胶管总成F481CFCF151508-350-270°
730502008942 S1 HOSE ASSEMBLY 胶管总成
730199000489 S1 ADAPTER, SPACER PLATE 直通隔板接头
730101000372 S1 CONNECTOR 隔板接头
730104000399 S1 CONNECTOR 变径三通接头EL15L/10L/15LOMD

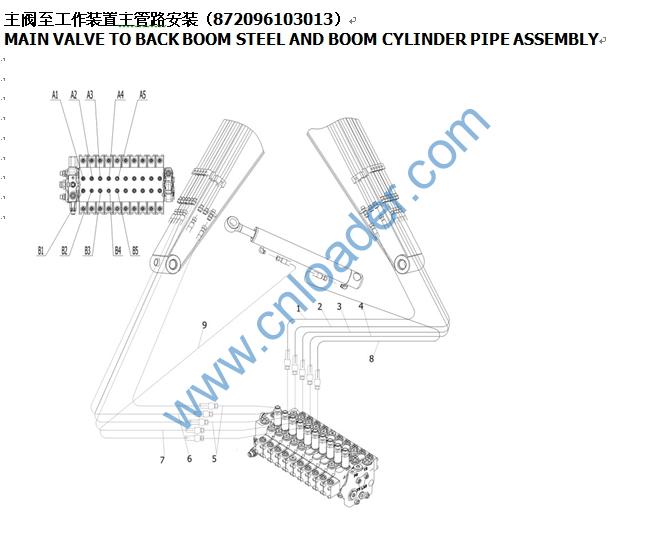

872096103013 S1
MAIN VALVE TO BACK BOOM STEEL AND BOOM CYLINDER PIPE ASSEMBLY 主阀至工作装置主管路安装

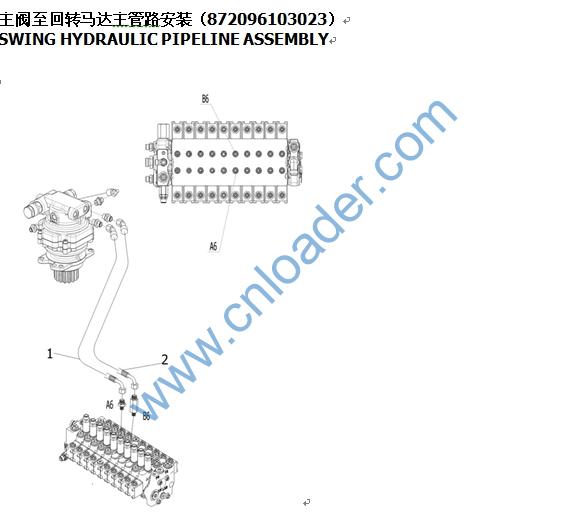

872096103023 S1 SWING HYDRAULIC PIPELINE ASSEMBLY 主阀至回转马达主管路安装
872096103033 S1

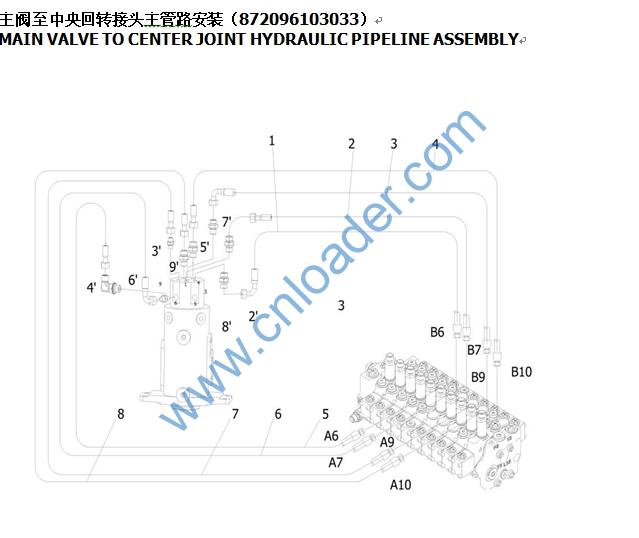

MAIN VALVE TO CENTER JOINT HYDRAULIC PIPELINE ASSEMBLY 主阀至中央回转接头主管路安装

73050200A155 S1 HOSE ASSEMBLY 胶管总成
73050200B022 S1 HOSE ASSEMBLY 胶管总成
73050200B243 S1 HOSE ASSEMBLY 胶管总成F431CACF101005-1680-PG-1200CA
73050200B023 S1 HOSE ASSEMBLY 胶管总成
73050200A148 S1 HOSE ASSEMBLY 胶管总成
73050200A171 S1 HOSE ASSEMBLY 胶管总成
730502001930 S1 HOSE ASSEMBLY 胶管总成
730501001829 S1 HOSE ASSEMBLY 胶管总成F431CECF101005-705-270°-PG-300CE
73050200C766 S1 HOSE ASSEMBLY 胶管总成

730504006471 S1 HOSE ASSEMBLY 胶管总成F431CECF101005-370-270°
730504006536 S1 HOSE ASSEMBLY 胶管总成F431CECF101005-450-270°

73050200A785 S1 HOSE ASSEMBLY 胶管总成F431CACF080804-400
73050200B814 S1 HOSE ASSEMBLY 胶管总成
730502005298 S1 HOSE ASSEMBLY 胶管总成
730503001498 S1 HOSE ASSEMBLY 胶管总成
730504006296 S1 HOSE ASSEMBLY 胶管总成F431CFCF080804-450-90°
730503000297 S1 HOSE ASSEMBLY 胶管总成F431CFCF101005-540-270°
73050200A158 S1 HOSE ASSEMBLY 胶管总成F431CACF101005-480
73050200A532 S1 HOSE ASSEMBLY 胶管总成
