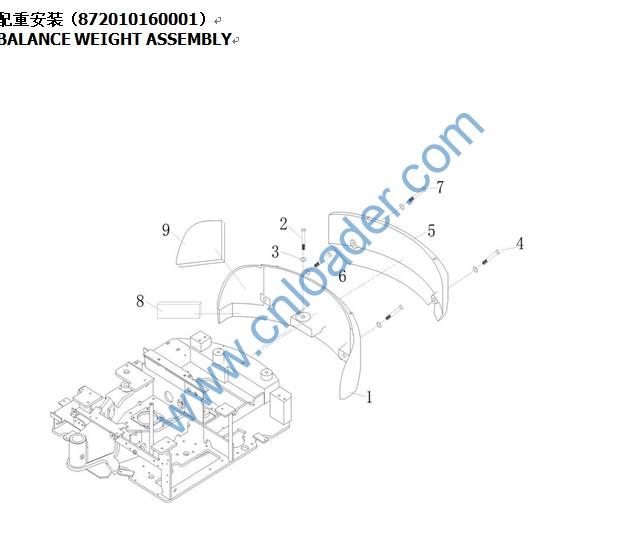

333010000157 S2 BALANCE WEIGHT 配重
701103016044 S1 BOLT 螺栓
302010200006.1 A1 WASHER 垫片
701103161901 S1 BOLT 螺栓
333010000158 S2 ADDITIONAL BALANCE WEIGHT 附加配重
701103016067 S1 BOLT 螺栓
701103016058 S1 BOLT 螺栓
302030052283 S1 SPONGE1 配重海绵1
302490054977 S1 SPONGE2 配重海绵2

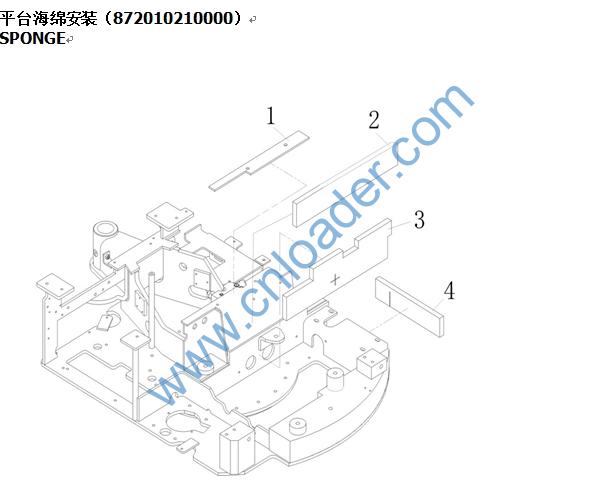

302490054998 S2 SPONGE 3 中间横梁海绵3
302490054999 S2 SPONGE 2 中间横梁海绵2
302490055000 S3 SPONGE 1 中间横梁海绵1
302490055001 S1 SPONGE 水箱安装板海绵

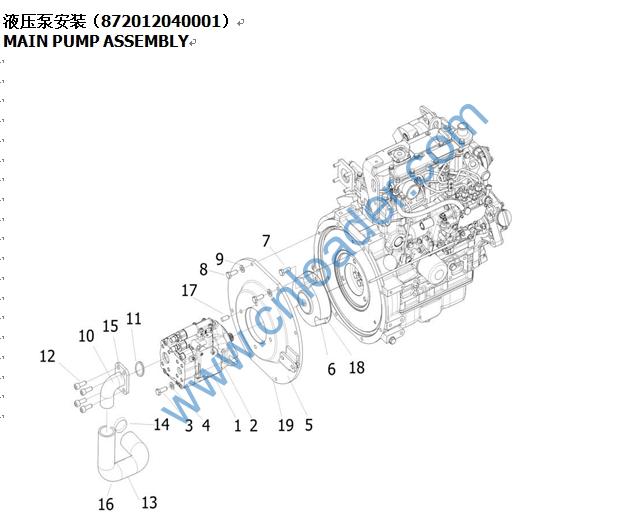

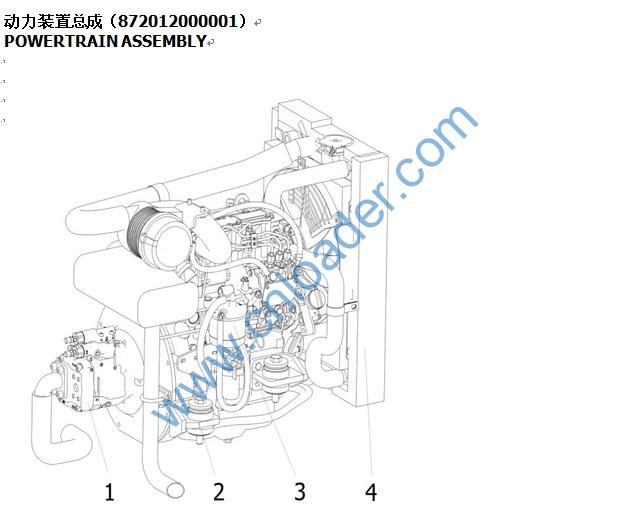

872012040001 S4 MAIN PUMP ASSEMBLY 液压泵安装

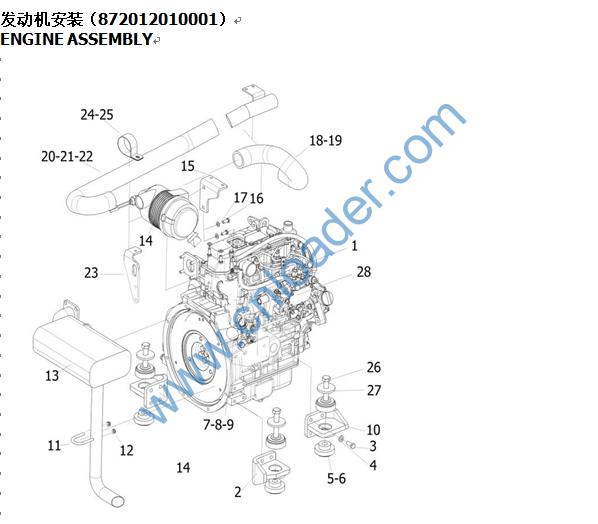

872012010001 S3 ENGINE ASSEMBLY 发动机安装

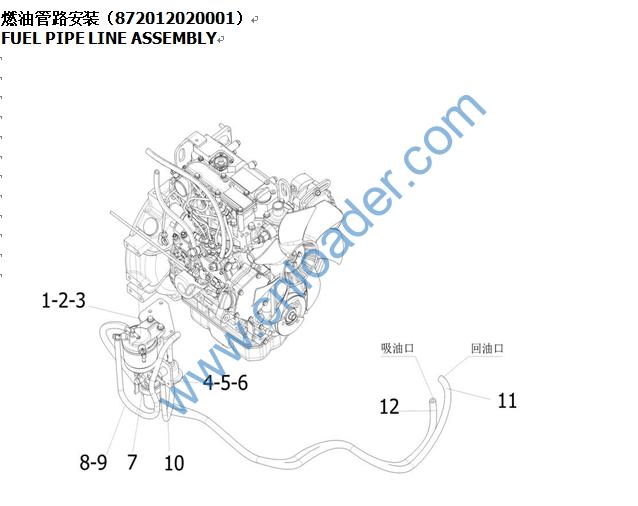

872012020001 S2 FUEL PIPE LINE ASSEMBLY 燃油管路安装

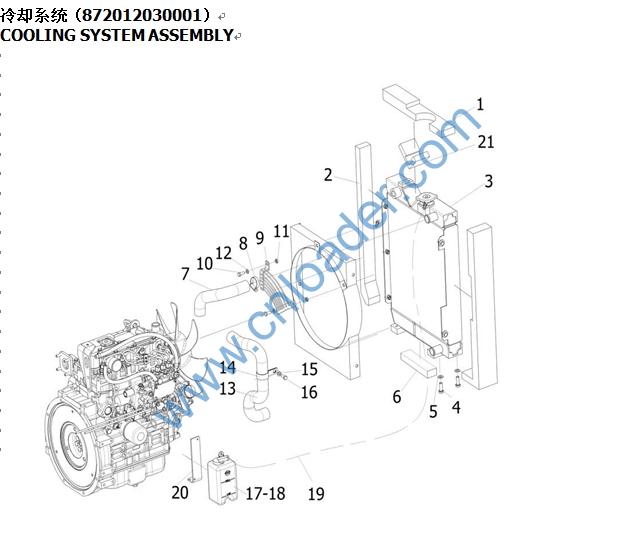

872012030001 S2 COOLING SYSTEM ASSEMBLY 冷却系统
730201000335 S1 PUMP 液压泵
730201000502 S1 PUMP 主泵
701104012025 S1 BOLT 螺栓
701508012002 S1 WASHER 垫圈
872012040101 S2 CONNECTING PLATE ASSEMBLY 连接盘焊接
750310000130 S1 COUPLING 联轴器
701302012002 S1 SCREW 螺钉
701104010033 S1 BOLT 螺栓
701508010001 S1 WASHER 垫圈
819112010200.1 A2 OIL SUCTION PIPE 吸油钢管
703201040001 S1 O-RING O形圈
701302010045 S1 SCREW 螺钉
320010008250 S1 OIL SUCTION PIPE 吸油管
751011000004 S1 CLAMP 卡箍
872012090000 S1 OIL SUCTION PIPE 主泵吸油钢管焊接
320010007340 S2 OIL SUCTION PIPE 主泵吸油管
701307012004 S1 SCREW 螺钉
750310000399 S1 COUPLING 联轴器
750204000002 S1 CONNECTING PLATE ASSEMBLY 连接盘
750201000248 S1 ENGINE 发动机
872012010301 S1 THE ENGINE LEG 支脚焊接
701104010033 S1 BOLT 螺栓
701508010001 S1 WASHER 垫圈
751501000757 S1 SHOCK ABSORBER 减震器
701416010003 S1 NUT 螺母
701703005001 S1 PIN 销
333020000002 A1 MOUNTING 固定件
701104005008 S1 BOLT 螺栓
862112010301 S4 THE ENGINE LEG 发动机支脚焊接
301020000999 S1 U-BOLT 圆钢抱箍
701406008004 S1 NUT 螺母
750205000228 S1 SILENCER ASSEMBLY 消音器
730402000246 S1 AIR FILTER 空滤器
302990007189 S1 AIR FILTER BRACKET 空滤器安装板
701104008031 S1 BOLT 螺栓
701508008001 S1 WASHER 垫圈
320020001354 S2 ENGINE INTAKE-TUBE 发动机进气管
751008000260 S1 THE HOSE CLAMP 软管卡箍
320020001407 S1 AIR FILTER INTAKE-TUBE 空滤器进气管
872012010201 S2 STEEL PIPE 钢管焊接
701104008043 S1 BOLT 螺栓
302990007191 S1 LIFTING BRACKET 气管固定支架
701104008026 S1 BOLT 螺栓
302990007222 S1 INLET PIPE RETAINING RING 气管固定抱箍
701103016067 S1 BOLT 螺栓
302010007514 S2 WASHER 安装垫圈
750201000447 S1 ENGINE 发动机
302490054915 S1 DIESEL FILTER BRACKET 柴滤支架
701104008026 S1 BOLT 螺栓
701508008001 S1 WASHER 垫圈
872012020101 S2 THROTTLE CABLE BRACKET 油门拉线支架焊接
701104006018 S1 BOLT 螺栓
701504006002 S1 WASHER 垫圈
701103008038 S1 BOLT 螺栓
730599001078 S1 OIL PIPE 柴油管
751011000026 S1 CLAMP 卡箍
730599001077 S1 OIL PIPE 柴油管
730599001075 S1 OIL PIPE 柴油管
730599001076 S1 OIL PIPE 柴油管
302490054968 S3 RADIATOR TOP SPONGE 上海绵
302490054972 S3 SIDE SPONGE OF TANK 油散侧海绵
750203000307 S1 COMPOSITE COOLER 散热器
701104010037 S1 BOLT 螺栓
302490054970 S2 RADIATOR BOTTOM SPONGE 下海绵
302490054971 S3 SIDE SPONGE OF TANK 水散侧密封海绵
320990001857 S2 ENGINE OUTLET PIPE 发动机出水管
751008000259 S1 THE HOSE CLAMP 软管卡箍
872012030101 S1 PROTECTION COVER 防护罩
701104008027 S1 BOLT 螺栓
701406008004 S1 NUT 螺母
701504008005 S1 WASHER 垫圈
320990001858 S2 ENGINE INLET PIPE 发动机进水管
302990007190 S1 THE HOSE CLAMP 进水管卡箍
701104010036 S1 BOLT 螺栓
701504010004 S1 WASHER 垫圈
750203010022 S1 EXPANSION TANK 副水箱
701302006038 S1 SCREW 螺钉
712412990015 S1 RUBBER WATER PIPE 橡胶水管
302990007595 S1 DEPUTY TANK BRACKET 副水箱支架
302490056935 S2 SPONGE 小海绵

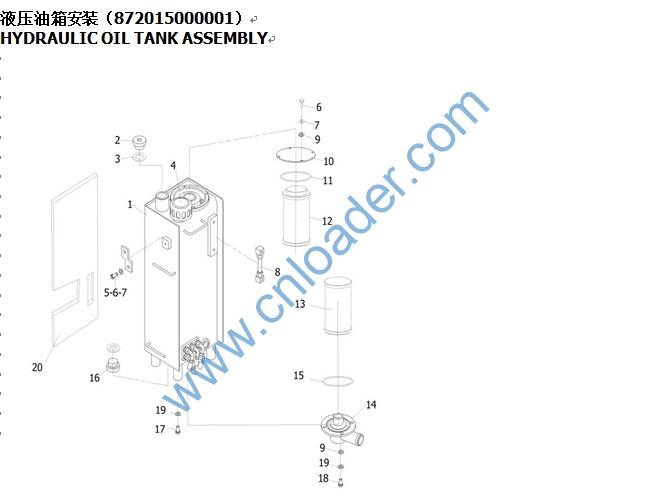

872010181003 S4 HYDRAULIC OIL TANK 液压油箱焊接
307040401002.3 A3 PLUG SCREW 螺塞
703202033001 S1 WASHER SET 组合垫圈
730402000311 S1 PRELOADING TYPE AIR FILTER 空气过滤器
872010182002 S2 COVERING ASSEMBLY 覆盖件安装板组件
701302006039 S1 SCREW 螺钉
701510006003 S1 WASHER 垫圈
739801000013 S1 LIQUID LEVEL METER 液位计
701504008005 S1 WASHER 垫圈
810215200001.6 A6 BACK TO THE OIL PRESSURE COVER 回油压盖
703201106001 S1 O-RING O形圈
730403000079 S1 BACK TO THE OIL FILTER 回油滤芯
730401000127 S1 OIL SUCTION FILTER 吸油滤芯
819115030000.5 A5 OIL SUCTION FLANGE 吸油法兰
703201075001 S1 O-RING O形圈
739806000006 S1 PLUG 堵头
701104008032 S1 BOLT 螺栓
701104008028 S1 BOLT 螺栓
701510008003 S1 WASHER 垫圈
302010008658 S2 HYDRAULIC OIL TANK SPONGE 液压油箱海绵1

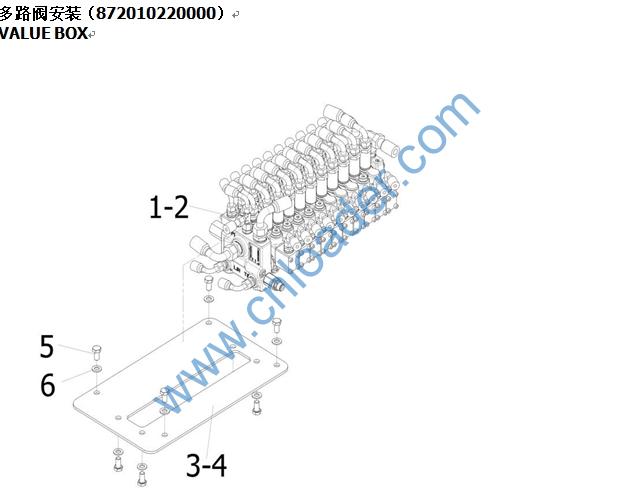

730302000502 S1 MULTI-WAY VALVE 多路阀
730302000533 S1 MULTI-WAY VALVE 多路阀
302490054978 S2
MULTIWAY VALVE MOUNTING PLATE ASSEMBLY HC多路阀安装板
302490054979 S3
MULTIWAY VALVE MOUNTING PLATE ASSEMBLY 恒立多路阀安装板
701104010032 S1 BOLT 螺栓
701504010004 S1 WASHER 垫圈

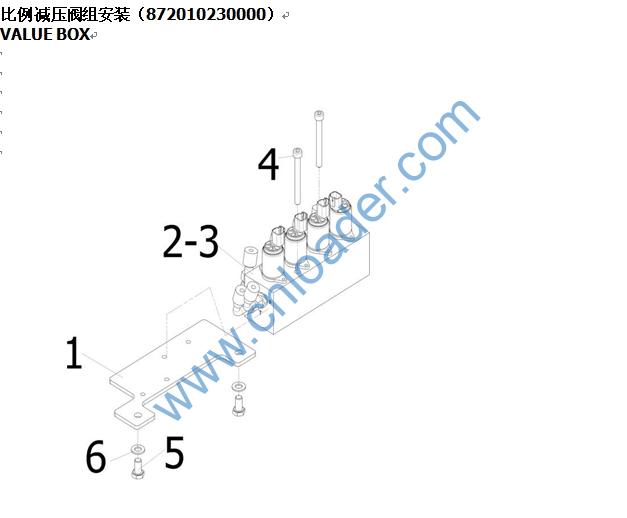

302490054981.S1 S1 PRESSURE REDUCING VALVE MOUNTING PLATE 减压阀组安装板
730399000931 S1 QUADRUPLE PROPORTIONAL VALVE SET 四联比例减压阀组
730399000526 S1
DOUBLE PROPORTIONAL PRESSURE REDUCING VALVE SET 二联比例减压阀组
701302008029 S1 SCREW 螺钉
701104010036 S1 BOLT 螺栓
701504010004 S1 WASHER 垫圈

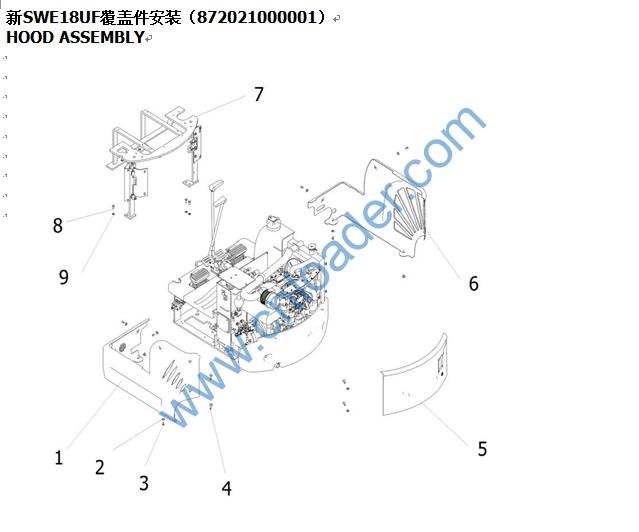

872021040001 S1 LEFT PANEL COMPONENT 左覆盖件组件
701506008002 S1 WASHER 垫圈
701104008031 S1 BOLT 螺栓
701323008002 S1 SCREW 螺钉

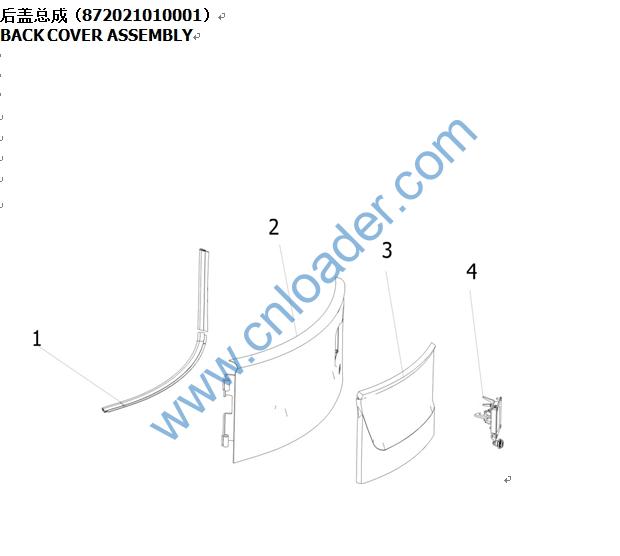

872021010001 S1 BACK COVER ASSEMBLY 后盖总成

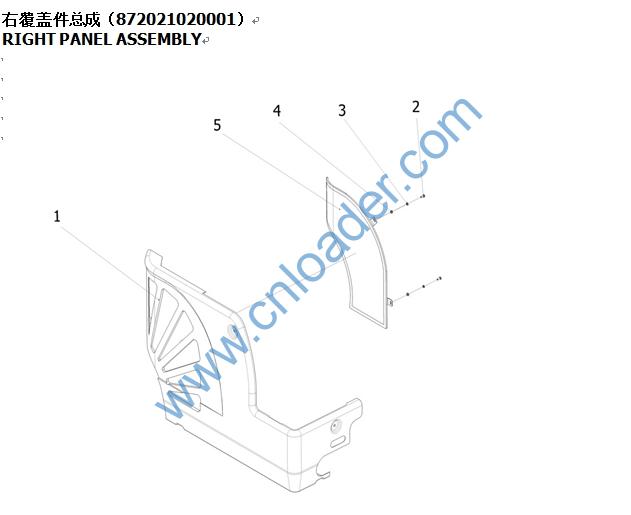

872021020001 S2 RIGHT PANEL ASSEMBLY 右覆盖件总成

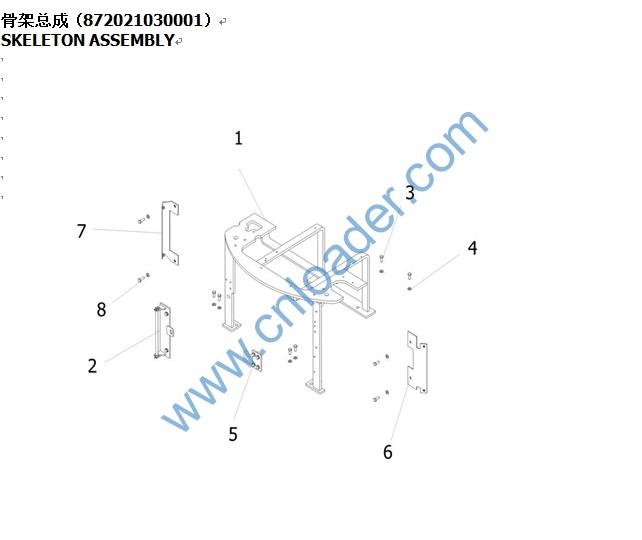

872021030001 S3 SKELETON ASSEMBLY 骨架总成
701104010033 S1 BOLT 螺栓
701506010003 S1 WASHER 垫圈
750030000138 S1 STEEL CORE COMPOUND SEAL STRIP 钢芯复合密封条
872021010101 S2 BACK COVER ASSEMBLY 后盖组件
302030052112 S2 BACK COVER SPONGE 后盖海绵

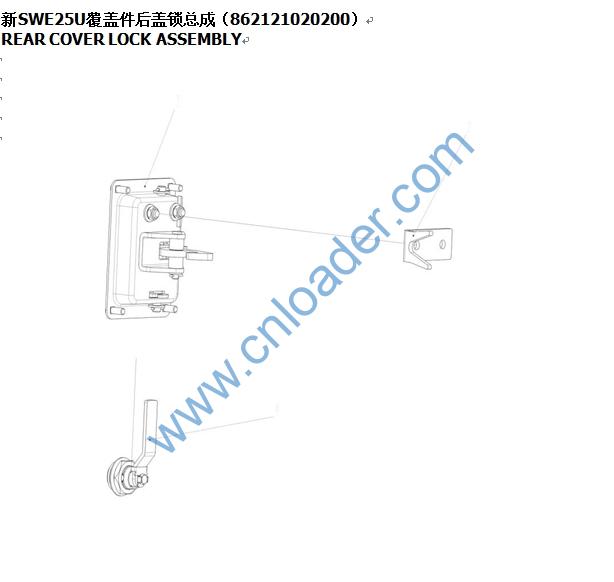

862121020200 S3 REAR COVER LOCK ASSEMBLY 新SWE25U覆盖件后盖锁总成
302540022507 S1 GUIDE PLATE 新SWE25U覆盖件后盖锁导向板
302540022507 S2 GUIDE PLATE 新SWE25U覆盖件后盖锁导向板
302540022507 S3 GUIDE PLATE 新SWE25U覆盖件后盖锁导向板
750906000299 S1 REAR COVER LOCK BODY 60U后盖锁体
862121020210 S1 LOCK CYLINDER ASSEMBLY 新SWE25U覆盖件后盖锁芯总成
872021020101 S3 RIGHT PANEL ASSEMBLY 右覆盖件组焊件
701302006088 S1 SCREW 螺钉
701502006002 S1 WASHER 垫圈
701510006003 S1 WASHER 垫圈
819121070200 A3 GRID GUARD 防护网
872021030101 S3 SKELETON ASSEMBLY 骨架组件

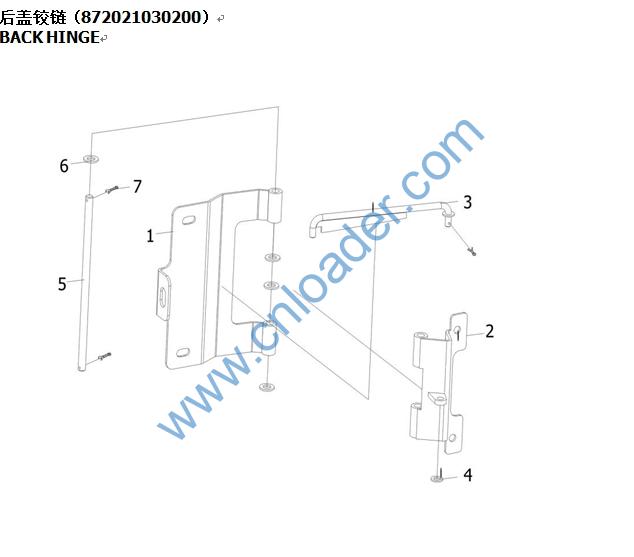

872021030200 S3 BACK HINGE 后盖铰链
701506010003 S1 WASHER 垫圈
701104010032 S1 BOLT 螺栓
872021030300 S1 LOCK ASSEMBLY FOR REAR COVER 后盖锁扣总成
872021030400 S3 RIGHT PANEL MOUNTING BRACKET ASSEMBLY 右覆盖件安装支架组件
872021030500 S3
LEFT PANEL MOUNTING BRACKET ASSEMBLY 左覆盖件安装支架组件
701104010039 S1 BOLT 螺栓
872021030210 S3 THE HINGES 铰链副合页焊接
872021030220 S3 THE HINGES 铰链主合页焊接
872021030230 S3 TIE ROD 限位杆组件
701508008001 S1 WASHER 垫圈
301030000276 S1 PIN 销
701509012001 S1 THE GASKET 垫圈
301020000992 S1 PIN 销
