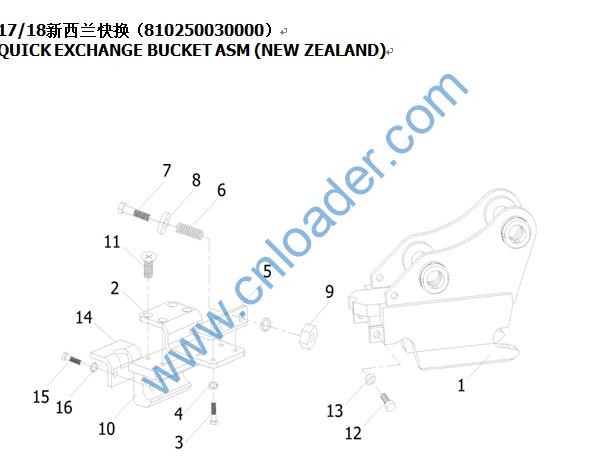

810255200001 A1 DIP SEAT 卡座
302530202003 A2 Z BOARD Z形板
701104008026 S1 BOLT 螺栓
701510008003 S1 WASHER 垫圈
302520202027 A2 BEND BOARD 弯板
301030301005 A1 SPRING 弹簧
701103121301 S1 BOLT 螺栓
701504012005 S1 WASHER 垫圈
701406012002 S1 NUT 螺母
307990502001 A3 HOOK 卡钩
701320008001 S1 SCREW 螺钉
304050203007 A2 BOLT 螺栓
701415010001 S1 NUT 螺母
302520201003 A1 BOARD 撬板
701302010056 S1 SCREW 螺钉
810255100031 S1 BUCKET 铲斗
810255100025 S1 BUCKET ASSEMBLY 装配斗
701323163001 S1 SCREW 螺钉
701504016003 S1 WASHER 垫圈

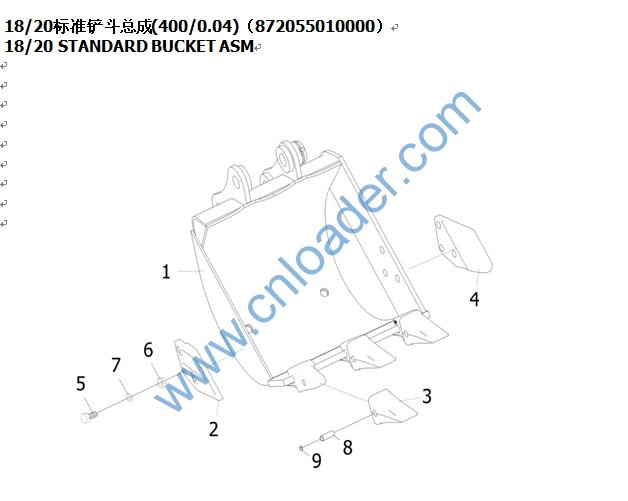

872055010100 S1 BUCKET 铲斗(400MM 0.04M3)
750601000023 S1 RIGHT LATERAL TOOTH 右侧齿
750601000263 S1 BUCKET TOOTH 斗齿
750601000024 S1 LEFT LATERAL TOOTH 左侧齿
701104014021 S1 BOLT 螺栓
701406014001 S1 NUT 螺母
701510014003 S1 WASHER 垫圈
750601000265 S1 PIN 销子
750601000266 S1 CIRCLIP 卡簧
730652000027 S1 DUSTBAND 防尘圈
305040001441 A1 AXLE SLEEVE 轴套A
305040500009 A4 BUSH 衬套
305040500009 A5 BUSH 衬套
703101010001 S1 GREASE CUP 油杯
750911000023 S1 RESIN ADJUSTING PAD 树脂调整垫
750911000046 S1 RESIN ADJUSTING PAD 树脂调整垫

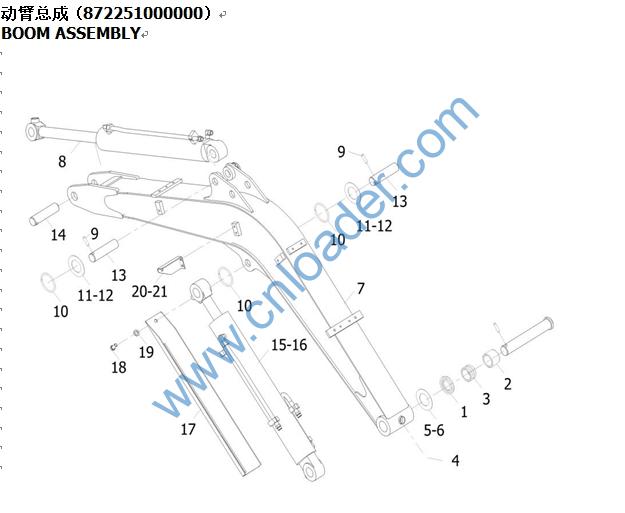

810251100000 A22 BOOM WELDING 动臂

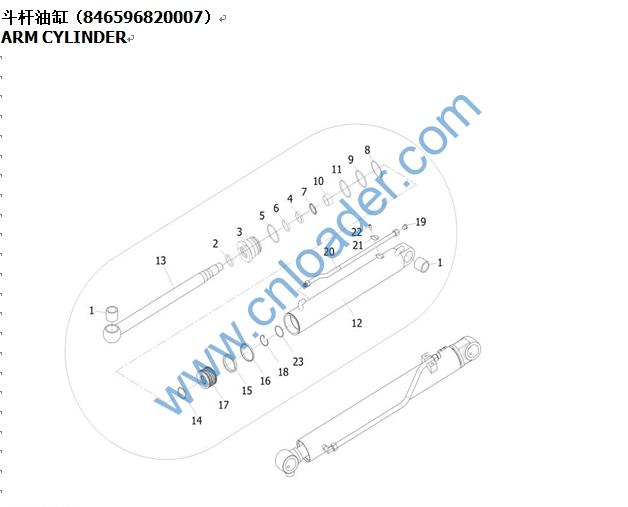

846596820007 S7 ARM CYLINDER 斗杆油缸
701702010004 S1 PIN 销
301020003007 A2 STEEL CABLE BAFFLE RING 钢丝挡圈
750911000019 S1 RESIN ADJUSTING PAD 树脂调整垫
750911000020 S1 RESIN ADJUSTING PAD 树脂调整垫
304020002420 A1 SHAFT C 销轴C
304020002413 A1 SHAFT D 销轴D

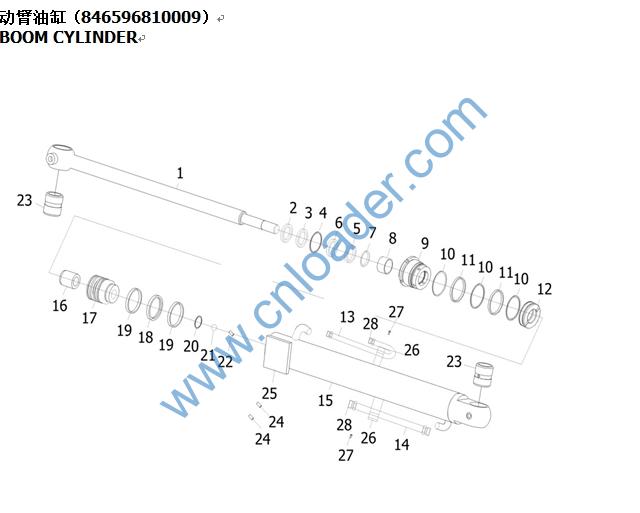

846596810009 S6 BOOM CYLINDER 动臂油缸

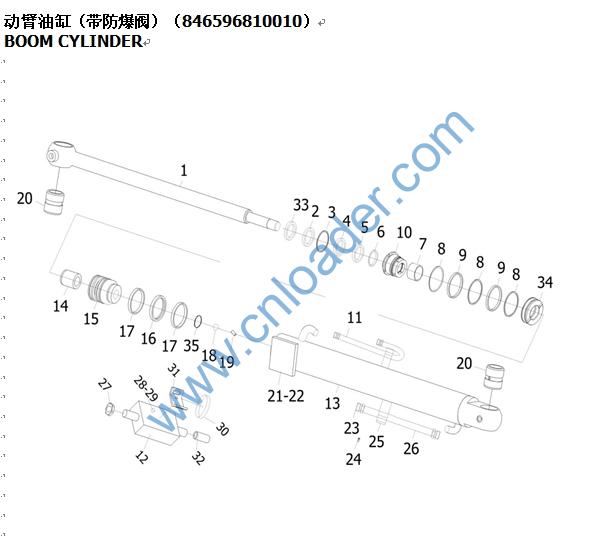

846596810010 S4 BOOM CYLINDER 动臂油缸（带防爆阀）
810251200000 A2 GUARD PLATE OF BOOM CYLINDER 动臂油缸护板
701104012046 S1 BOLT 螺栓
701502012002 S1 WASHER 垫圈
302040004230 S1 LAMP HOLDER 灯座
701104008043 S1 BOLT 螺栓
305040401002 A5 BUSH 衬套
730652000231 S1 DUSTBAND 防尘圈
305090002356 S2 CYLINDER HEAD 缸头
730603000023 S1 O-RING O形圈
730654000094 S1 STOP COLLAR 挡圈
730602000218 S1 U-RING U形圈
730601000363 S1 PISTON ROD SEAL 活塞杆密封
730654000023 S1 DUST SEAL 挡圈
730603000632 S1 O-RING O形圈
750502000028 S1 SELF LUBRICATING SHAFT BEARING 自润轴承
301020000026 A2 SPRING COLLAR 弹簧挡圈
846596820207 S7 CYLINDER BARREL UNIT 缸筒组件
810296820107 S1 PISTON ROD ASSEMBLY 活塞杆组件
730603000009 S1 O-RING O形圈
730602000287 S1 PISTON SEAL 活塞密封
730651000028 S1 GUIDE RING 导向环
305090002355 S1 PISTON 活塞
301020000031 S10 LOCKING COLLAR 锁圈
739806000070 S1 PLUG 带压紧螺母的24°锥孔堵头
846596820227 S5 PIPELINE MODULE 油管组件
307080000737 S5 SINGLE PIPE CLAMP 单孔管夹
701104008027 S1 BOLT 螺栓
302010007204 S2 DUSTBAND BAFFLE RING 防尘圈挡圈
846596810109 S2 PISTON ROD ASSEMBLY 活塞杆组件
302010007285 S1 DUSTBAND BAFFLE RING 防尘圈挡圈
730652000326 S1 DUSTBAND 防尘圈
730603000023 S1 O-RING O形圈
730601000395 S1 PISTON SEAL 活塞杆密封
730654000075 S1 CHECK RING 挡圈
730601000394 S1 PISTON SEAL 活塞杆密封
750502000027 S1 SELF LUBRICATING SHAFT BEARING 自润轴承
305090003304 S2 CYLINDER HEAD 缸头
730654000642 S1 STOP COLLAR 支撑环
730603000632 S1 O-RING O形圈
305090003305 S3 GUIDE SLEEVE 导向套
846596810309 S1 PIPELINE MODULEⅠ 油管组件Ⅰ
846596810407 S1 PIPELINE MODULE Ⅱ 油管组件Ⅱ
846596810209 S3 CYLINDER BARREL UNIT 缸筒组件
846596810209 S4 CYLINDER BARREL UNIT 缸筒组件
305090003303 S3 CUSHION SEAL SHEATH 缓冲套
305090003306 S1 PISTON 活塞
730602000429 S1 PISTON SEAL 活塞密封
730651000028 S1 GUIDE RING 导向环
730603000978 S1 O RING O形圈
750551000024 S1 STEEL BALL 钢球
701307006002 S1 SCREW 螺钉
750502000694 S1 BUSH 含油衬套
701302005029 S1 SCREW 螺钉
302030023882 S1 SLIDE PLATE 滑座板
701104008027 S1 BOLT 螺栓
307080000737 S5 SINGLE PIPE CLAMP 单孔管夹
739806000070 S1 PLUG 带压紧螺母的24°锥孔堵头
846596810109 S1 PISTON ROD ASSEMBLY 活塞杆组件
730652000326 S1 DUSTBAND 防尘圈
730603000023 S1 O-RING O形圈
730654000075 S1 CHECK RING 挡圈
730601000395 S1 PISTON SEAL 活塞杆密封
730601000394 S1 PISTON SEAL 活塞杆密封
750502000027 S1 SELF LUBRICATING SHAFT BEARING 自润轴承
730654000642 S1 STOP COLLAR 支撑环
730603000632 S1 O-RING O形圈
305090003304 S2 CYLINDER HEAD 缸头
846596810309 S1 PIPELINE MODULEⅠ 油管组件Ⅰ
730304000242 1 CONTROL VALVE 防爆阀
846596810209 S1 CYLINDER BARREL UNIT 缸筒组件
305090003303 S3 CUSHION SEAL SHEATH 缓冲套
305090003306 S1 PISTON 活塞
730602000429 S1 PISTON SEAL 活塞密封
730651000028 S1 GUIDE RING 导向环
750551000024 S1 STEEL BALL 钢球
701307006002 S1 SCREW 螺钉
750502000694 S1 BUSH 含油衬套
701302005029 S1 SCREW 螺钉
302030023882 S1 SLIDE PLATE 滑座板
739806000070 S1 PLUG 带压紧螺母的24°锥孔堵头
701104008027 S1 BOLT 螺栓
307080000737 S5 SINGLE PIPE CLAMP 单孔管夹
810296810308 S1 PIPELINE MODULE Ⅱ 油管组件Ⅱ
730101000160 S1 CONNECTOR 端直通接头
701302006035 1 SCREW 螺钉
701504008005 S1 WASHER 垫圈
751011000293 S1 CLAMP 抗震卡箍
307090000934 S2 MOUNTING PLATE 防爆阀安装板
810296810408 S1 PIPELINE MODULE Ⅲ 油管组件Ⅲ
302010007285 S1 DUSTBAND BAFFLE RING 防尘圈挡圈
305090003305 S3 GUIDE SLEEVE 导向套
730603000978 S1 O RING O形圈

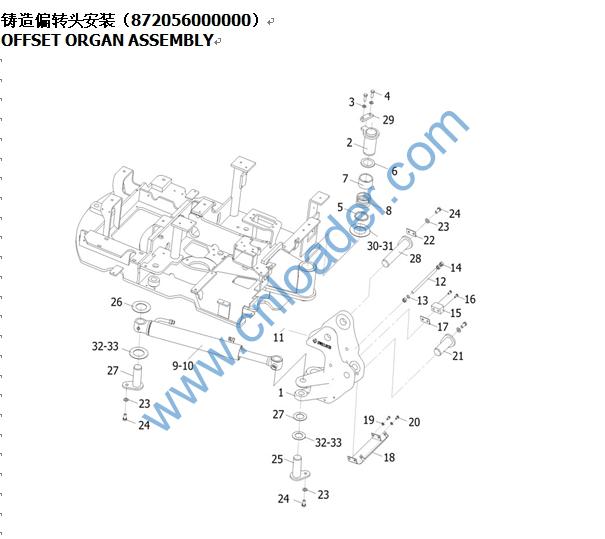

330040000159 S5 CASTING DEFLECTION HEAD 18SU铸造偏转头
872056050000 S1 DEFLECTOR PIN SHAFT 偏转头销轴
701508010001 S1 WASHER 垫圈
701302010045 S1 SCREW 螺钉
730652000031 S1 DUSTBAND 防尘圈
302010102002 A2 PLATE 垫板
305040501002 A6 SHAFT SLEEVE 轴套
305040501027 A3 BUSH 衬套

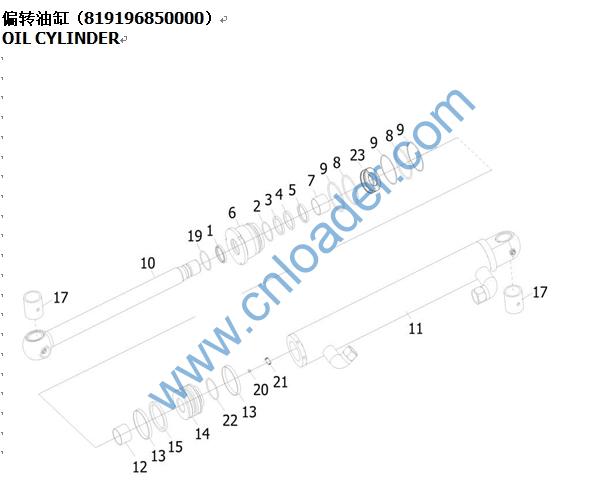

819196850000 A4 OIL CYLINDER 偏转油缸
819196850000 A5 OIL CYLINDER 偏转油缸

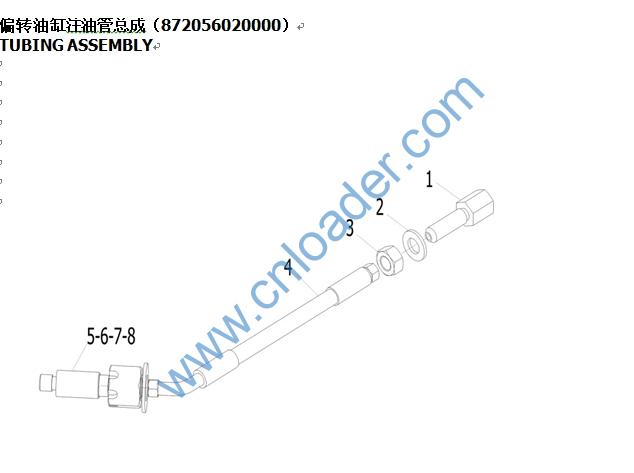

872056020000 S4
DEFLECTION CYLINDER INJECTION TUBING ASSEMBLY 偏转油缸注油管总成
703101010001 S1 GREASE CUP 油杯
304050000652 S2 SCREW 螺杆
701523010001 S1 WASHER 垫圈
701415010001 S1 NUT 螺母
302030005431 A1 CHECK BLOCK 挡块
701302008021 S1 SCREW 螺钉
829956030000 A1 GASKET UNIT 垫片组3
302540015127 S1 PROTECT PLATE 护板
701508008001 S1 WASHER 垫圈
701104008026 S1 BOLT 螺栓
819130020000 S2 SHAFT ASSEMBLY 轴组件1
302490032752 S1 PRESSING PLATE 压板
701523012001 S1 WASHER 垫圈
701104012022 S1 BOLT 螺栓
819156020000 S1 SHAFT 偏转轴
302010101001 A2 BASE PLATE 垫板
872056010000 S1 SHAFT 偏转轴18UF
819130100000 S1 SHAFT ASSEMBLY 轴组件2
302030044815 S1 PRESSING PLATE 压板
750911000047 S1 RESIN ADJUSTING PAD 树脂调整垫
750911000048 S1 RESIN ADJUSTING PAD 树脂调整垫
750911000019 S1 RESIN ADJUSTING PAD 树脂调整垫
750911000020 S1 RESIN ADJUSTING PAD 树脂调整垫
730652000231 S1 DUSTBAND 防尘圈
730603000023 S1 O-RING O形圈
730654000094 S1 STOP COLLAR 挡圈
730602000218 S1 U-RING U形圈
730601000363 S1 PISTON ROD SEAL 活塞杆密封
305090003553 S1 CYLINDER HEAD 缸头
750502000028 S1 SELF LUBRICATING SHAFT BEARING 自润轴承
730603000632 S1 O-RING O形圈
730654000023 S1 DUST SEAL 挡圈
819196850100 A5 PISTON ROD ASSEMBLY 活塞杆组件
819196850200 A5 CYLINDER BARREL UNIT 缸筒组件
305090003558 S1 CUSHION COLLAR 缓冲套
730651000028 S1 GUIDE RING 导向环
305090003559 S1 PISTON 活塞
730602000429 S1 PISTON SEAL 活塞密封
750502000694 S1 BUSH 含油衬套
302010007204 S2 DUSTBAND BAFFLE RING 防尘圈挡圈
750551000024 S1 STEEL BALL 钢球
701307006006 S1 NUT 螺钉
730603001475 S1 O-RING O形圈
305090003557 S1 GUIDE SLEEVE 导向套
308010102004 A1 CONNECTOR BODY 接头体
701504010001 S1 WASHER 垫圈
701416010001 S1 NUT 螺母
730599000442 S1 JOINT 黄油管
308010000229 A1 FITTINGS BODY 接头体
302010003332 A2 RUBBER MAT 橡胶垫
701410016002 S1 NUT 螺母
701504016003 S1 WASHER 垫圈

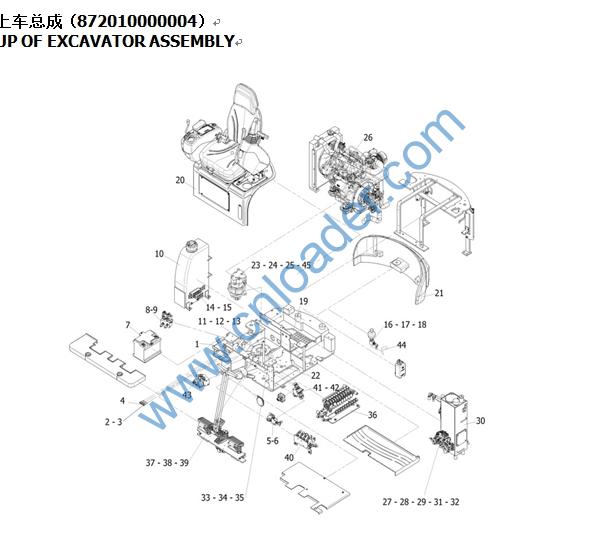

872010100004 S3 WELDING OF PLATFORM STRUCTURE PART 平台结构件焊接
703101010001 S1 GREASE CUP 油杯
872010100200 S2
ROTARY SUPPORT OIL FOLLING PIPE ASSEMBLY 回转支承注油管总成
872010100100 S2
ROTARY MOTOR SUPPORT OIL FOLLING PIPE ASSEMBLY 回转马达注油管总成
730399000963 S1 SOLENOID VALVE BLOCK 常开电磁阀
701302006035 S1 SCREW 螺钉
872010110001 S2 STORAGE BATTERT ASSEMBLY 电瓶安装
730309000328 S1 SWITCH VALVE 2位8通切换阀
701302007501 S1 BOLT 螺钉
872014000000 S1 OIL TANK ASSEMBLY 燃油箱安装
872010130000 S2 WASHER 油盒
701104008043 S1 BOLT 螺栓
701508008001 S1 WASHER 垫圈
307090001228 S1 PILOT SHUNT BLOCK 先导分流块
701302008026 S1 SCREW 螺钉
730399000689 S1 PILOT ACCUMULATOR ASSEMBLY 先导蓄能器组件
701104006017 S1 BOLT 螺栓
701504006002 S1 WASHER 垫圈
872010140001 S1 BOTTOM PANEL MOUNTING 底封板安装
872017000000 S3 CONTROL BOARD ASSEMBLY 司机工作台安装
872010160001 S1 BALANCE WEIGHT ASSEMBLY 配重安装
872010210000 S1 SPONGE 平台海绵安装
730250000283 S1 ROTARY MOTOR 回转马达
701104012025 S1 BOLT 螺栓
701508012002 S1 WASHER 垫圈
872012000001 S1 POWERTRAIN ASSEMBLY 动力装置总成
730399001071 S1 PILOT BLOCK 先导油源块
701302008032 S1 SCREW 螺钉
701504008005 S1 WASHER 垫圈
872015000001 S4 HYDRAULIC OIL TANK ASSEMBLY 液压油箱安装
730399001042 S1 PILOT OIL SOURCE BLOCK 先导油源块
701302008023 S1 SCREW 螺钉
302030004631 S1 CHECK PLATE 止动板
701104010033 S1 BOLT 螺栓
701508010001 S1 WASHER 垫圈
872010220000 S1 VALUE BOX 多路阀安装
302490002247 A2 COVER PLATE 盖板
701104008031 S1 BOLT 螺栓
302490002248 S1 GASKET 密封垫
872010230000 S1 VALUE BOX 比例减压阀组安装
730399000961 S1 SOLENOID VALVE BLOCK 两联电磁阀组
701302006040 S1 SCREW 螺钉
730399000962 S1 SOLENOID VALVE BLOCK 两联电磁阀组
302040005017 S1 COVER PLATE 蓄能器安装板
730250000916 S1 ROTARY MOTOR 回转马达
