SWE18UF 履带式液压挖掘机(872000000002)
SWE18UF HYDRAULIC EXCAVATOR…… 1

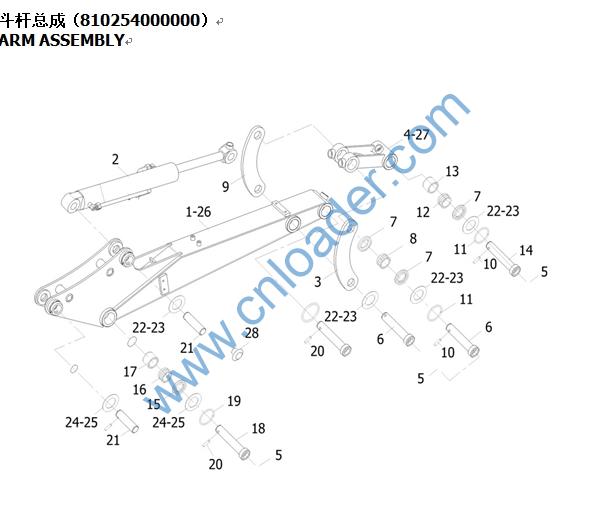

斗杆总成（810254000000）ARM ASSEMBLY 2

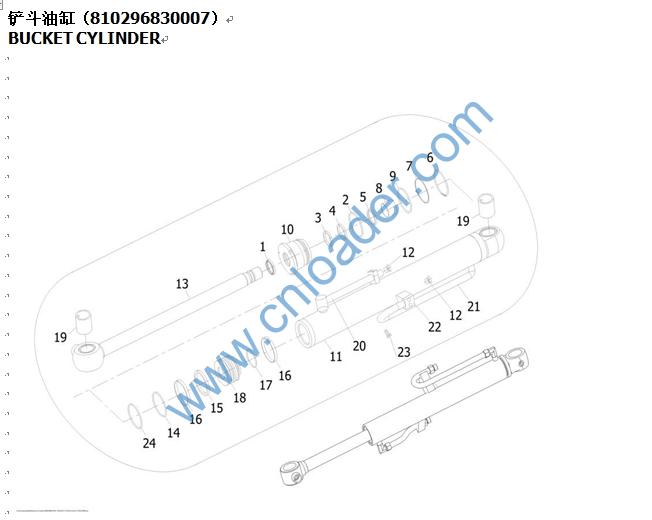

铲斗油缸（810296830007）BUCKET CYLINDER 3
SWE17-102 铲斗总成选配表（810250000000）BUCKET ASSEMBLE SELECTION TABLE 4

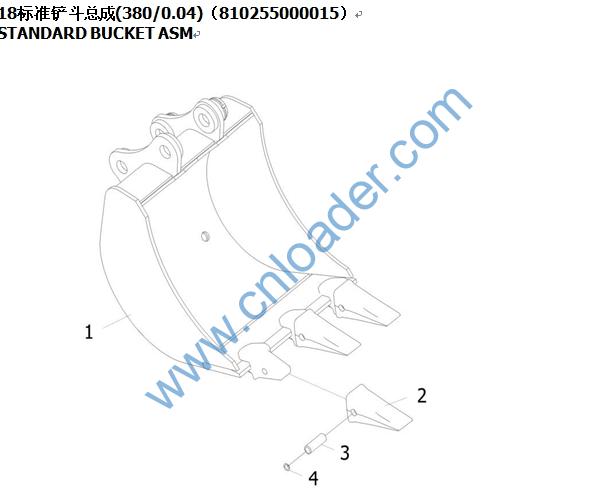

18 标准铲斗总成(380/0.04)（810255000015） STANDARD BUCKET ASM 5
18 意大利快换（810255110000）QUICK EXCHANGE INSTALLATION（ITALY） 6

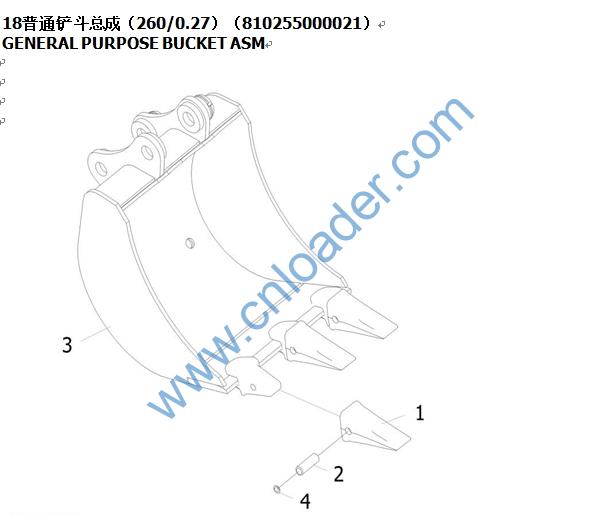

18 普通铲斗总成（260/0.27）（810255000021）GENERAL PURPOSE BUCKET ASM…7

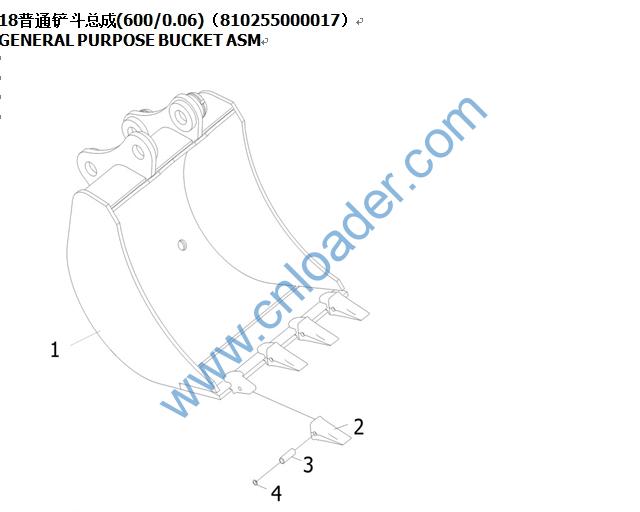

18 普通铲斗总成(600/0.06)（810255000017）GENERAL PURPOSE BUCKET ASM…8
18 瑞典快换（810250010000）QUICK EXCHANGE INSTALLATION（SWEDEN） 9
18 瑞典快换铲斗总成（300/0.03）（810255000018）
18 SWEDEN QUICK BUCKET ASSEMBLY 10

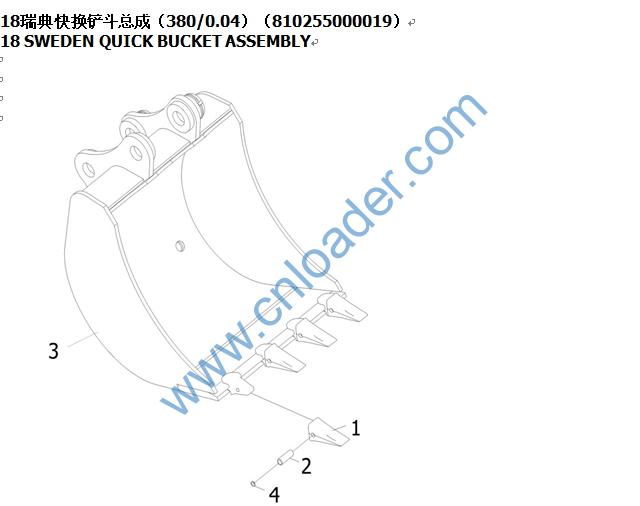

18 瑞典快换铲斗总成（380/0.04）（810255000019）
18 SWEDEN QUICK BUCKET ASSEMBLY 11

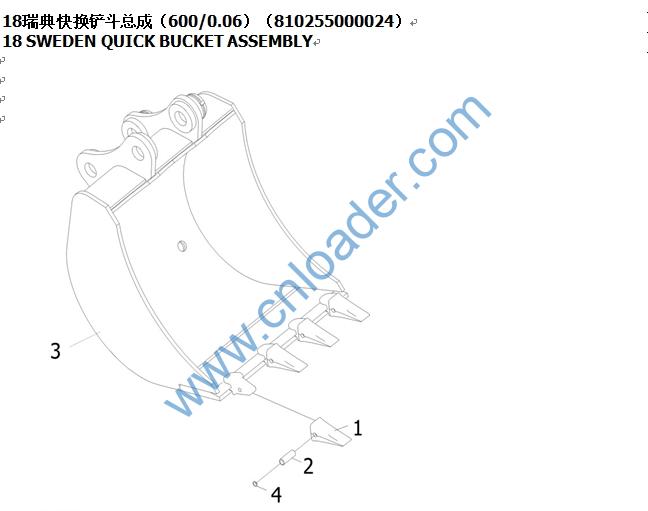

18 瑞典快换铲斗总成（600/0.06）（810255000024）
18 SWEDEN QUICK BUCKET ASSEMBLY 12

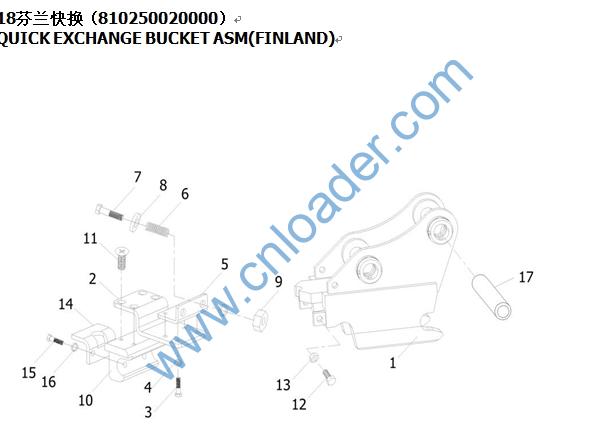

18 芬兰快换（810250020000）QUICK EXCHANGE BUCKET ASM(FINLAND) 13
18 芬兰快换铲斗总成（300/0.03）（810255000020）
18 FINLAND QUICK EXCHANGE BUCKET ASSEMBLY 14
18 芬兰快换铲斗总成（380/0.04）（810255000027）
18 FINLAND QUICK EXCHANGE BUCKET ASSEMBLY 15
18 芬兰快换铲斗总成（600/0.06）（810255000026）
18 FINLAND QUICK EXCHANGE BUCKET ASSEMBLY 16
17/18 新西兰快换（810250030000）
QUICK EXCHANGE BUCKET ASM (NEW ZEALAND) 17
18 新西兰平坡斗（810255000031）FLAT SLOPE BUCKET (NEW ZEALAND) 18
18/20 标准铲斗总成(400/0.04)（872055010000）18/20 STANDARD BUCKET ASM19
动臂总成（872251000000）BOOM ASSEMBLY 20
斗杆油缸（846596820007）ARM CYLINDER 21
动臂油缸（846596810009）BOOM CYLINDER 22
动臂油缸（带防爆阀）（846596810010）
BOOM CYLINDER（W/ANTI-EXPLOSION VALVE） 23
铸造偏转头安装（872056000000）OFFSET ORGAN ASSEMBLY 24
偏转油缸（819196850000）DEFLECTION CYLINDER 25
偏转油缸注油管总成（872056020000）TUBING ASSEMBLY .. 26
上车总成（872010000004）UP OF EXCAVATOR ASSEMBLY 27
转支承注油管总成（872010100200）OIL FOLLING PIPE ASSEMBLY …29
转马达注油管总成（872010100100）OIL FOLLING PIPE ASSEMBLY 30
电瓶安装（872010110001）STORAGE BATTERT ASSEMBLY 31
燃油箱安装（872014000000）OIL TANK ASSEMBLY 32
底封板安装（872010140001）BOTTOM PANEL MOUNTING 33
司机工作台安装（872017000000）CONTROL BOARD ASSEMBLY 34
脚踏阀安装总成（872017010000）FOOT VALVE 35
行走操纵总成（872017010100）DRIVING CONTROL ASSEMBLY 36
双联脚踏阀总成（846516010200）DOUBLE FOOT VALVE ASSEMBLY 37
脚踏板安装（872017020000） FOOT PEDAL 38
SWE18UF 右操纵箱（新）（872010169002）RIGHT CONTROL BOX 39
座椅安装（872017030000）SEAT 40
SWE25UF 左操纵箱（862110129001） LEFT CONTROL BOX 41
配重安装（872010160001）BALANCE WEIGHT ASSEMBLY 42
平台海绵安装（872010210000）SPONGE 43
动力装置总成（872012000001）POWERTRAIN ASSEMBLY 44
液压泵安装（872012040001）MAIN PUMP ASSEMBLY 45
发动机安装（872012010001）ENGINE ASSEMBLY 46
燃油管路安装（872012020001）FUEL PIPE LINE ASSEMBLY 47
冷却系统（872012030001）COOLING SYSTEM ASSEMBLY 48
SWE08 挖掘机工具包（815299010001）TOOL BOX 109
随机附件清单（878598000001）ACCESSORIES LIST 110
下车总成（配艾迪 B1 行走马达）（872040000003）CHASSIS
ASSEMBLY 111
推土装置（859761000003）DOZER ASSEMBLY 113
推土油缸（810296840001）DOZER CYLINDER 114
主阀液压接头安装（872096502003）MAIN VALVE PILOT CONNECTOR
INSTALLATION . 92
液压油箱接头安装（872096503002）HYDRAULIC TANK CONNECTOR
INSTALLATION 93
先导油源块接头安装（872096503003）VALVE GROUP CONNECTOR
INSTALLATION 94
单联脚踏阀接头安装（872096505002）SINGLE FOOT PEDAL VALVE JOINTOR
INSTALLATION 95
先导分流块接头安装（872096506002）PILOT SHUNT PART CONNECTOR
INSTALLATION 96
转马达接头安装（872096503001）SWING MOTOR CONNECTOR INSTALLATION. 97
可调向直角接头（730101000345）CONNECTOR 98
中央 转接头接头安装（872096507001）CENTRAL JOINT CONNECT0R
INSTALLATION 99
蓄能器接头安装（872096512001）ACCUMULATOR CONNECTOR INSTALLATION 100
液压油散接头安装（872096513001）HYDAULIC RADIATOR CONNECTOR
INSTALLATION 101
行走马达接头安装（872096514001）TRAVEL MOTOR CONNECTOR
INSTALLATION . 102
行走双联脚踏阀接头安装（846596507003）PEDAL VALVE CONNECTOR
INSTALLATION 103
左右手先导操作阀接头安装（846596508003）
PILOT JOY STICK CONNECTOR INSTALLATION 104
推土先导操作阀接头安装（862196510001）DOZERING PILOT VALVE CONNECTOR
INSTALLATION 105
先导切换选择阀接头安装（878596511000）SELECTOR VALVE CONNECTOR
INSTALLATION 106
敞篷司机室安装（872022000000）CANOPY ASSEMBLY 107
SWE17 工具清单（810299000002）TOOL LIST 108
下车推土液压管路安装（872096202002）UNDER CARRIAGE DOZER PIPELINE ASSEMBLY…75
下车伸缩油缸液压管路安装（872096203002）
UNDER CARRIAGE FLEX PIPELINE ASSEMBLY 76
先导控制液压胶管安装(标配）（872096400003）PILOT CONTROL PIPELINE
ASSEMBLY 77
先导控制液压管路安装（872096401003）PILOT CONTROL HYDRAULIC PIPELINE
ASSEMBLY 78
先导手柄液压管路安装（872096401013）PILOT JOY STICK HYDRAULIC
PIPELINE ASSEMBLY 79
先导脚踏阀液压管路安装（872096401023）PILOT PEDAL HYDRAULIC PIPELINE
ASSEMBLY 80
推土先导液压管路安装（872096401033）DOZER PILOT HYDRAULIC PIPELINE
ASSEMBLY 81
工作装置液压管路安装（872296300000）WORKING DEVICE PIPELINE
ASSEMBLY 82
工作装置辅具液压管路安装（872296301100）AUX PIPELINE
ASSEMBLY 83
工作装置辅具液压管路安装（872296301100）AUX PIPELINE
ASSEMBLY 84
工作装置破碎液压管路安装（872296301200）HAMMER PIPELINE ASSEMBLY85
工作装置液压快换锁液压管路安装（872296301300）
QUICK COUPLER PIPELINE ASSEMBLY 86
工作装置铲斗液压管路安装(加长斗杆配置）（872296301400）
BUCKET PIPELINE ASSEMBLY(LONG) 87
工作装置铲斗液压管路安装(短斗杆配置）（872296301500）
BUCKET PIPELINE ASSEMBLY(SHORT) 88
工作装置斗杆液压管路安装（872296301600）ARM PIPELINE ASSEMBLY …89
液压元件接头安装（872096500003）ATTCHMENT DEVICE PIPELINE ASSEMBLY 90
主泵液压接头安装（872096501003）MAIN PUMP CONNECTOR .91
液压油箱安装（872015000001）HYDRAULIC OIL TANK ASSEMBLY 49
多路阀安装（872010220000）VALUE BOX 50
比例减压阀组安装（872010230000）VALUE BOX 51
新 SWE18UF 覆盖件安装（872021000001）HOOD ASSEMBLY 52
后盖总成（872021010001）BACK COVER ASSEMBLY 53
新SWE25U 覆盖件后盖锁总成（862121020200）REAR COVER LOCK ASSEMBLY 54
右覆盖件总成（872021020001）RIGHT PANEL ASSEMBLY 55
骨架总成（872021030001）SKELETON ASSEMBLY 56
后盖铰链（872021030200）BACK HINGE 57
下车总成（872040000002）CHASSIS ASSEMBLY 58
推土装置（859761000003）DOZER ASSEMBLY 60
推土油缸（810296840001）DOZER CYLINDER 61
SWE18UF 电气系统（872097000003）ELECTRICAL SYSTEM 62
顶蓬驾驶室翘板开关组（859797100400）SWITCH UNITSSWITCH UNITS 64
SWE18UF 液压系统总成(恒立主阀）（872096000003）HYDRAULIC SYSTEM 65
上车其它主管路安装（872096100003）
UPPER CARRIAGE HYDRAULIC PIPELINE ASSEMBLY 66
主泵液压管路安装（872096101003）MAIN PUMP HYDRAULIC PIPELINE ASSEMBLY 67
上车 油液压管路安装（872096102003）OIL RETURN HYDRAULIC PIPELINE ASSEMBLY. 68
主阀主管路安装（872096103003）MAIN VALVE HYDRAULIC PIPELINE ASSEMBLY 69
主阀至工作装置主管路安装（872096103013）
MAIN VALVE TO BACK BOOM STEEL AND BOOM CYLINDER PIPE ASSEMBLY 70
主阀至转马达主管路安装（872096103023）SWING HYDRAULIC PIPELINE ASSEMBLY…71
主阀至中央 转接头主管路安装（872096103033）
MAIN VALVE TO CENTER JOINT HYDRAULIC PIPELINE ASSEMBLY 72
下车液压管路安装（872096200002）
UNDER CARRIAGE HYDRAULIC PIPELINE ASSEMBLY 73
下车行走马达液压管路安装（872096201002）
UNDER CARRIAGE TRAVEL MOTOR PIPELINE ASSEMBLY 74
810254000000 A19 ARM ASSEMBLY 斗杆总成
810250000000 A3 BUCKET ASSEMBLE SELECTION TABLE SWE17-102铲斗总成选配表
872251000000 S3 BOOM ASSEMBLY 动臂总成
872056000000 S4 OFFSET ORGAN ASSEMBLY 铸造偏转头安装
872010000004 S4 UP OF EXCAVATOR ASSEMBLY 上车总成
872021000001 S3 HOOD ASSEMBLY 新SWE18UF覆盖件安装
872040000002 S4 CHASSIS ASSEMBLY 下车总成
872097000003 S1 ELECTRICAL SYSTEM SWE18UF电气系统
872096000002 S2 HYDRAULIC SYSTEM SWE18UF液压系统总成(HC主阀）
872096000003 S2 HYDRAULIC SYSTEM SWE18UF液压系统总成(恒立主阀）
872022000000 S4 CANOPY ASSEMBLY 敞篷司机室安装
810299000002 A2 TOOL LIST SWE17工具清单
872095000000 S1 LABEL ASSEMBLY 标识总成SWE18FU
878598000001 S6 ACCESSORIES LIST 随机附件清单
872040000003 S1 CHASSIS ASSEMBLY 下车总成（配艾迪B1行走马达）
810254100000 A13 BUCKET ROD 斗杆
810254100000 A14 BUCKET ROD 斗杆
810296830007 S5 BUCKET CYLINDER 铲斗油缸
302490203098 A3 LEFT ROCKER ARM 左摇臂
810254400001 A3 CONNECTING ROD 连杆
703101010001 S1 GREASE CUP 油杯
304020002410 A1 SHAFT E 销轴E
730652000004 S1 DUSTBAND 防尘圈
305040001437 A2 SHAFT SLEEVE B 轴套B
810254200000 A4 RIGHT ROCKER ARM 右摇臂
701702010004 S1 PIN 销
301020003007 A2 STEEL CABLE BAFFLE RING 钢丝挡圈
305040400006 A5 BUSH 衬套
305040001438 A1 SHAFT SLEEVE C 轴套C
304020002411 A2 SHAFT F 销轴F
730652000027 S1 DUSTBAND 防尘圈
305040001439 A1 SHAFT SLEEVE D 轴套D
305040500009 A4 BUSH 衬套
305040500009 A5 BUSH 衬套
304020002412 A1 SHAFT G 销轴G
301020103001 A2 STEEL CABLE BAFFLE RING 钢丝挡圈
701702010005 S1 PIN 销
304020002413 A1 SHAFT D 销轴D
750911000019 S1 RESIN ADJUSTING PAD 树脂调整垫
750911000020 S1 RESIN ADJUSTING PAD 树脂调整垫
750911000021 S1 RESIN ADJUSTING PAD 树脂调整垫
750911000022 S1 RESIN ADJUSTING PAD 树脂调整垫
810254100001 A11 BUCKET ROD 斗杆（1150MM）
810254400000 A4 CONNECTING ROD 连杆
750006010083 S1 RUBBER PLUG 橡塑堵头
730652000231 S1 DUSTBAND 防尘圈
730603000023 S1 O-RING O形圈
730654000094 S1 STOP COLLAR 挡圈
730602000218 S1 U-RING U形圈
730601000363 S1 PISTON ROD SEAL 活塞杆密封
730654000023 S1 DUST SEAL 挡圈
730603000632 S1 O-RING O形圈
750502000028 S1 SELF LUBRICATING SHAFT BEARING 自润轴承
301020000026 A2 SPRING COLLAR 弹簧挡圈
305090002356 S2 CYLINDER HEAD 缸头
810296830207 S4 CYLINDER BARREL UNIT 缸筒组件
739806000070 S1 PLUG 带压紧螺母的24°锥孔堵头
810296830107 S1 PISTON ROD SEAL PART 活塞杆组件
730603000009 S1 O-RING O形圈
730602000287 S1 PISTON SEAL 活塞密封
730651000283 S1 GUIDE RING 导向环
301020000031 S10 LOCKING COLLAR 锁圈
305090002359 S1 PISTON 活塞
305040400007 A5 BUSH 衬套
810296830247 S3 PIPELINE MODULE I 油管组件Ⅰ
810296830257 S3 PIPELINE MODULE II 油管组件Ⅱ
307080000745 S2 DOUBLE PIPE CLAMP 双孔管夹
701104008026 S1 BOLT 螺栓
302010007204 S2 DUSTBAND BAFFLE RING 防尘圈挡圈
810255000015 A5 STANDARD BUCKET ASM 18标准铲斗总成(380/0.04)

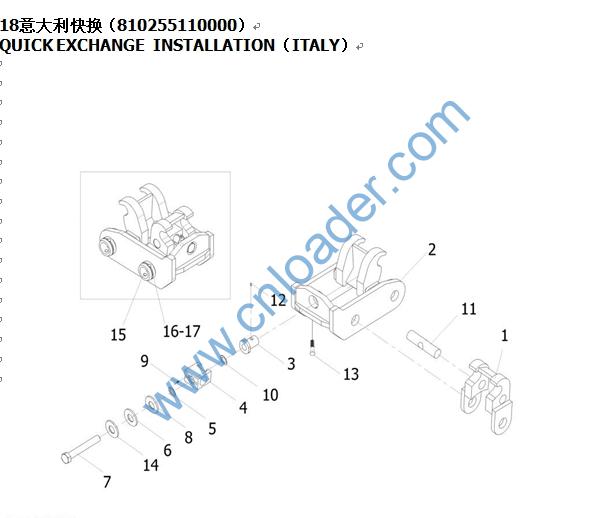

810255110000 A5
QUICK EXCHANGE INSTALLATION（ITALY） 18意大利快换
810255000021 A2 GENERAL PURPOSE BUCKET ASM 18普通铲斗总成（260/0.27）
810255000017 A4 GENERAL PURPOSE BUCKET ASM 18普通铲斗总成(600/0.06)
810255100022 A3 GENERAL PURPOSE BUCKET ASM 18普通铲斗总成(1000/0.10)

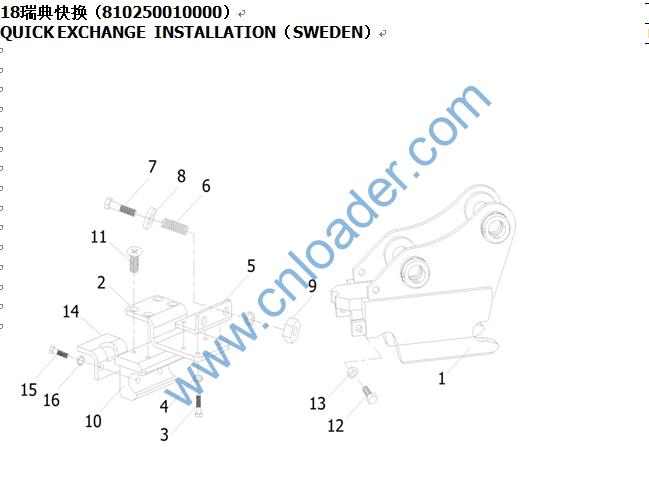

810250010000 A3 QUICK EXCHANGE INSTALLATION（SWEDEN） 18瑞典快换

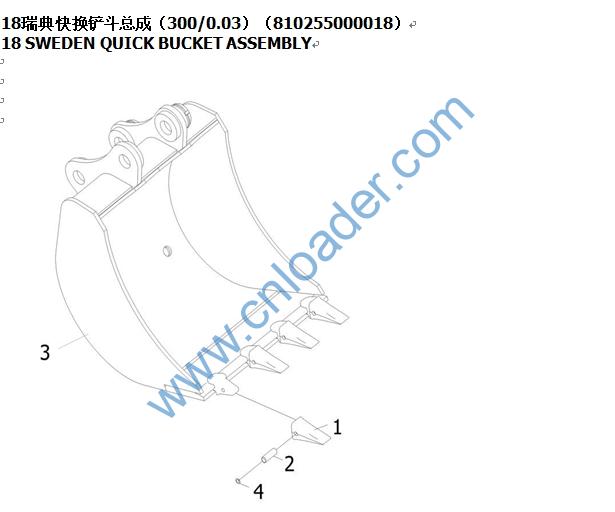

810255000018 A2 18 SWEDEN QUICK BUCKET ASSEMBLY 18瑞典快换铲斗总成（300/0.03）
810255000019 A2 18 SWEDEN QUICK BUCKET ASSEMBLY 18瑞典快换铲斗总成（380/0.04）
810255000024 A2 18 SWEDEN QUICK BUCKET ASSEMBLY 18瑞典快换铲斗总成（600/0.06）
810255100014 A2
SWEDEN QUICK EXCHANGE BUCKET ASSEMBLY 快换铲斗1000（瑞典）
810250020000 A3 QUICK EXCHANGE BUCKET ASM(FINLAND) 18芬兰快换
810255000020 A2 18 FINLAND QUICK EXCHANGE BUCKET ASSEMBLY 18芬兰快换铲斗总成（300/0.03）
810255000027 A2 18 FINLAND QUICK EXCHANGE BUCKET ASSEMBLY 18芬兰快换铲斗总成（380/0.04）
810255000026 A2 18 FINLAND QUICK EXCHANGE BUCKET ASSEMBLY 18芬兰快换铲斗总成（600/0.06）
810255000028 A1 18 FINLAND QUICK EXCHANGE BUCKET ASSEMBLY 18芬兰快换铲斗总成（1000/0.10）
810250030000 S2 QUICK EXCHANGE BUCKET ASM (NEW ZEALAND) 17/18新西兰快换
810255000029 S1 DITCH CLEANING BUCKET (NEW ZEALAND) 新西兰清沟斗(1000MM 0.1M3)
810255000031 S1 FLAT SLOPE BUCKET (NEW ZEALAND) 18新西兰平坡斗
872055010000 S2 18/20 STANDARD BUCKET ASM 18/20标准铲斗总成(400/0.04)
810255200015 A3 THE BUCKET BODY 铲斗(384MM 0.04M3)
750601000263 S1 BUCKET TOOTH 斗齿
750601000265 S1 PIN 销子
750601000266 S1 CIRCLIP 卡簧
810255110200 A4 HOOK PLATE COMPONENT 钩板组件
810255110100 A4 QUICK EXCHANGE SEAT 快换座
305060000426 A3 COVER 套
302030003894 A1 SEAT 座
730652000083 S1 DUSTBAND 防尘圈
305070000255 A1 COPPER WASHER 铜垫
304050000181 A1 QUICK EXCHANGE BOLT 17快换螺杆
305070000256 A1 IRON WASHER 铁垫
701104010037 S1 BOLT 螺栓
701512017001 S1 CHECK RING 挡圈
304020000466 A1 SHAFT 轴
703101008002 S1 OIL CUP 油杯
701318008001 S1 SCREW 螺钉
701504018002 S1 WASHER 垫圈
304020002060 A1 SHAFT 销轴
701702010004 S1 PIN 销
301020003007 A2 STEEL CABLE BAFFLE RING 钢丝挡圈
750601000263 S1 BUCKET TOOTH 斗齿
750601000265 S1 PIN 销子
810255100021 A3 THE BUCKET BODY 铲斗(260MM 0.027M3)
750601000266 S1 CIRCLIP 卡簧
810255200017 A2 THE BUCKET BODY 铲斗(600MM 0.06M3)
750601000263 S1 BUCKET TOOTH 斗齿
750601000265 S1 PIN 销子
750601000266 S1 CIRCLIP 卡簧
810255200004 A7 DIP SEAT(SWEDEN) 卡座（瑞典）
302530000115 A2 Z BOARD(SWEDEN) Z型弯板
701104008026 S1 BOLT 螺栓
701510008003 S1 WASHER 垫圈
302520202027 A2 BEND BOARD 弯板
301030301005 A1 SPRING 弹簧
701103121301 S1 BOLT 螺栓
701504012005 S1 WASHER 垫圈
701406012002 S1 NUT 螺母
307990000109 A2 HOOK 卡钩
701320008001 S1 SCREW 螺钉
301020000011 A3 PIN 插销
304050203007 A2 BOLT 螺栓
302520201003 A1 BOARD 撬板
701302010056 S1 SCREW 螺钉
750601000263 S1 BUCKET TOOTH 斗齿
750601000265 S1 PIN 销子
810255100106 A2 THE BUCKET BODY 斗(300MM 0.03M3瑞典)
750601000266 S1 CIRCLIP 卡簧
750601000263 S1 BUCKET TOOTH 斗齿
750601000265 S1 PIN 销子
810255100012 A3 QUICK EXCHANGE BUCKET 快换铲斗384MM 0.04M3（瑞典）
750601000266 S1 CIRCLIP 卡簧
750601000263 S1 BUCKET TOOTH 斗齿
750601000265 S1 PIN 销子
810255100015 A2 QUICK EXCHANGE BUCKET 快换铲斗600MM 0.06M3（瑞典）
750601000266 S1 CIRCLIP 卡簧
810255200002 A3 DIP SEAT(SWEDEN) 芬兰快换卡座
302530000131 A2 Z BOARD(SWEDEN) Z形板
701104008026 S1 BOLT 螺栓
701510008003 S1 WASHER 垫圈
302520202027 A2 BEND BOARD 弯板
301030301005 A1 SPRING 弹簧
701103121301 S1 BOLT 螺栓
701504012005 S1 WASHER 垫圈
701406012002 S1 NUT 螺母
307990000119 A2 HOOK 卡钩
701320008001 S1 SCREW 螺钉
304050203007 A2 BOLT 螺栓
701406010006 S1 NUT 螺母
302520201003 A1 BOARD 撬板
701302010056 S1 SCREW 螺钉
304020000480 A3 SHAFT 安装轴（芬兰快换选用）
