004904063A0614141 活塞杆 Piston Rod
1040300275 挡圈 Snap Ring
1081200660 防尘圈 Dust Seal
1081004170 B型活塞杆密封件 Packing
1040000513 螺栓M27×80-8.8 Bolt
1040300176 垫圈27 Ring
004904063A0614011 导向套 Bushing
1081002382 斯特封 Cealing Ring
1054400203 复合衬套 Bushing
1040301095 挡圈 Snap Ring
1081000455 O型密封圈 O-ring
004904063A0630001 右下板 Lower Plate (right)
1040300054 垫圈12 Spring Washer
1040000251 螺栓M12×60-8.8 Bolt
004904063A0620001 护罩 Guard
1040000069 螺栓M12×25-8.8 Bolt
004904063A0614181 油管组件 Pipe Ass’y
004904063A0640001 左下板 Lower Plate (left)
1040000216 螺栓M12×70-8.8 Bolt
1081200661 销边防尘圈 Dust Seal
004904063A0614031 油缸体 Cylinder Body
004904063A0611021 衬套 Bushing
1040000509 螺栓M8×12-8.8 Bolt
1040300063 垫圈8 Spring Washer
004904063A0611031 管夹 Clip
1081401189 导向环 Reaction Ring
1040100369 螺钉 Screw
004904063A0611011 活塞 Piston
1081200457 O形密封圈 O-ring
1089900373 双向矩形封 Cealing Ring
004904063A0800000 松土器油缸 Ripper Cylinder
004904063A0810000 活塞杆 Piston Rod
1999901610 衬套 Bushing
1081200225 防尘圈 Dust Seal
004904063A0820000 缸筒 Cartridge
004904063A0801020 缸盖 Cylinder Cover
004904063A0801030 密封圈 Packing
1081001582 O形圈100×3.1 O-Ring
004904063A0840000 双金属套 Bushing
004904063A0801040 密封压盖 Gland
004904063A0850000 防尘圈 Dust Seal
1040300989 挡圈 Snap Ring
1040000257 螺栓M16×50-8.8 Bolt
1040300065 垫圈16 Spring Washer
1040002729 螺栓M27×70-8.8 Bolt
1040300176 垫圈27 Spring Washer
004904063A0830000 双金属套 Bushing
1999901110 保护圈 Guard Ring
1081000039 O形圈160×5.7 O-Ring
1081001446 O形圈49.7×3.5 O-Ring
004904063A0614040 密封环 Sealing Ring
004904063A0614050 垫环 Ring
004904063A0614060 密封支撑环 Back-Up Ring
1081400652 耐磨环 Wearing Ring
004904063A0801010 活塞 Piston
005001063A0640000 螺母 Nut
1990201296 U型夹 Clamp
1040300067 垫 圈10 Spring Washer
1040200113 螺母M10-8 Nut
1040000649 螺栓M8×50-8.8 Bolt
1040000018 螺栓M8×30-8.8 Bolt
1040300063 垫圈8 Spring Washer
1081002760 O形圈36×3.5 O-Ring
004904063A0860000 管 Pipe
004904063A0801050 接头 Joint
1040300068 垫圈14 Spring Washer
1040000119 螺栓M14×40-8.8 Bolt

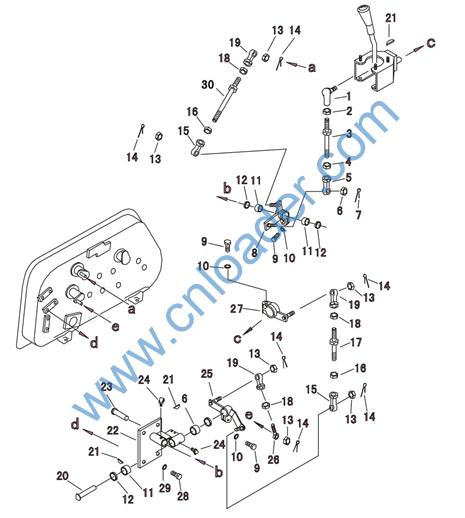

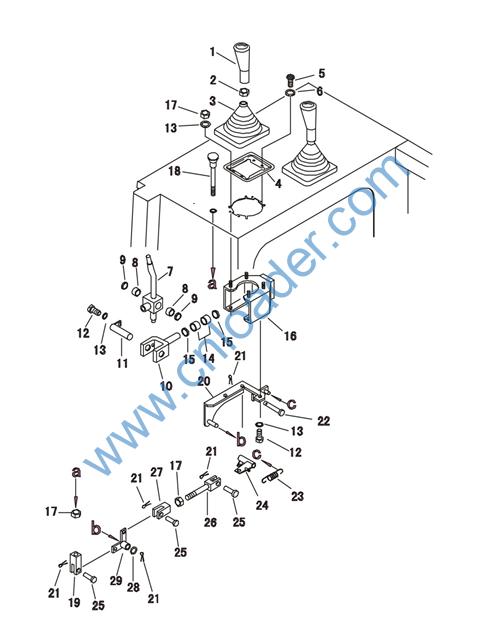

004904034A0000000 推土铲操纵 Blade Control
004903034B0600000 手柄 Knob
1040200178 螺母M10-10 Nut
004904034A1600000 护罩 Cover
004904034A0001020 座 Seat
1040100804 螺钉M5×8-4.8 Screw
1040300514 垫圈5-200HV Washer
004904034A1400000 操纵杆 Control Lever
1054600005 轴承HK2012 Bearing
1081001400 油封φ20×4 Oil Seal
004904034A2200000 叉架 Yoke
004904034A2800000 轴 Shaft
1040001153 螺栓M8×15-8.8 Bolt
1040300066 垫圈8-200HV Washer
1054600009 轴承HK2216 Bearing
1081001465 油封φ22×4 Oil Seal
004904034A2000000 支座 Bracket
1040200303 螺母M8×1-8 Nut
004904034A1200000 按钮 Knob
004904034A0001010 叉口板 Yoke
004904034A1000000 支架 Bracket
1040500044 开口销2×16 Cotter Pin
004904034A0001030 轴 Shaft
004903034B0001050 弹簧 Spring
004904034A0800000 锁块 Lock Block
1040500484 销轴B8×22 Pin
1999900535 接杆 Rod
1049900089 叉口接头M8×32 Yoke
1040300042 垫圈8-200HV Washer
004904034A0600000 摇臂 Rocker
1999900543 球头杆端 Rod End
1040200241 螺母M12×1.5-8 Nut
1999901516 拉杆 Rod
1040200644 螺母M12×1.5-LH Nut
1999900716 拉杆端
M12×1.5×65-LH Rod End
1040200629 螺母M12×1.5-8 Nut
1040500475 销3×20 Cotter Pin
004904034A0400000 摇臂 Rocker
1040000018 螺栓M8×30-8.8 Bolt
1040300063 垫圈8 Spring Washer
1054600005 轴承HK2012 Bearing
1081001400 油封φ20×4 Oil Seal
1040200627 螺母M10×1.25-8 Nut
1040500675 销2×20 Cotter Pin
1999900544 拉杆端
M10×1.25×56-LH Rod End
1040200618 螺母
M10×1.25-LH-8 Nut
1999900561 接杆 Rod
1040200227 螺母M10×1.25-8 Nut
1050000060 关节轴承
M10×1.25×56 Bearing
004904034A0001040 轴 Shaft
1040600069 键5×19 Key
004904034A0200000 座 Seat
004904034A0001050 轴 Shaft
1019900314 油杯M10×1×90° Oil Cup
004904034A2600000 摇臂 Rocker
1999900539 拉杆端
M10×1.25×61 Rod End
004904034A2400000 摇臂 Rocker
1040000490 螺栓M12×30-10.9 Bolt
1040300054 垫圈12 Spring Washer
1999900536 拉杆 Rod

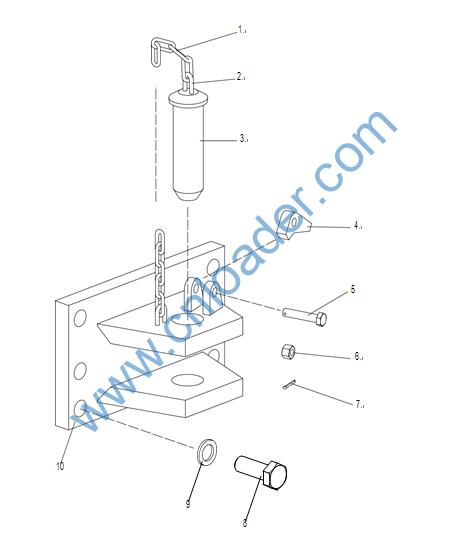

Hitch 004904069A0000000
1 004904069A0001060 链条 Chain
2 004904069A0001070 半环 Hook
3 004904069A0001050 销 Pin
4 004904069A0001040 插销 Plug
5 1040001302 螺栓
M12×1.5×60-8.8 Bolt
6 1040200267 螺母M12×1.5-8 Nut
7 1040500154 销3.2×26 Cotter Pin
8 1040000440 螺栓M24×65-10.9 Bolt
9 1040300049 垫圈24 Spring Washer
10 004904069A0000000 牵引架 Hitch1 004904069A0001060 链条 Chain
2 004904069A0001070 半环 Hook
3 004904069A0001050 销 Pin
4 004904069A0001040 插销 Plug
5 1040001302 螺栓
M12×1.5×60-8.8 Bolt
6 1040200267 螺母M12×1.5-8 Nut
7 1040500154 销3.2×26 Cotter Pin
8 1040000440 螺栓M24×65-10.9 Bolt
9 1040300049 垫圈24 Spring Washer
10 004904069A0000000 牵引架 Hitch

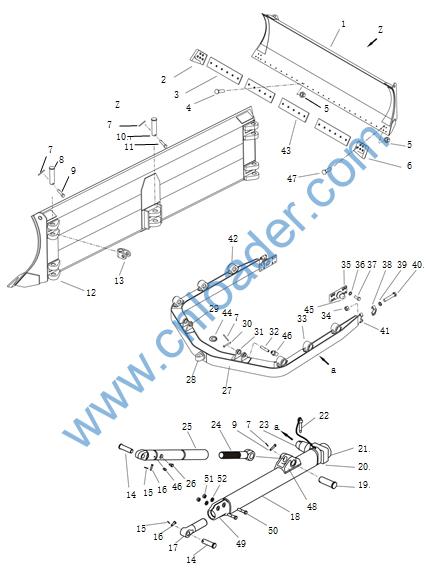

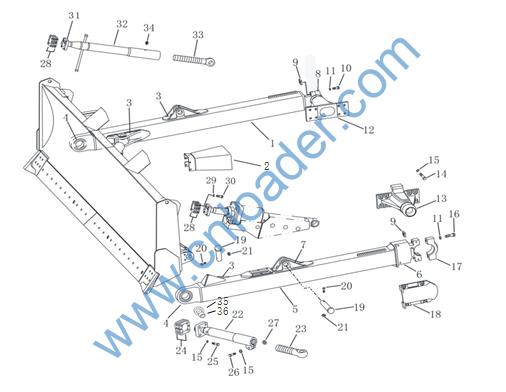

Blade 004904071A0000000
004904071D0200000
004904071B0000000
004904071A0200000 铲刀 Blade
004904071A0001130 刀角 (右) End Bit (Right)
004904071A0001090 刀片 Cutting Edge
004904071A0001100 螺栓 Bolt
1040302149 垫圈
18-36HRC~41HRC Washer
004904071A0001110 螺母 Nut
004904071A0001120 螺栓 Bolt
004904071A0001140 刀角 (左) End Bit (Left )
1080000239 油杯M10×1 Oil Cup
004904071A0001030 轴 Shaft
004904071A0001040 销 Pin
1040500214 销3.2×40 Cotter Pin
004904071A0210000 左托架 Left Bracket
004904071A0001180 轴 Shaft
004904071A0260000 左支承座 Left Bracket
004904071A0001170 板 Plate
1040302147 垫圈
16-36HRC~41HRC Washer
1040000444 螺栓M16×35-10.9 Bolt
004904071A0230000 支座 (左) Bracket (Left)
004904071A0250000 支承座 Bracket
004904071A0240000 支座 (右) Bracket (Right)
004904071A0270000 右支承座 Right Bracket
004904071A0220000 右托架 Right Bracket
004904071A0600000
右支架 Right Support
Ass’y
004904071A1000000 保护罩 Cover
004904071A0601040 支座 Bracket
004907271A0401020 接头 Joint
004904071A1200000 左支架 Left Support Ass’y
004904071A1201010 支座 Bracket
004904071A1201040 支座 Bracket
004904071A0001020 右球座盖 Right Cap
004904071A0001050 螺母 Nut
1040001525 螺栓M24×130-10.9 Bolt
1040302146 垫圈
24-36HRC~41HRC Washer
004904071A0800000
右耳轴合件 Right Trunnion
Ass’y
004904071A1600000
左耳轴合件 Left Trunnion
Ass’y
1040000714 螺栓M20×45-10.9 Bolt
1040302150 垫圈
20-36HRC~41HRC Washer
1040003725 螺栓M24×165-10.9 Bolt
004904071A0001160 左球座盖 Left Cap
004904071A0001150 后盖 Rear Cover
004904071A0001060 销 Pin
1040001703 螺栓M12×65-10.9 Bolt
1040201163 螺母M12-10 Nut
004904071A1400000 下支撑合件 Lower Brace Ass’y
004904071A0001190 螺杆 Screw
004904071A0001080 垫片 Shim
1040000956 螺栓M20×80-10.9 Bolt
1040000956 螺栓M20×80-10.9 Bolt
1040200134 螺母M20-10 Nut
004904071A0001070 垫片 Shim
1040302149 垫圈
18-36HRC~41HRC
Washer
1040003726 螺栓M18×65-10.9 Bolt
004904071A0401060 盖 Cover
004904071A0400000
右上支撑合件 Upper Brace
(Right)
004904071A0001010 接头 Joint
1080000239 油杯M10×1 Oil Cup
004907271A0001010 轴套 Bearing
004907271A0001020 轴承 Bearing

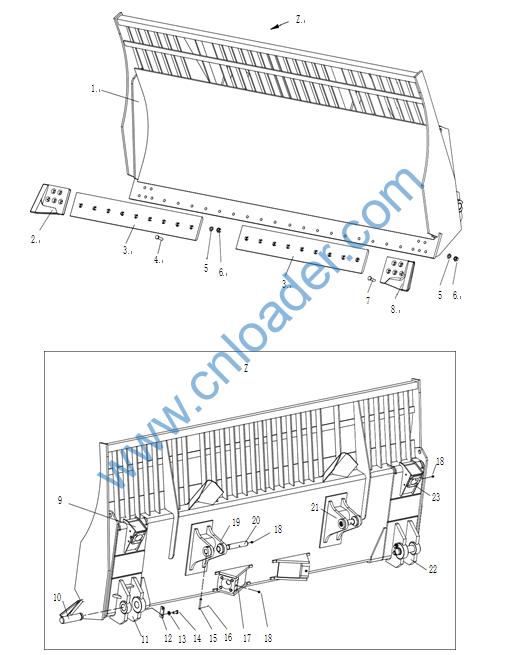

004904071D0200000 环卫铲刀 Blade
004904071A0001130 刀角 (右) End Bit (Right)
004904071A0001090 刀片 Cutting Edge
004904071A0001100 螺栓 Bolt
1040302149 垫圈
18-36HRC~41HRC Washer
004904071A0001110 螺母 Nut
004904071A0001120 螺栓 Bolt
004904071A0001140 刀角 (左) End Bit (Left )
004904071A0210000 左托架 Left Bracket
004904071A0001180 轴 Shaft
004904071A0260000 左支承座 Left Bracket
004904071A0001170 板 Plate
1040302147 垫圈
16-36HRC~41HRC Washer
1040000444 螺栓M16×35-10.9 Bolt
004904071A0001040 销 Pin
1040500214 销3.2×40 Cotter Pin
004904071A0250000 支承座 Bracket
1080000239 油杯M10×1 Oil Cup
004904071A0230000 支座 (左) Bracket (Left)
004904071A0001030 轴 Shaft
004904071A0240000 支座 (右) Bracket (Right)
004904071A0270000 右支承座 Right Bracket
004904071A0220000 右托架 Right Bracket

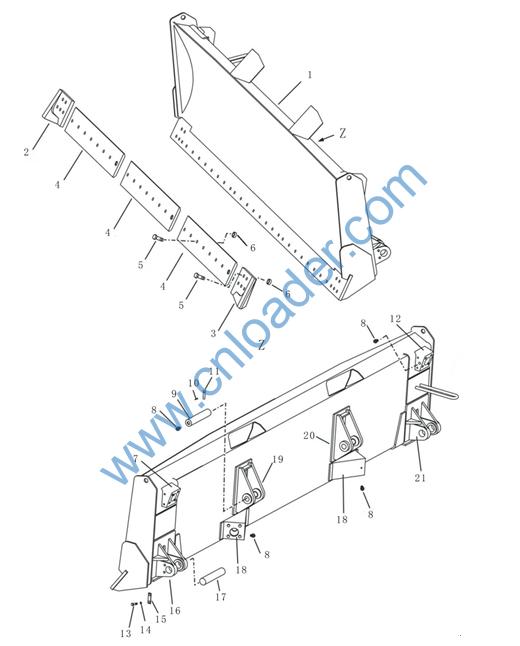

004904071B0200000 推土板 Blade
004904071A0001210 右刀角 Right End Bit
004904071B0001020 刀片 Cutting Edge
004904071B0001100 螺栓 Bolt
004904071A0001110 螺母 Nut
004904071A0001200 左刀角 Left End Bit
1040500054 销4×40 Pin
004904071B0001080 销 Pin
004903071D0001170 销 Pin
004904071B0001040 销 Pin
004904071B0001030 销 Pin
004904071B0220000 支座 Bracket
004904071B0400000 连接头 Joint
004904071B0001060 销 Pin
1040500213 销3.2×32 Pin
004904071B0001050 销 Pin
004904071B0001120 螺杆 Screw
004904071B1201020 杆 Rod
004903071D0001180 销 Pin
004904071B1201040 轴 Shaft
004904071B1201060 套 Bushing
004904071B1210000 销子 Pin
004904071B1201050 轴 Shaft
004904071A0001010 接头 Joint
004904071B1000000 上撑杆 Brace
004904071B1001030 螺钉 Screw
004904071B0600000 拱形架 Frame
004904071B0601030 接头 Joint
004904071B0610000 油缸支座(右) Bracket(Right)
004904071A0001040 销 Pin
004904071B0620000 油缸支座(左) Bracket(Left)
004904071A0001030 轴 Shaft
004904071B0601010 支座(左) Bracket(Left)
004904071A0001050 螺母 Nut
004904071B0801010 支座 Bracket
1040302150 垫圈
20-36HRC~41HRC Washer
1040000714 螺栓M20×45-10.9 Bolt
004904071A0001020 右球座盖 Right Cap
1040302146 垫圈
24-36HRC~41HRC Spring Washer
1040001525 螺栓M24×130-10.9 Bolt
004904071B0601320 支座 Bracket
004904071B0601020 支座(右) Bracket(Right)
004904071B0001010 刀片 Cutting Edge
004904071B0601090 套 Bushing
004904071A0801010 右耳轴 Right Trunnion
1080000239 油杯M10×1 Oil Cup
004904071B0001110 螺栓 Bolt
004903071D0801030 连接头 Joint
004904071B1201070 螺母 Nut
1040001793 螺栓M18×80-10.9 Bolt
1040201428 螺母M18-10 Nut
1040302149 垫圈 Washer
004904171A0200000 铲刀 Blade
004904071A0001210 右刀角 End Bit (Right)
004904071A0001200 左刀角 End Bit (Left)
004904171A0001010 刀片 Cutting Edge
004904071A0001100 螺栓 Bolt
004904071A0001110 螺母 Nut
004904171A0210000 左托架 Left Bracket
1080000206 油杯M10×1 Oil Cup
004904071A0001030 轴 Shaft
1040500214 销3.2×40 Cotter Pin
004904071A0001040 销 Pin
004904171A0220000 右托架 Right Bracket
1040000444 螺栓M16×35-10.9 Bolt
1040302147 垫圈
16-36HRC~41HRC Washer
004904071A0001170 板 Plate
004904071A0201020 左支承座 Left Bracket
004904071A0001180 轴 Shaft
004904171A0201030 支座 Bracket
004904171A0230000 支座 (左) Bracket (Left)
004904171A0240000 支座 (右) Bracket (Right)
004904071A0201030 右支承座 Right Bracket
