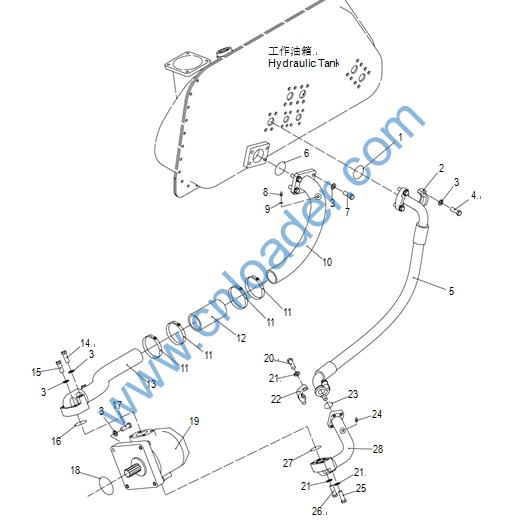

Working Pump Piping 004904058A0000001
1 1040302122 O型圈φ47.22×3.53 O-Ring
2 1140103741 对开法兰夹 Split Flange Clamp
3 1040301022 垫圈 12-300HV Washer
4 1040000573 螺栓 M12×40-10.9 Bolt
5
1140235743 胶管总成
F4SH4N(A55)4N
(H130)202420- 1060×200
Hose Ass’y
6 1081001403 O型圈 74.4×3.1 O-Ring
7 1040000410 螺栓 M12×50-10.9 Bolt
8 004903058A0001020 螺塞 Plug
9 1081000008 组合密封垫圈 16 Washer
10 004904058A0600001 管 Tube
11 1990200576 环箍 Clamp
12 1140210743 软管 Hose
13 004904058A0800001 管 Tube
14 1040001373 螺栓 M12×80-10.9 Bolt
15 1040002599 螺栓 M12×55-10.9 Bolt
16 1081001431 O型圈 59.4×3.1 O-Ring
17 1040002243 螺栓 M12×45-10.9 Bolt
18 1081001459 O型圈 79.4×3.1 O-Ring
19 1039800094 工作泵 Pump
20 1040000376 螺栓 M10×40-10.9 Bolt
21 1040301020 垫圈 10-300HV Washer
22 1140104434 对开法兰夹 Split Flange Clamp
23 1081004249 O型圈 37.69×3.53 O-Ring
24 1049900086 螺塞 ZG1/8 Plug
25 1040000875 螺栓 M10×70-10.9 Bolt
26 1040002242 螺栓 M10×55-10.9 Bolt
27 1081001419 O型圈 39.7×3.5 O-Ring
28 004904058A0200001 管 Tube

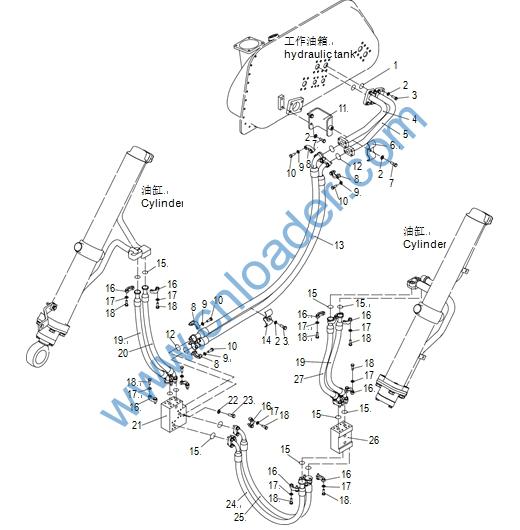

Blade Lift Piping 004904052A0000001 004904152A0000001
1 1081001421 O型圈 47.7×3.5 O-Ring
2 1040301022 垫圈 12-300HV Washer
3 1040000893 螺栓 M12×45-10.9 Bolt
4 004904052A0200001 管 Tube
5 004904052A0400001 管 Tube
6 004904052A0001011 管夹 Clamp
7 1040000490 螺栓 M12×30-10.9 Bolt
8 1140103711 对开法兰夹 Split Flange Clamp
9 1040301020 垫圈 10-300HV Washer
10 1040000574 螺栓 M10×30-10.9 Bolt
11 004904052A0600001 支架 Bracket
12 1040302121 O型圈φ32.92×3.53 O-Ring
13
1140234947 胶管总成 F2SN1519161616- 2410
Hose Ass’y
14 004902087A3600000 双管夹 Clamp
15 1081004190 O型圈φ24.99×3.53 O-Ring
16 1140111335 对开法兰夹 Split Flange Clamp
17 1040300066 垫圈 8-200HV Washer
18 1040000018 螺栓 M8×30-8.8 Bolt
19
1140234944 胶管总成 F2SN1517121212- 900S
Hose Ass’y
20
1140234943 胶管总成 F2SN1517121212- 930S
Hose Ass’y
21 004904052A0001020 分油座 Manifold
22 1040301021 垫圈 14-300HV Washer
23 1040000870 螺栓 M14×90-10.9 Bolt
24
1140234945 胶管总成 F2SN1519121212- 1000S
Hose Ass’y
25
1140234946 胶管总成 F2SN1519121212- 1100S
Hose Ass’y
26 004904052A0001010 分油座 Manifold
27
1140234948 胶管总成 F2SN1517121212- 880S
Hose Ass’y

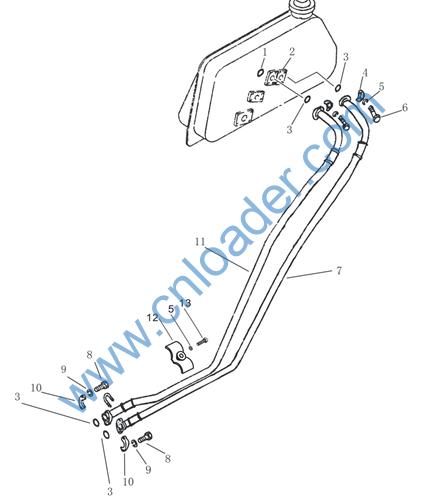

1 1081001421 O形圈47.7×3.5 O-Ring
2 004904052A0001030 座 Seat
3 1081001417 O形圈31.7×3.5 O-Ring
4 004904052A0001040 半环 Split Ring
5 1040300054 垫圈12 Spring Washer
6 1040000170 螺栓M12×65-8.8 Bolt
7 004904052A0200000 软管 Hose
8 1040001199 螺栓M10×35-8.8 Bolt
9 1040300067 垫圈10 Spring Washer
10 1054800004 固定半环 Split Ring
11 004904052A0400000 软管 Hose
12 004902087A3600000 双管夹 Clamp
13 1040000067 螺栓M12×45-8.8 Bolt

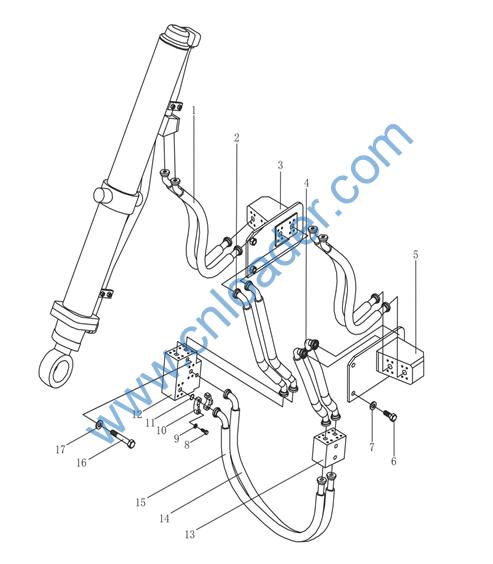

1 1140214929 软管 Hose
2 004904152A0400000 软管 Hose
3 004904152A0600000 右支架 Right Bracket
4 004904152A0200000 软管 Hose
5 004904152A0800000 左支架 Left Bracket
6 1040000177 螺栓M16×55-8.8 Bolt
7 1040300065 垫圈16 Spring Washer
8 1040002224 螺栓M8×30-8.8 Bolt
9 1040300063 垫圈8 Spring Washer
10 1054800003 固定半环 Split Ring
11 1081001397 O形圈24.7×3.5 O-Ring
12 004904052A0001020 分油座 Seat
13 004904152A0001010 分油座 Seat
14 1140214659 软管 Hose
15 1140214658 软管 Hose
16 1040000313 螺栓M14×90-8.8 Bolt
17 1040300068 垫圈14 Spring Washer

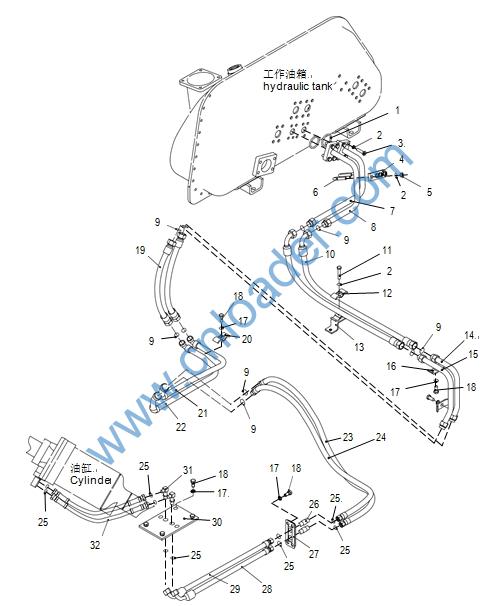

Hydraulic Tilt Piping 004904018A0000001
004904118A0000001
1 1081001460 O型圈 37.7×3.5 O-Ring
2 1040301020 垫圈 10-300HV Washer
3 1040001834 螺栓 M10×40-10.9 Bolt
4 004904018A0001031 板 Plate
5 1040200793 螺母 M10×1.25-10 Nut
6 1140104792 U形夹 U-Clamp
7 004904018A1600001 管 Tube
8 004904018A1400001 管 Tube
9 1081003411 O型圈 φ15.0×2 O-Ring
10
1140234788 胶管总成
F1SNCACF181808
-800
Hose Ass’y
11 1040002242 螺栓 M10×55-10.9 Bolt
12 004904018A3200001 管夹 Clamp
13 004904018A3000001 支座 Bracket
14 004904018A1000001 管 Tube
15 004904018A1200001 管 Tube
16 004904018A0001021 管夹 Clamp
17 1040301022 垫圈 12-300HV Washer
18 1040000490 螺栓 M12×30-10.9 Bolt
19
1140234790 胶管总成 F1SNCACA181808- 490G
Hose Ass’y
20 004904048A1601010 板 Plate
21 004904018A0800001 管 Tube
22 004904018A0600001 管 Tube
23
1140234793 胶管总成 F1SNCACA121808- 1160G
Hose As
24
1140234791 胶管总成 F1SNCACA121808- 1130G
Hose Ass’y
25 1040302125 O型圈 φ10.0×1.5 O-Ring
26 1140104596 隔板接头 Fitting
1140108954 堵头 Plug
1140109130 内螺纹堵头
M18×1.5 Plug
27 004904018A0401010 板 Plate
28
1140234796 胶管总成
F1SNCACF(H100) 121208-1720G
Hose Ass’y
29
1140234800 胶管总成 F1SNCACF121208- 1720G
Hose Ass’y
30 004904018A0001011 板 Plate
31 1140105208 隔板接头 Fitting
32
1140235769 胶管总成 F1SNCACA121208- 670G
Hose Ass’y

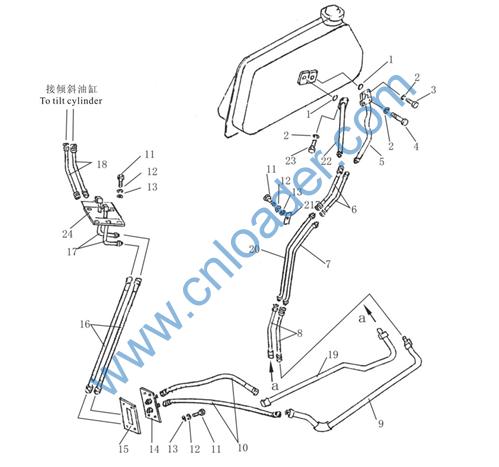

1 1081001460 O形圈37.7×3.5 O-Ring
2 1040300067 垫圈10 Spring Washer
3 1040000071 螺栓M10×55-8.8 Bolt
4 1040000072 螺栓M10×65-8.8 Bolt
5 004904018A1600000 管 Pipe
6 004904018A1800000 软管 Hose
7 004904018A1000000 管 Pipe
8 004904018A2000000 软管 Hose
9 004904118A0200000 管 Pipe
10 004904018A2200000 软管 Hose
11 1040000108 螺栓M12×30-8.8 Bolt
12 1040300054 垫圈12 Spring Washer
13 1040300524 垫圈12-200HV Washer
14 004904018A0400000 板 Plate
15 004904018A0001020 垫 Gasket
16 004904118A2400000 软管 Hose
17 004904018A0200000 管 Pipe
18 004904018A2600000 软管 Hose
19 004904118A0400000 管 Pipe
20 004904018A1200000 管 Pipe
21 004904048A1601010 板 Plate
22 004904018A1400000 管 Pipe
23 1040000100 螺栓M10×40-8.8 Bolt
24 004904018A0001010 垫 Gasket

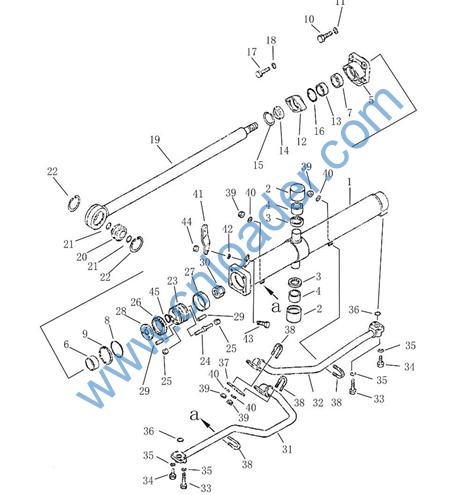

Cylinder 004904063A0000000
004904163A0200000
004904063A0200000 铲刀提升油缸(左) Lift Cylinder(Left)
004904063A0400000 铲刀提升油缸(右) Lift Cylinder(Right)
004904063A0230000 油缸体(左) Cylinder (Left)
004904063A0420000 油缸体(右) Cylinder (Right)
004904059A0001030 轴套 Bushing
004904059A0001050 骨架防尘圈 Dust Seal
004904059A0001040 衬套 Bushing
004904063A0201030 缸头 Cylinder Head
1999901613 套 Bushing
004904063A0201020 活塞杆密封圈 Sealing Ring
1081000108 O形圈110×3.1 O-Ring
1999901544 保护圈 Guard Ring
1040000556 螺栓M20×55-8.8 Bolt
1040300038 垫圈20 Spring Washer
004904063A0201010 压盖 Gland
1999901612 套 Bushing
004904063A0210000 防尘圈 Dust Seal
1999901614 开口环 Snap Ring
1081000082 O形圈85×3.1 O-Ring
1040000928 螺栓M14×50-8.8 Bolt
1040300068 垫圈14 Spring Washer
004904063A0240000 活塞杆 Piston Rod
1050000346 关节轴承 Bearing
1081001681 O形圈46×3.5 O-Ring
1040300019 挡圈90 Snap Ring
004904063A0260000 活塞阀总成 Piston Valve
004904063A0261030 阀芯 Valve Core
004904063A0261020 阀座 Valve Seat
004904063A0201070 背环 Ring
004904063A0201080 滑环 Ring
004904063A0201090 上背环 Ring
1999901611 修整环 Adjusting Ring
004904063A0201060 挡板 Retainer
004904063A0201050 销 Pin
004904063A0270000 螺母M36×3 Nut
004904063A0220000 管 (左) Pipe (Left)
004904063A0410000 管 (右) Pipe (Right)
004904063A0250000 管 (左) Pipe (Left)
004904063A0430000 管 (右) Pipe (Right)
1040000112 螺栓M10×60-8.8 Bolt
1040000068 螺栓M10×50-8.8 Bolt
1040300067 垫圈10 Spring Washer
1081001380 O形圈34.7×3.5 O-Ring
004904063A0201040 板 Plate
1990200574 U形夹 Clip
1040200227 螺母M10×1.25-8 Nut
1040300067 垫圈10 Spring Washer
004904063A0280000 挂板 Plate
1040300054 垫圈12 Washer
1040000195 螺栓M12×60-8.8 Bolt
1040200096 螺母M12-8 Nut
1081000047 O形圈40×3.1 O-Ring

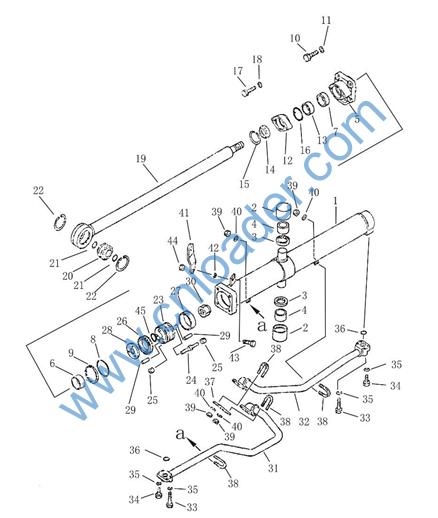

004904163A0200000 铲刀提升油缸(左) Lift Cylinder(Left)
004904163A0400000 铲刀提升油缸(右) Lift Cylinder(Right)
004904163A0230000 油缸体(左) Cylinder (Left)
004904163A0420000 油缸体(右) Cylinder (Right)
004904059A0001030 轴套 Bushing
004904059A0001050 骨架防尘圈 Dust Seal
004904059A0001040 衬套 Bushing
004904063A0201030 缸头 Cylinder Head
1999901613 套 Bushing
004904063A0201020 活塞杆密封圈 Sealing Ring
1081000108 O形圈110×3.1 O-Ring
1999901544 保护圈 Guard Ring
1040000556 螺栓M20×55-8.8 Bolt
1040300038 垫圈20 Spring Washer
004904063A0201010 压盖 Gland
1999901612 套 Bushing
004904063A0210000 防尘圈 Dust Seal
1999901614 开口环 Snap Ring
1081000082 O形圈85×3.1 O-Ring
1040000928 螺栓M14×50-8.8 Bolt
1040300068 垫圈14 Spring Washer
004904063A0240000 活塞杆 Piston Rod
1050000346 关节轴承 Bearing
1081001681 O形圈46×3.5 O-Ring
1040300019 挡圈90 Snap Ring
004904063A0260000 活塞阀总成 Piston Valve
004904063A0261030 阀芯 Valve Core
004904063A0261020 阀座 Valve Seat
004904063A0201070 背环 Ring
004904063A0201080 滑环 Ring
004904063A0201090 上背环 Ring
1999901611 修整环 Adjusting Ring
004904063A0201060 挡板 Retainer
004904063A0201050 销 Pin
004904063A0270000 螺母M36×3 Nut
004904163A0220000 管 (左) Pipe (Left)
004904163A0410000 管 (右) Pipe (Right)
004904163A0240000 管 (左) Pipe (Left)
004904163A0430000 管 (右) Pipe (Right)
1040000112 螺栓M10×60-8.8 Bolt
1040000068 螺栓M10×50-8.8 Bolt
1040300067 垫圈10 Spring Washer
1081001380 O形圈34.7×3.5 O-Ring
004904063A0201040 板 Plate
1990200574 U形夹 Clip
1040200227 螺母M10×1.25-8 Nut
1040300067 垫圈10 Spring Washer
004904063A0280000 挂板 Plate
1040300054 垫圈12 Washer
1040000195 螺栓M12×60-8.8 Bolt
1040200096 螺母M12-8 Nut
1081000047 O形圈40×3.1 O-Ring
