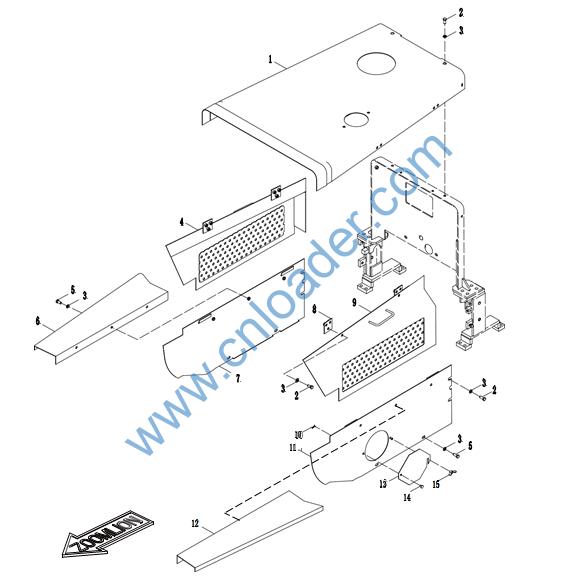

1 004908254A0800000 发动机护罩 Engine hood 1
2 1040000721 螺栓M12×25-10.9 Bolt 20 GB/T5783-2000
3 1040302140 垫圈12 Washer 30 01643-11232
4 004908254A0600000 右上护罩 Hood 1
5 1040000490 螺栓M12×30-10.9 Bolt 10 GB/T5783-2000
6 004904154A2600000 右挡泥板 Plate 1
7 004904154A1200000 右下护罩 Hood 1
8 004904054A1220000 连接板 Joint plate 4
9 004908254A0400000 左上护罩 Hood 1
10 1040500114 销3.2×16 Cotter pin 1 GB/T91-2000
11 004904154A1000000 左下护罩 Hood 1
12 004904154A2800000 左挡泥板 Plate 1
13 004904054A1601010 盖子 Cover 1
14 1040500511 销10×14×3.2 Pin 1 GB/T882-2008
15 1040200275 螺母M10 Nut 1 GB/T62.1-2004

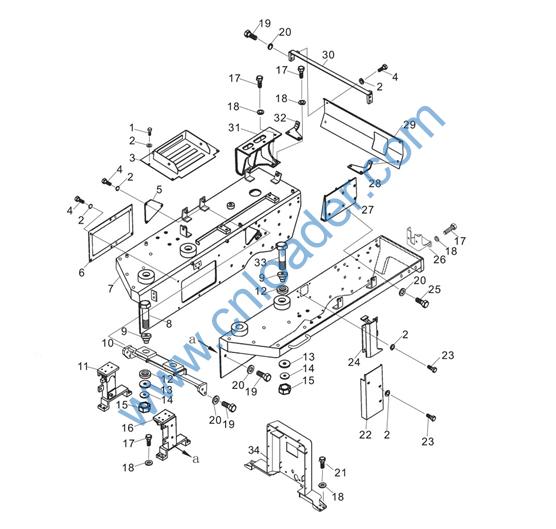

Floor And Fender Ass’y 004908055A0000000
1 1040000575 螺栓M12×35-10.9 Bolt
2 1040302140 垫圈12 Washer
3 004904055A4600000 电瓶安装板 Plate
4 1040000721 螺栓M12×25-10.9 Bolt
5 004904055A0001050 盖 Cover
6 004904055A0001040 盖 Cover
7 004904055A0200000 右翼板 Right Fender
8 1040001356 螺栓M20×130-10.9 Bolt
9 004904055A3200000 减震块 Damper
10 004904055A4200000 托架 Bracket
11 004904055A3600000 支架(右) Bracket (Right)
12 004904055A0001010 减震块 Damper
13 004904055A0001020 板 Plate
14 1040300523 垫圈20 Washer
15 1040200184 螺母M20-10 Nut
16 004904055A3800000 支架(左) Bracket (Left)
17 1040001706 螺栓M14×45-10.9 Bolt
18 1040302148 垫圈14 Washer
19 1040000143 螺栓M16×40-10.9 Bolt
20 1040302147 垫圈16 Washer
21 1040000831 螺栓M14×40-10.9 Bolt
22 004904056A1600000 油管护板(下) Lower Guard
23 1040000490 螺栓M12×30-10.9 Bolt
24 004904055A0800001 油管护板(上) Upper Guard
25 1040001029 螺栓M16×50-10.9 Bolt
26 004904055A5400000 踏板 Pedal
27 004904055A2400000 支架(左) Bracket (Left)
28 004904055A2200000 支板(左) Plate (Left)
29 004904055A0001080 护板(后) Guard(Rear)
004904055A4400000 后护板 Rear Guard
30 004904055A2000000 托架 Bracket
31 004904055A1600000 支架(右) Bracket (Right)
32 004904055A1800000 支板(右) Plate (Right)
33 1040002191 螺栓M20×140-10.9 Bolt
34 004908055B0400000 托架 Bracket

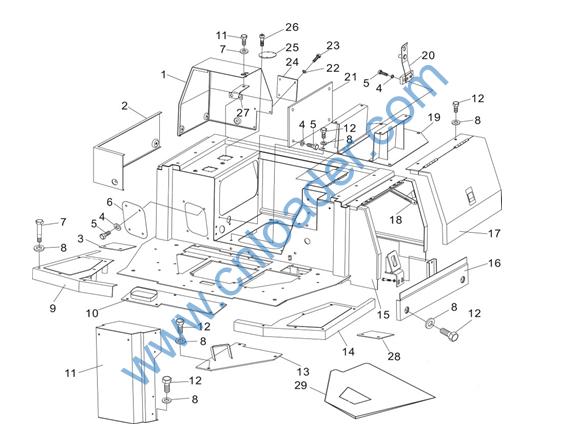

1 004904055A1400000 护罩 Guard
2 004904055A1200000 护罩 Guard
3 004904055A5600000 盖板 Cover
4 1040300563 垫圈8 Washer
5 1040000098 螺栓M8×16 Bolt
6 004904055A0601050 板 Plate
7 1040002512 螺栓M12×100-10.9 Bolt
8 1040302140 垫圈12 Washer
9 004904055A1000000 右护板 Right Guard
10 004904055A0650000 板 Plate
11 004908055A0200000 空调安装箱 Mounting Box
12 1040000490 螺栓M12×30-10.9 Bolt
13 004904055A0640000 盖板 Cover
14 004904055A2800000 左护板 Left Guard
15 004908055B0210000 地板架 Floor Frame
16 004904055A0620000 板 Plate
17 004904055A0610000 门 Door
18 004904055A0601030 板 Plate
19 004904055A2600000 座椅支架 Seat Support
20 004904055A0630000 簧板 Plate
21 004904055A0601020 板 Plate
22 1040302144 垫圈10 Washer
23 1040000549 螺栓M10×25-10.9 Bolt
24 004904055A0001070 板 Plate
25 004904055A0601040 板 Plate
26 1040101223 螺钉M5×10 Bolt
27 004904055A4000000 支架 Bracket
28 004904055A5800000 板 Plate
29 004908055B0600000 地板垫 Gasket
Bottom Cover 004908056B0000000 004908256A0000000
1 004904056A0410000 后底护板 Bottom cover (rear)
2 1040302147 垫圈16 Washer
3 1040000718 螺栓M16×30-10.9 Bolt
4 1040000444 螺栓M16×35-10.9 Bolt
5 004904056A0420000 盖 Cover
6 1040302140 垫圈12 Washer
7 1040000490 螺栓M12×30-10.9 Bolt
8 004908056B0210000 前底护板 Bottom guard (front)
9 004908056B0220000 盖 Cover
10 1040000575 螺栓M12×35-10.9 Bolt
11 004908056B0240000 盖板 Cover
12 004908056B0230000 盖板 Cover
1 004904154A1810000 后底护板 Bottom cover (rear)
2 1040302147 垫圈16 Washer
3 1040000718 螺栓M16×30-10.9 Bolt
4 1040000444 螺栓M16×35-10.9 Bolt
5 004904056A0420000 盖 Cover
6 1040302140 垫圈12 Washer
7 1040000490 螺栓M12×30-10.9 Bolt
8 004908256A0210000 前底护板 Bottom guard (front)
9 004908056B0220000 盖 Cover
10 1040000575 螺栓M12×35-10.9 Bolt
11 004908256A0220000 盖板 Cover
12 004908256A0230000 盖板 Cover

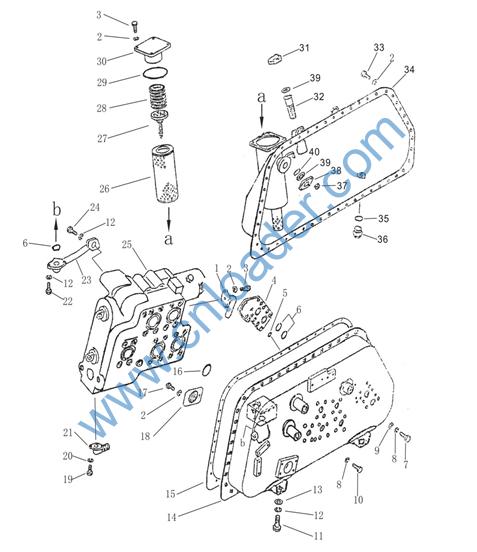

Hydraulic Tank 004904060A0000000
1 004904060A1600000
补油管 Oil Supplementing
Pipe
2 1040300067 垫圈10 Spring Washer
3 1040001680 螺栓M10×30-8.8 Bolt
4 004904060A0001090 盖板 Plate
5 1081001799 O形圈 O-Ring
6 1081001688 O形密封圈48×3.5 O-Ring
7 1040000108 螺栓M12×30-8.8 Bolt
8 1040300054 垫圈12 Spring Washer
9 1040300041 垫圈12-200HV Washer
10 1040000069 螺栓M12×25-8.8 Bolt
11 1040001269 螺栓M14×60-8.8 Bolt
12 1040300054 垫圈12 Spring Washer
13 1040300055 垫圈14-200HV Washer
14 004904060A0200000 工作油箱箱体 Hydraulic Tank
15 004904060A0001060 垫 Gasket
16 004904060A0001010 O形圈 O-Ring
17 1040000132 螺栓M10×16-8.8 Bolt
18 004904060A0600000 粗滤网 Strainer
19 1040000288 螺栓M8×25-8.8 Bolt
20 1040300063 垫圈8 Spring Washer
21 004904060A0800000 溢流管 Overflow Pipe
22 1040000119 螺栓M14×40-8.8 Bolt
23 004904060A1000000 回油管 Oil Scavenging Pipe
24 104000069 螺栓M12×25-8.8 Bolt
25 004904060A1400000
铲刀提升、倾斜阀 Blade Lift And Tilt
Valve
26 004904060A1800000 滤芯 Filter Core
27 004904060A2000000 安全阀 Safety Valve
28 004904060A0001020 弹簧 Spring
29 1081001432 O形圈124.4×3.1 O-Ring
30 004904060A2200000 盖 Cover
31 1999900492 加油口盖 Oil Filler Cap
32 005001060A0201110 过滤器 Oil Filter
33 1040000114 螺栓M10×25-8.8 Bolt
34 004904060A0400000 油箱盖 Oil Tank Cover
35 1081001453 O形圈32.7×3.4 O-Ring
36 004904060A1200000 螺塞 Plug
37 1040200145 螺母M10-8 Nut
38 004904060A0001050 油窗盖 Cover
39 004904060A0001040 胶圈 Rubber Ring
40 004904060A0001030 玻璃盖 Glass Cover

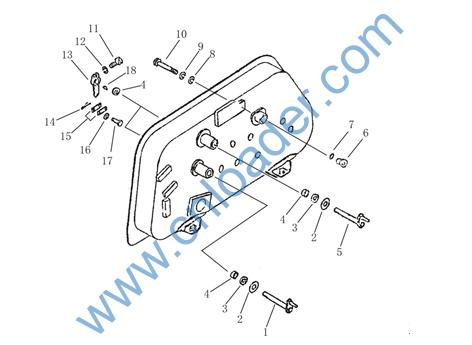

1 004904060A2600000 摇臂轴 Rocker Shaft
2 004904060A0001080 挡板 Guard
3 1081001469 油封FB20×35×7 Oil Seal
4 1054500018 轴承HK202616 Bearing
5 004904060A2400000 摇臂轴 Rocker Shaft
6 004904060A0001110 座盖 Cover
7 1081001468 O形圈21.8×2.4 O-Ring
8 004904060A0001100 垫圈 Washer
9 1040300067 垫圈10 Spring Washer
10 1040000258 螺栓M10×100-8.8 Bolt
11 1040000018 螺栓M8×30-8.8 Bolt
12 1040300063 垫圈8 Spring Washer
13 004903060B0001040 摇臂 Rocker
14 1040500114 销3.2×16 Cotter Pin
15 005001060A0201120 连板 Plate
16 1040300152 垫圈10-200HV Washer
17 1040500106 销轴B10×28 Pin
18 1040600069 键5×19 Key

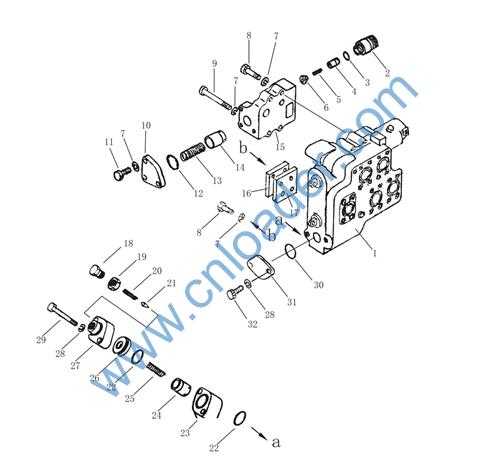

004904060A1400000 铲刀提升,倾斜阀 Blade Lift And TiltValve
1 004904060A1410000 主阀组 Main Valve Ass’y
004904060A1420000
补油阀 Oil Supplementing
Valve
2 004904060A1421080 阀体 Valve Body
3 1081001436 O形圈27.7×3.5 O-Ring
4 004904060A1421050 座 Seat
5 004904060A1421060 弹簧 Spring
6 004904060A1421070 阀芯 Valve Core
7 1040300054 垫圈12 Spring Washer
8 1040000195 螺栓M12×60 Bolt
9 1040000246 螺栓M12×110 Bolt
10 004904060A1421020 法兰 Flange
11 1040000101 螺栓M12×40 Bolt
12 1081001421 O形圈47.7×3.5 O-Ring
13 004904060A1421030 弹簧 Spring
14 004904060A1421040 阀芯 Valve Core
15 004904060A1421010 补油阀体 Valve Body
16 004904060A1401020 挡板 Guard
17 004904060A1401010 板 Plate
004903060B2420000 主安全阀 Main Safety Valve
18 004903060B2421010 螺塞 Plug
19 004903060B2421020 螺母 Nut
20 004903060B2211060 弹簧 Spring
21 004903060B2211080 螺塞 Plug
22 1081001421 O形圈 O-Ring
23 004903060B2421050 安全阀体 Safety Valve Body
24 004903060B2421070 阀 Valve
25 004903060B2421060 弹簧 Spring
26 004903060B2421040 阀座 Valve Seat
27 004903060B2421030 阀盖 Valve Cover
28 1040300068 垫圈14 Spring Washer
29 1040001790 螺栓M14×105 Bolt
30 1081001681 O形圈46×3.5 O-Ring
31 004904060A1401030 盖 Cover
32 1040000119 螺栓M14×40 Bolt

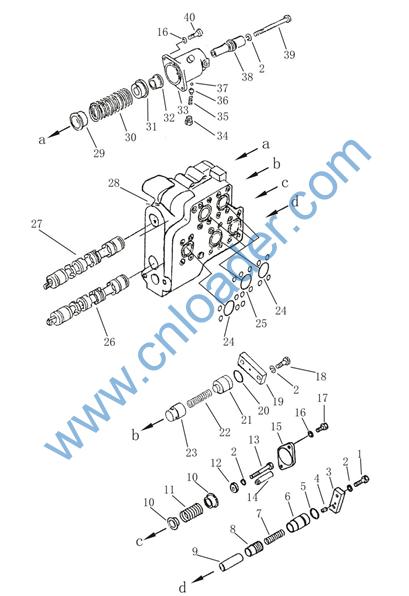

004904060A1410000 主阀组 Main Valve Ass’y1 1040000101 螺栓M12×40 Bolt
2 1040300054 垫圈12 Spring Washer
3 004904060A1411080 板 Plate
4 1040500541 销A5×14 Pin
5 1081001390 O形圈24.7×3.5 O-Ring
6 004904060A1411070 座 Seat
7 004904060A1411060 弹簧 Spring
8 004904060A1411050 阀芯 Valve Core
9 004904060A1411040 阀套 Valve Sleeve
10 004904060A1411090 弹簧座 Spring Cage
11 004904060A1411100 弹簧 Spring
12 004904060A1411110 垫片 Washer
13 1040000093 螺栓M12×20 Bolt
14 004904060A1411150 轴套 Bushing
15 004904060A1411160 板 Plate
16 1040300067 垫圈10 Spring Washer
17 1040001789 螺栓M10×95 Bolt
18 1040000094 螺栓M12×35 Bolt
19 004904060A1411120 板 Plate
20 1081001380 O形圈34.7×3.5 O-Ring
21 004904060A1411250 座 Seat
22 004904060A1411260 弹簧 Spring
23 004904060A1411270 阀芯 Valve Core
24 1081000026 O形圈51×3.5 O-Ring
25 1081000063 O形圈19×2.4 O-Ring
26 004904060A1411030 阀杆 Valve Rod
27 004904060A1411020 阀杆 Valve Rod
28 004904060A1411010 阀体 Valve Body
29 004904060A1411240 弹簧座 Spring Cage
30 004904060A1411230 弹簧 Spring
31 004904060A1411210 挡圈 Snap Ring
32 004904060A1411220 轴套 Bushing
33 004904060A1411200 外壳 Housing
34 004904060A1411130 螺塞 Plug
35 004904060A1411140 弹簧 Spring
36 004904060A1411170 导柱 Guide
37 004904060A1411180 滚珠 Rolling Ball
38 004904060A1411190 掣子 Detent
39 1040000229 螺栓M12×130 Bolt
40 1040000116 螺栓M10×20 Bolt
