A210342000006 EG1/4 screw plug (JB/ZQ4446)
A820199003120 connector block
10810395 right angle connector
10810396 pipe connector
B220402000389 solenoid valve 4721706060
A229900003463 adjustable right angle connector BOLM08-M12×1.5
A229900003253 end straight connector
A220401000201 relay valve
A210332000001 M16×1.5 JB1000 screw plug
A210770000392 pipe connector BMC12-M22×1.5
A229900002973 Sealing washer 22QC638
60025904 Air reservoir
A210332000003 Screw plug M22×1.5JB1000
10686806 Air cushion connecting steel pipe assembly
A229900004246 Compression sleeve type three-way pipe joint
A229900002994 Oil circuit right angle joint
A229900004193 Compression end straight joint body
A229900002971 Sealing washer 16QC638
A241400000011 Nylon tube
A229900003021 Bushing
A210306000012 Nut G12GB3759
A210710000004 Ferrule 12GB3764
A239900000411 Nylon tube
A229900003352 Bushing
A210306000013 Nut G14GB3759
A210710000007 Ferrule 14GB3764
A220401000202 Drain valve assembly
A210770000394 Pipe joint BOLM12-M16×1.5
A229900003255 End tee joint
A220401000199 Differential valve
A210770000597 Ferrule end tee joint
A229900003354 T-joint BRTM12-M22×1.5
A220401000726 Four-circuit protection valve
A229900003051 Adjustable right-angle joint
11686866 Dryer air intake steel pipe Ⅰ
11686961 Connecting steel pipe Ⅰ
11686979 Four-way valve air intake steel pipe assembly Ⅰ
11686884 Regeneration cylinder connecting steel pipe
A229900008875 Dryer cut-off pressure 10kg
11686912 Dryer air intake steel pipe Ⅱ
A229900008874 Dryer
10687036 Four-way valve air intake steel pipe Ⅱ assembly
11686969 Connecting pipe Ⅱ
10687061 Check valve air intake steel pipe assembly
10905885 Gas cylinder tie
10134892 Fastening bolt I
10134893 Fastening bolt II
10136454 Screw
A210710000003 Ferrule 8GB3764
A210306000008 Nut G8GB3759
10686805 Air cushion connecting steel pipe
A210710000006 Ferrule
A210306000014 Nut G16GB3759
10687035 Four-valve air intake steel pipe Ⅱ
A210710000006 Ferrule
A210306000014 Nut G16GB3759
10687060 Check valve air inlet steel pipe
11785550 Chassis lighting
11787723 Main instrument panel assembly
11787746 Auxiliary instrument panel assembly
11804524 Chassis main control system circuit diagram
11804890 Chassis engine circuit diagram
11804891 Transmission circuit diagram
11804892 Retarder circuit diagram
11804902 Eddy current circuit diagram
11804903 Instrument panel circuit diagram
11804904 Operation panel circuit diagram
11804965 Air conditioning system circuit diagram
11804971 Light and wiper circuit diagram
11805031 5th and 6th leg circuit diagram
11805035 Brake pad wear detection circuit diagram
11786223 Suspension system circuit diagram
11788495 Steering system circuit diagram
11789267 Outrigger leveling system circuit diagram
11786036 Main control box assembly
B241200000882 Power switch
11788275 Battery assembly
11793693 Side control box assembly
B230300000025 Reversing monitoring system YC9072H-SY 16m
11786027 Center console control box assembly
A24050000075 Electric horn
11785933 Brake pad wear detection box assembly

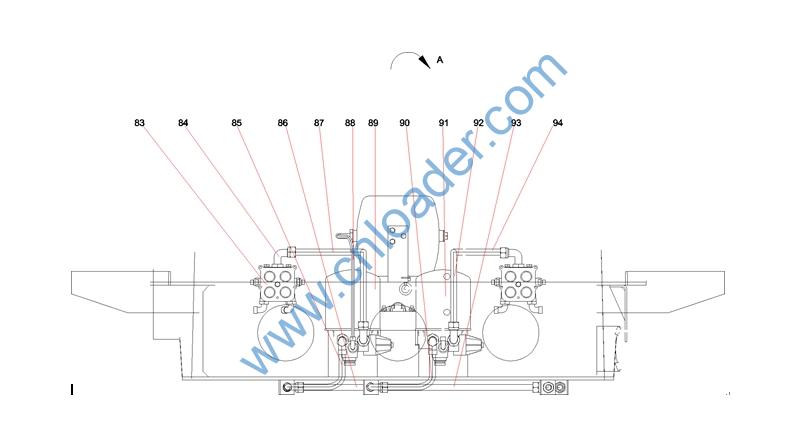

60147740 Water level switch KSW-FH-35M14×1.5
60112770 Liquid level sensor ELS-950-224508
60112767 Temperature sensor TA3131
11141447 Wire tie rack
B240600000328 Angle sensor 3382820 Hydac
B240600000375 Vehicle speed sensor 2159-20002500 Vdo
B241000000341 Vehicle speed sensor socket sheath assembly Vdo
60072876 Low pressure sensor
60047424 Pressure sensor 3200B0600S05ER00 gems
60138328 Plug cable 804000w03m070w
11800607 Wiring harness
60159795 Tilt sensor CR9046
60082895 Length sensor DX-6-220
A229900005525 Wire pulley
11805524 Auxiliary control box assembly
11787769 Side instrument panel assembly
60034466 Pressure sensor
60072877 Brake light switch
60145003 Liquid level sensor YT305BK-SY-630
11343921 Pressure measuring tee
A229900003257 Transition joint
A239900000561 Nylon bellows
A239900000563 Nylon bellows
A239900000066 Nylon cable tie
B240900000008 Netting sleeve SE50P-DR06.4-19.1mm Panduit
A230200000523 Bellows
60084836 Transition harness connector 8847979200WABCO
A810201058458 Transmission electrical wire
B240500000007 Reversing alarm
