A219900000052 Rope clamp GB5976
00000182 Upper latch assembly
11022733 Spare tire bracket
11023118 Left bracket
11023131 Connecting bracket
10249290 Wheel and tire
A210501000013 Pin 6.3×50GB91
A210501000015 Pin 6.3×80GB91
A210401000004 Washer 16GB93
A210405000003 Washer 16GB97.1
A210401000007 Washer 22GB93
A210405000010 Washer 22GB97.1
21015076 Shackle JB8112
60033733 Wire rope lever hoist 0.8t
A210307000040 Nut M16GB6170
A210111000229 Bolt M16×45GB5783
A210307000006 Nut M22GB6170
A210110000333 Bolt M22×80GB5783 10.9 grade
11022038 Pipe pin
11022087 Pin shaft
11022089 Ear plate
11024011 Pulley
00000181 Upper latch
A229900000176 Key ring
11033634 Chain
A829900002661 Elastic pin

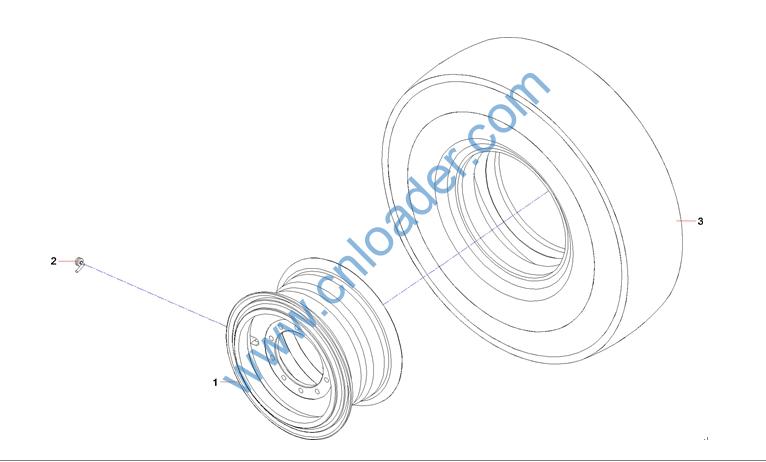

A210858000024 GKN rim, offset 80mm
A229900003469 valve stem
B210881000018 tire 174F, pattern X-CRANE

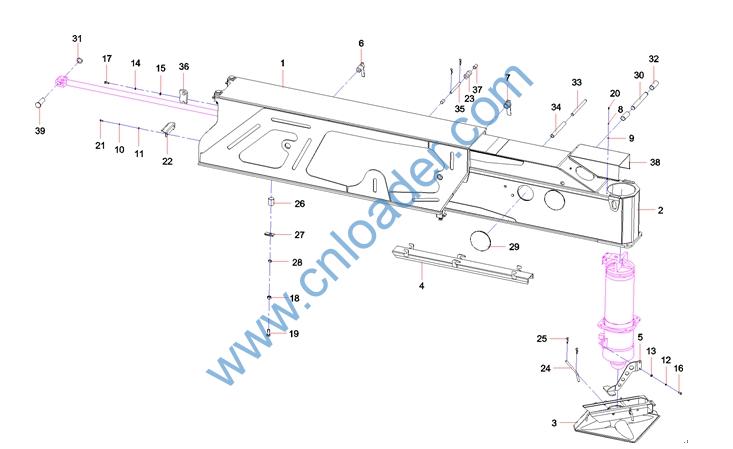

11726411 Support plate assembly
11726421 Upper rail assembly
11726424 Support plate support weldment
11726427 Locking pin shaft assembly 2
11726430 Locking pin shaft assembly 1

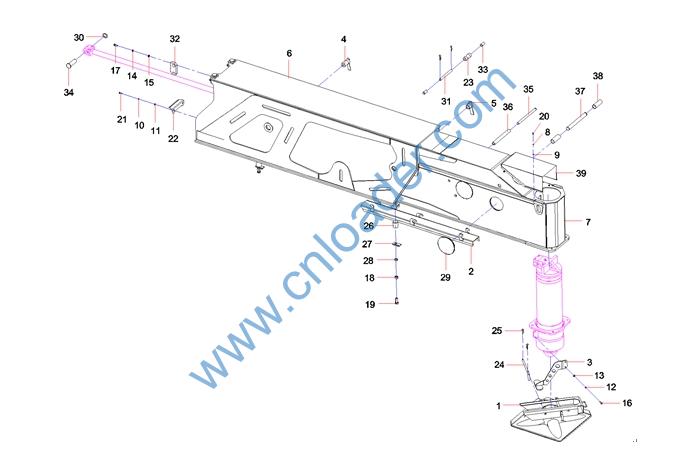

11717550 Rear first-stage movable leg
11708531 Rear second-stage movable leg
A210401000016 Washer 6GB93
A210405000006 Washer 6GB97.1
A210401000017 Washer 8GB93
A210405000007 Washer 8GB97.1
A210401000001 Washer 10GB93
A210405000011 Washer 10GB97.1
A210401000002 Washer 12GB93
A210405000001 Washer 12GB97.1
A210111000023 Bolt M10×30GB5783
A210111000202 Bolt
A210307000005 Nut M20GB6170
A210111000108 Bolt M20×50GB5783
A210111000078 Bolt
A210111000090 Bolt M8×25GB5783
10223701 Baffle
10223733 Support Wheel
10700958 Positioning Pin
10700976 Locking pin
10223693 Adjustment block
10223694 Spacer
10223695 Spacer
10223697 Hole cover
11726402 Retaining ring
11726406 Guide pin
11726407 Cylinder seat
11726408 Spacer
11726410 Pin
11730200 Pin
11730201 Sleeve
11730202 Pin
11730203 Spacer
11730204 Protective cover
11717182 Front first-stage movable leg
11708321 Front second-stage movable leg
11726411 Support plate assembly
11726421 Upper rail assembly
11726424 Support plate support weldment
11726427 Locking pin shaft assembly 2
11726430 Locking pin shaft assembly 1
A210401000016 Washer 6GB93
A210405000006 Washer 6GB97.1
A210401000017 Washer 8GB93
A210405000007 Washer 8GB97.1
A210401000001 Washer 10GB93
A210405000011 Washer 10GB97.1
A210401000002 Washer 12GB93
A210405000001 Washer 12GB97.1
A210111000023 Bolt M10×30GB5783
A210111000202 Bolt
A210307000005 Nut M20GB6170
A210111000108 Bolt M20×50GB5783
A210111000078 Bolt
A210111000089 Bolt M8×20GB5783
10223701 Baffle
10223733 Support Wheel
10700958 Positioning Pin
10700976 Locking pin
10223693 Adjustment block
10223694 Spacer
10223695 Spacer
10223697 Hole cover
11726401 Pin
11726402 Retaining ring
11726403 Spacer
11726404 Pin
11726405 Bushing
11726406 Guide pin
11726407 Cylinder seat
11726408 Spacer
11726409 Protective cover
11726410 Pin

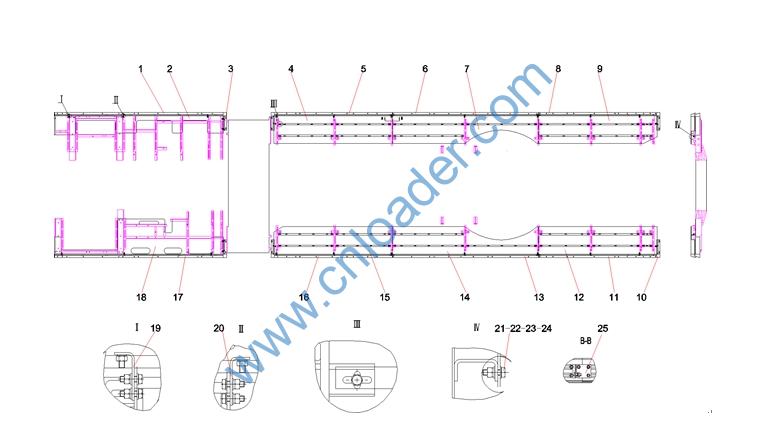

12372181 Left front aluminum alloy frame assembly
12109934 Walkway surface
12109922 Rear aluminum alloy frame
12109908 Left walkway assembly 1
12109924 Right aluminum alloy frame
12109913 Aluminum alloy frame
12109914 Left walkway assembly 2
12109918 Left aluminum alloy frame
12109921 Left walkway assembly 3
12357328 Rubber corner block
12109932 Aluminum alloy frame
12109933 Right walkway assembly 3
12109929 Aluminum alloy frame
12109930 Right walkway assembly 2
12109925 Right walkway assembly 1
12102226 Left aluminum alloy frame
12372173 Right front aluminum alloy frame assembly
12109937 Walkway surface
11710676 Connecting bracket
11710677 Connecting plate
A210111000090 Bolt M8×25GB5783
A210307000012 Nut M8GB6170
A210405000007 Washer 8GB97.1
A210401000017 Washer 8GB93
12372141 Positioning plate

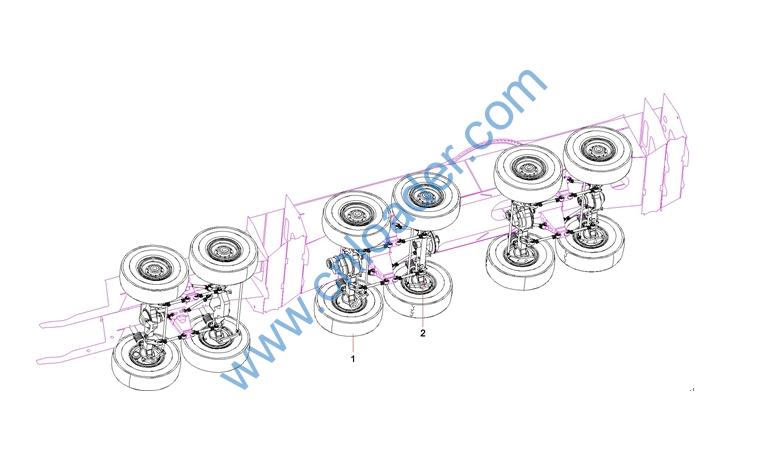

10249290 Wheels and tires

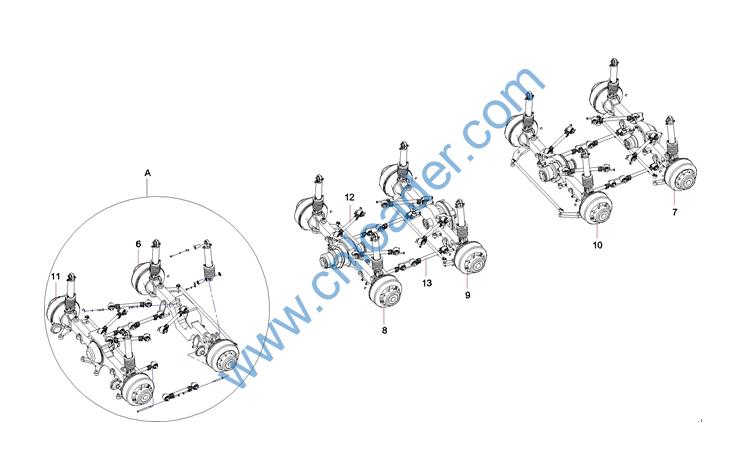

11740198 Axles and suspensions
60084033 Second bridge 82.4376.3
60084034 Sixth bridge 82.4380.3
60084035 Third bridge 82.4377.3
60084036 Fourth bridge 82.4378.3
60084037 Fifth bridge 82.4379.3
60084038 First bridge 82.4375.3

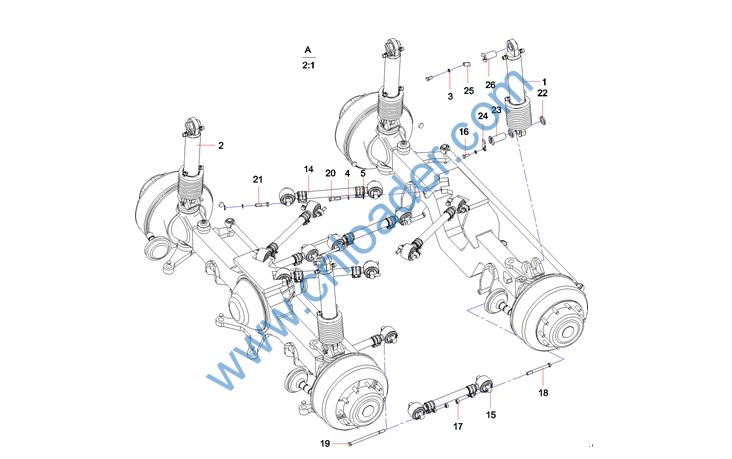

60100280 Third bridge upper thrust rod assembly ZFT680.4
60100281 Third bridge lower thrust rod assembly ZFT616.3
60080635 Suspension cylinder DW85/70-300 without position sensor
60080636 Suspension cylinder DW85/70-300W with position sensor
A210401000004 Washer 16GB93
A210401000005 Washer 18GB93
A229900001360 Washer 18GB97.1
60100282 Thrust rod assembly ZFT623.2 on the first bridge
60100283 Thrust rod assembly ZFT558.1 on the first bridge
A210111000100 Bolt M16×35GB5783
A210308000027 Nut M18×1.5GB6171 10 grade
60007503 Bolt GB5785 10.9 grade
60007173 Bolt (GB5785)
21017191 Bolt M18×70 GB5782 10.9 grade
A210110000307 Bolt
10187233 Spacer
10188924 Oil and gas spring lower hanging ear pin
10188925 Block
10188926 Upper baffle
10220002 Upper hanging ear pin

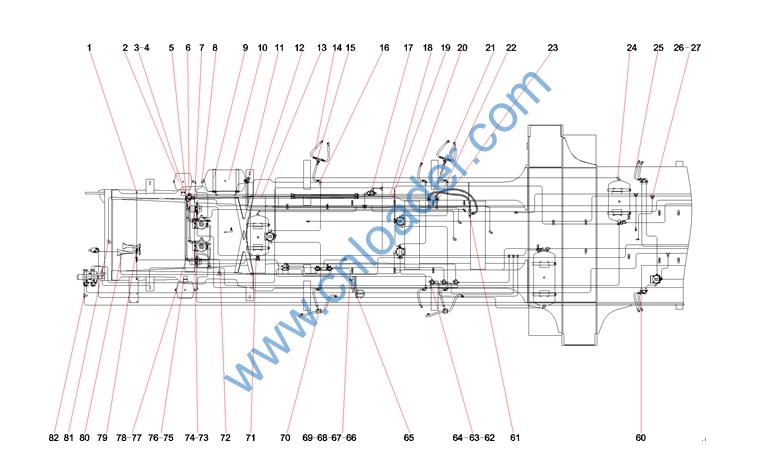

10594680 Cardan-type straight-through connector body
A229900003012 Regeneration cartridge
A210306000014 Nut G16GB3759
A210710000006 Cardan
A210770000402 Pipe connector
A220401000230 Check valve
A220401000701 Overflow valve
A210770000393 Pipe connector BOLM12-M22×1.5
10912226 Gas cylinder tie assembly
60025903 Gas cylinder
A229900003037 Test connector
12253857 Connecting steel pipe
12253686 Connecting steel pipe
A229900005108 Brake hose Q-22-500W
10219158 Second bridge brake hose three-way bracket
A229900003250 Bulkhead right angle joint BBL-12
A229900003046 Adjustable right angle joint BOLM08-M22×1.5
12253370 Connecting steel pipe
12253594 Outlet steel pipe
A229900009396 Brake hose
A229900003350 Card isolation straight joint body
11686810 Air compressor outlet steel pipe
A229900009395 High temperature hose assembly
A229900003050 Adjustable right angle joint BOLM14-M22×1.5
A229900003130 Brake hose Q-22-700W
A229900003034 Bulkhead tee joint
A210334000015 Nut M14×1.5GB3763
A210338000000 Nut M18×1.5GB3763
12251816 End tee joint
A210108000092 Bolt M8×55GB5782
A210405000007 Washer 8GB97.1
A210307000012 Nut M8GB6170
A229900003040 Cone right angle joint body BMC08-01NPT
A240900000006 Plastic pipe/nylon
A229900003019 Bushing
A210710000003 Ferrule 8GB3764
A210306000008 Nut G8GB3759
10489927 Bulkhead connector bracket
A229900003045 Adjustable right angle connector BOLM08-M16×1.5
A229900003251 Tee connector
A210401000002 Washer 12GB93
A210114000067 Bolt M12×1.25×35GB5786
A210111000089 Bolt M8×20GB5783
A210401000017 Washer 8GB93
A210770000424 Pipe connector
A210338000001 Nut M22×1.5GB3763
A229900003033 Pipe joint Tee
A240500000076 Air horn assembly
12423149 Air pressure sensor right angle joint
11287699 Air pressure gauge sensor Tee joint
