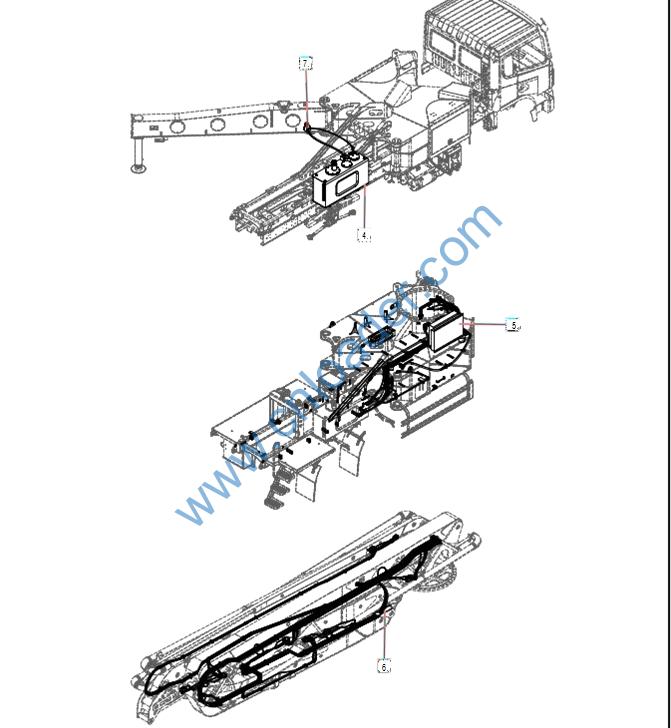

1 BC2B005606221 Hydraulic System, Outrigger 1 6-6
angl 202 angl 202
2 BCB005051043 Hydraulic System, Auxiliary Beam 1 6-34
3 BCB005052941 Hydraulic Syzsthem, Pumping Unit 1 6-48
4 BC2B005995362 Hydraulic Oil Tank Installation2- 1 6-92
5 BCB005047425 Hydraulic System, Revolving Tower 1 6-98
6 BCB005206920 Hydraulic System, Boom 1 6-120
7 BCB005611133 Flushing System 1 6-192

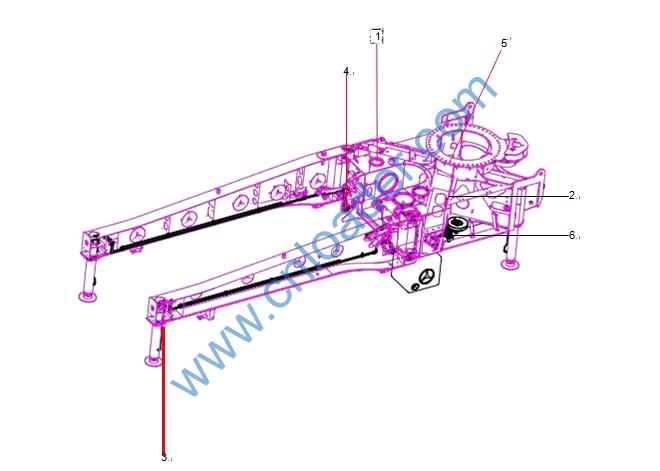

1 BCB005589142 Hydraulic System, Left Front Outrigger 1 6-8
2 BCB005594432 Hydraulic System, Right Front Outrigger 1 6-10
3 BCB005593077 Hydraulic System, Right Rear Outrigger 1 6-12
4 BCB005588732 Hydraulic System, Left Rear Outrigger 1 6-14
5 BCB005606192 Hydraulic System, Combined Cylinder 2 6-16
6 BCB005603577 Hydraulic System, Outrigger Multiple Unit Valve 1 6-18

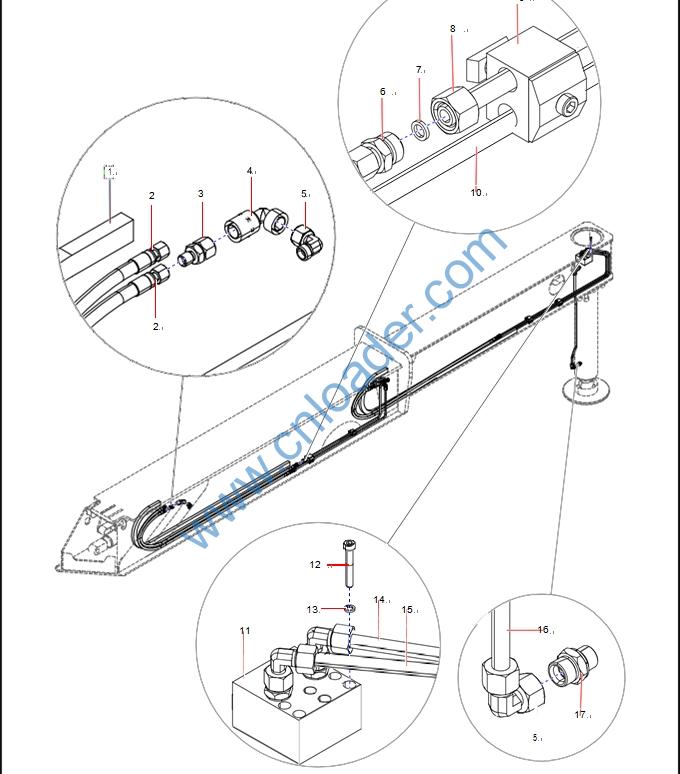

2 151002160084A Hose AS 4
3 B210780000683 Reducer Union 4
4 B210780000100 Bulkhead Fitting 4
5 B210780000024 Elbow Fitting 8
6 21008727 Fitting 4
7 60195076 FSR Seal Ring 10
8 BCB005589042 Oil Tube 1
9 60027237 Clamp 4
10 BCB005588893 Oil Tube 1
11 B222200000051 Hydraulic Lock 1
12 A210204000217 Screw 6
13 A210401000016 Washer 6
14 20B2C2B-00055-8191929
9 Oil Tube 1
15 BCB005589108 Oil Tube 1
16 13603199 Oil Tube Sany yellow 1
13603199GC Oil Tube Yellow green
13603199WD Oil Tube Pure white
17 B210780000037 Adapter Fitting 4
2 B210780000683 Reducer Union 4
3 BCB005593244 Oil Tube 1
4 BCB005594329 Oil Tube 1
5 B222200000051 Hydraulic Lock 1
6 21008727 Fitting 4
7 B210780000024 Elbow Fitting 6
8 BCB005588893 Oil Tube 1
9 BCB005589042 Oil Tube 1
10 21033030 Hose 2
11 151002160084A Hose AS 4
12 151399000267A Drag Chain 2
13 B210780000037 Adapter Fitting 4
14 20123260301999 19 Oil Tube Sany yellow 1
13603199GC Oil Tube Yellow green
13603199WD Oil Tube Pure white
15 60195076 FSR Seal Ring 8
16 A210204000217 Screw 6
17 60027237 Clamp 4
18 A210401000016 Washer 6

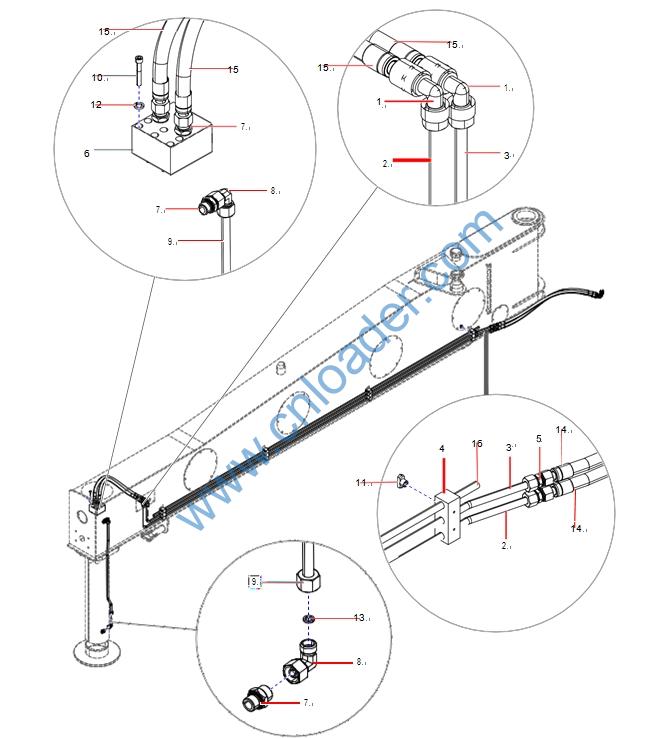

2 B210780000100 Bulkhead Fitting 2
3 BCB005592958 Oil Tube 1
4 BCB005593009 Oil Tube 1
5 60023942 Clamp 4
6 B210780001183 Fitting 4
7 60195076 FSR Seal Ring 8
8 B210780000037 Adapter Fitting 4
9 B210780000024 Elbow Fitting 2
10 13603199 Oil Tube Sany yellow 1
13603199GC Oil Tube Yellow green
13603199WD Oil Tube Pure white
11 A210204000217 Screw 6
12 20620220-20487- 9
9 1 Nut 8
13 A210401000016 Washer 6
14 B230103000090 Hose 2
15 BCB006305916 Threading Tube 1
16 60210215 Hose 2

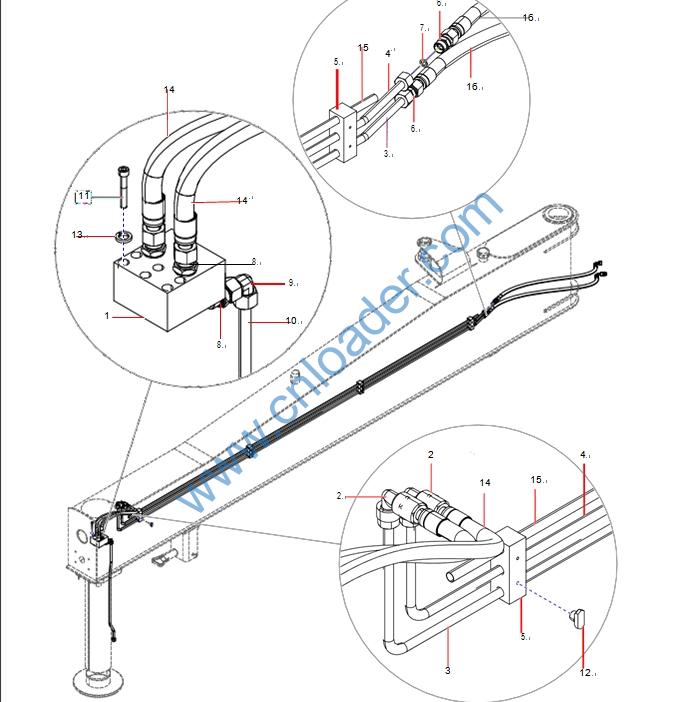

2 BCB005588141 Oil Tube 1
3 BCB005588172 Oil Tube 1
4 60023942 Clamp 4
5 B210780001183 Fitting 4
6 B222200000051 Hydraulic Lock 1
7 B210780000037 Adapter Fitting 4
8 B210780000024 Elbow Fitting 2
9 13603199 Oil Tube Sany yellow 1
13603199GC Oil Tube Yellow green
13603199WD Oil Tube Pure white
10 A210204000217 Screw 6
11 60202487 Nut 8
12 20A22120-4001-00109016
9 Washer 6
13 60195076 FSR Seal Ring 6
14 60210215 Hose 2
15 B230103000090 Hose 2
16 BCB006305916 Threading Tube 1

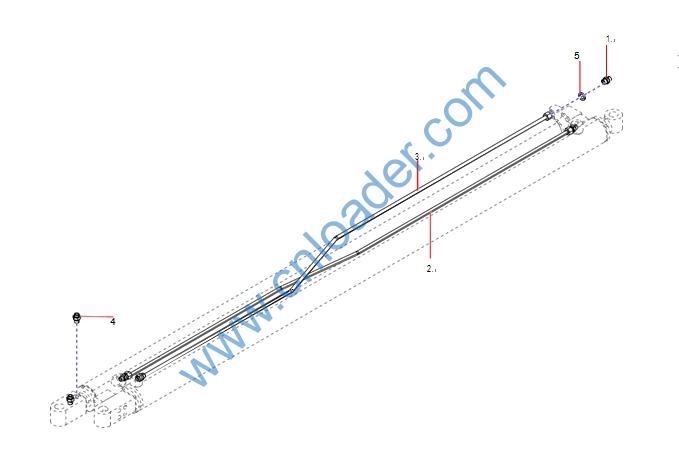

2 BCB005034521 Oil Tube 1
3 BCB005034703 Oil Tube 1
4 B210780001026 Adapter Fitting 2
5 60195076 FSR Seal Ring 4

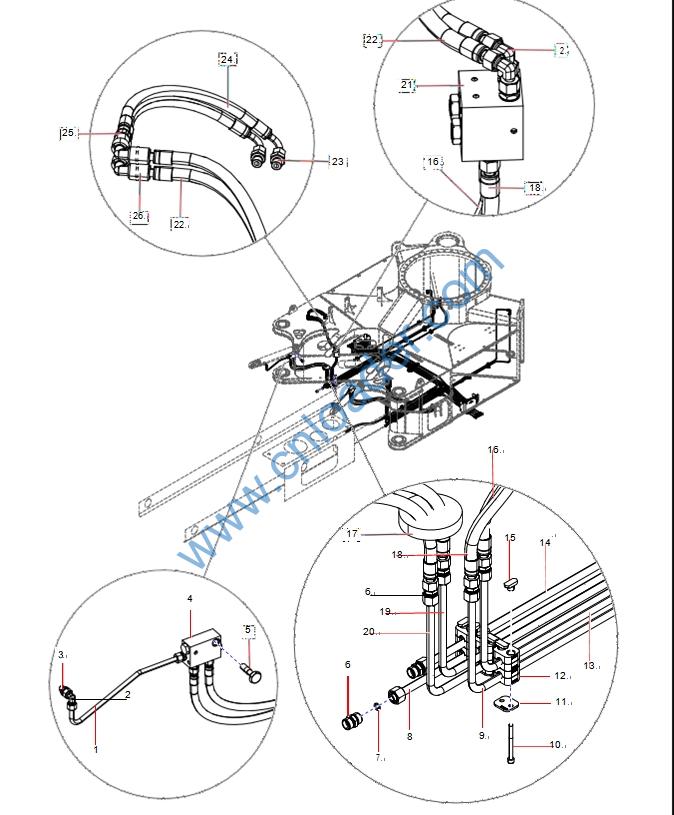

2 B210780000024 Elbow Fitting 7
3 B210780000037 Adapter Fitting 17
4 60056150 Hydraulic Lock 2 6-28
5 A820301010402 Articulated Bolt 2
6 B210780001183 Fitting 25
7 60195076 FSR Seal Ring 82
8 BCB005602284 Oil Tube 1
9 BCB005036531 Oil Tube 2
10 A210204000140 Screw 36
11 60253605 Clamp Cover Plate 20
12 60253600 Clamp 38
13 BCB005036448 Oil Tube 2
14 20B2C2B-00056-0122965
9 Oil Tube 1
15 60202487 Nut 40
16 60004252 Hose 1
17 60113023 Hose Protective Sleeve 2
18 B230103006904 Hose 1
19 BCB005602238 Oil Tube 1
20 BCB005602252 Oil Tube 1
21 60323896 Hydraulic Lock 2
22 B230103003867 Hose 4
23 B210780001026 Adapter Fitting 4
24 B230103003875 Hose 1
25 B210780000683 Reducer Union 4
26 B210780000100 Bulkhead Fitting 4

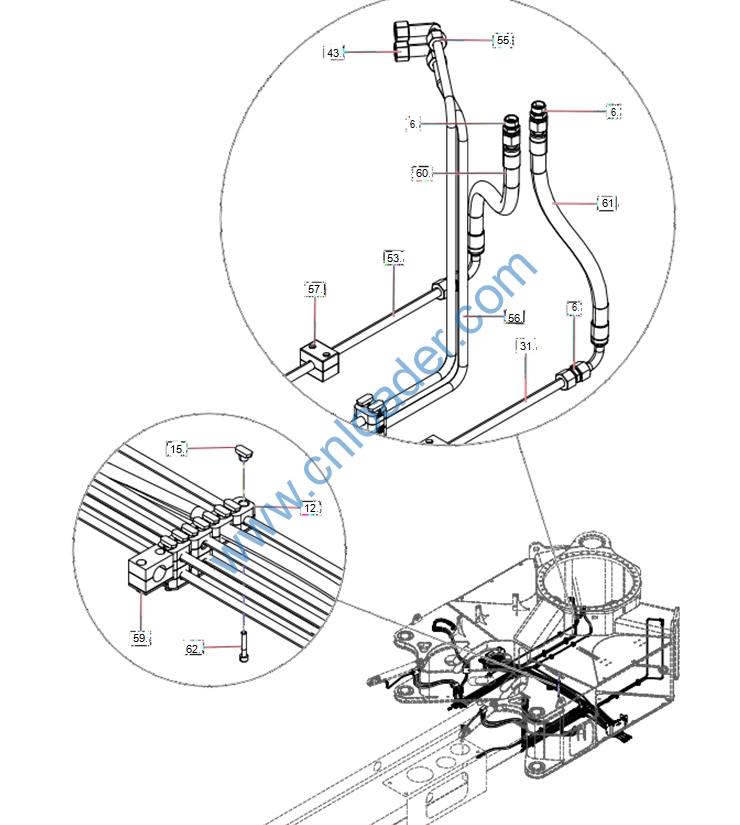

6 B210780001183 Fitting 25
9 BCB005036531 Oil Tube 2
13 BCB005036448 Oil Tube 2
31 BCB005603033 Oil Tube 2
32 BCB005602326 Oil Tube 1
33 BCB005602348 Oil Tube 1
35 BCB005602292 Oil Tube 1
36 BCB005602307 Oil Tube 1
39 BCB005035234 Oil Tube 1
40 BCB005035139 Oil Tube 1
41 BCB005034926 Oil Tube 1
42 BCB005035099 Oil Tube 1
43 20123522-80404- 9
9 1 Elbow Fitting 3
44 BCB005602828 Oil Tube 1
45 13973095 Valve GP, Outrigger Control 2 6-30
46 BCB005035609 Oil Tube 1
47 BCB005035655 Oil Tube 1
48 BCB005036771 Oil Tube 1
49 B230103004168 Hose 1
50 BCB005036609 Oil Tube 1
51 B210780000118 Tee Joint 2

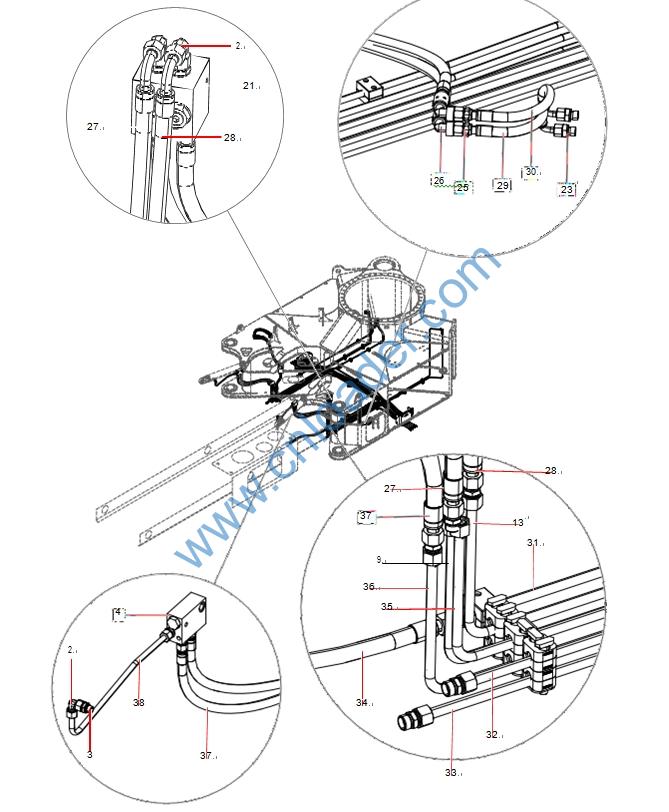

3 B210780000037 Adapter Fitting 17
4 60056150 Hydraulic Lock 2
9 BCB005036531 Oil Tube 2
13 BCB005036448 Oil Tube 2
21 60323896 Hydraulic Lock 2
23 B210780001026 Adapter Fitting 4
25 B210780000683 Reducer Union 4
26 B210780000100 Bulkhead Fitting 4
27 60101296 Hose 1
28 60099417 Hose 1
29 60156806 Hose 1
30 B230103003933 Hose 2
31 20B2C2B-00056-0130933
9 Oil Tube 2
32 BCB005602326 Oil Tube 1
33 BCB005602348 Oil Tube 1
34 14029848 Hose 1
35 BCB005602292 Oil Tube 1
36 BCB005602307 Oil Tube 1
37 12923063 Hose 2
38 BCB005603118 Oil Tube 1

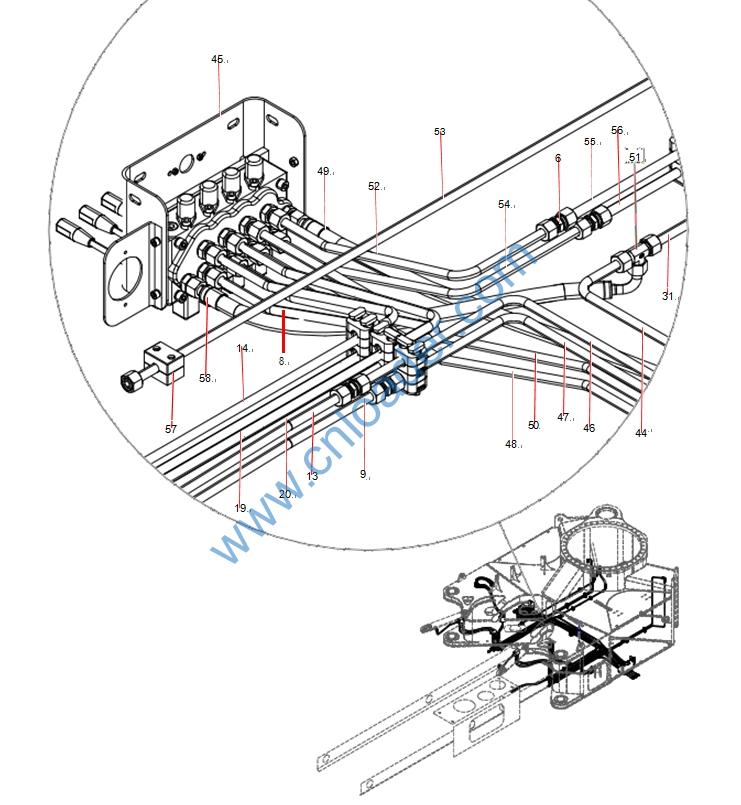

8 BCB005602284 Oil Tube 1
9 BCB005036531 Oil Tube 2
13 BCB005036448 Oil Tube 2
14 BCB005602265 Oil Tube 1
19 BCB005602238 Oil Tube 1
20 BCB005602252 Oil Tube 1
31 BCB005603033 Oil Tube 2
44 BCB005602828 Oil Tube 1
45 13973095 Valve GP, Outrigger Control 2
46 BCB005035609 Oil Tube 1
47 BCB005035655 Oil Tube 1
48 BCB005036771 Oil Tube 1
49 20B22230-1003-00149168
9 Hose 1
50 BCB005036609 Oil Tube 1
51 B210780000118 Tee Joint 2
52 BCB005036105 Oil Tube 1
53 BCB005603265 Oil Tube 1
54 BCB005035973 Oil Tube 1
55 BCB005035309 Oil Tube 1
56 BCB005035485 Oil Tube 1
57 60193368 Clamp 6
58 60101298 Hose 1
12 60253600 Clamp 38
15 60202487 Nut 40
31 BCB005603033 Oil Tube 2
43 13528404 Elbow Fitting 3
53 BCB005603265 Oil Tube 1
55 BCB005035309 Oil Tube 1
56 BCB005035485 Oil Tube 1
57 60193368 Clamp 6
59 A229900002420 Clamp 1
60 60101297 Hose 2
61 B230103004190 Hose 1
62 A210204000134 Screw 4
150406040004A002 O-ring 2
1 B220401000305 Manual Multiple Unit Valve 1
2 B210780000180 Adapter Fitting 10
3 A210204000149 Screw 4
4 A210401000017 Washer 4
5 10898103 Outrigger Operation Box, Four-lever Sany yellow 1
10898103WD Outrigger Operation Box, Four-lever Pure white
10898103GC 2- Outrigger Operation Box, Four-lever 2- Yellow green
6 10969372 Mounting Plate Sany yellow 1
10969372GC Mounting Plate Yellow green
10969372WD Mounting Plate Pure white
7 A210401000016 Washer 2
8 A210204000172 Screw 2
