2 150603030033A004 Valve Core and Spring AS 3
3 150603030033A003 Overflow Valve 1
4 150603030033A002 Lever Support AS 4
5 150603030033A001 Lever 4
6 150603030033A006 Seal Kit 1
7 150603040002A004 Valve Core and Spring AS 1

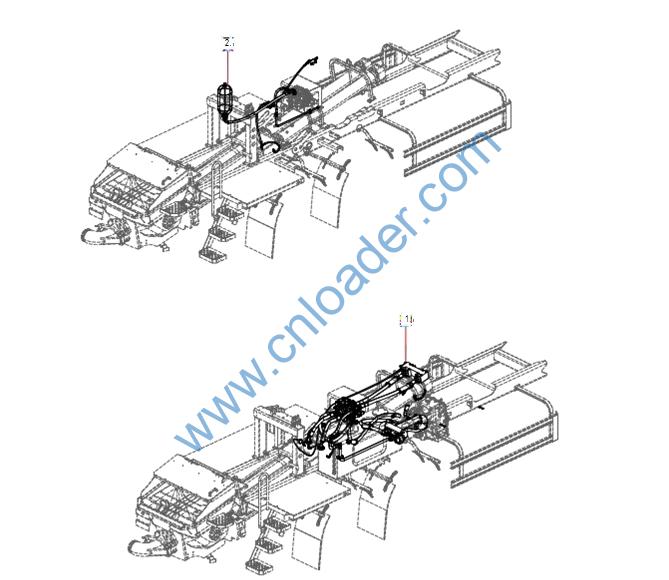

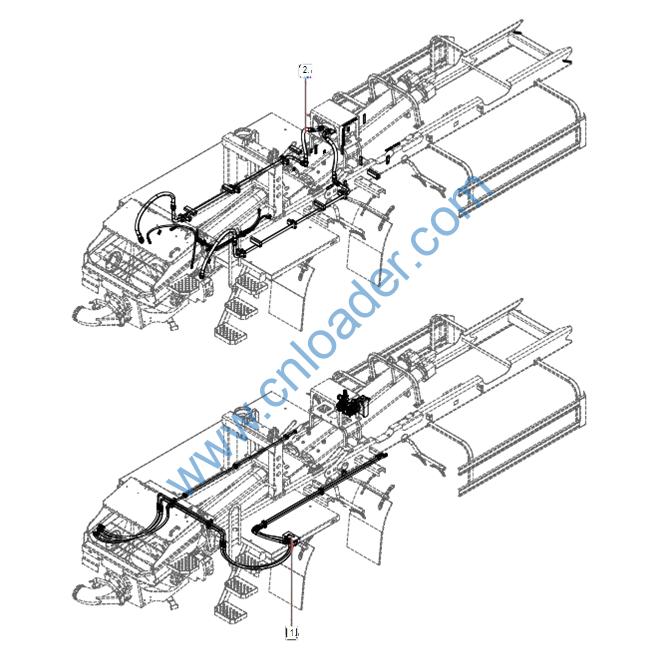

1 BCB005050806 Hydraulic System, Mixin2g 0S2y2st-em 201 2 6-36
2 BCB005623739 Hydraulic System, Swing Cylinder 1 6-44

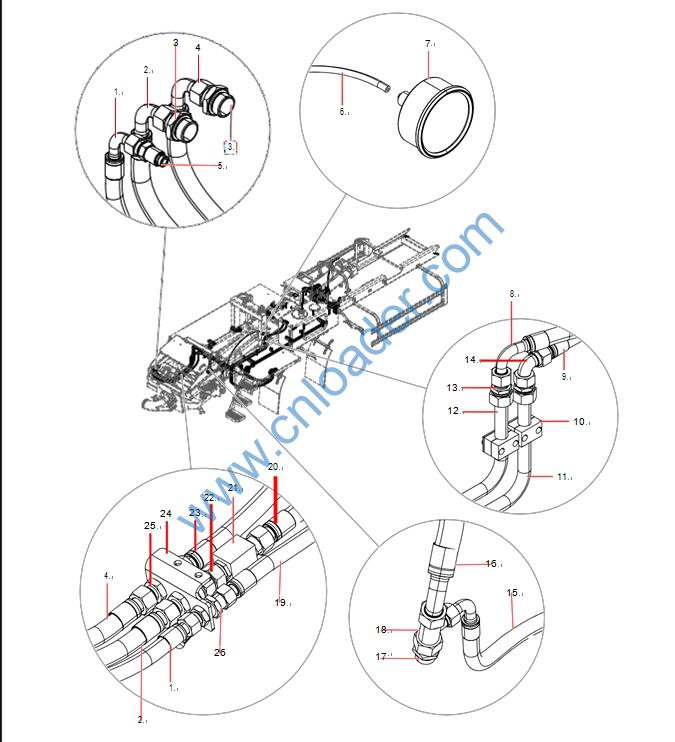

2 B230103003978 Hose 1
3 60098744 Adapter Fitting 2
4 12954871 Hose 1
5 A820205000197 Fitting 1
6 60240397 Manometric Hose 1
7 B250202000005 Pressure Gauge 1
8 B230103003870 Hose 1
9 13160233 Hose AS 1
10 A229900002420 Clamp 23
11 BCB005622446 Oil Tube 1
12 BCB005622395 Oil Tube 1
13 21008728 Adapter 9
14 20B22210-7080-00119310
9 Elbow Fitting 3
15 60019592 Hose 1
16 151008110061A Hose AS 1
17 B210780000052 Adapter Fitting 2
18 A820205000022 Articulated Bolt 1
19 B230103004933 Hose 1
20 151006160161A Hose 1
21 60050358 BALL VALVE 2
22 B210780001394 Adapter Fitting 2
23 151006160199A Hose AS 1
24 12638346 Mounting Plate Sany yellow 1
12638346WD Plate, set Pure white
12638346GC Plate, set Yellow green
25 B2107800009157 Bulkhead Fitting 9 2
26 B210780000245 Bulkhead Fitting 1
6 60240397 Manometric Hose 1
10 A229900002420 Clamp 23
12 BCB005622395 Oil Tube 1
13 21008728 Adapter 9
19 B230103004933 Hose 1
23 151006160199A Hose AS 1

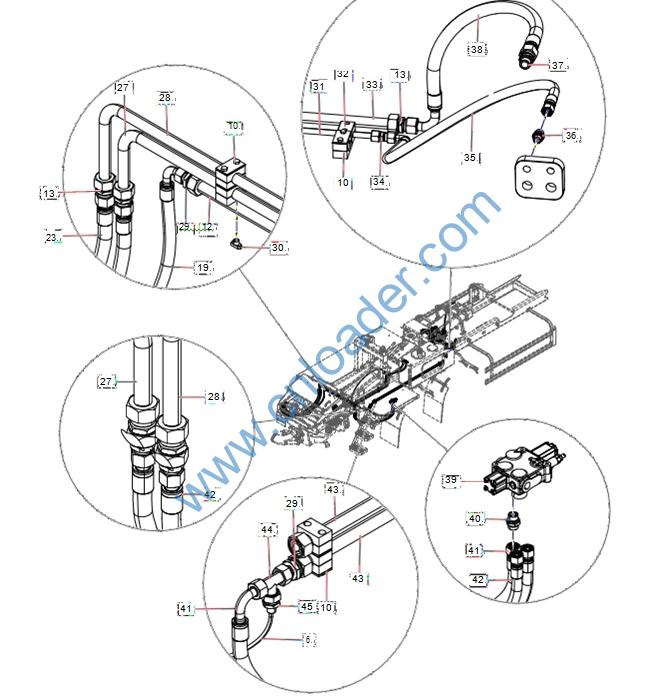

27 BCB005623811 Oil Tube 1
28 BCB005623862 Oil Tube 1
29 21017337 Fitting 5
30 60202487 Nut 4
31 BCB005622414 Oil Tube 1
32 60193368 Clamp 3
33 BCB005622287 Oil Tube 1
34 B210-780-001183 Fitting 3
35 B230103004472 Hose 1
36 B210780000037 Adapter Fitting 1
37 B210780000131 Adapter Fitting 5
38 60019593 Hose 2

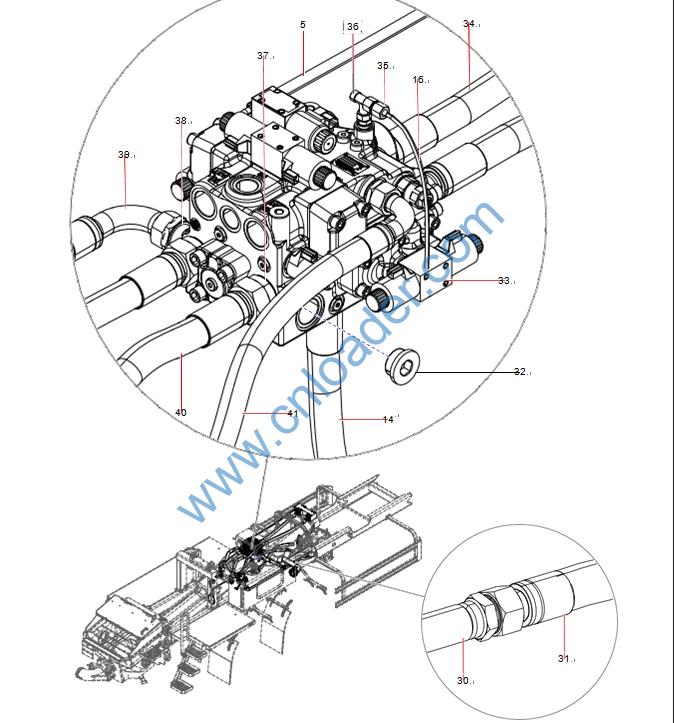

39 150404990010A Directional Valve, Manual 1 6-42
40 B210780000043 Fitting 4
41 B230103003981 Hose 2
42 151005160289A Hose AS 2
43 BCB006156560 Oil Tube 2
44 B210780000017 Tee Joint 1
45 B210780000684 Reducer Union 1
9 13160233 Hose AS 1
10 A229900002420 Clamp 23
13 21008728 Adapter 9
14 B210780001310 Elbow Fitting 3
21 60050358 BALL VALVE 2
31 BCB005622414 Oil Tube 1
32 60193368 Clamp 3
33 BCB005622287 Oil Tube 1
34 B210780001183 Fitting 3
37 B210780000131 Adapter Fitting 5
46 B210780000232 Adapter Fitting 1
47 60215697 Hose 1
48 20B22210-7080-00109024
9 Elbow Fitting 1
49 A229900010390 Reducer Union 1
50 B210780001007 Tee Joint 1
51 B230103003867 Hose 1
52 60195078 FSR Seal Ring 14
53 60195076 FSR Seal Ring 2

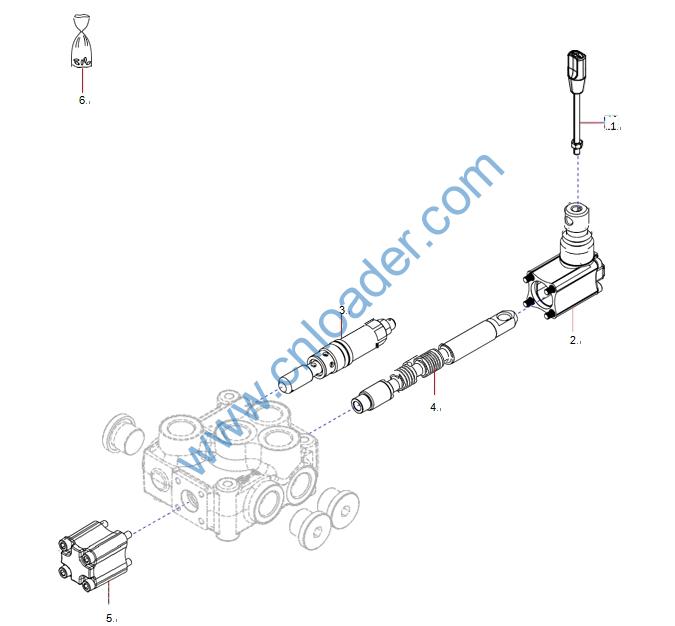

2 150404990010A002 Lever Support AS 1
3 150404990010A003 Overflow Valve 1
4 150404990010A004 Valve Core and Spring AS 1
5 150404990010A005 End Cover 1
6 150404990010A006 Seal Kit 1

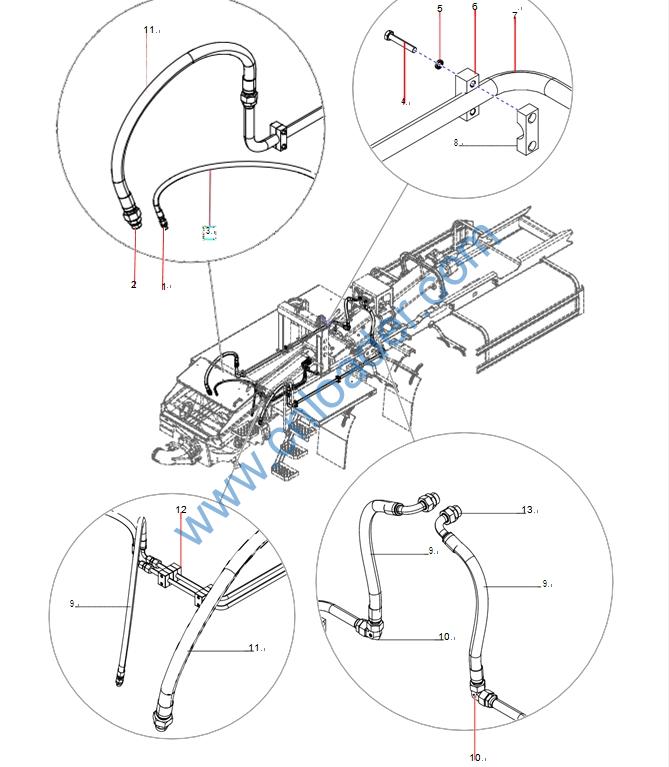

2 A820205001244 Fitting 2
3 B230103003874 Hose 2
4 A210204000357 Screw 12
5 60023506 Washer 12
6 12127381 Upper Clamp 6
7 BCB005047712 Oil Tube 1
8 12127357 Lower Clamp 6
9 151008160064A Hose 2
10 B210780001241 Elbow Fitting 2
11 151008210115A Hose 2
12 B210851000001 Clamp 6
13 B210780000053 Adapter Fitting 2
14 B210780000733 Adapter Fitting 2
15 B210780000015 Tee Joint 2
16 B230103003933 Hose 1
17 B230103003877 Hose 1
18 B230103003914 Hose AS 2
19 BCB005623734 Oil Tube 1
20 BCB005623729 Oil Tube 1
21 21008727 Fitting 4
22 BCB005047710 Oil Tube 1
23 60195076 FSR Seal Ring 4
1 BCB005590082 Hydraulic System, Main V2a0lv2e and Main Pump 201 2 6-52
Hydraulic System, Waterproof Valve and Pilot
2 BCB005052751 V a l v e 1 6-72

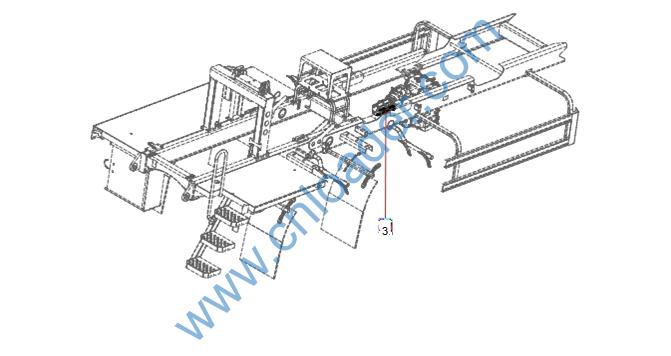

3 BCB005497904 Dual- gear Pump AS 1 6-90

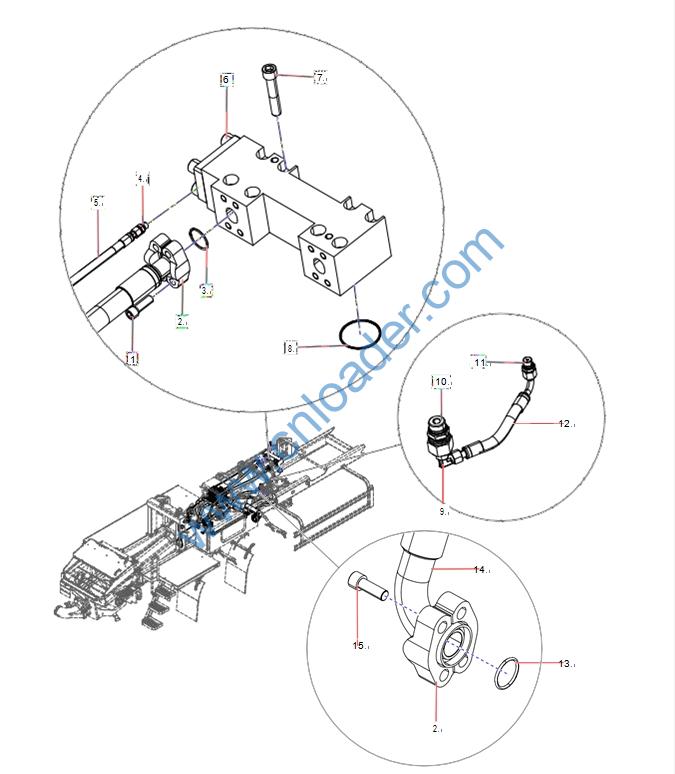

1 21005036 Screw 12
2 B210780000005 Split Flange 6
3 B230101000348 O-ring 3
4 B210780000036 Adapter Fitting 5
5 B230103003984 Hose 1
6 14139495 Connecting Valve GP 1 6-60
7 24004551 Screw 8
8 24002742 O-RING 2
9 B210780000636 Elbow Fitting 4
10 13300439 Oil Feeding Valve 4
11 A820205002338 Damping Joint 2
12 14373971 Hose 2
13 B230101002071 O-ring 6
14 15210-00992-1013997A Hose 2 09 19 1 2 09 19

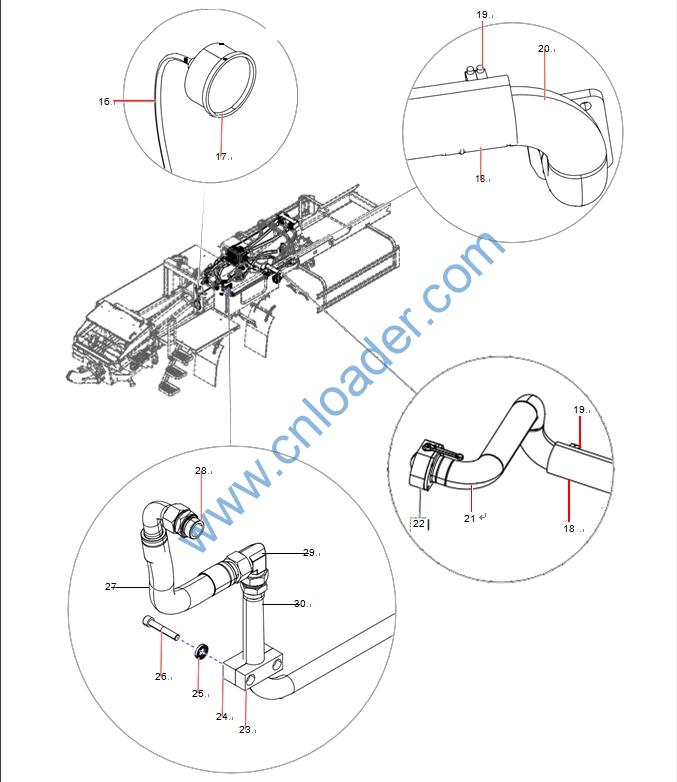

15 A210204000343 Screw 4
16 60240397 Manometric Hose 1
17 60228754 Pressure Gauge 1
18 13595754 Oil Suction Hose 1
19 A229900001659 T-type Clamp 4
20 BCB005590033 Oil Suction Pipe 1
21 BCB005590040 Oil Suction Pipe 1
22 13395982 Shutoff Valve 1
23 12127357 Lower Clamp 2
24 12127381 Upper Clamp 2
25 60023506 Washer 4
26 A210204000357 Screw 4
27 151008110163A Hose 1
28 B210780000052 Adapter Fitting 4
29 B2210-70890-00109838 Elbow Fitting 2 09 19 1 2 09 19
30 BCB005599024 Oil Tube 1
5 B230103003984 Hose 1
14 151009210397A Hose 1
16 60240397 Manometric Hose 1
30 BCB005599024 Oil Tube 1
31 14520545 Hose 1
32 23000678 Screw Plug 1
33 61008935 Main Valve GP 1 6-64
34 151009210398A Hose AS 2
35 21032658 60 Degree Taper Sleeve Joint 1
36 B210780000631 Tee Joint 1
37 B229900003722 Adapter Fitting 2
38 B210780000054 Adapter Fitting 1
39 151009110100A Hose 1
40 15210-009921-013999A Hose AS 2 09 19 2 2 09 19
41 151008110122A Hose 1

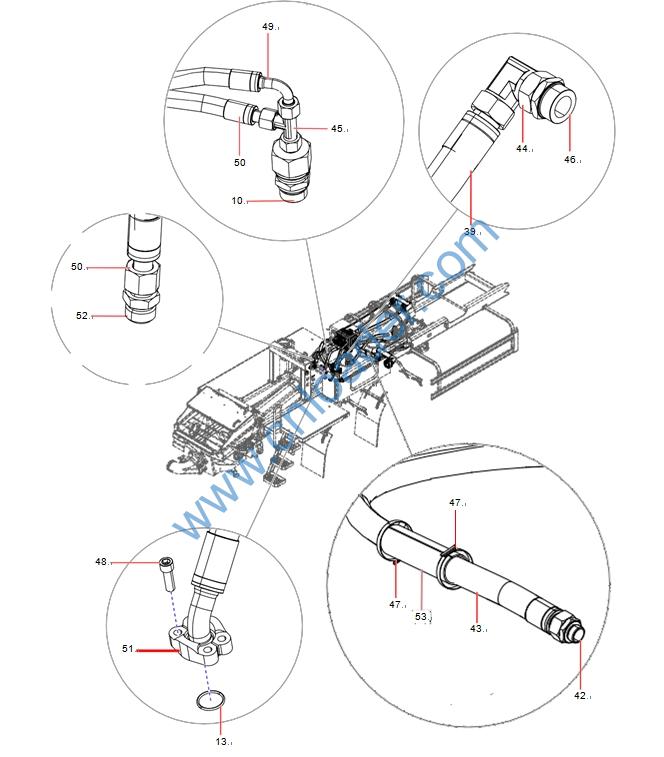

10 13300439 Oil Feeding Valve 4
13 B230101002071 O-ring 6
39 151009110100A Hose 1
42 60098746 Adapter Fitting 1
43 B230103002530 Hose 1
44 B210780000030 Elbow Fitting 1
45 B210780000015 Tee Joint 1
46 A229900008750 Adapter Fitting 1
47 A229900002966 Clamp 4
48 A210204000454 Screw 16
49 B230103003914 Hose AS 2
50 B230103003856 Hose AS 1
51 B210780000693 Split Flange 10
52 21008727 Fitting 1
53 13267524 Polyurethane Sleeve 2

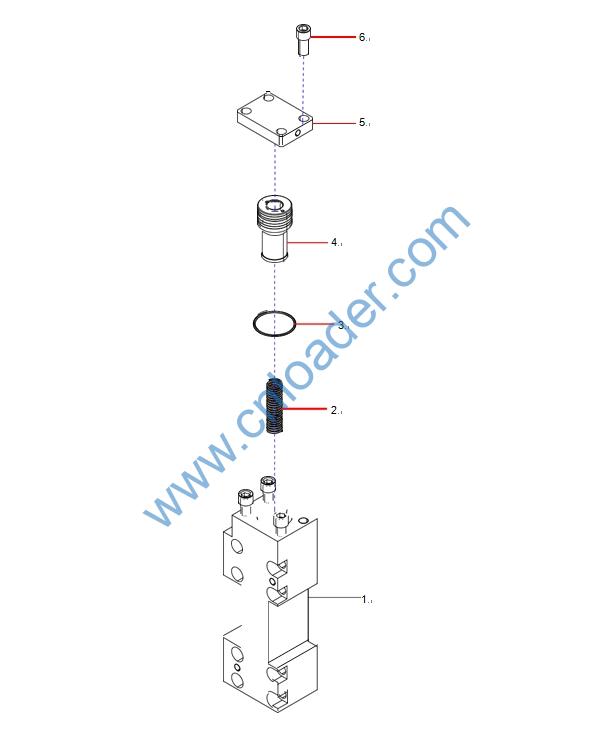

1 14139494 Cylinder Connection Valve Block 1
2 11696403 Check Valve Spring 1
3 A210609000321 O-RING 1
4 12004486 Check Valve Core AS 1 6-62
5 11706258 Check Valve Cover Plate 1
6 A210204000233 Screw 4
