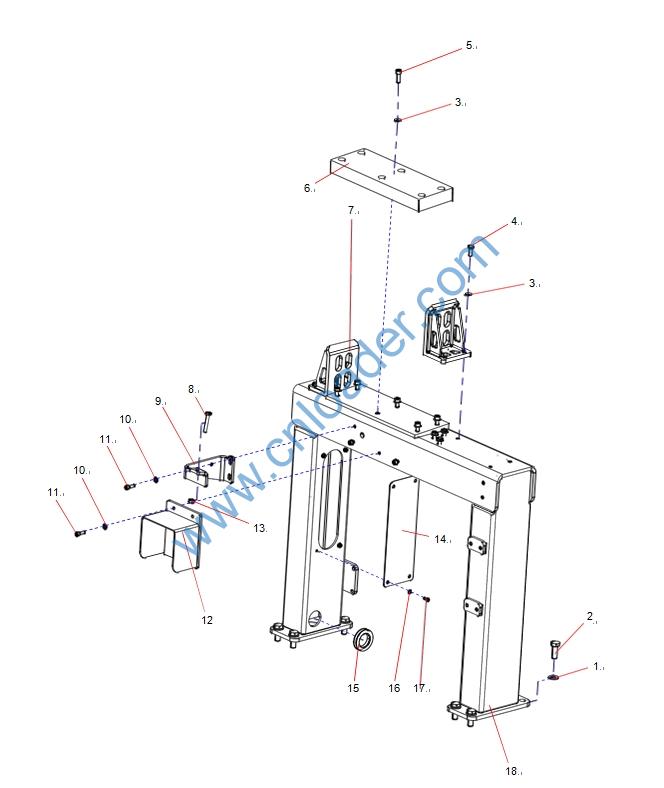

2 A210111000053 Bolt 8
3 A210405000011 Washer 14
4 A210111000197 Bolt 8
5 A210204000181 Screw 6
6 12642416 buffer pad 1
7 11763407 Positioning seat Sany yellow 2
11763407GC Positioning seat Yellow green
11763407WD Positioning seat Pure white
11763407HA Positioning seat Iron grey
11763407GD Positioning seat Pure green
8 A210111000030 Bolt 1
9 10940217 Travel switch bracket Sany yellow 1
20120924002917G1C9 Travel switch bracket Yellow green
10940217WD Travel switch bracket Pure white
10940217HA Travel switch bracket Iron grey
10 A210405000007 Washer 4
11 A210204000341 Screw 4
12 BCB004929665 Mounting Seat 1
13 A210307000017 Nut 1
14 10957681 Cover plate Sany yellow 1
10957681WD Cover plate Pure white
10957681GC Cover plate Yellow green
10957681HA Cover plate Iron grey
15 12351189 Boot 2
16 A210405000006 Washer 4
17 A2102040009129 Screw 4
18 BCB005050126 Main Support 1

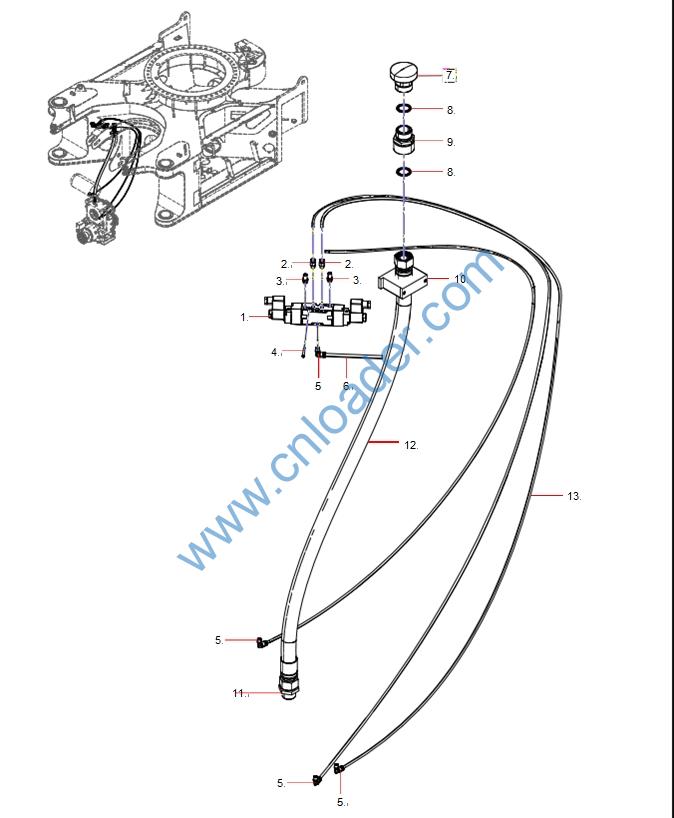

2 60249876 Quick Connection Thread 2
3 60249875 Muffler 2
4 A210210000028 Screw 4
5 60249877 L- type Quick Connection Thread 4
6 13522668 Air Pipe 1
7 12204324 Breathing Cover 1
8 A210434000013 Washer 2
9 A820204000066 Connector 1
10 B210851000056 Clamp 1
11 A820205001077 Oil Filling Pipe Joint 1
12 A230103000809 Hose 1
13 A230200000492 Plastic Protective Sleeve 3
2 152503010215A002 Plug 2

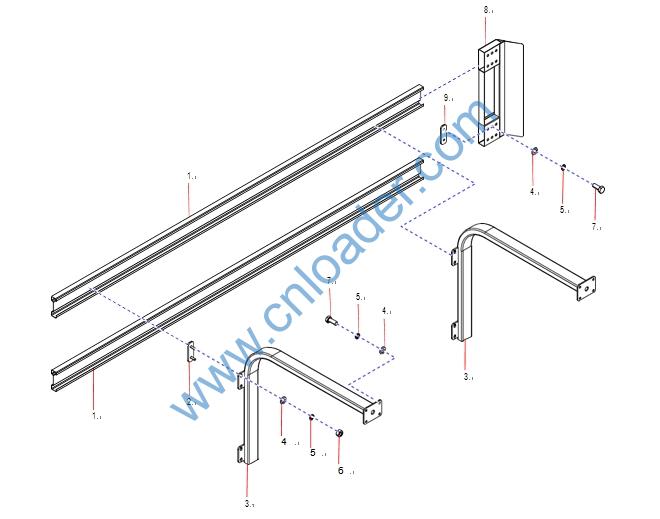

2 BCB004638621 Front Guard 1
3 13603219 support 2
4 A210405000007 Washer 16
5 A210401000017 Washer 16
6 A210307000012 Nut 8
7 14099775 mounting seat 4
8 A210111000089 Bolt 8

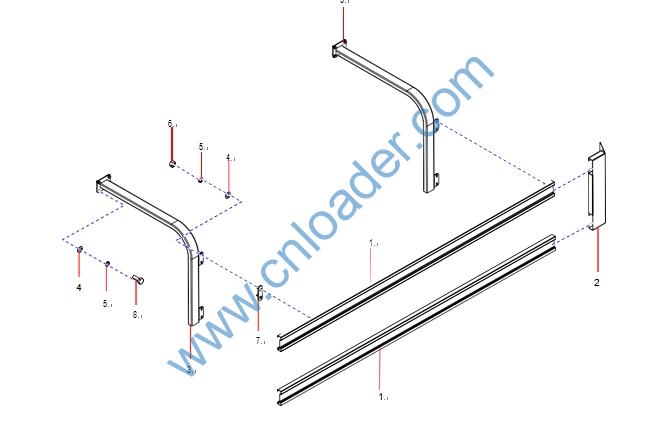

2 14099775 mounting seat 4
3 13603219 support 2
4 A210405000007 Washer 20
5 A210401000017 Washer 20
6 A210307000012 Nut 8
7 A210111000089 Bolt 12
8 BCB004637282 Front Guard 1
9 14431539 Mounting Seat 2

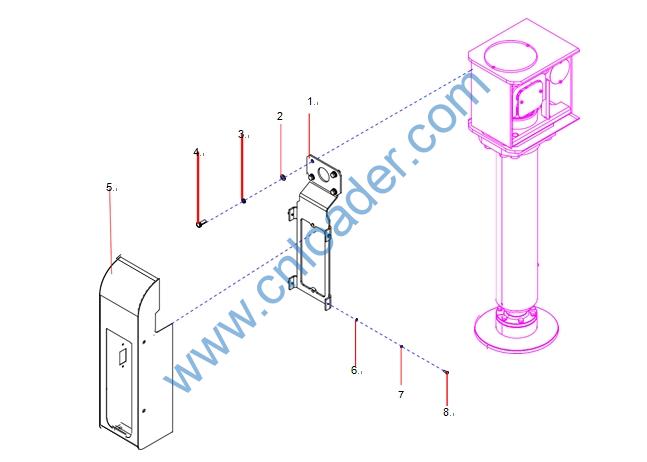

2 A210111000038 Bolt 4
3 A210401000002 Washer 4
4 A210405000001 Washer 4
5 14136896 Mounting plate 1
6 A210405000006 Washer 4
7 A210401000016 Washer 4
8 A210111000079 Bolt 4

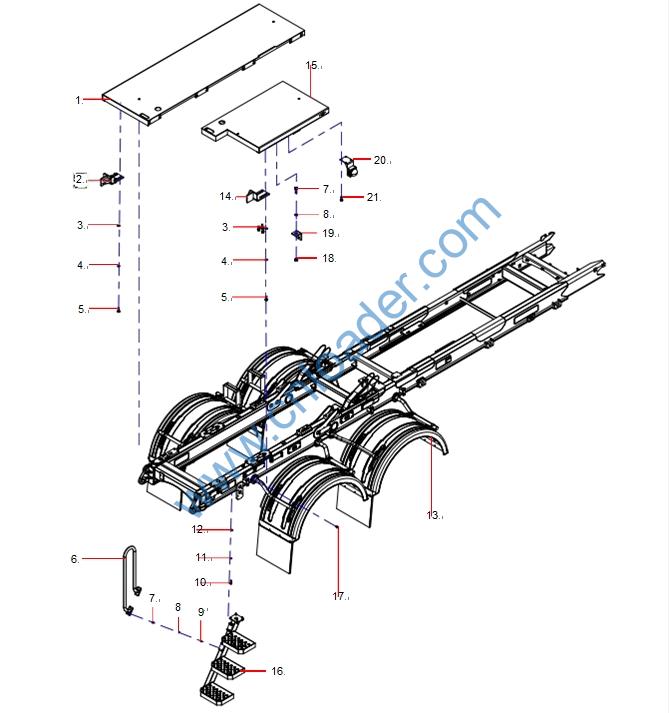

1 BCB005047166 Left Platform 1
2 13265249 Left Lock Plate Weldment GP 1
3 A210405000003 Washer 8
4 A210401000004 Washer 8
5 A210111000229 Bolt 8
6 13263337 Handrail 1
7 A210111000090 Bolt 8
8 A210401000017 Washer 8
9 A210405000007 Washer 8
10 A210111000204 Bolt 4
11 A210401000002 Washer 4
12 A210405000001 Washer 32
13 BCB005047167 Mudguard AS 1 5-26
14 1326-8795- Right Lock Plate Weldment GP 1
15 BCB005047171 Right Platform 1
16 BCB005264994 Right Steps 1 5-36
17 A210111000199 Bolt 28
18 A210307000012 Nut 1
19 BCB004932583 Mounting Seat, Horn 1
20 BCB005606599 Horn Button Seat 1
21 A210108000160 Bolt 1

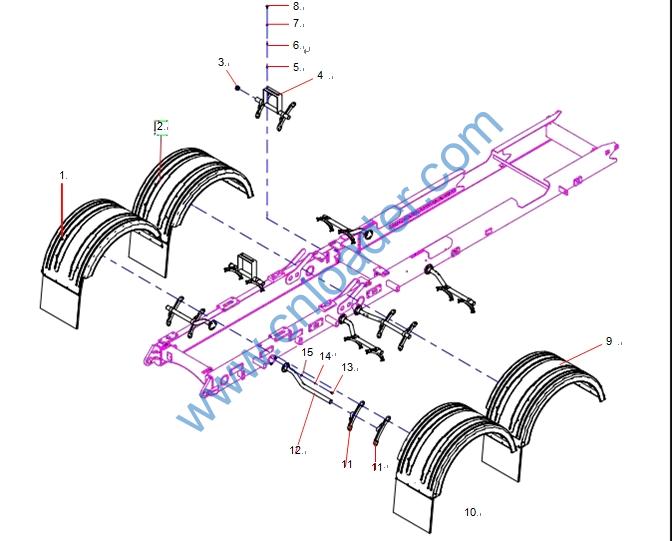

1 131299000022B Left Rear Mudguard AS
2 131299000023B Left Front Mudguard AS
3 168804000004A Plug
4 14412731 Mudguard Mounting Plate
5 A210307000012 Nut
6 A210401000017 Washer
7 A210405000007 2- Washer
8 60144481 Bolt
9 131299000021B Right Front Mudguard AS
10 131299000020B Right Rear Mudguard AS
11 A229900007244 Mudguard Adjustment Pressure Plate
12 60063102 Mudguard Bracket
13 A210111000011 Bolt
14 A2210-40091-00109001 Washer 2 09 19
15 A210405000011 Washer
2 131299000020B002 Splash Guard

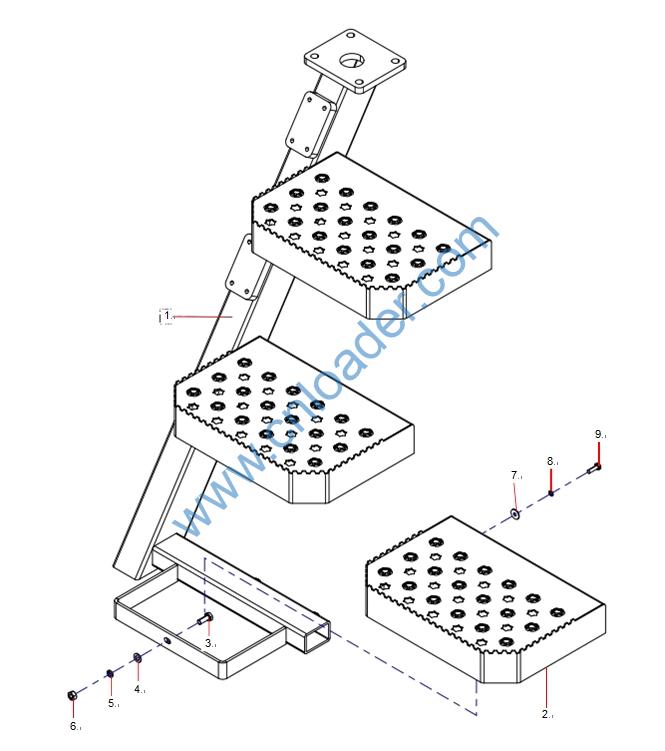

2 BCB005264027 Right Pedal 3
3 A210111000089 Bolt 3
4 A210405000007 Washer 3
5 A210401000017 Washer 3
6 A210307000012 Nut 3
7 A210404000009 Washer 9
8 A210401000016 Washer 9
9 A210111000080 Bolt 9
2 A210405000001 Washer 6
3 A210401000002 Washer 6
4 A210111000038 Bolt 6
5 14136901 Left Tail Lamp Cover 1
6 A210405000006 Washer 4
7 A210401000016 Washer 4
8 A210111000079 Bolt 4
