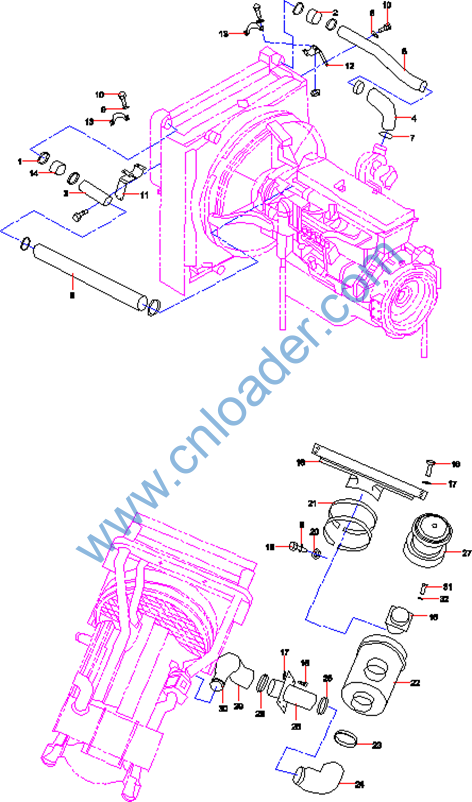

B229900001059 7 T型抱箍 Clamp
A820606030826 2 短胶管 Short rubber tube
12119618 1 中冷钢管 Intercooled steel tube
A820606030824 1 中冷进气胶管 Intercooled air-intake hose
13295570 1 中冷进气钢管 Inter-Cooler Intake Pipe
12119617 1 中冷排气胶管 Intercooled air-intake hose
A229900003759 1 T型抱箍 T-type Clamp φ81-φ90
A210491000120 10 垫圈 Washer
24000633 8 垫圈8GB97.1 达克锈 Washer
A210204000334 4 螺钉M10×16GB70.1 10.9级 Screw
A810102072216 1 固定架 Fixed frame
A810102072217 1 固定架 Fixed frame
A820101345946 2 管箍 Tube collar
13354676 1 短胶管 Short rubber tube
11856750 1 进气接管 Air inlet connecting tube
A210111000202 12 螺栓 Bolt
A210491000121 12 垫圈 Washer
11856353 1 空滤固定架 Fixed frame SY365C8I2KS.1.3.4.2
A210111000270 2 螺栓M10×90 GB5783 10.9级 Bolt
A210204000220 8 螺钉M8×20GB70.1 10.9级 Screw M8×20GB70.1 10.9
10131920 2 空滤卡箍 Clamp assembly
60125399 1 空气滤清器 Air filter
A229900002262 1 T型抱箍 Clamp, T-type
11856555 1 前进气胶管 Front air intake rubber hose
A229900002220 1 T型抱箍 Clamp
10120823 1 进气钢管 Air intake steel tube
A222100000384 1 空气预滤器 Air Precleaner
A229900002734 1 T型抱箍 Clamp φ140-φ149
10120819 1 后进气胶管 Rear air inlet rubber hose
A229900001659 1 T型抱箍 Clamp
60262508 4 螺栓M12×30GB5783 10.9级 锌镍 Bolt
60262511 4 垫圈12GB96.1 锌镍合金 Washer

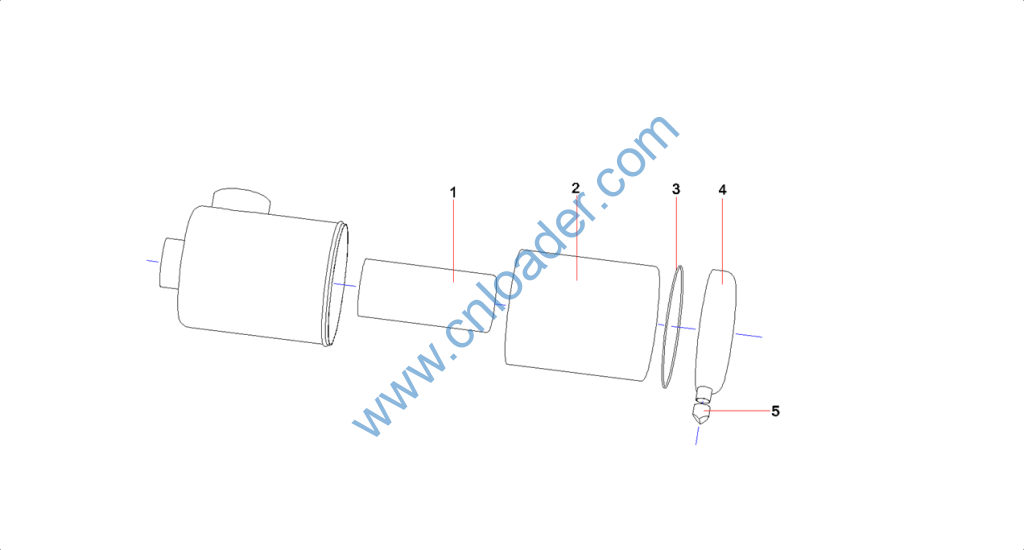

B222100000640 1 空气滤清器安全滤芯 Safety element,air filter
B222100000641 1 空气滤清器主滤芯 Main element,air filter
60176285 1 密封圈 Seal ring
60176264 1 盖 Cap
60176270 1 排尘阀 Valve,exhaust,dust

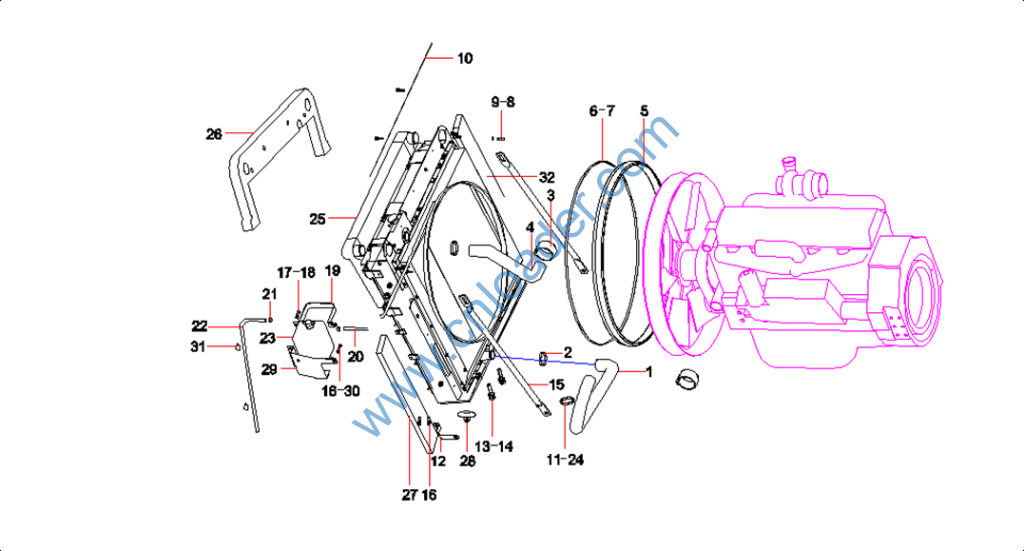

11944887 1 进水胶管 Oil-in rubber hose
60202886 1 喉箍 Clamp, T-type
60219321 3 喉箍φ58-φ71 W型内衬 Clamp, hose
12119616 1 回水胶管 Return rubber hose
A230199000044 1 橡胶罩 Cover, rubber
A229900004513 1 环箍 Clamp
A229900004514 1 锁扣 Locker
A210111000263 4 螺栓 Bolt
A210491000118 4 垫圈 Washer
A820606030560 2 密封条 Sealing strip
12016797 1 管夹 Pipe Clamp
12010877 1 板 plate
A210204000337 4 螺钉M12×30GB70.1 10.9级 Screw
60060548 8 垫圈12GB96.1 达克锈 Washer
A820301017054 2 支撑 Support
A210491000120 7 垫圈 Washer
A210204000220 2 螺钉M8×20GB70.1 10.9级 Screw M8×20GB70.1 10.9
24000633 2 垫圈8GB97.1 达克锈 Washer
A810102099060 1 支架 Bracket
A820606030367 1 软管 hose
A229900001345 3 软管环箍 Clamp
12957673 1 水管 hose
A229900001590 1 储液箱 Tank, coolant
A820606030450 1 护套 Grommet
60173254 1 散热器 Radiator
12259061 1 顶部海绵 Top sponge
11857942 1 左侧海绵 Left-hand sponge
11961759 11 扣钉 Cramp
A810102099162 1 支架 Bracket
A210111000012 7 螺栓 M10×20GB5783 10.9级 Bolt
60083322 2 线夹 Clamp
11858836 1 右侧海绵 Right-hand sponge

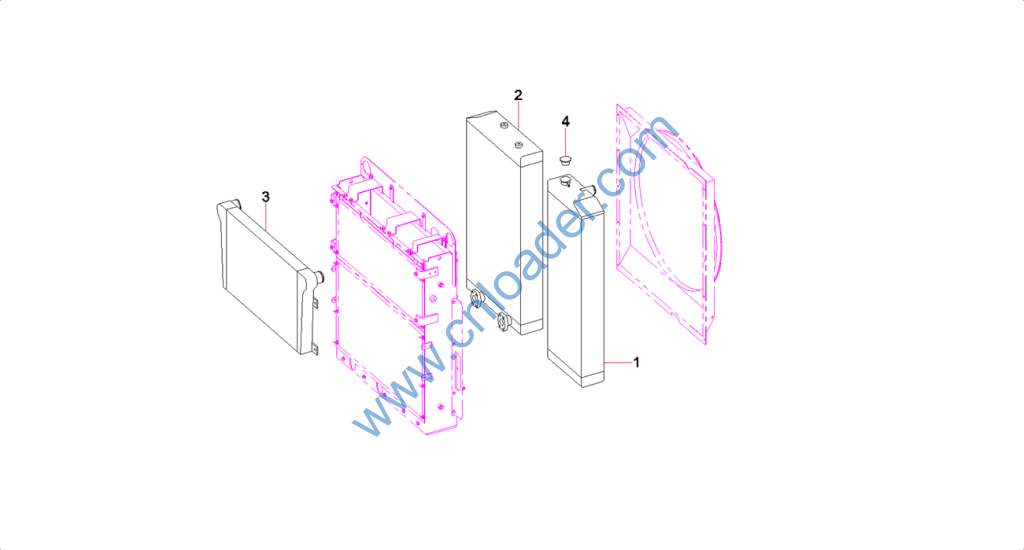

60180527 1 散热器 Radiator
60122956 1 散热器 Radiator
60122957 1 散热器 Radiator
60125365 1 水箱盖 Cap, coolant tank
A820606030837 1 引水胶管 Water Plastic Tube
A229900001347 1 软管环箍 Clamp
A810102079062 1 引水管 Tube

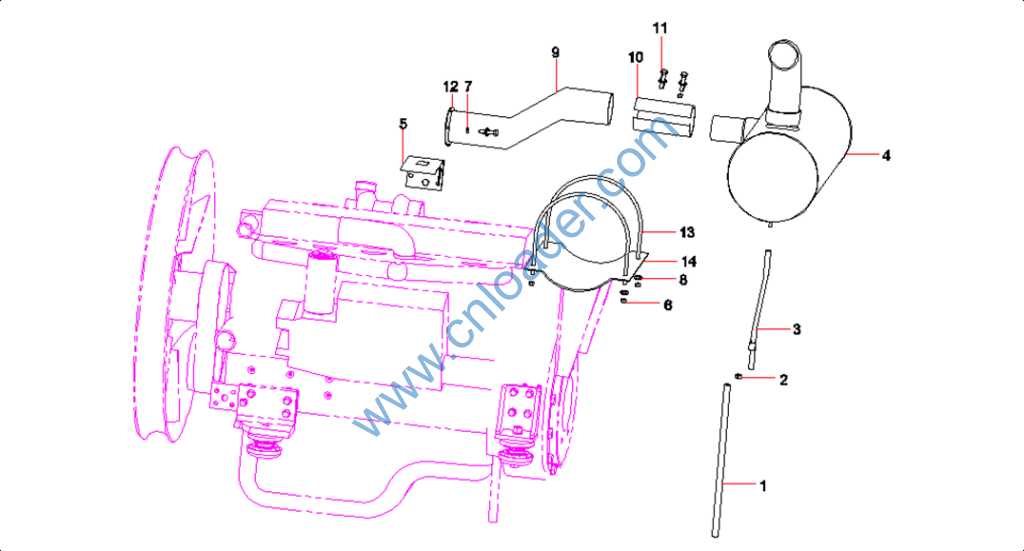

A220202000028 1 消声器总成 Muffler GP
A810102072198 1 隔热盖 Thermal insulation cover
A210307000036 6 螺母 Nut
A210346000007 4 螺母 Nut
A210491000120 10 垫圈 Washer
A810102071260 1 排气接管 exhaust assistant pipe
11761299 1 抱箍 Anchor Ear
21005186 2 螺栓 Bolt
60101678 1 垫圈 Washer
A820301017053 2 U型螺杆 U-type threaded rod
A810102072199 1 消音器支架 Silencer Bracket

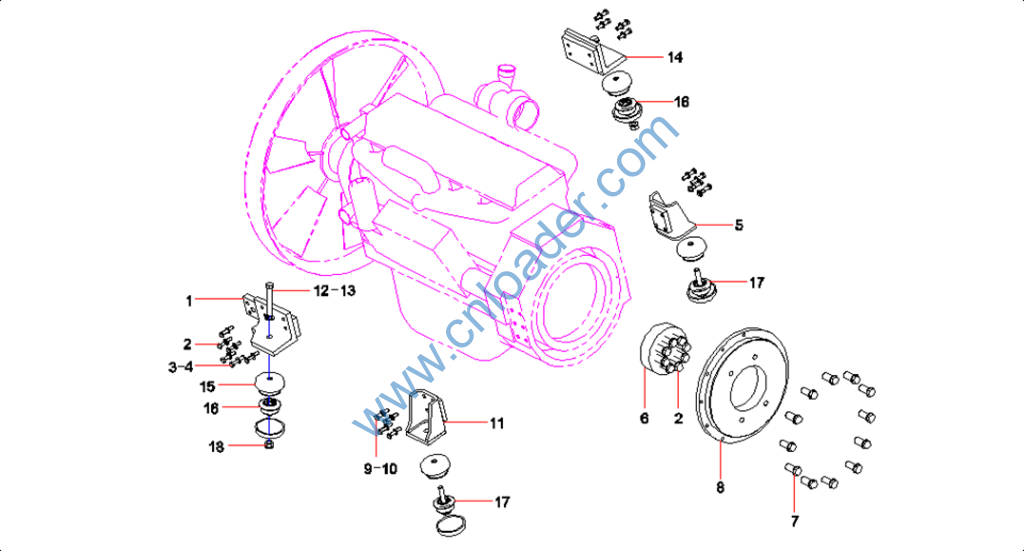

A810102060108 1 发动机支架 Engine support
A210111000026 6 螺栓 Bolt
A210110000447 8 螺栓M10×55GB5782 10.9级 Bolt M10×55GB5782
A210491000120 26 垫圈 Washer
A810102060111 1 发动机支架 Engine support
60051280 1 法兰联轴器 Coupler AS
A210111000120 12 螺栓M10×45GB5783 10.9级 Bolt
A820201001245 1 端盖 End cover SY310C1.1.3.1-1
A210110000009 8 螺栓 Bolt M12×50GB5782
A210491000121 8 垫圈 Washer
A810102060109 1 发动机支架 Engine support
A820301021297 4 螺栓 Bolt
A210491000144 8 垫圈 Washer
A810102060110 1 发动机支架 Engine support
A820101341529 8 碗垫 Coaster, Bowl
A230199000043 4 橡胶件 Cushion
A230199000042 4 橡胶件 Cushion
A820204000534 4 螺母 Nut
B222100000398 1 机油滤清器 Filter, engine oil
A820205000942 2 接头 Fitting
B210780000028 2 直角组合接头 Fitting, Elbow
A210204000477 2 螺钉M10×110GB70.1 10.9级 Screw
变更或见其他配置 7 垫圈10GB97.1 达克锈 Washer
变更或见其他配置 2 螺钉 Screw M10×140GB70.1
12020025 2 管夹 Pipe Clamp
A210111000199 7 螺栓M12×20GB5783 10.9级 Bolt M12×20GB5783 10.9
变更或见其他配置 7 垫圈12GB97.1 达克锈 Washer
60149606 3 线束固定夹 Clamp
11609465 2 接头 joint
B230101000356 2 O形圈 O-ring
60148699 1 机油胶管 Rubber Hose
60148700 1 机油胶管 Rubber Hose
12019940 1 软管 soft pipe
11348391 3 护孔环 Grommet
24000514 1 垫圈16GB93 达克锈 Washer
A210307000028 1 螺母 Nut
11331654 1 接头 Adapter
60046622 1 燃油开关 Switch, fuel
11273607 1 软管 Hose
12957788 1 燃油管 Oil-out tube of fuel tank
A210199000016 2 铰接螺栓 Bolt
A210459000002 4 垫圈 Washer
60018743 1 柴油滤清器 Filter, diesel fuel
A210204000355 2 螺钉M10×40GB70.1 10.9级 Screw
A210204000358 1 螺钉M10×80GB70.1 10.9级 Bolt
12786627 1 粗滤出油管 Oil-out tube of fuel tank
A210204000198 6 螺钉M16×35GB70.1 10.9级 Screw
A210491000118 6 垫圈 Washer
12931354 9 垫片 Gasket
60006362 1 铜垫圈 Washer, copper
11604207 1 放油阀接头 adapter
60006360 1 铜垫圈 Washer, copper
B220401000916 1 放油阀 Valve AS, drain
A229900001345 1 软管环箍 Clamp
A820606030088 1 粗滤水管 Coarse Water filter tube-
A210855000003 7 喉箍 Clamp
A229900001347 1 软管环箍 Clamp
12213205 1 放油管 Oil drain
| 12957641 | 1 | 燃油管 fuel return tube SY200B.1.3A.5-2C |

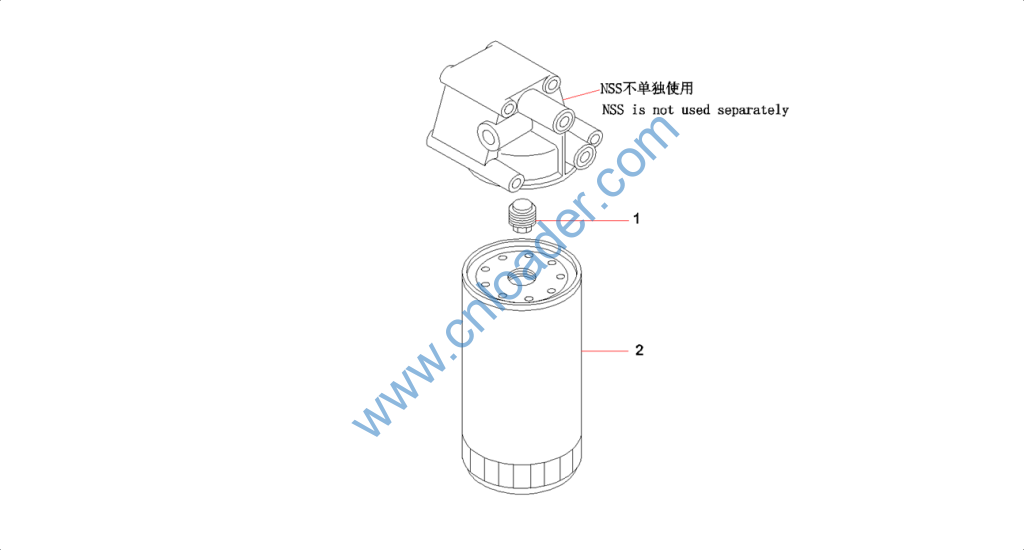

B229900004781 1 连接螺塞 Plug, Connecting

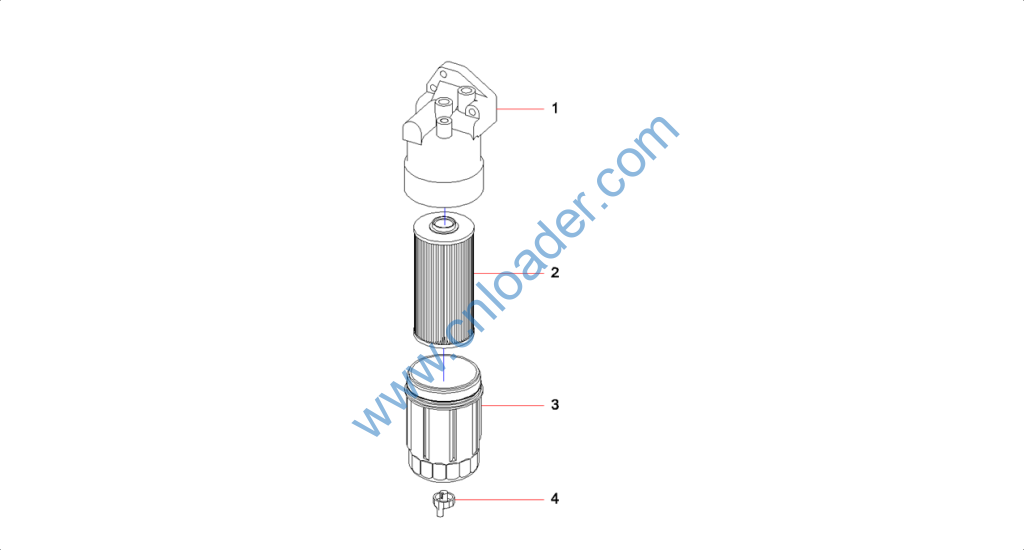

B222100000494 1 机油滤清器 Filter,oil
60078250 1 座 Fuel Filter Seat
60201220 1 燃油粗滤芯 Fuel Strainer Element
60180565 1 集水杯 Water Cup
60078244 1 塞 Plug

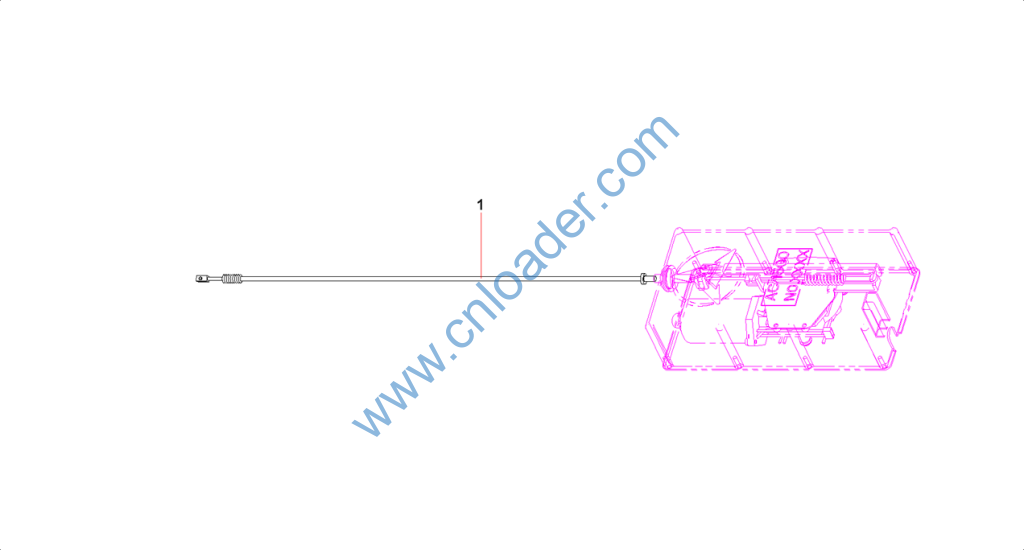

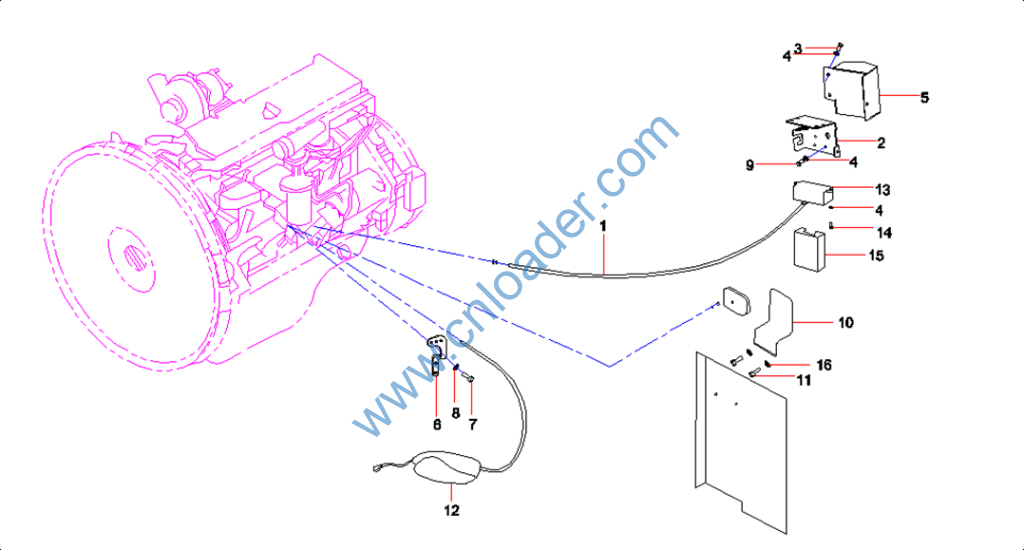

60240318 1 推拉软轴 Sliding soft shaft
13134903 1 马达支架 motor
A210204000196 3 螺钉 Screw
A210491000120 10 垫圈 Washer
13134718 1 防水罩 waterproof
11626828 1 油门电机拐臂 Throttle connecting lever
A210204000220 1 螺钉M8×20GB70.1 10.9级 Screw M8×20GB70.1 10.9
24000633 1 垫圈8GB97.1 达克锈 Washer
A210111000012 4 螺栓 M10×20GB5783 10.9级 Bolt
10145126 1 停止器支架 Stopper support
A210111000092 2 螺栓 Bolt
B229900002662 1 电机Z0.06-24-3带拉线 Stopper GP, electric
60099069 1 电机TB0.25-24-1.5步进角1.8度 Motor,throttle
A210204000357 3 螺钉M10×60GB70.1 10.9级 Bolt
13161805 1 护套 Protective sleeve
60060565 4 垫圈8GB96.1 达克锈 Washer
B241300000086 1 电缆 Cable
