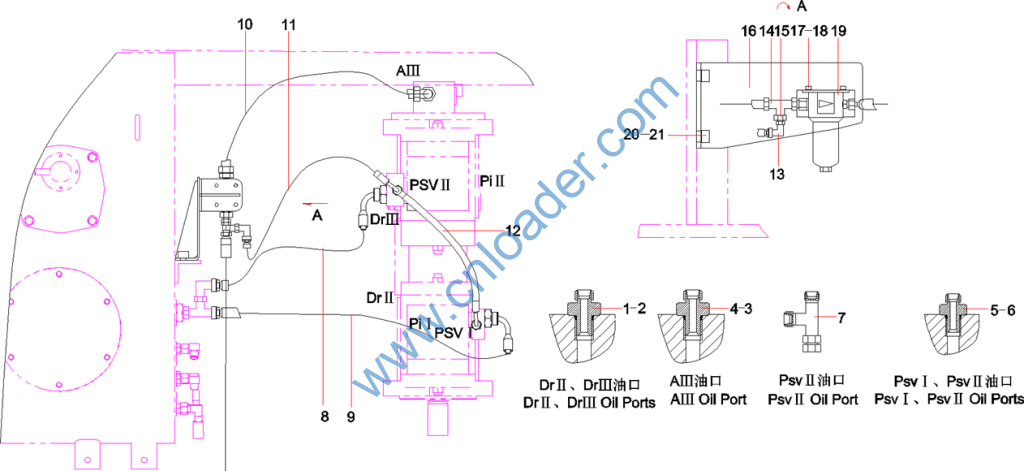

A820205000942 2 接头 Fitting
B230101000356 2 O形圈 O-ring
A820205000941 1 接头 Connector, straight
B230101000090 1 O形圈 O-ring
A820205000940 2 接头 Fitting
B230101000047 2 O形圈 O-ring
B210780000170 1 管接头 Fitting
B230103001239 1 胶管 Rubber hose
B230103002446 1 胶管 Hydraulic Hose Assembly
21033030 1 胶管 Hydraulic Hose Assembly2SN10-
A831213035000 1 胶管 Rubber hose
21018549 1 胶管 Rubber Hose
B210780000418 2 管接头 Fitting
B210780000016 1 三通组合L型接头 Fitting, tee
B210780000827 1 管接头 Fitting
11213443 1 先导滤支架 Pilot filter bracket
24000511 4 垫圈8GB93 达克锈 Washer
A210204000340 4 螺钉M8×16GB70.1 10.9级 Bolt, socket head

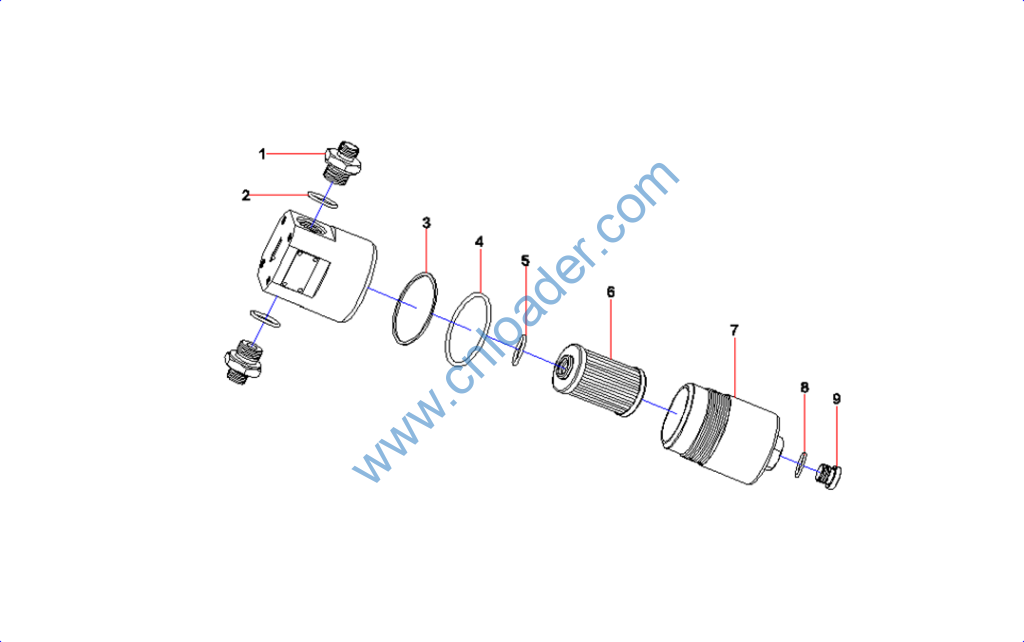

B229900000063 1 液压油过滤器 Filter, pilot AS
23000066 2 螺钉 Screw
A210491000120 2 垫圈 Washer
60294881 2 管接头 Fitting
29010015 2 O形圈 O-ring
60294882 1 密封垫 Ring, back up
A230101000563 1 O形密封圈 O-ring
24002612 1 O形圈 O-ring
A222100000119 1 先导滤芯 Filter, pilot
60294883 1 壳体 Housing
21000077 1 O形圈 O-ring
60294884 1 螺塞 Plug

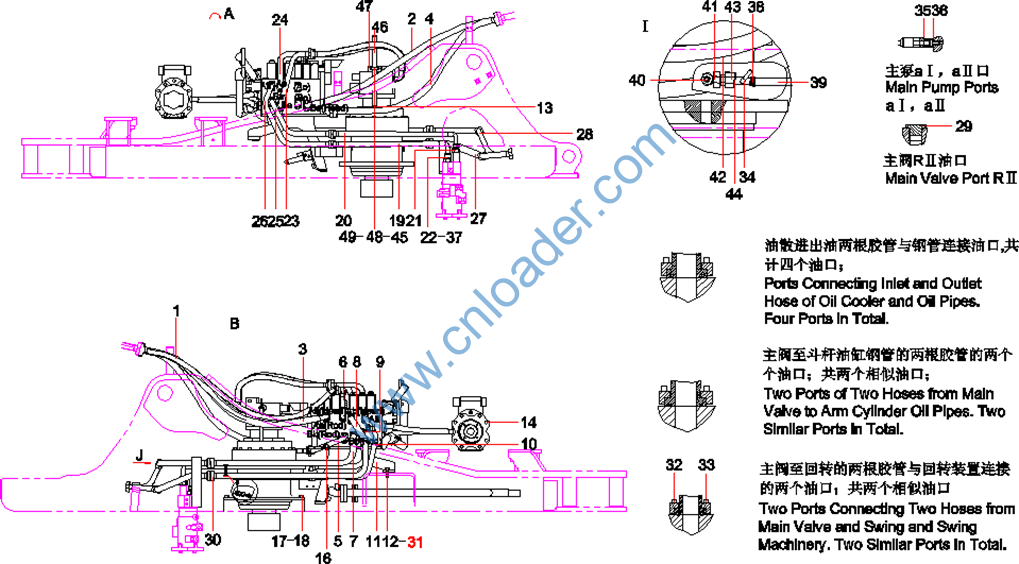

B230103003077 4 胶管 Hydraulic Hose Assembly
A210204000462 40 螺钉M12×45GB70.1 10.9级 Bolt
A820101316503 1 板 Plate
A820101310467 2 管夹 pipe nip
60043410 1 减速机总成 Assembly, Reducer
60066856 2 胶管 Rubber Hose
60318593 1 多路阀 Multi-port valve
13313343 1 液压油箱 Hydraulic oil tank
60019354 1 胶管
60185366 1 胶管
60100129 1 柱塞泵 Pump, plunger
11807063 1 油散出油钢管总成 Oil radiation oil-in tube ASS‘Y_2
12721525 1 油散进油钢管总成 Oil radiation oil-in pipe
10741295 1 过渡块 Transitional blockSY215C9M2K.1.2
11502760 1 盖板 Cover Plate
A210204000312 2 螺钉M16×55GB70.1 10.9级 Screw
A820301017131 3 U型螺栓 U type bolt
A210307000031 28 螺母M12GB6170 10级 Nut
B230101000366 5 O形圈 O-ring
B230101000050 3 O形圈 O-ring
A229900004566 3 管夹 Clamp, pipe
A210491000121 61 垫圈 Washer
A210204000215 50 螺钉M10×35GB70.1 10.9级 Screw
11285265 1 管夹 Clamp
A820205000945 1 G1-M30接头 Connector
B230103000639 1 胶管 Hose Assembly
11806953 1 油散出油钢管总成 Oil radiation oil-in tube ASS‘Y_1
11530825 2 板 plate
12254307 1 油散进油钢管总成 Oil radiation oil-in tube
60086354 1 线束固定夹 Clamp
60205580 1 单向阀 Valve, check
60205581 1 单向阀 Valve, check
B229900000686 1 黄油嘴 Fitting, grease
21053860 1 胶管 Hose AS
A820205002483 1 PT1/4-M14过渡接头 Fitting
A210111000199 1 螺栓M12×20GB5783 10.9级 Bolt M12×20GB5783 10.9
A210307000036 14 螺母 Nut
A820301013877 7 U型螺栓 U type bolt
60128286 1 胶管 Rubber Hose
60156182 1 胶管 RubberHose
60128287 1 胶管 Rubber Hose
60068054 1 胶管 Rubber Hose

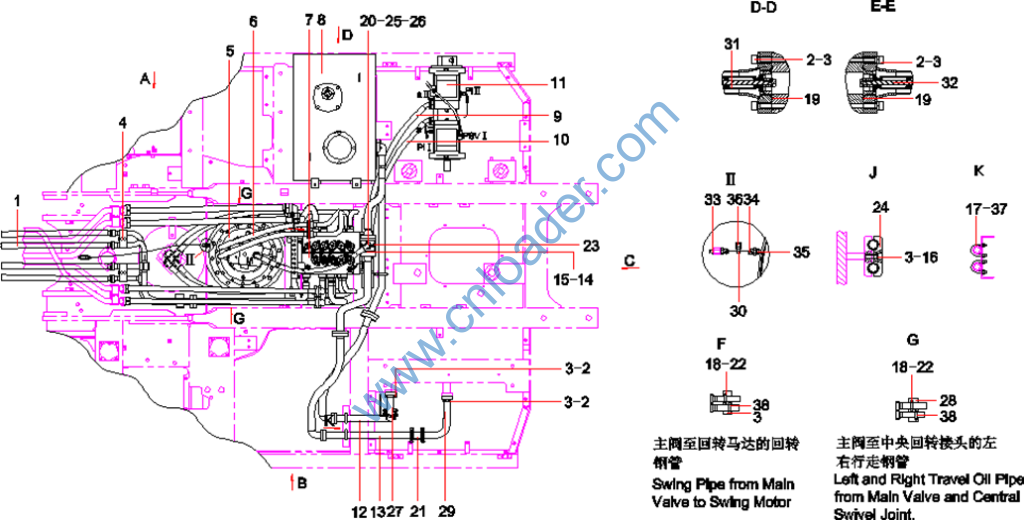

11873872 1 铲斗钢管总成(下) steel tube assem
11873498 1 铲斗钢管总成(上) steel tube assem
12256600 1 动臂钢管总成(下) Movable boom steel tube assembly
12256585 1 动臂钢管总成(上) Movable boom steel tube assembly
12256728 1 行走钢管总成(左下) Steel Pipe Assy.(Left
12256704 1 行走钢管总成(左上) Travel Steel Pipe
13824570 1 主阀架 Main Valve Frame
A210111000212 3 螺栓M16×35GB5783 10.9级 Bolt
A820205002352 1 G3/4-M36接头 Connector
A210204000348 4 螺钉M20×65GB70.1 10.9级 Screw M20×65GB70.1 10.9
A210204000338 4 螺钉M12×40GB70.1 10.9级 Hose AS
A210111000321 14 螺栓M24×80GB5783 10.9级 Bolt M24×80GB5783 10.9-grade
A210491000122 14 垫圈 Washer
60041731 2 胶管 Rubber Hose
B230103003073 2 胶管 Hydraulic Hose Assembly
A820205001355 2 M33-M42加长接头 Lengthening adaptor
A820205001356 2 M33-M42接头 Connector
12256640 1 回转钢管总成(下) Steel tube assembly of removing
12256614 1 回转钢管总成(上) Steel tube assembly of removing
12256776 1 行走钢管总成(右下) Steel Pipe Assy.(Rigth
12256741 1 行走钢管总成(右上) Steel Pipe Assy.(Right
13236241 1 动臂钢管总成(平台下) Boom steel tube (down)
13235955 1 动臂钢管总成(平台上) Boom steel tube assm (upper
变更或见其他配置 2 G1堵头 G1 plug
B230101000578 2 O形圈 O-ring
A210491000118 6 垫圈 Washer
A210204000354 96 螺钉 M10×30GB70.1 10.9级 Screw
B210780000696 4 对开法兰 Flange, split
B220401000916 1 放油阀 Valve AS, drain
B230101000047 2 O形圈 O-ring
A820205001513 2 G1/4-G3/8接头 Connector
A210609000136 4 O形圈 O-ring
A229900001347 1 软管环箍 Clamp
11215160 1 放油软管 pipe joint
A820205002283 1 接头 Fitting
B210780000024 1 直角组合接头 Fitting, Elbow EWLM18
B210780001426 1 管接头 Fitting
10137010 1 接头 Fitting
60006360 1 铜垫圈 Washer, copper
60060546 2 垫圈10GB96.1 达克锈 Washer
13186700 1 33T呼吸管总成 motor oil filler pipe
13186699 1 33T固定支撑板 plate
11160698 1 U型螺栓 U type bolt
60263201 1 通气帽 Cap, breather
24000632 4 垫圈6GB97.1 达克锈 Washer
A210204000198 10 螺钉M16×35GB70.1 10.9级 Screw
B230101000039 1 O形圈 O-ring

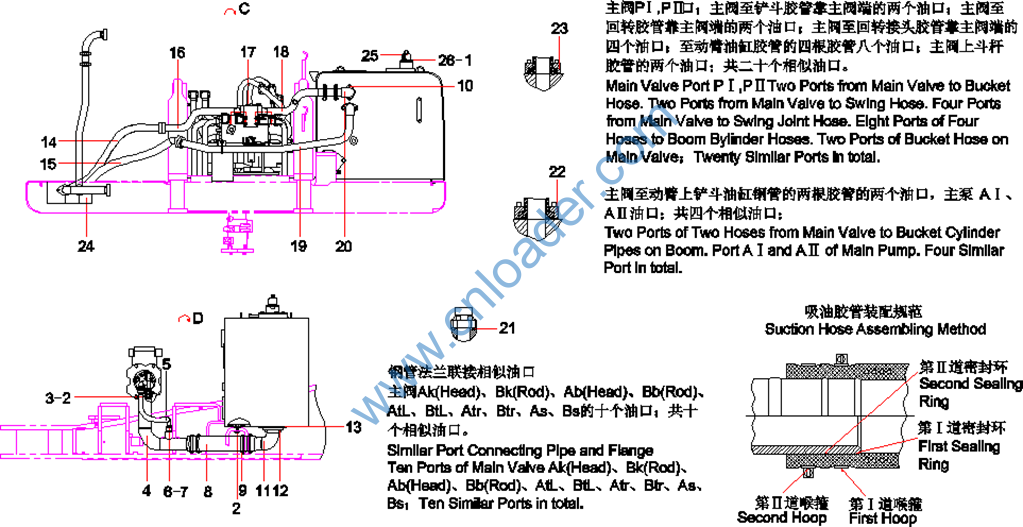

11216188 1 主泵吸油管 Main Pump Oil Suction Tube
A832713060000 1 胶管 Hose Assembly
A820205000942 2 接头 Fitting
B230101000356 2 O形圈 O-ring
A820606030534 1 吸油胶管 Hose, oil suction SY300A.1.2-2A
60250343 4 T型抱箍φ104.8-φ112.7 带弹簧 Clamp, hose
A210204000337 4 螺钉M12×30GB70.1 10.9级 Screw
11216198 1 油箱吸油管 Oil tank oil suction tube
A210204000206 4 螺钉M12×35GB70.1 10.9级 Screw M12×35GB70.1 10.9
A210609000003 1 O形圈 O-ring
A810201024317 1 油散进油胶管总成 Oil radiation oil-in rubber hose
A810201024318 1 油散出油胶管总成 Hose AS, oil outlet
11404632 1 回油钢管总成 Oil Return Steel Pipe
A210204000464 4 螺钉M12×90GB70.1 10.9级 Bolt, socket head
11404630 1 旁通回油管 By-pass oil return pipe
11502762 1 回油管 Return Tube
A810201024112 1 回油管 Return Tube
B230101000456 10 O形圈 O-ring
B210780000004 4 对开法兰 Flange, split
B210780000244 40 对开法兰 Flange, split
11328553 1 密封海绵 Sealing sponge
60129702 1 呼吸阀 Valve, breather AS
60249819 4 螺钉M6×16GB70.1 10.9级 Bolt

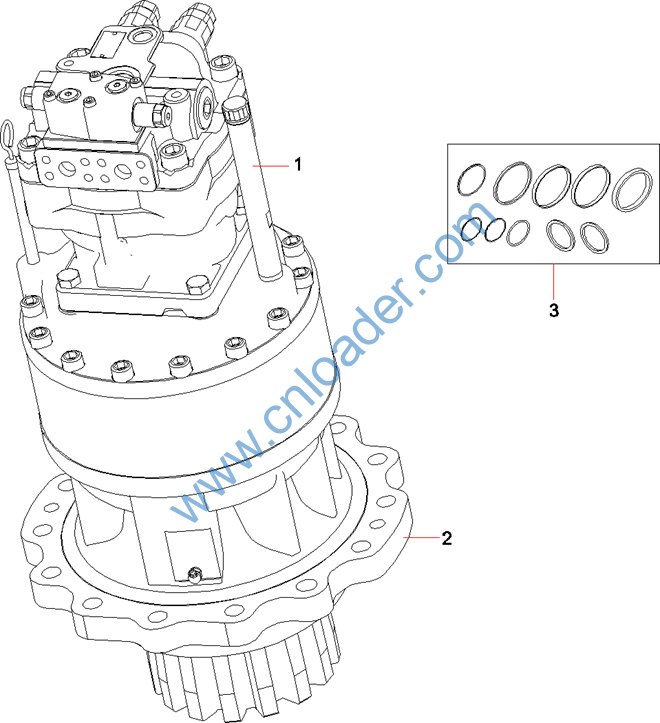

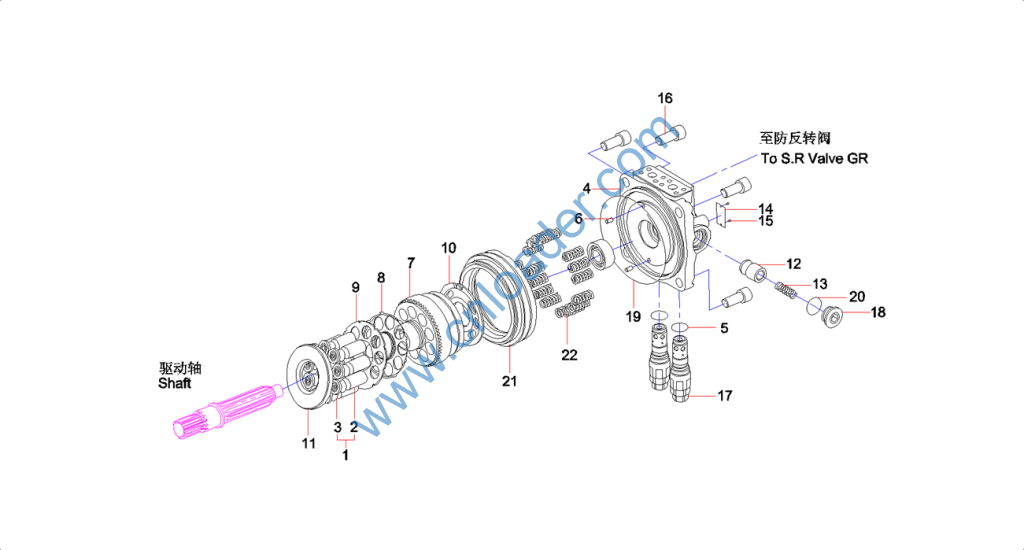

60180837 1 回转马达 Rotary motor
60042755 1 减速机 Gearbox
60204228 1 回转机构维修包 Bag, maintenance, slewing
60081480 1 座 Seat
60039294 1 油密封 Seal, oil
60039425 1 O形圈 O-ring
60039426 1 O形圈 O-ring
B229900003195 3 30T回转制动主动片 Driven piece, swing brake
B229900003194 4 30T回转制动从动片 Driven piece, swing brake
B220401000688 1 回转马达延时阀 Valve,brake,delay
60038566 3 内六角螺栓 Screw, socket head
60081466 1 驱动轴 Shaft, drive
60081457 1 活塞组件 Piston GP
60039347 9 活塞 Piston
60081408 9 滑靴 Slipper
60039358 1 壳体总成 Assembly, housing
60038721 2 O形圈 O-ring
60039385 2 销 Pin
60039338 1 缸体 Cylinder block
60039322 1 弹簧座 Seat, spring
60039382 1 托架 Bracket
60039375 1 配油盘 Tray, oil distribution
60039336 1 阀座 Seat, valve
60039351 2 活塞 Piston
60081437 2 弹簧 Spring
60038547 1 铭牌 Nameplate
60038620 2 销子 Pin
60039367 4 内六角螺钉 Screw, socket head
60110639 2 回转马达溢流阀芯 Spool, relief valve, swing motor
60039401 2 油塞 Plug, oil
60039429 1 O形圈 O-ring
60039423 2 O形圈 O-ring
60039406 1 制动活塞 Piston, braking
60039405 16 制动弹簧 Spring, retarding
B220401000687 1 回转马达防摆阀 Valve, anti-rebound, swing motor
60008793 1 机体 Valve, body
60008711 2 堵 Plug
60038711 2 O形圈 O-ring
60039420 2 O形圈 O-ring
60039424 2 O形圈 O-ring
60039369 4 内六角螺钉 Screw, socket head
60008753 2 防反转阀 Valve, anit-rebound
60038715 2 O形圈 Ring, seal
60039404 2 支承圈 Ring, supporting
