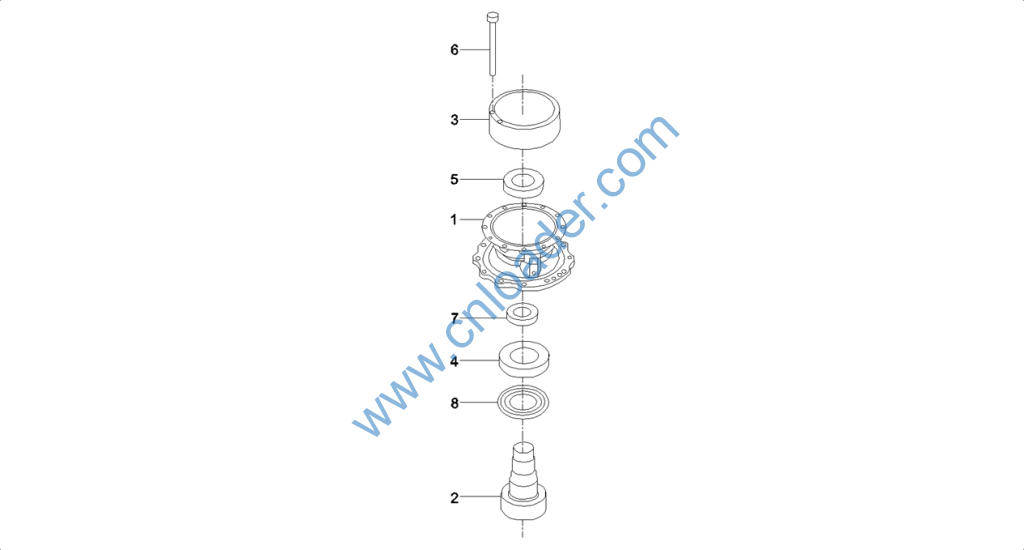

60110640 1 壳体 Housing
60110641 1 驱动轴 Shaft, drive
60081432 1 齿圈 Ring, gear
60039303 1 圆柱滚珠轴承 Bearing, ball, cylindrical
60039302 1 圆柱滚珠轴承 Bearing, ball, cylindrical
60081464 16 内六角螺钉 Bolt
60081495 1 油封 Seal, oil
60081496 1 轴承密封件 Seal, bearing

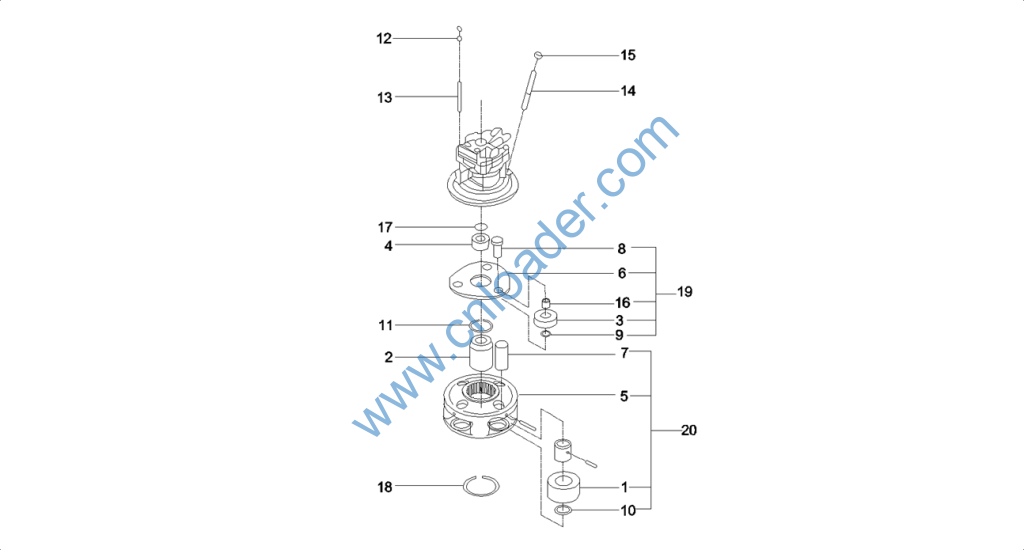

60081427 4 2号行星齿轮 Gear, planetary, No. 2
60081426 1 2号太阳齿轮 Gear, sun, No. 2
60081429 3 一级行星轮 Gear, planetary, first level
60081425 1 1号太阳齿轮 Gear, sun, No. 1
60081431 1 2号支架 Bracket, No. 2
60081469 1 一级行星架 Carrier, planetary, first level
60081428 4 二级行星轮组件 Gear GP, planetary, secondary
60081470 3 一级行星轮轴 Shaft, planetary gear, first level
60081403 3 垫 Gasket
60081430 4 2号行星齿轮垫片 Gasket, No. 2 planetary gear
60081404 1 垫 Gasket
60081471 1 油尺 Gauge, oil
60081472 1 油尺外管 Tube, oil gauge
60008615 1 加油管 Tube, fill
B229900002437 1 呼吸管盖 Cap, breather
60081476 3 轴套 Sleeve, shaft
60064417 1 1号太阳齿轮卡环 Gear, sun
60081447 1 弹性挡圈 Ring, snap
60331158 1 一级行星架组件 Component
60331159 1 二级行星架组件 Component
60150693 5 弹簧 Spring
60008770 1 弹簧 Spring
60081441 5 弹簧 Spring

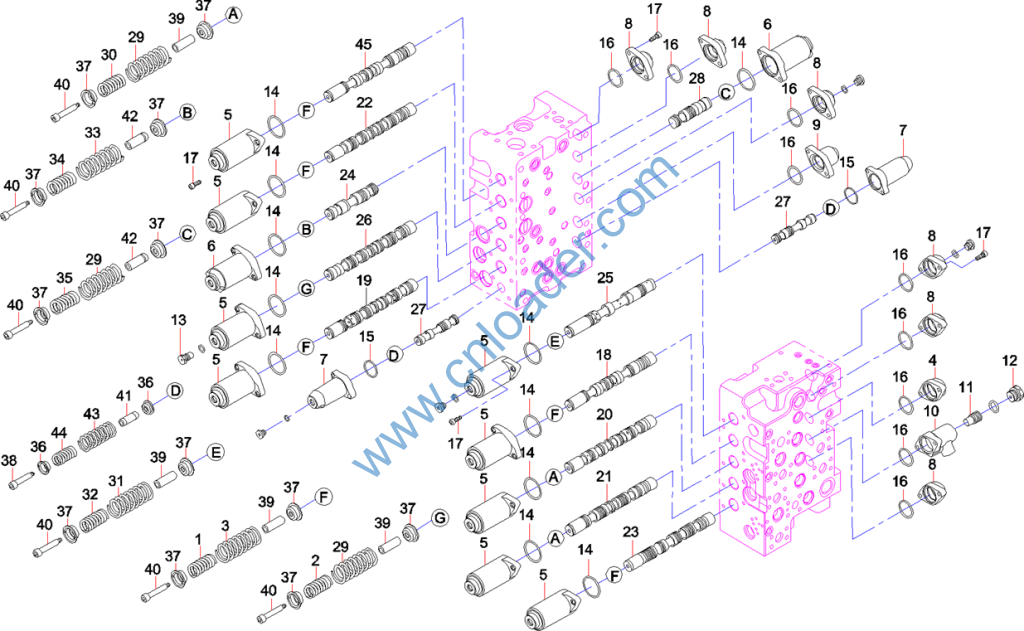

60150678 1 盖 Cover Spool
60100505 9 弹簧盖 Cap, pilot
60100506 2 弹簧盖 Cap, pilot
60100507 2 弹簧盖 Cap, pilot
60008789 6 盖 Cap
60008790 1 盖 Cap
60100469 1 盖 Cap
60100509 1 活塞 Spool
60100468 1 堵 Plug
60100466 1 堵 Plug
60100514 11 O形圈 O-ring
60008821 2 O形圈 O-ring
60050051 9 O形圈 O-ring
60008721 44 内六角螺钉 Bolt, socket head
60150691 1 左行走阀芯 Sub-Ass’Y Travel Spool
60150682 1 斗杆阀芯 Sub-Ass’Y Arm1 Spool
60150680 1 动臂阀芯 Sub-Ass’Y Boom1 Spool
60221775 1 铲斗阀芯 Spool bucket
60150685 1 回转阀芯 Spool Swing
60150683 1 斗杆阀芯 Spool Arm2
60150681 1 动臂阀芯 Spool Boom2
60150689 1 直线行走阀芯 Sub-Ass’Y Straight Travel Spool
60100473 1 备用阀芯 Spool, valve, service valve
60150687 2 液压切断阀 Spool Bypass-Cut
60150686 1 回转优先阀 Spool Swing Priority
60008769 4 弹簧 Spring
60081442 2 弹簧 Spring
60100502 1 弹簧 Spring
60100503 1 弹簧 Spring
60008771 1 弹簧 Spring
60150692 1 弹簧 Spring
60039319 1 弹簧 Spring
60008825 4 座 Seat
60008823 22 座 Seat
60038528 2 螺栓 Bolt, socket head
60008818 9 挡圈 Ring, retaining
60008819 11 螺柱 Bolt, socket head
60100508 2 挡圈 Ring, retaining
60008801 2 挡圈 Ring, retaining
60150695 2 弹簧 Spring
60150694 2 弹簧 Spring
60150688 1 右行走阀芯 Spool Travel
60008711 4 堵 Plug
60100489 2 节流阀 Valve, throttle
60008713 6 堵 Plug
60100465 2 堵 Plug
60008717 8 螺栓 Bolt, socket head
60008697 4 O形圈 O-ring
60008722 2 铆钉 Rivet
60008700 7 O形圈 O-ring
60100511 1 铭牌 Nameplate
60100516 2 O形圈 O-ring

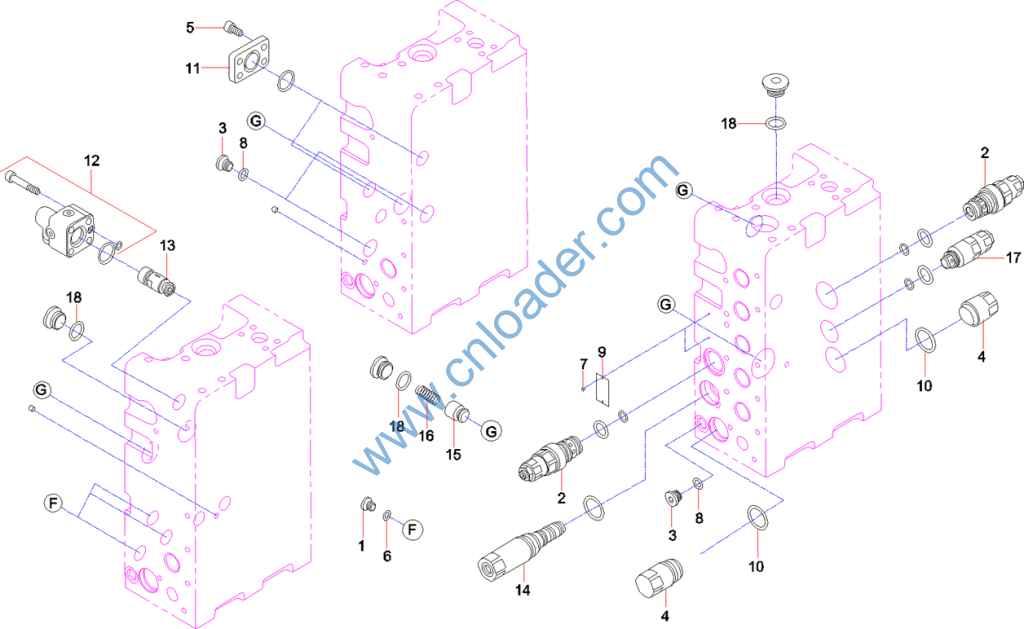

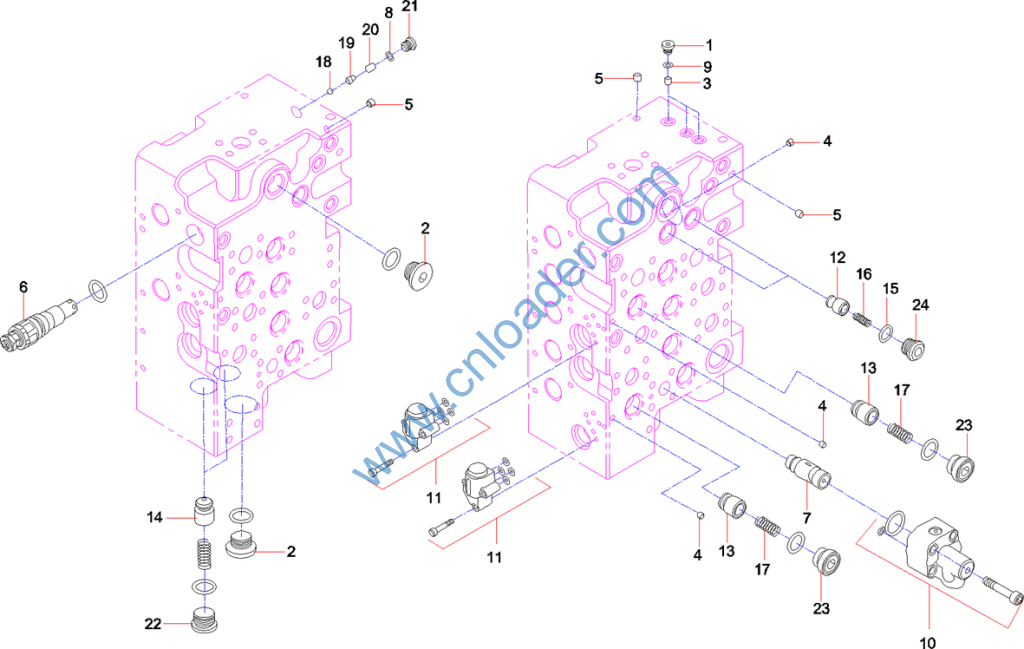

60008781 2 法兰 Cap, flanged
60100494 1 逻辑阀 Bolt, socket head
60221776 1 逻辑阀 Assy logic poppet
60100484 1 斗杆再生阀 Valve, arm regeneration
60008783 8 单向阀 Valve, check
60008817 10 弹簧 Spring
60100491 6 节流阀 Valve, throttle
60008705 17 O形圈 O-ring
60100467 3 堵 Plug
60008712 3 堵 Plug
60100492 3 节流阀 Valve, relief
60008728 5 紧定螺钉 Screw, set
60008820 3 堵 Plug
60150690 1 主溢流阀 Ass’Y Main Relief Valve
60105087 1 BP阀芯 Spool,BP valve
60008696 1 O形圈 O-ring
60008708 4 O形圈 O-ring
60105086 1 BP阀体 Body,BP valve
60100493 2 控制阀组件 Valve GP, control
60038108 2 提升阀 Valve, lift
60008784 2 单向阀 Valve, check
60100475 2 单向阀 Valve, check
60008703 2 O形圈 O-ring
60100504 2 弹簧 Spring
60008765 2 弹簧 Spring
60075545 1 球 Ball
60075575 1 节流阀 Seat, ball
60075592 1 弹簧 Spring
60008714 1 堵 Plug
60008715 11 堵 Plug
60008779 2 堵 Plug
60038656 2 油塞 Plug, oil
60100517 3 O形圈 O-ring
60100515 21 O形圈 O-ring
60100513 14 O形圈 O-ring
60100470 1 盖 Cover
60100512 4 内六角螺钉 Screw, socket head
60100510 10 螺栓 Bolt, socket head

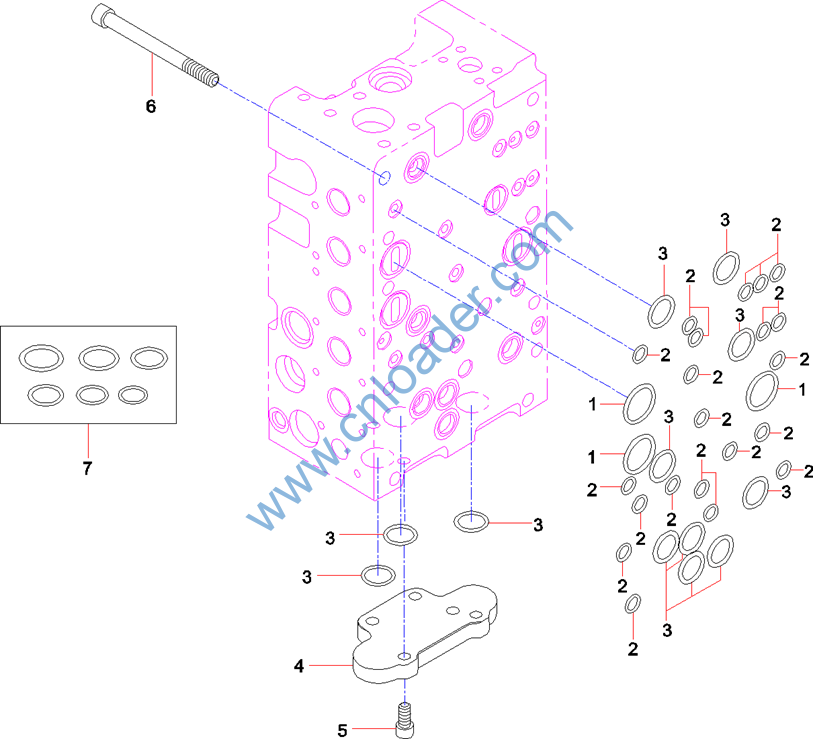

60204226 1 多路阀维修包 Multi-way valve repairing bag

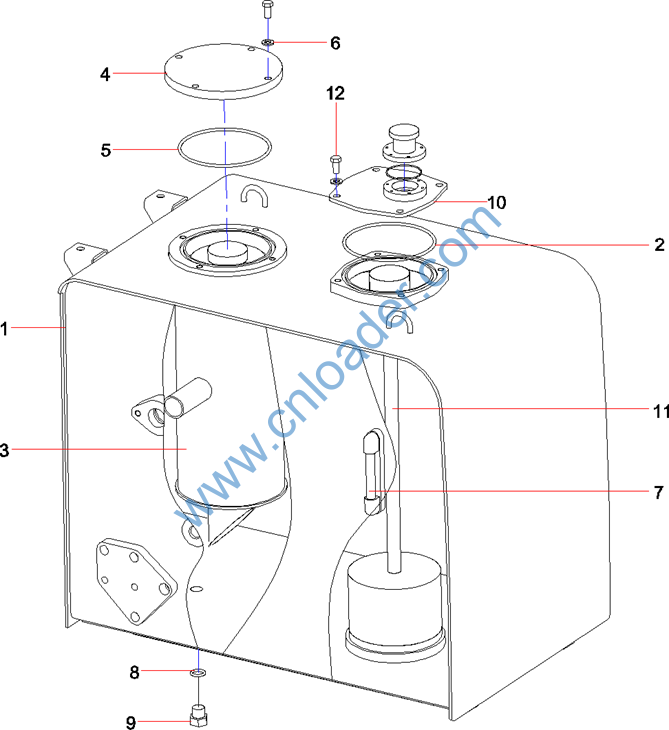

13311411 1 油箱组焊件 Hydraulic oil tank body
B230101000588 1 O形圈 O-ring
60200365 1 回油过滤器 Filter, return oil
12731156 1 回油盖 Cover,filter return
60112246 1 O形圈 O-ring
60262512 8 垫圈12GB97.1 锌镍合金 Washer
A250100000174 1 液位计 Gauge, sight glass
B230101000356 1 O形圈 O-ring
10514225 1 堵头 Screw Plug
12731158 1 吸油盖 Suction cover

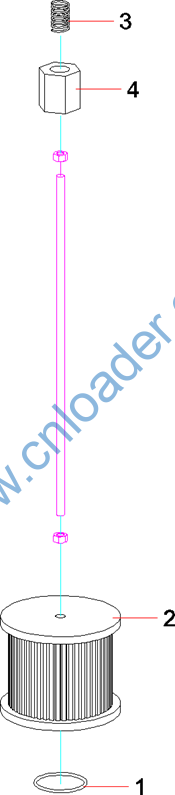

60101257 1 吸油滤芯总成 Core GP, filter, oil intake
60262507 8 螺栓M12×25GB5783 10.9级 锌镍 Bolt
60222778 1 O形圈 O-ring
60222779 1 滤芯 Element, filter
60222780 1 弹簧 Spring
60222781 1 螺母 Nut

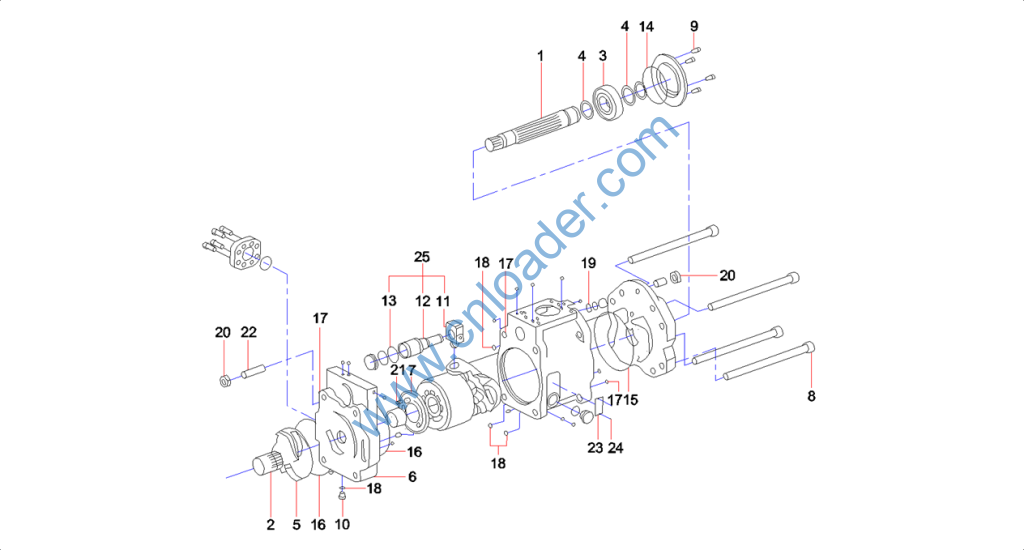

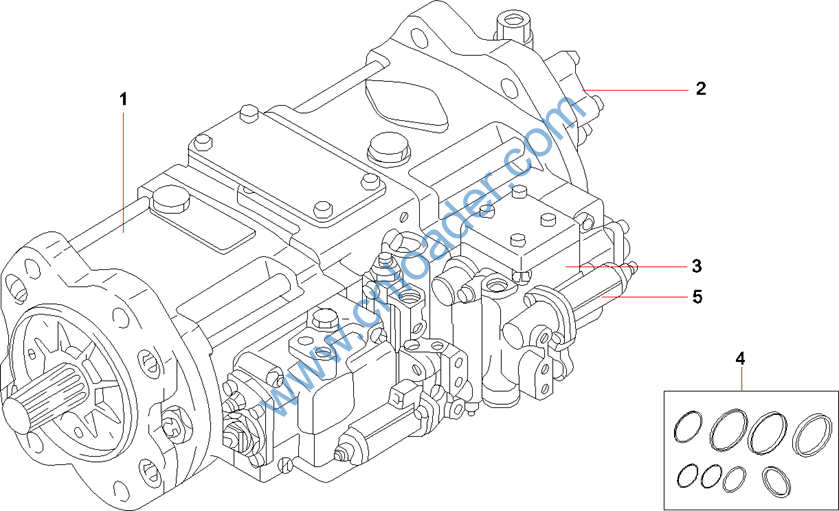

60155077 1 主泵 Main Pump
60153895 1 先导泵 Leading Pump
60153897 2 调节器 Regulator
60197254 1 主泵维修包 Main Pump Repair Kit
60081917 2 比例减压阀 Valve, proportional reducing

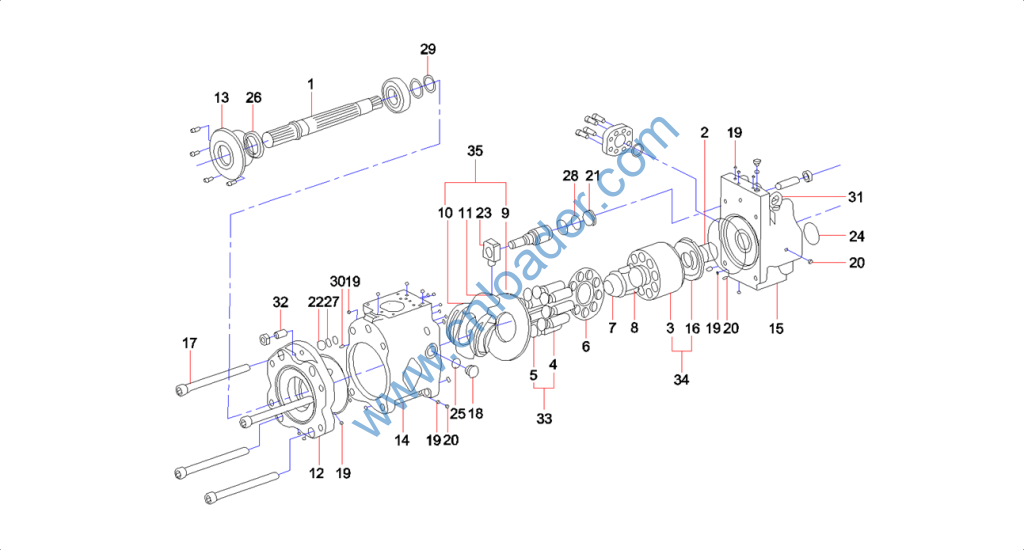

60075452 1 驱动轴 Shaft, drive
60006939 2 轴承 Rear bearing
60125196 2 缸体 Cylinder body
60125205 18 柱塞 Plunger
60125190 18 滑靴 Boots,sliding
60075467 2 压板 Plate, pressure
60015817 2 球面衬套 Spherical bushing
60054345 18 弹簧 Spring
60015757 2 滑板 Plate, sliding
60015821 2 斜盘 Plate, swash
60075449 2 倾斜衬套 Sleeve, incline
60064450 2 斜盘支撑台 Support, swash plate
60075480 1 油封盖 Oil seal cover
60125192 2 泵体 Pump body
60075385 1 配油盖 Cover, oil distribution
60125201 1 配油盘 Plate,oil,distribution
60075438 4 螺钉 Screw
60039400 4 油塞 Plug, oil
60008728 28 紧定螺钉 Screw, set
60008820 5 堵 Plug
60075377 2 挡柱 Post, bumping
60075376 2 挡柱 Post, bumping
60008549 2 销 Pin
60150563 1 O形圈 O-Ring
60039422 4 O形圈 O-ring
60075479 1 油封 Oil seal
60075424 2 挡圈 Ring, retaining
60075423 2 挡圈 Ring, retaining
60064417 2 1号太阳齿轮卡环 Gear, sun
60008878 5 销 Pin
60075426 2 吊环 Ring, lifting
60075441 2 螺杆 Rod, threaded
60331154 1 柱塞组件 Component
60331155 1 缸体组件 Component
60331156 1 斜盘组件 Component

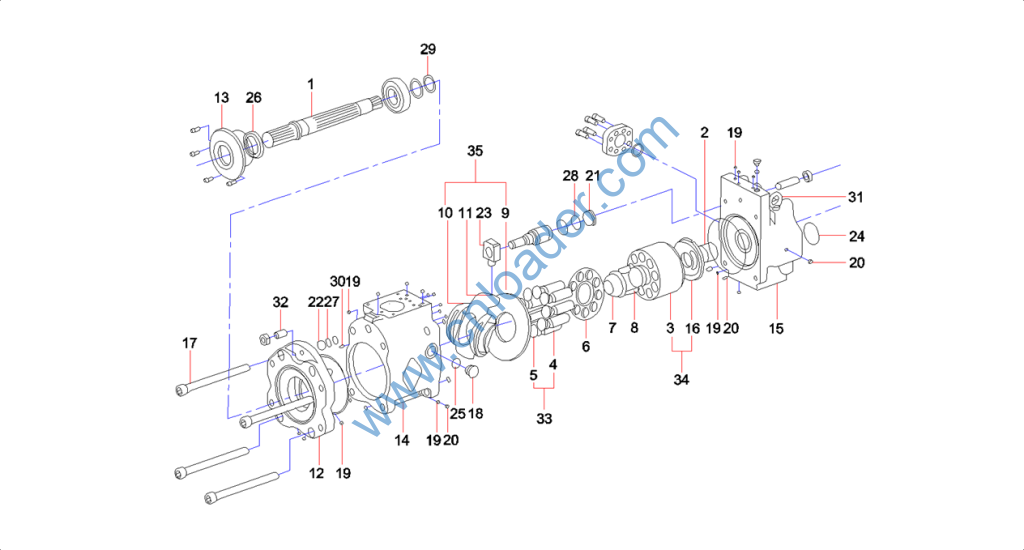

60075453 1 驱动轴 Shaft, drive
60075431 1 花键接头 Coupler, spline
60006941 2 轴承 Front bearing
60075476 3 轴承垫圈 Bearing washer
60075469 1 增压叶轮 Vane, boosting
60150552 1 配油盖 Cover Valve
60125200 1 配油盘 Plate,oil,distribution
60075439 4 螺钉 Bolt
60039371 4 内六角螺栓 Bolt, socket head
60038654 4 油塞 Plug, oil
60075450 2 倾斜销 Pin, angular
60075455 2 伺服柱塞 Plunger, servo
60093160 2 O形圈 O-ring
60125207 1 O形圈 O-ring
60125209 2 O形圈 O-ring
60075477 3 O形圈 O-ring
60038716 19 O形圈 O-ring
60038712 6 O形圈 O-ring
60125208 2 O形圈 O-ring
60039359 4 六角螺母 Nut
