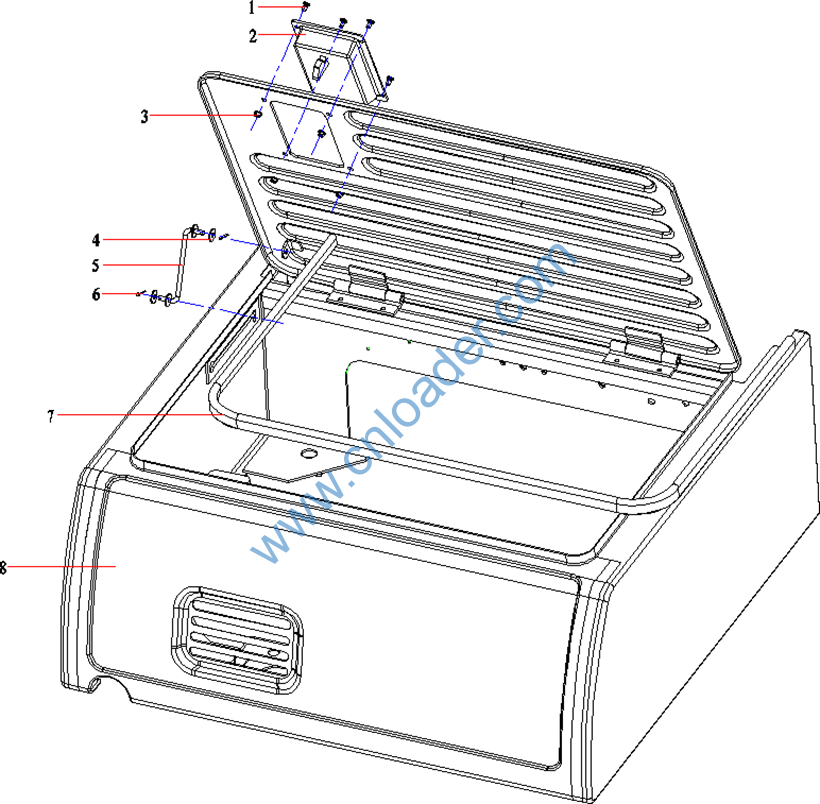

1 11817247 4 固定卡座 Fixed Clamp
2 60196657 1 箱柜锁 door lock
3 11817218 4 防松螺母 check nut
4 60238783 2 垫圈6GB96.1 达克锈 Washer
5 11938430 1 支杆 Lever
6 A210491000007 2 销 Pin, Cotter
7 11413341 1 密封条 Sealing strip
8 12908470 1 工具箱主体 Tool Box Main Body

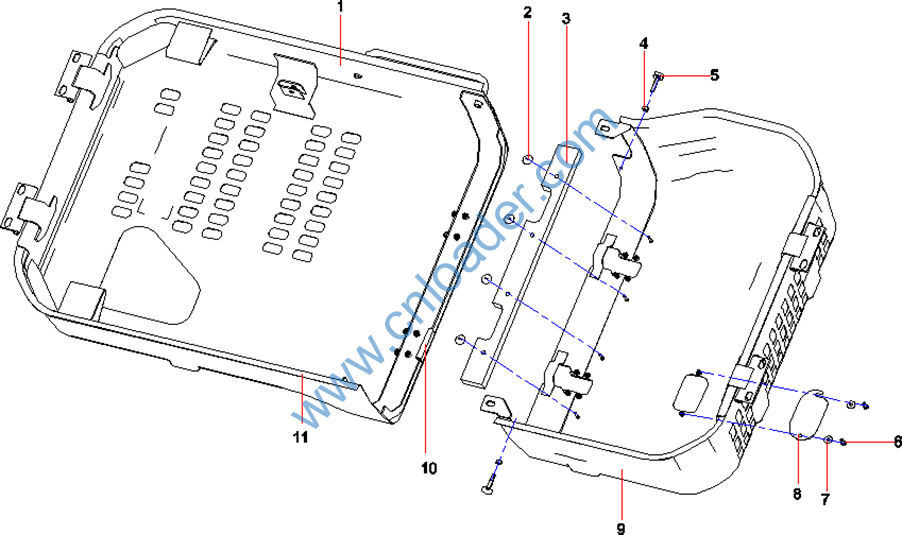

1 13625854 1 发动机罩 Engine hood, right
2 11961759 4 扣钉 Cramp
3 13581649 1 吸音海绵 Foam
4 A210307000036 2 螺母 Nut
5 A810502019056 2 定位螺钉 Setscrew
6 A210111000343 2 螺栓M8×20GB5783 10.9级 Bolt
7 60060565 2 垫圈8GB96.1 达克锈 Washer
8 13647185 1 盖 Cover
9 13625860 1 散热器罩 Radiator hood
10 13556962 1 直泡胶条 Seal
11 11342744 1 密封条 Foam

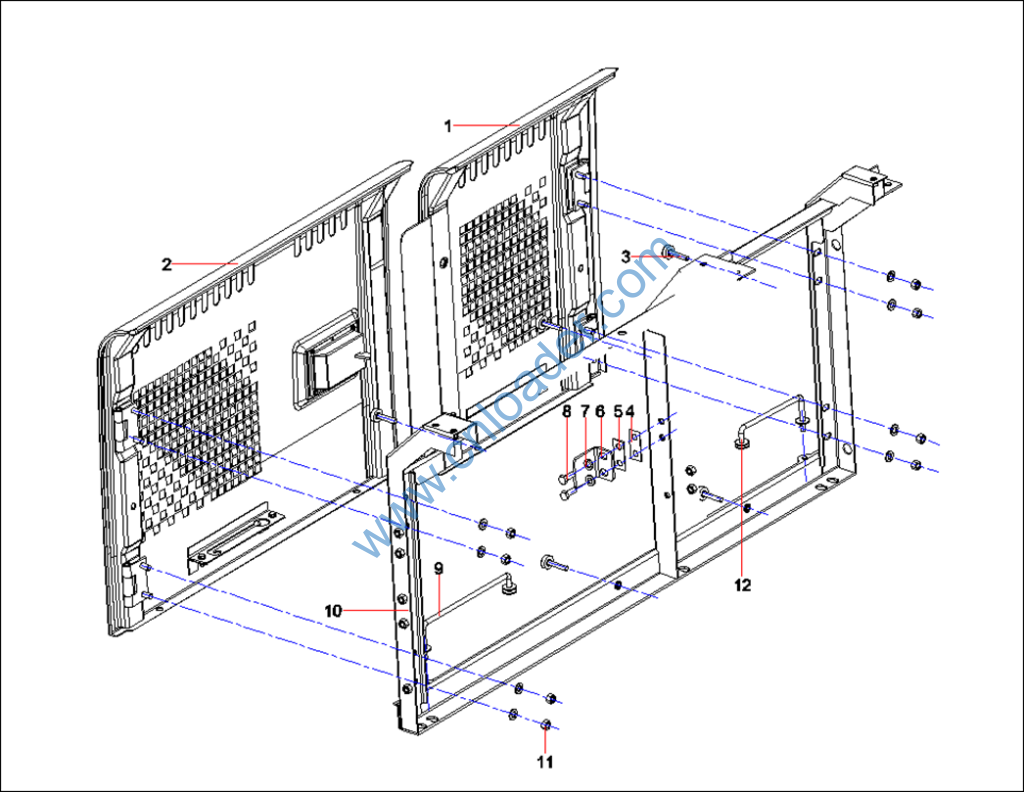

1 14251016 1 小门 small door
2 14250873 1 右门 right door
3 A810502019056 5 定位螺钉 Setscrew
4 12669836 1 垫片 washer
5 12669837 1 垫片 washer
6 12669838 1 锁卡板 door-shaft seal
7 A210405000001 10 垫圈 Washer
8 A210111000038 2 螺栓 Bolt
9 12196084 1 风钩 Rod, door
10 13556951 1 左门安装架 Frame, left doors
11 A210307000001 8 螺母 Nut
12 12898634 1 小门风勾 Rod, door

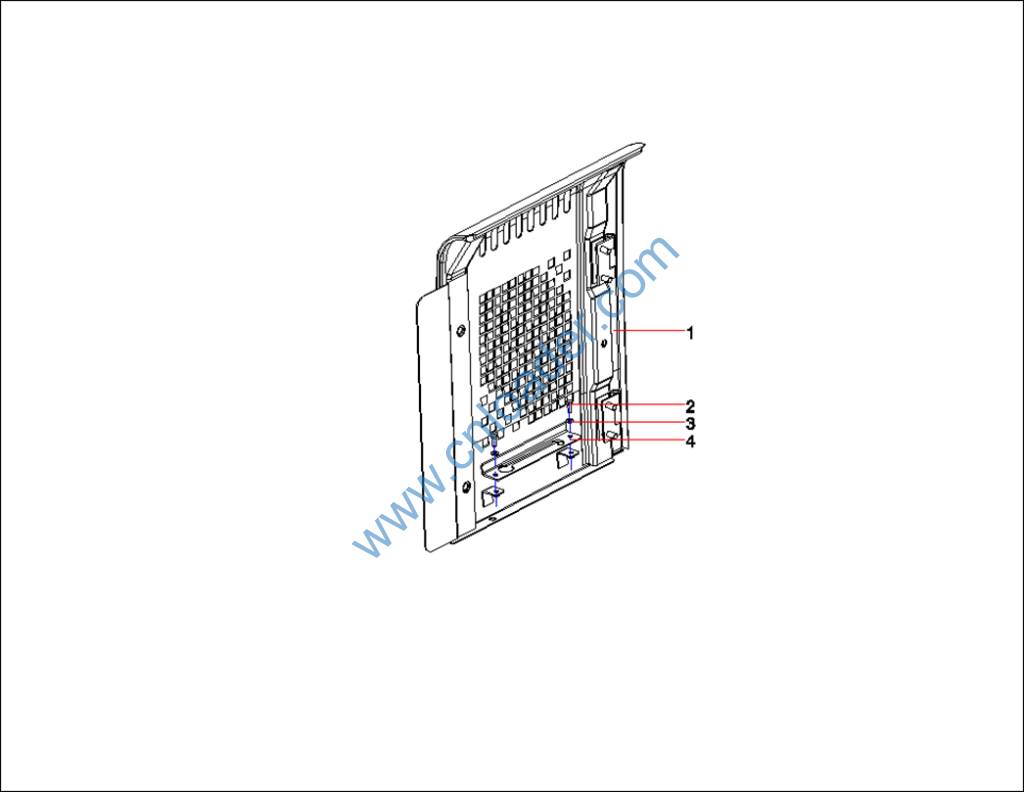

1 13556952 1 小门板 door plate
2 A210111000343 2 螺栓M8×20GB5783 10.9级 Bolt
3 24000633 2 垫圈8GB97.1 达克锈 Washer
4 13996527 1 滑槽板 Groove plate

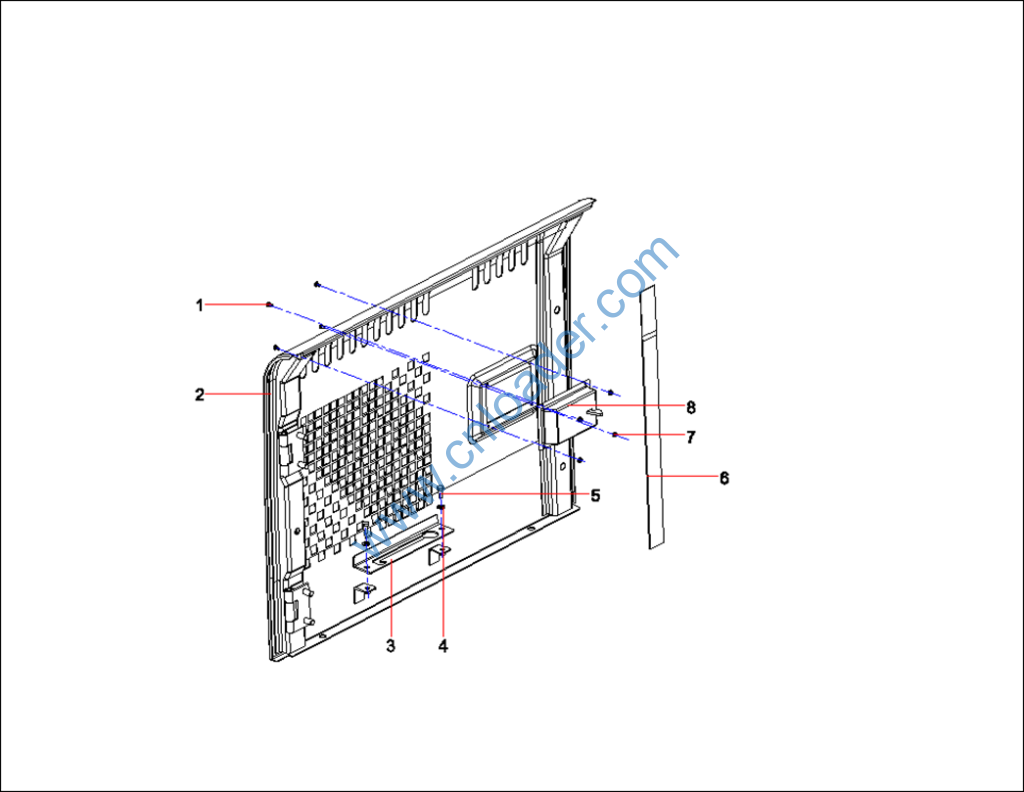

1 11817247 4 固定卡座 Fixed Clamp
2 12677406 1 门板 door plateSY365C8I2KS.1.6.24.2-
3 13996527 1 滑槽板 Groove plate
4 24000633 2 垫圈8GB97.1 达克锈 Washer
5 A210111000343 2 螺栓M8×20GB5783 10.9级 Bolt
6 12735024 1 橡胶垫板 Gasket, rubber
7 11817218 4 防松螺母 check nut
8 11817247 4 固定卡座 Fixed Clamp

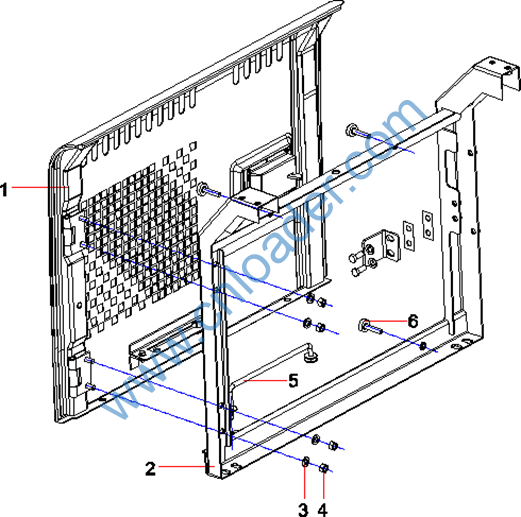

1 14250873 1 右门 right door
2 12698260 1 右门安装架 right door frame
3 A210405000001 4 垫圈 Washer
4 A210307000001 4 螺母 Nut
5 12196084 1 风钩 Rod, door
6 A810502019056 3 定位螺钉 Setscrew

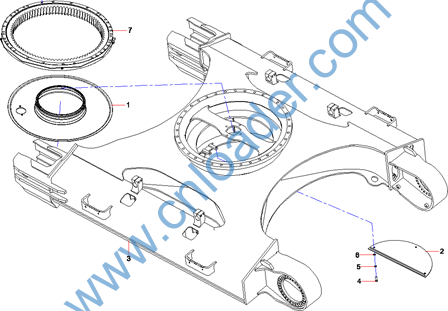

1 A810302082000 1 密封组件 Seal AS
2 10131971 2 盖板总成 Plate, bottom GP
3 11935834 1 履带架 track frame
4 A210111000202 20 螺栓M12×30GB5783 10.9级 Bolt
5 24000513 20 垫圈12GB93 达克锈 Washer
6 60060548 6 垫圈12GB96.1 达克锈 Washer
7 10473822 1 回转支承总成 Bearing, swing AS

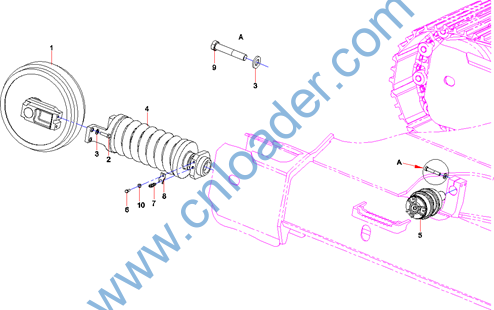

1 14007349 2 引导轮总成 Leading Wheel Assembly
2 A210111000054 8 螺栓 Bolt
3 A210491000118 76 垫圈 High-strength steel washer
4 A229900006383 2 张紧装置 Tensioner AS
5 12168856 4 托链轮总成 Carrier Roller Assembly
6 A210111000101 2 螺栓M12×25GB5783 10.9级 Bolt
7 B229900000862 2 黄油阀 Grease Valve
8 A820101010372 2 支板 Shoe, triple grouser
9 A210111000347 8 螺栓M16×90GB5783 10.9级 Bolt
10 A210491000121 2 垫圈 Washer

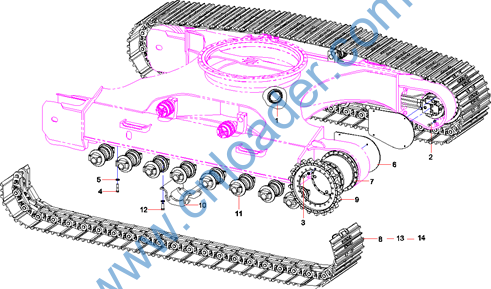

1 A820606030361 2 护套 Protective SleeveSY200B.2-12
2 60197801 60 螺栓M16×60DIN931 12.9级 Bolt
3 60052677 60 螺栓 Bolt
4 A210110000307 64 螺栓 bolt
5 A210491000144 64 垫圈 washer
6 A820101116020 2 马达盖板 Cover, travel motor
7 13225418 2 减速机总成 Reducer
8 12233707 2 履带总成 crawler assembly
9 11221884 2 驱动轮 Sprocket
10 A810401990037 2 护板 Guard, track guide
11 13289079 16 190A支重轮压接版 track roller
12 A210111000221 8 螺栓M20×50GB5783 10.9级 Bolt
13 12669955 2 履带总成 crawler assembly
14 13915041 2 履带总成 crawler assembly

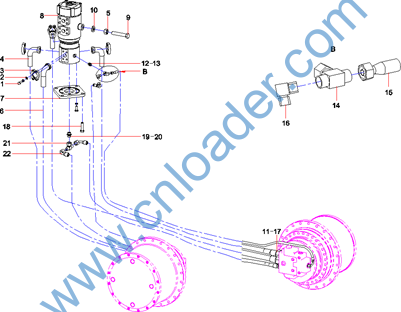

1 A210204000354 16 螺钉 Screw
2 21001338 60 垫圈 Washer
3 B210780000244 8 对开法兰 Flange, Split
4 B230103002701 2 胶管 Hose AS
5 A210307000029 1 螺母 Nut
6 B230103002702 2 胶管 Hose AS
7 A820101212141 1 过渡板 Transitional Plate
8 60243991 1 中央回转接头 Swivel, hydraulic
9 A210110000233 1 螺栓M20×110GB5782 10.9级 Bolt
10 A210491000132 9 垫圈 Washer
11 A820205000834 4 G1-M36接头 Fitting
12 A820205000843 3 接头 Fitting
13 B230101000090 3 O形圈 B230101000090
14 B210780000413 1 三通组合T型接头 Fitting, tee
15 B230103002473 2 胶管 Hose AS
16 B210780000418 1 直角组合接头 Fitting
17 B230101000050 4 O形圈 O-ring
18 A210111000212 4 螺栓 Bolt
19 A820205000844 3 接头 Fitting
20 B230101000047 2 O形圈 O-Ring-10.8
21 B210780000172 1 管接头 Fitting
22 B230103000284 2 胶管 Hose Assembly
