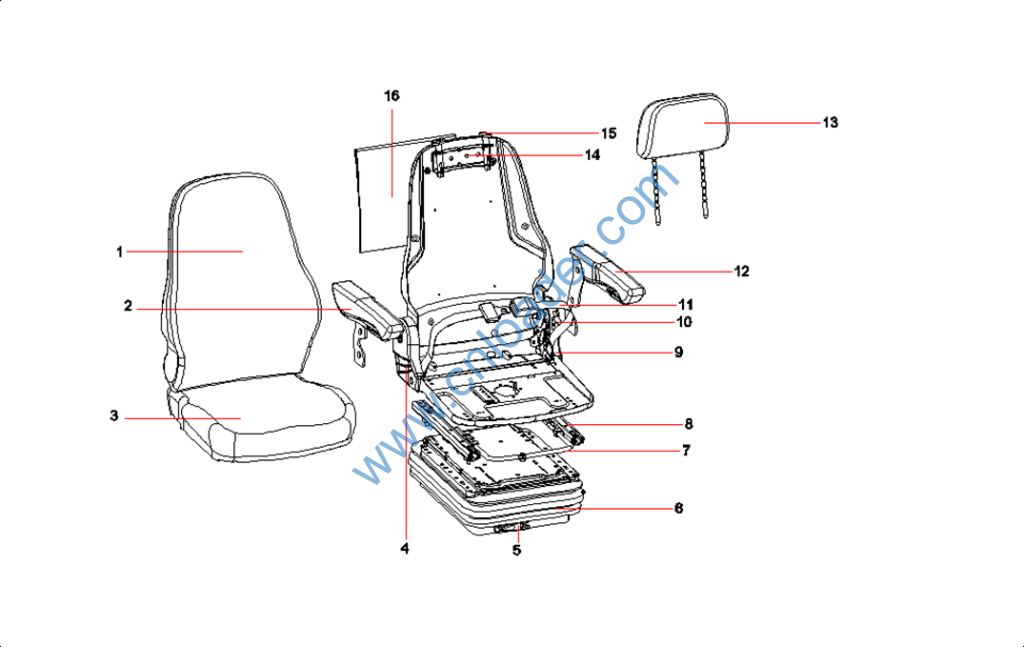

1 60309859 1 靠背海绵总成 Back, seat
2 60309857 1 扶手总成(右) Armrest AS, right
3 60309865 1 座垫海绵总成 Cushion, lower seat
4 60309864 1 右罩壳 Covering, casing
5 60309872 1 调荷手柄 Handle, adjustment, weight
6 60309871 1 减振防尘罩 Cover, seat base
7 60309869 1 滑道手柄 Handle, slide, seat
8 60309866 1 滑道 Track, seat adjustment
9 60309863 1 左罩壳 Casing, left
10 60309861 1 调角器手柄 Handle, seat tilt
11 60309856 1 两点式安全带 Belt, safety
12 60309862 1 扶手总成(左) Armrest AS, left
13 60309858 1 头枕总成 Headrest AS
14 60309868 1 头枕固定塑料管帽 Bracket, headrest
15 60309870 1 头枕固定塑料管 Insert, headrest
16 60309860 1 文件袋 Bag, rear

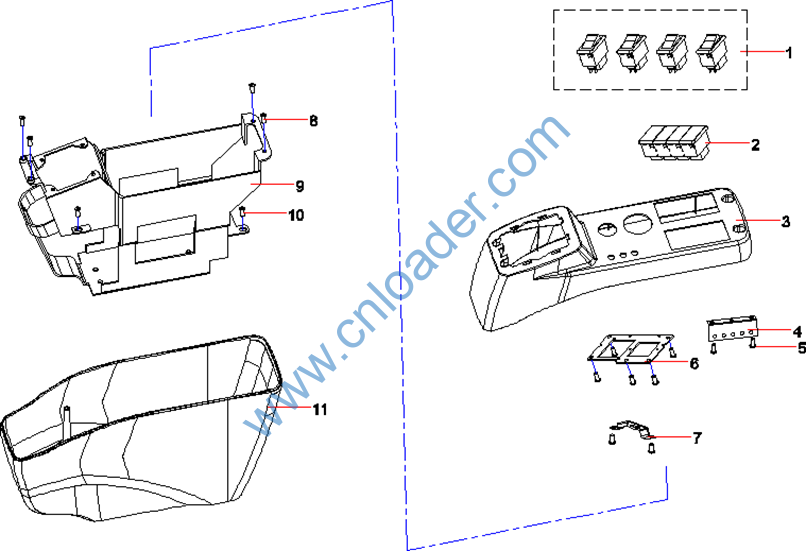

1 A241200000121 1 翘板开关(四联) Seesaw switch (four joints)
2 60309919 1 四联框 4-section frame
3 60307221 1 右扶手箱上盖 Cover, upper, right console
4 60309924 1 线束固定架 bracket
5 A210210000006 9 螺钉 Bolt, socket head
6 60309925 1 油门旋钮支架 Bracket
7 60309915 1 点火开关支架 Bracket
8 A210210000017 4 螺钉 Screw
9 60309927 1 右钢架 bracket
10 A210210000008 4 螺钉 Screw
11 60309922 1 下壳体 Console, lower right

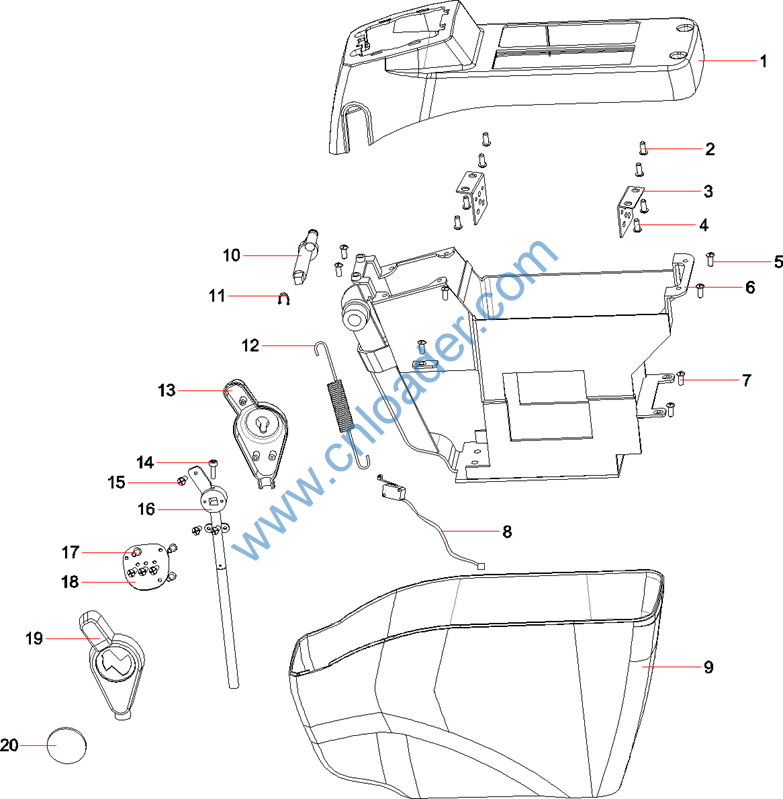

1 60307219 1 左扶手箱上盖 Cover, upper, left console
2 A210210000006 4 螺钉 Bolt, socket head
3 60309918 2 收音机支架 bracket
4 A210210000002 4 螺钉 Screw
5 A210210000017 4 螺钉 Screw
6 60309930 1 左钢架 bracket
7 A210210000008 4 螺钉 Screw
8 60309921 1 微动开关 Microswitch
9 60309922 1 下壳体 Console, lower right
10 60309920 1 凸轮轴 Camshaft
11 60309917 1 卡簧 clip
12 60309914 1 弹簧 Spring
13 60309929 1 左端盖 Base, lever
14 60062048 1 螺钉 Screw
15 A210210000015 6 螺钉 Screw
16 60309923 1 先导杆 Rod, lever
17 A210210000009 3 螺钉 Bolt
18 60309916 1 端盖连接板 connecting board
19 60309926 1 右端盖 Cover, lever
20 60309928 1 圆盖 round cover

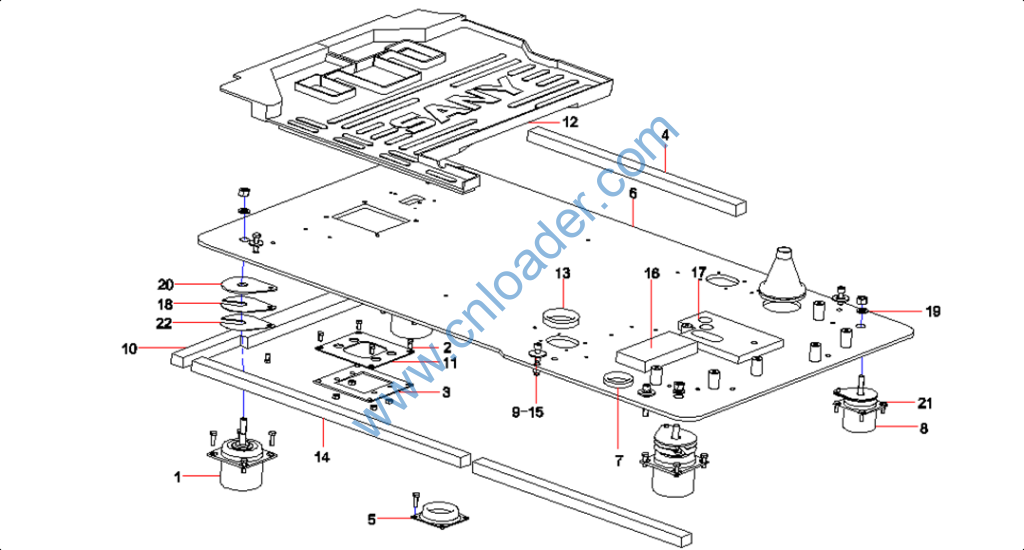

1 B229900000244 2 司机室支承 Cab bearing
2 A210111000012 4 螺栓M10×20GB5783 10.9级 Bolt
3 A810402050021 1 连接板 Plate
4 12385099 1 驾驶室底板海绵 Cab, seal
5 12827984 2 橡胶垫 Pad, rubber
6 12830177 1 底板 Plate, base
7 A820606030059 1 护孔环 Grommet
8 B229900000245 2 司机室支承 Cab bearing
9 60060548 5 垫圈12GB96.1 达克锈 Washer
10 12768939 1 驾驶室底板海绵 Cab, seal
11 11937141 1 脚踏阀密封垫 Gasket
12 14451383 1 地板垫 Floor Cushion
13 A820606030056 2 护孔环 Grommet
14 12768943 2 驾驶室底板海绵 Cab, seal
15 A210307000028 4 螺母 Nut
16 A820699000215 1 背部海绵 Back sponge
17 11935737 1 密封海绵 Foam, seal
18 11594064 4 垫片 Cab, shim
19 A210491000118 4 垫圈 High-strength steel washer
20 11546613 4 垫板 Cushion board
21 A210111000024 24 螺栓 Bolt
22 11593942 4 垫片 Spacer

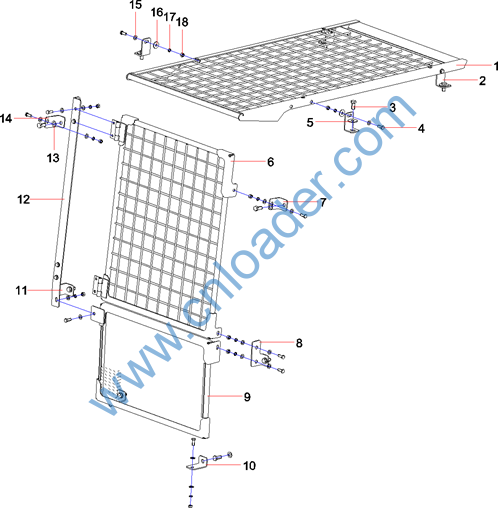

1 13837751 1 顶护网 top guard mesh welding assembly
2 13850522 4 上支架 Upper bracket
3 24000314 10 螺栓M16×35GB5783 达克锈 Bolt M16×35GB5783 dacrotizing
4 A210111000202 16 螺栓M12×30GB5783 10.9级 Bolt
5 60060553 4 垫圈16GB96.1 达克锈 Washer
6 13842240 1 驾驶室前上护网 Cab front upper guard mesh
7 13850526 1 右上支架 upper right support
8 13850527 1 右中支架 Right middle support
9 13842251 1 驾驶室前下护网 Cab front lower guard mesh
10 13850523 2 下支架 lower support
11 13850524 1 左中支架 Left central bracket
12 13850586 1 防护网支撑板 Guard mesh supporting plate
13 24000642 6 垫圈16GB97.1 达克锈 Washer
14 13850525 1 左上支架 Left upper bracket
15 60312778 28 垫圈12GB97.1锌镍渗层 Washer
16 60060548 4 垫圈12GB96.1 达克锈 Washer
17 60312781 16 垫圈12GB93 锌镍渗层 Washer
18 60312773 16 螺母M12GB6170 10级 锌镍渗层 Nut

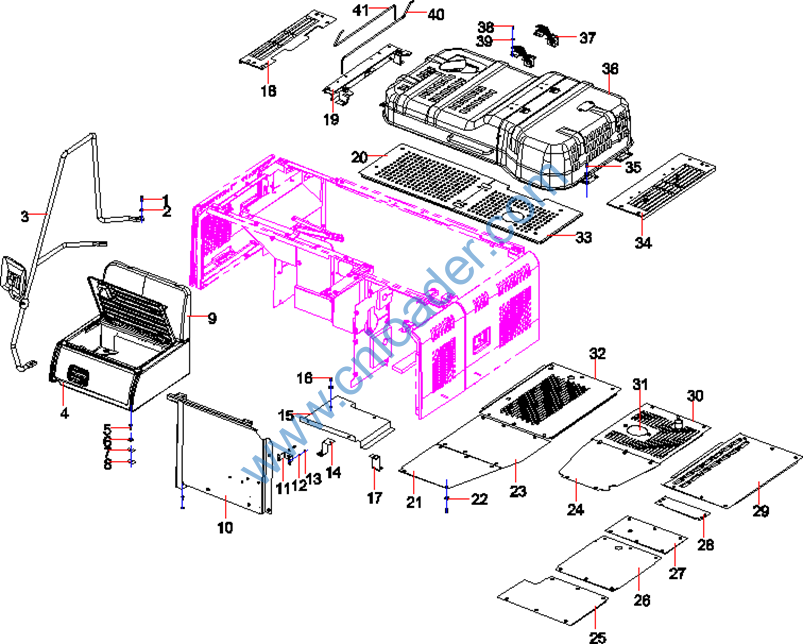

1 A210111000204 10 螺栓M12×40GB/T 5783 10.9级 Bolt
2 A210491000121 24 垫圈 Washer
3 14099806 1 扶手总成 hand rail
4 12908466 1 工具箱总成 Box, storage
5 A210111000101 148 螺栓M12×25GB5783 10.9级 Bolt
6 60060548 156 垫圈12GB96.1 达克锈 Washer
7 A820101210711 4 垫片 Washer
8 A820101210712 4 垫片 Washer
9 12908471 1 装饰盖 Box, storage, cover
10 13556748 1 左前隔板总成 left front spacing plate assembly
11 A820101216763 1 检修灯安装支架 Bracket
12 24000633 2 垫圈8GB97.1 达克锈 Washer
13 A210111000342 2 螺栓M8×16GB5783 10.9级 Bolt
14 13603367 1 撑板 Bracket
15 13556738 1 先导管左盖板 Cover
16 A210111000199 6 螺栓M12×20GB5783 10.9级 Bolt
17 11459285 1 撑板 Bracket
18 13627028 1 右上后盖板 Cover, upper, pump
19 13107173 1 托架 SUPPORTING BRACKET
20 13579071 1 中盖板 Cover, bottom, engine
21 12181098 1 燃油箱底盖板 Cover, bottom, fuel tank
22 60060548 92 垫圈12GB96.1 达克锈 Washer
23 10723433 1 液压油箱底盖板 Cover, bottom, hydraulic tank
24 A820101337218 1 主阀底盖板 Cover, bottom, main control valve
25 A820101117950 1 驾驶室底前盖板 Cover, bottom, front, cab
26 A820101117949 1 后中盖板 Cover, bottom, rear middle
27 A820101119480 1 底盖板 Cover, bottom
28 12119218 1 过渡块盖板 Cover, bottom, partition
29 13466000 1 左中底盖板 Cover, bottom, coolers
30 13627383 1 盖 Cover, bottom, engine
31 13649153 1 盖 Cover
32 13649152 1 右侧底盖板 Cover, bottom, pump
33 13579065 1 空滤盖板 Air filter plate
34 13556767 1 左上后盖板 Left Upper Rear Cover Plate
35 A210111000202 12 螺栓M12×30GB5783 10.9级 Bolt
36 13625845 1 机顶罩总成 Hood GP
37 60275176 2 机顶罩锁 Latch, hood
38 A210111000343 16 螺栓M8×20GB5783 10.9级 Bolt
39 60060565 16 垫圈8GB96.1 达克锈 Washer
40 13579490 1 前部弹簧 Spring, long
41 13579489 1 后部弹簧 Spring, short

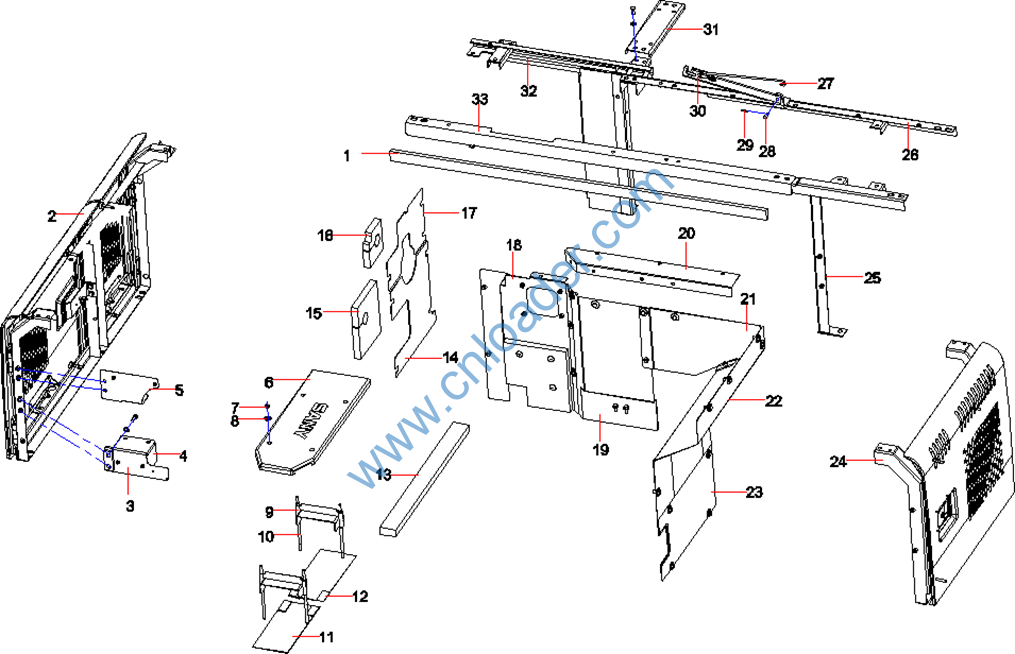

1 13556730 1 后横梁海绵 Foam, rear beam
2 13556945 1 左门总成 Left Door Assy
3 13328858 1 继电器安装板 Bracket, mount, start relay
4 11673094 1 启动继电器护罩 Starter Relay protective cover
5 13603369 1 副水箱安装支架 Bracket, mount, door AS
6 12786106 1 蓄电池盖板 Battery cover
7 A210307000036 8 螺母 Nut
8 60060546 8 垫圈10GB96.1 达克锈 Washer
9 12738866 2 蓄电池支架 Hold down, battery
10 11592968 4 双头螺柱 Stud, battery hold down
11 12569035 2 蓄电池胶垫 Rubber pad, battery
12 A820606030643 4 蓄电池胶垫 Rubber pad, battery
13 14362870 1 底海绵 Sponge
14 13556731 1 空滤下隔板 Partition
15 13556732 1 下隔板密封海绵 Foam, lower
16 13465997 1 上隔板密封海绵 Foam, upper
17 13465996 1 空滤上隔板 Partition
18 13557058 1 柴油机左隔板 Partition, engine
19 14052212 1 柴油机右隔板 Right clapboard of diesel engine
20 13556750 1 顶封板 Partition, engine
21 13556761 1 转角板 Partition, engine
22 13556763 1 主泵上隔板 Partition, pump
23 13957495 1 主泵下隔板 Partition, pump
24 12698255 1 右门总成 Right Door Assy.
25 13557183 1 右后支架 Bracket, frame support
26 13556735 1 前横梁 Frame, support
27 A810502015065 1 撑杆 Rod, hood support
28 A210508000009 3 销轴 Pin
29 A210491000014 3 销 Pin
30 A820302010101 1 支杆 Support, hood
31 13557056 1 连接梁 Beam
32 13556759 1 空滤隔板 Beam
33 13556752 1 后横梁 Beam

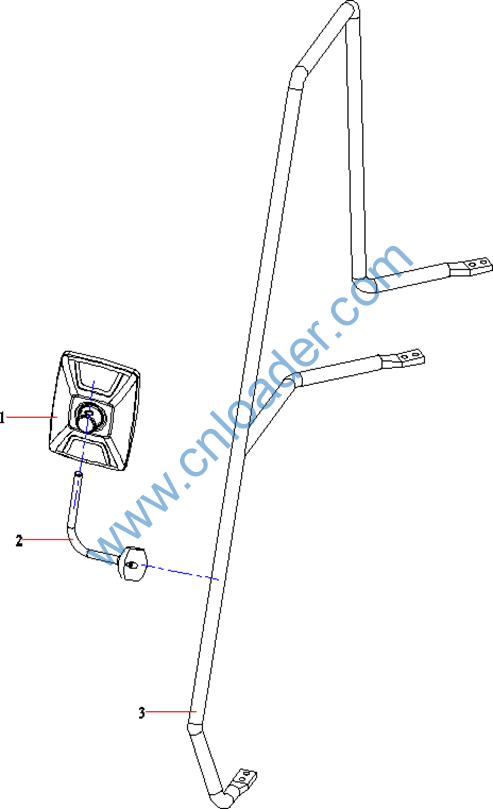

1 60228208 1 后视镜 rearview mirror
2 12046539 1 右下后视镜支架组件 Bracket, mirror
3 11475138 1 扶手主体 Handrail AS
