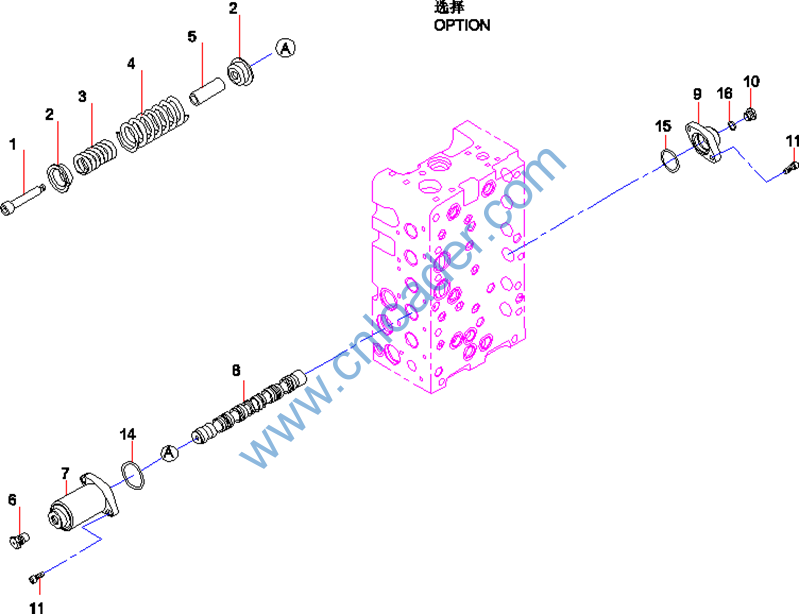

1 60008819 1 螺柱 Bolt, socket head
2 60008823 2 座 Seat
3 60008770 1 弹簧 Spring
4 60008769 1 弹簧 Spring
5 60008818 1 挡圈 Ring, retaining
6 60100466 1 堵 Plug
7 60100505 1 弹簧盖 Cap, pilot
8 60100473 1 备用阀芯 Spool, valve, service valve
9 60008789 1 盖 Cap
10 60008713 1 堵 Plug
11 60008721 4 内六角螺钉 Bolt, socket head
14 60100514 1 O形圈 O-ring
15 60050051 1 O形圈 O-ring
16 60008700 1 O形圈 O-ring

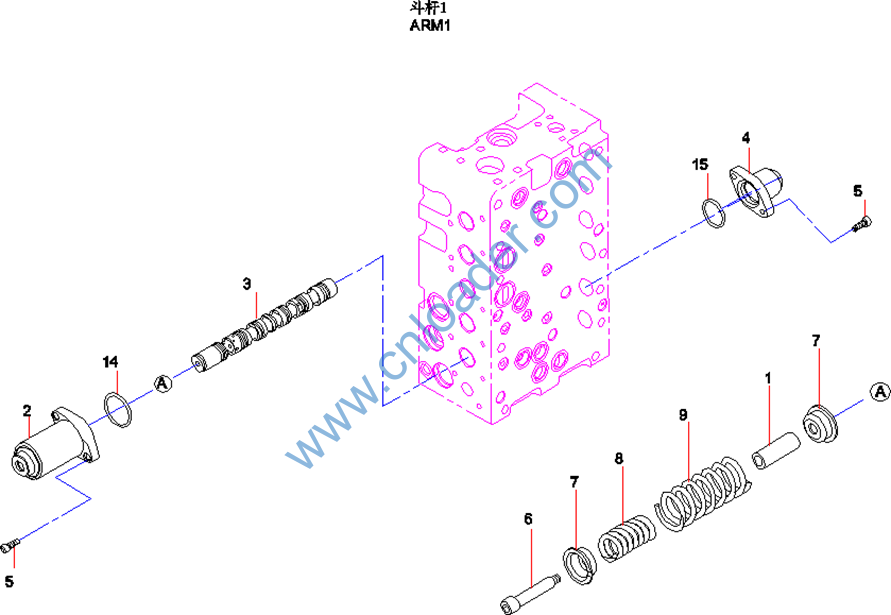

1 60008818 1 挡圈 Ring, retaining
2 60100505 1 弹簧盖 Cap, pilot
3 60100481 1 斗杆阀芯 Spool, valve, arm
4 60008790 1 盖 Cap
5 60008721 4 内六角螺钉 Bolt, socket head
6 60008819 1 螺柱 Bolt, socket head
7 60008823 2 座 Seat
8 60008770 1 弹簧 Spring
9 60008769 1 弹簧 Spring
14 60100514 1 O形圈 O-ring
15 60050051 1 O形圈 O-ring

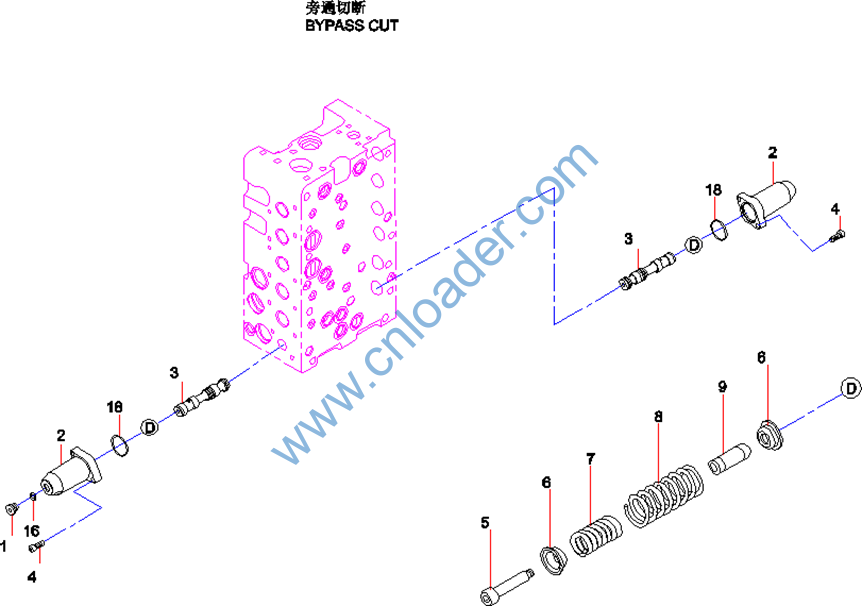

1 60008713 1 堵 Plug
2 60100507 2 弹簧盖 Cap, pilot
3 60100496 2 液压切断阀 Valve, hydraulic cutoff
4 60008721 4 内六角螺钉 Bolt, socket head
5 60038528 2 螺栓 Bolt, socket head
6 60008825 4 座 Seat
7 60038244 2 弹簧 spring
8 60038243 2 弹簧 spring
9 60100508 2 挡圈 Ring, retaining
16 60008700 1 O形圈 O-ring
18 60008821 2 O形圈 O-ring

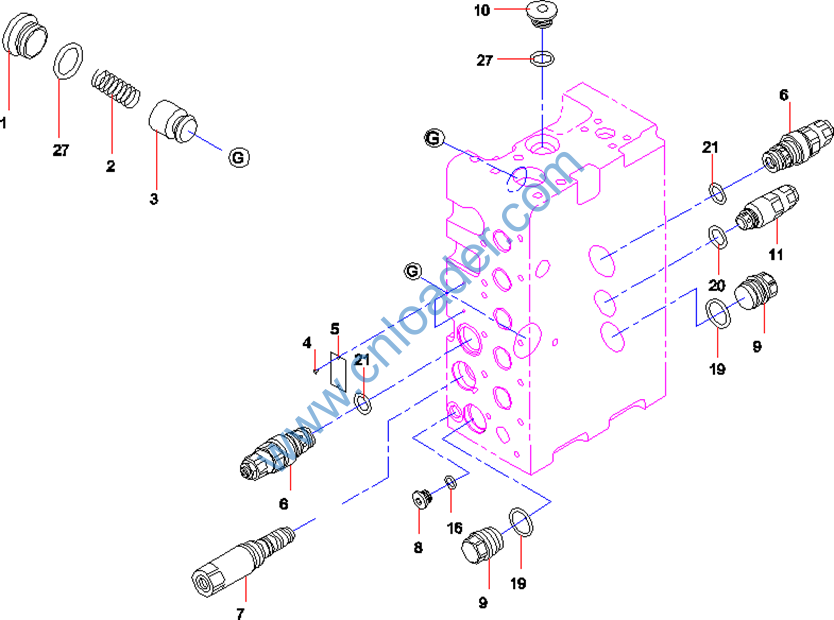

1 60008715 2 堵 Plug
2 60008817 2 弹簧 Spring
3 60008783 2 单向阀 Valve, check
4 60008722 2 铆钉 Rivet
5 60100511 1 铭牌 Nameplate
6 60100488 2 节流阀 Valve, relief
7 60100484 1 斗杆再生阀 Valve, arm regeneration
8 60008713 1 堵 Plug
9 60100465 2 堵 Plug
10 60008712 1 堵 Plug
11 60100490 1 节流阀 Valve, relief
16 60008700 1 O形圈 O-ring
19 60100516 2 O形圈 O-ring
20 60100517 1 O形圈 O-ring
21 60100515 2 O形圈 O-ring
27 60335071 3 O形圈 O-ring

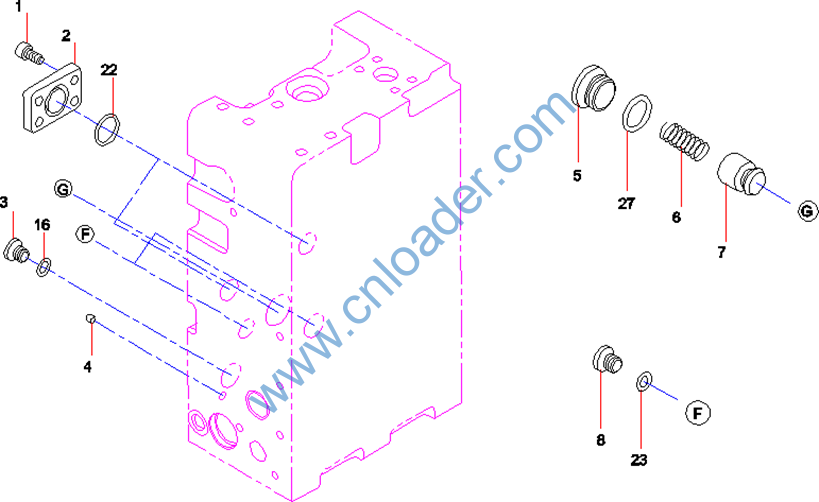

1 60008717 8 螺栓 Bolt, socket head
2 60008781 2 法兰 Cap, flanged
3 60008713 1 堵 Plug
4 60008728 1 紧定螺钉 Screw, set
5 60008715 1 堵 Plug
6 60008817 1 弹簧 Spring
7 60008783 1 单向阀 Valve, check
8 60008711 2 堵 Plug
16 60008700 1 O形圈 O-ring
23 60008697 2 O形圈 O-ring
27 60335071 1 O形圈 O-ring

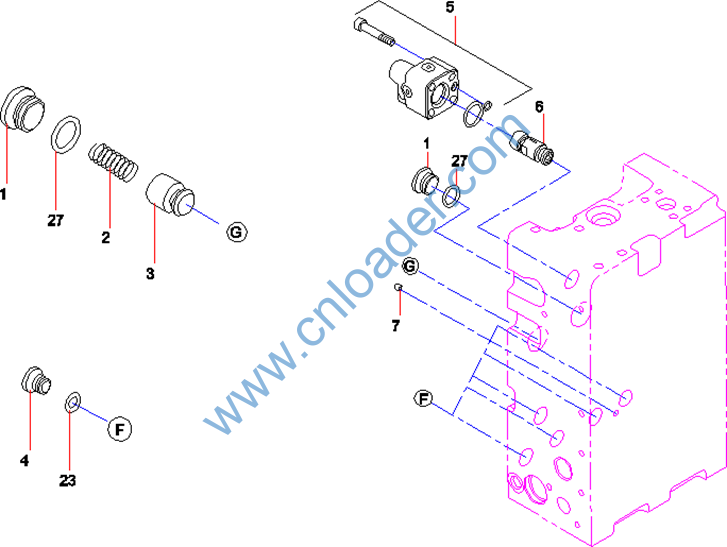

1 60008715 1 堵 Plug
2 60008817 1 弹簧 Spring
3 60008783 1 单向阀 Valve, check
4 60008711 5 堵 Plug
5 60100494 1 逻辑阀 Bolt, socket head
6 60100476 1 单向阀 Valve, check
7 60008728 1 紧定螺钉 Screw, set
23 60008697 5 O形圈 O-ring
27 60335071 2 O形圈 O-ring

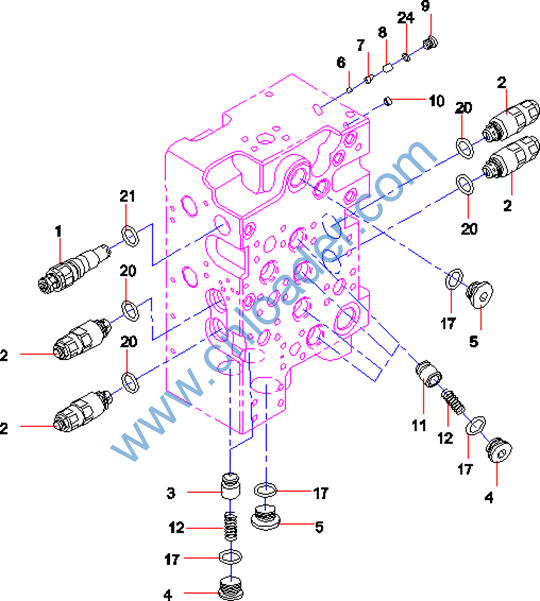

1 60100500 1 主溢流阀 Valve, relief, main
2 60100490 4 节流阀 Valve, relief
3 60100475 1 单向阀 Valve, check
4 60008715 2 堵 Plug
5 60008712 2 堵 Plug
6 60075545 1 球 Ball
7 60075575 1 节流阀 Seat, ball
8 60075592 1 弹簧 Spring
9 60008714 1 堵 Plug
10 60008820 1 堵 Plug
11 60008783 1 单向阀 Valve, check
12 60008817 2 弹簧 Spring
17 60008705 4 O形圈 O-ring
20 60100517 4 O形圈 O-ring
21 60100515 1 O形圈 O-ring
24 60008696 1 O形圈 O-ring

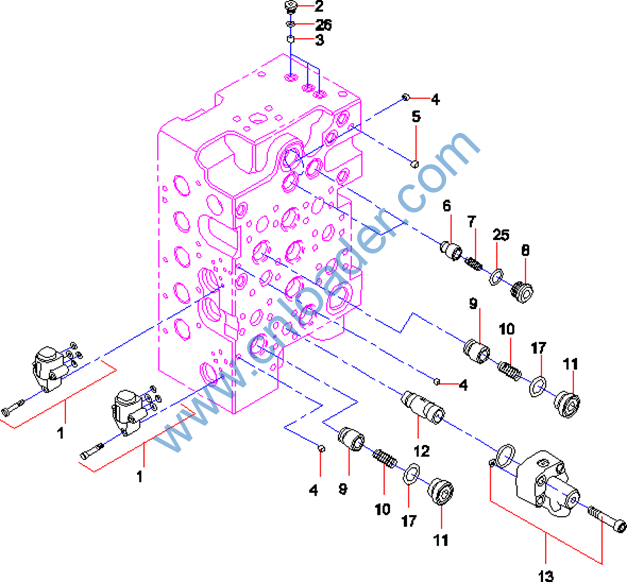

1 60100493 2 控制阀组件 Valve GP, control
2 60100467 1 堵 Plug
3 60100492 1 节流阀 Valve, relief
4 60008728 3 紧定螺钉 Screw, set
5 60008820 1 堵 Plug
6 60038108 1 提升阀 Valve, lift
7 60100504 1 弹簧 Spring
8 60038656 1 油塞 Plug, oil
9 60008784 2 单向阀 Valve, check
10 60008765 2 弹簧 Spring, large
11 60008779 2 堵 Plug
12 60100477 1 单向阀 Valve, check
13 60100494 1 逻辑阀 Bolt, socket head
17 60008705 2 O形圈 O-ring
25 60008703 1 O形圈 O-ring
26 60008708 1 O形圈 O-ring

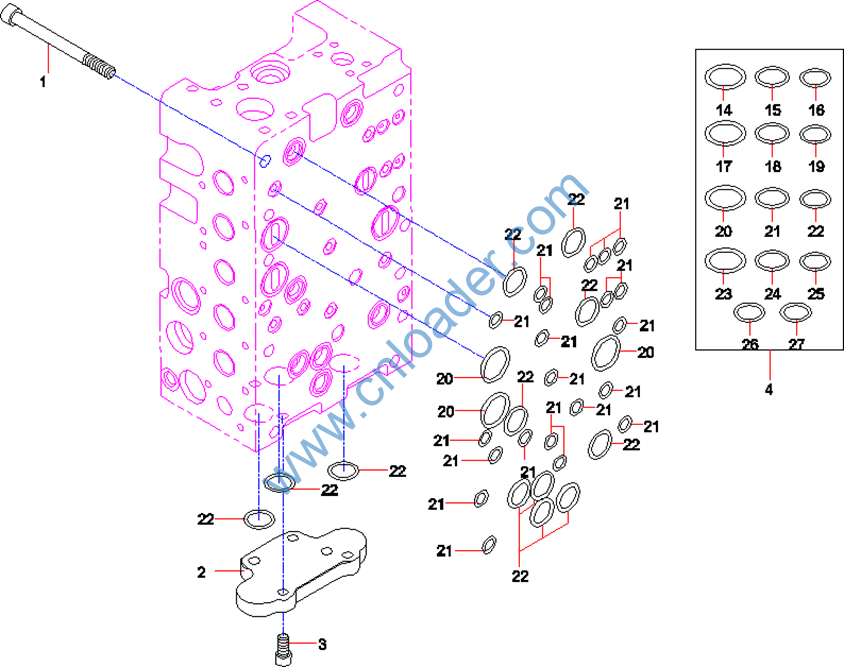

1 60100510 4 螺栓 Bolt, socket head
2 60100470 1 盖 Cover
3 60100512 4 内六角螺钉 Screw, socket head
4 60204224 1 多路阀维修包 Kit, seal
20 60100517 3 O形圈 O-ring
21 60100515 16 O形圈 O-ring
22 60100513 9 O形圈 O-ring

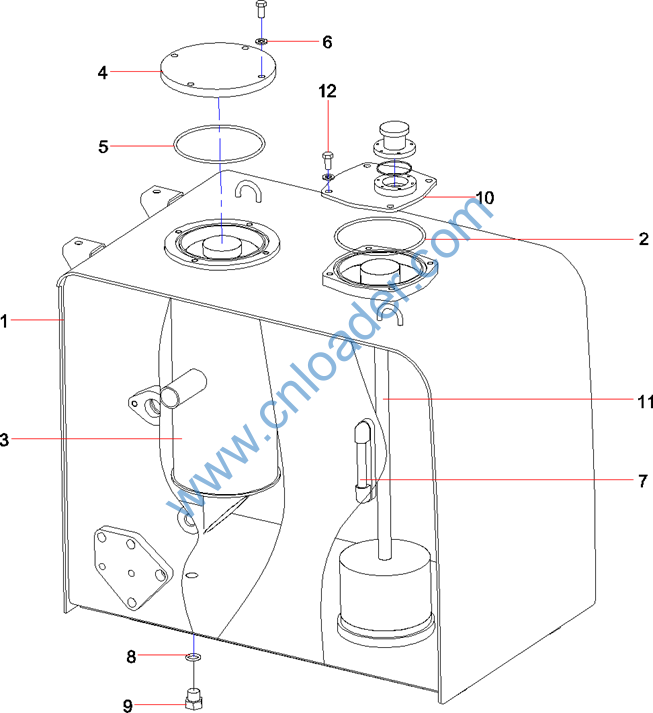

1 13623795 1 工作油箱 hydraulic tank
2 B230101000588 1 O形圈 O-ring
3 60200365 1 回油过滤器 Filter, return oil
4 12731156 1 回油盖 Oil return cover
5 60112246 1 O形圈 O-ring
6 60262512 8 垫圈12GB97.1 锌镍合金 Washer
7 A250100000174 1 液位计 Gauge, sight glass
8 B230101000356 2 O形圈 O-Ring-23.7
9 10514225 2 堵头 Screw Plug
10 12731158 1 吸油盖 Suction cover
11 60200363 1 吸油过滤器 Filter, suction
12 60262507 8 螺栓M12×25GB5783 10.9级 锌镍 Bolt
| 1 | 60186788 | 1 | 呼吸阀滤芯 Filter, hydaulic tank breather |

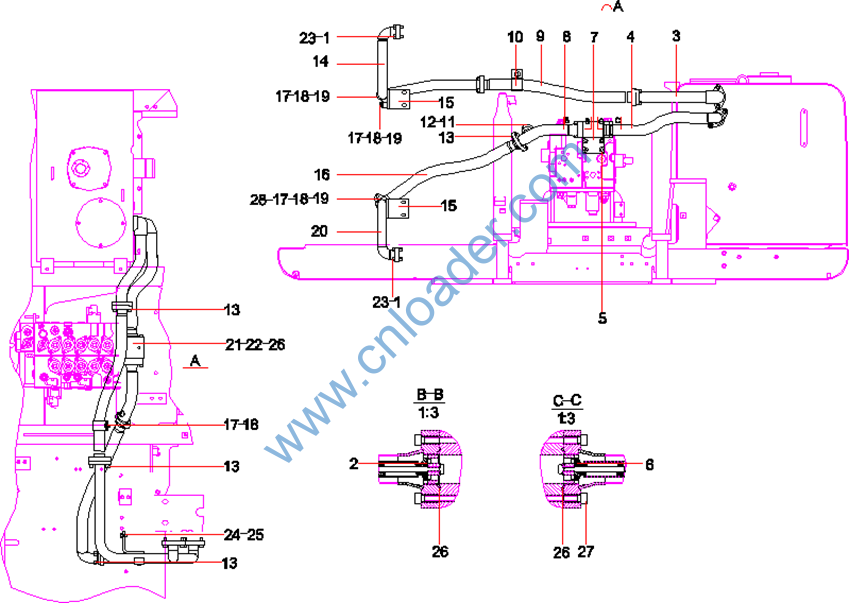

1 A210204000206 4 螺钉M12×35GB70.1 10.9级 Screw
2 60205580 1 单向阀 Valve, check
3 13623373 1 回油钢管总成 Oil Return Steel Pipe
4 14253637 1 胶管总成 hope
5 A210204000464 4 螺钉M12×90GB70.1 10.9级 Screw
6 60205581 1 单向阀 Valve, check
7 12327412 1 过渡块 Transitional block
8 14051693 1 钢管总成 oil return steel pipe
9 13466261 1 胶管总成 hose
10 60149607 1 线束固定夹 The Fixity Of Line
11 A820205002644 1 G1堵头 Blockhead
12 B230101000050 1 O形圈 O-ring
13 A210204000338 8 螺钉 Screw
14 13623921 1 油散出油钢管总成 Clamp
15 13556614 2 管夹支撑 plate
16 13640536 1 胶管总成 hose
17 A210111000101 3 螺栓M12×25GB5783 10.9级 Bolt
18 A210491000121 3 垫圈 Washer
19 12999994 2 管夹 Bracket
20 13623363 1 油散进油钢管总成 Hose AS
21 A820201001260 1 R2阀盖板 R2 valve cover board
22 A210204000196 2 螺钉 Screw
23 B230101000244 4 O形圈 O-Ring
24 A210111000197 4 螺栓M10×25GB5783 10.9级 Bolt
25 A210491000120 4 垫圈 Washer
26 B230101000366 4 O形圈 O-ring
27 A210204000462 4 螺钉 Screw
28 13171843 1 法兰 Flange, split
