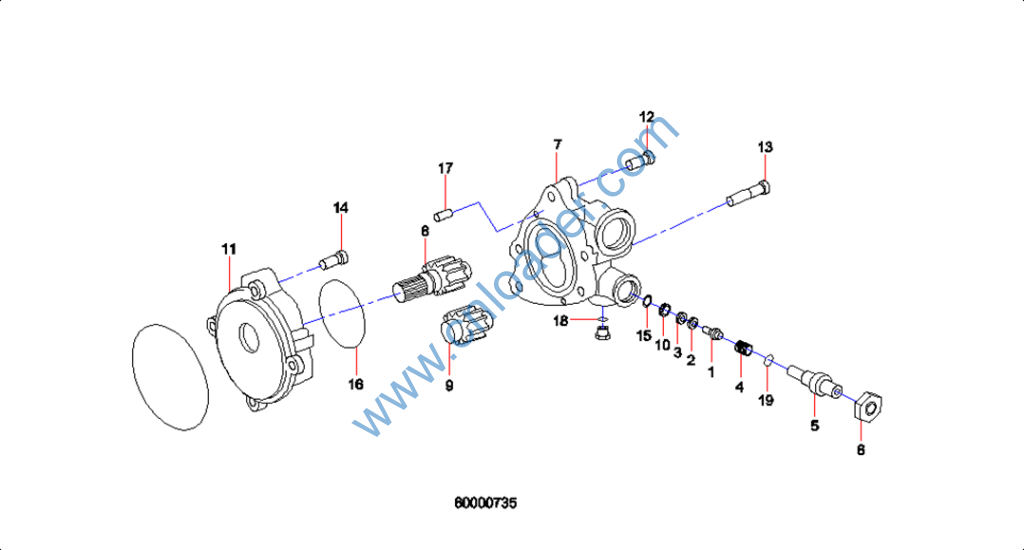

1 60008508 1 阀杆 Stem, valve
2 60008493 1 阀座 Seat, valve
3 60008523 1 挡圈 Ring, retaining
4 60008500 1 弹簧 Spring
5 60008496 1 调节螺杆 Screw, adjusting
6 60008505 1 螺母 Nut
7 60008512 1 机体 Body
8 60008552 1 齿轮 Gear, drive
9 60008581 1 齿轮 Gear, driven
10 60008491 1 滤芯 Filter
11 60008509 1 机体 Cover
12 60008730 2 螺钉 bolt
13 60008731 2 螺钉 Bolt
14 60008729 4 螺钉 Bolt
15 60008873 1 垫圈 Washer
16 60008504 1 垫圈 O-ring
17 60008736 2 销 Pin
18 B230101000047 1 O形圈 O-Ring-10.8
19 B230101000229 1 O形圈 O－Ring

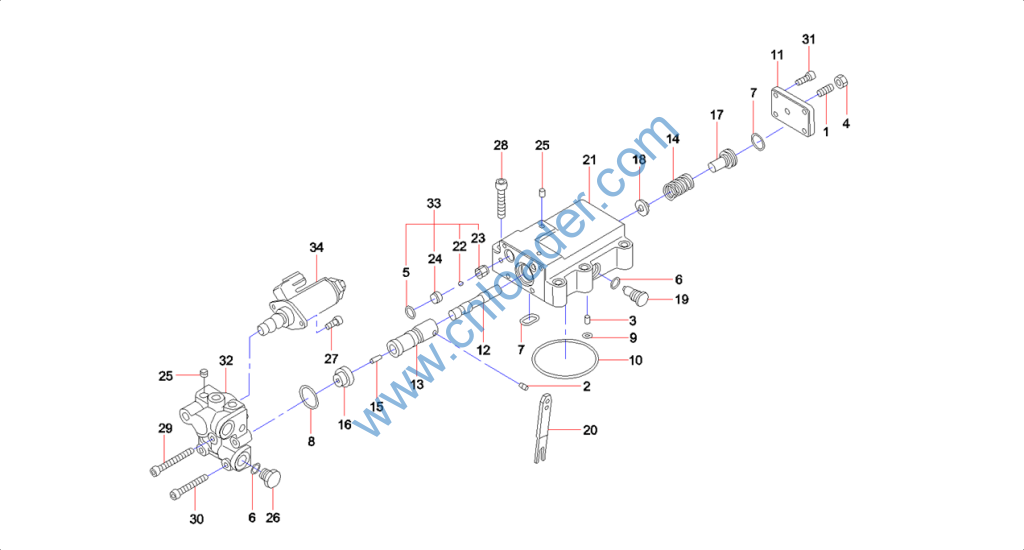

1 60118638 1 螺栓 screw
2 60118639 1 销 pin
3 60008546 1 销 Pin
4 60118637 1 螺母 nut
5 60008698 2 O形圈 O-ring
6 60008697 2 O形圈 O-ring
7 60008702 2 O形圈 O-ring
8 A210609000036 1 O形圈 O-Ring-24.7
9 60008708 5 O形圈 O-ring
10 60008694 1 O形圈 O-ring
11 60118625 1 盖 cover
12 60118643 1 柱塞 spool
13 60118631 1 阀套 Valve, sleeve
14 60193177 1 弹簧 Spring
15 60118636 1 活塞 piston
16 60118640 1 支座 Valve, seat
17 60155069 1 调节杆 Adjuster
18 60118630 1 密封 Spring, seat
19 60118634 1 堵头 Pulg
20 60118644 1 杠杆 lever
21 60118627 1 机体 Body, regulator
22 60119019 2 钢球 ball
23 60118635 2 阀座 Valve, seat
24 60118629 2 密封 Seal
25 60008728 9 紧定螺钉 Screw, set
26 60008724 1 堵 Plug
27 60150556 2 螺钉 Bolt
28 60150559 6 螺钉 Bolt
29 A210204000217 1 螺钉 Bolt
30 60018102 4 螺栓 Bolt
31 60038565 4 内六角螺栓 Bolt, socket head
32 60118626 1 机体 Cover
33 60119020 2 单向阀组件 Valve GP, check
34 60081917 1 比例减压阀 Valve, proportional reducing

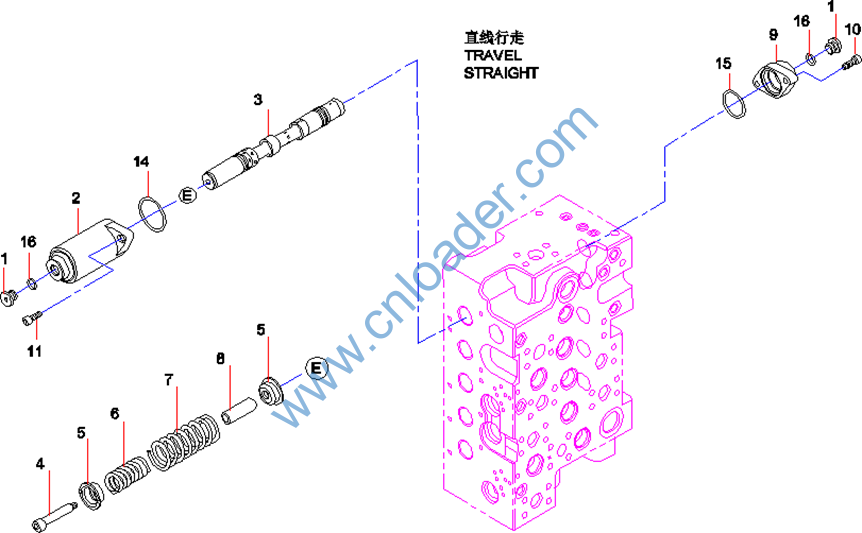

1 60008713 2 堵 Plug
2 60100505 1 弹簧盖 Cap, pilot
3 60100498 1 直线行走阀芯 Spool, valve, straight travel
4 60008819 1 螺柱 Bolt, socket head
5 60008823 2 座 Seat
6 60100503 1 弹簧 Spring
7 60100502 1 弹簧 Spring
8 60008818 1 挡圈 Ring, retaining
9 60008789 1 盖 Cap
10 60008721 4 内六角螺钉 Bolt, socket head
14 60100514 1 O形圈 O-ring
15 60050051 1 O形圈 O-ring
16 60008700 2 O形圈 O-ring

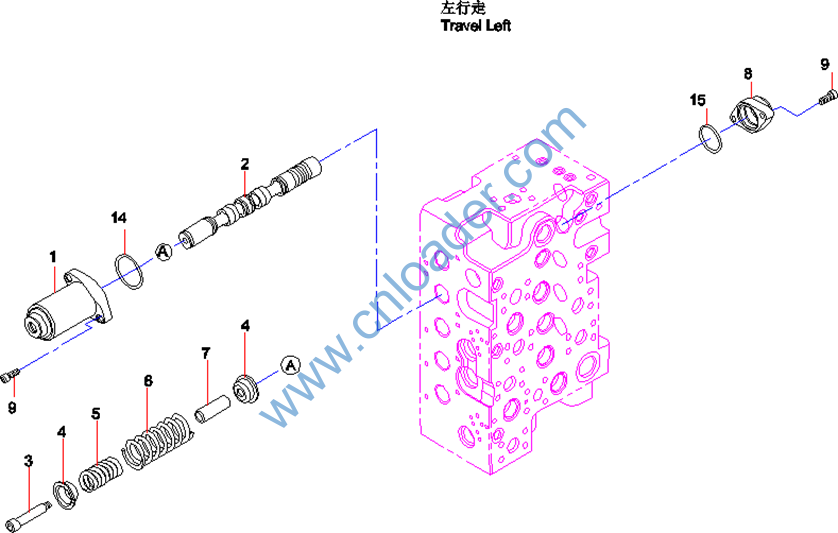

1 60100505 1 弹簧盖 Cap, pilot
2 60100501 1 左行走阀芯 Spool, valve, travel
3 60008819 1 螺柱 Bolt, socket head
4 60008823 2 座 Seat
5 60008770 1 弹簧 Spring
6 60008769 1 弹簧 Spring
7 60008818 1 挡圈 Ring, retaining
8 60008789 1 盖 Cap
9 60008721 4 内六角螺钉 Bolt, socket head
14 60100514 1 O形圈 O-ring
15 60050051 1 O形圈 O-ring

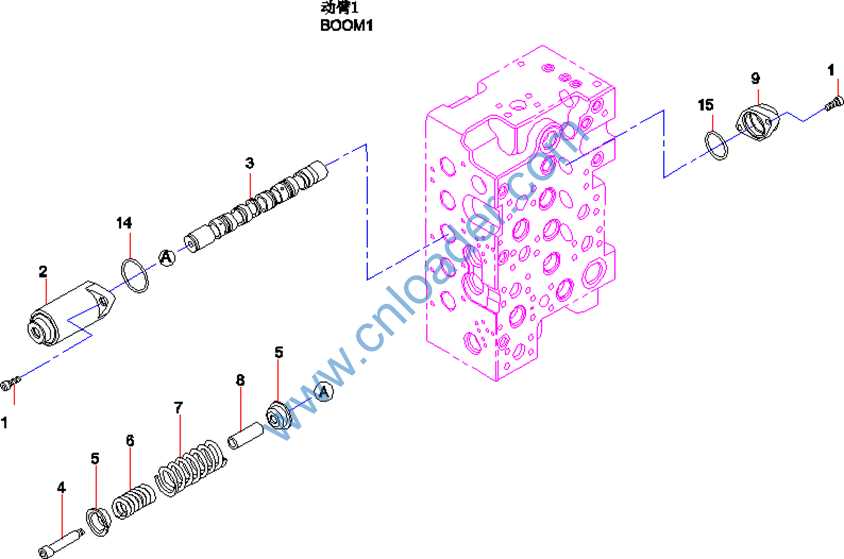

1 60008721 4 内六角螺钉 Bolt, socket head
2 60100505 1 弹簧盖 Cap, pilot
3 60100479 1 动臂阀芯 Spool, valve, boom
4 60008819 1 螺柱 Bolt, socket head
5 60008823 2 座 Seat
6 60008770 1 弹簧 Spring
7 60008769 1 弹簧 Spring
8 60008818 1 挡圈 Ring, retaining
9 60008789 1 盖 Cap
14 60100514 1 O形圈 O-ring
15 60050051 1 O形圈 O-ring

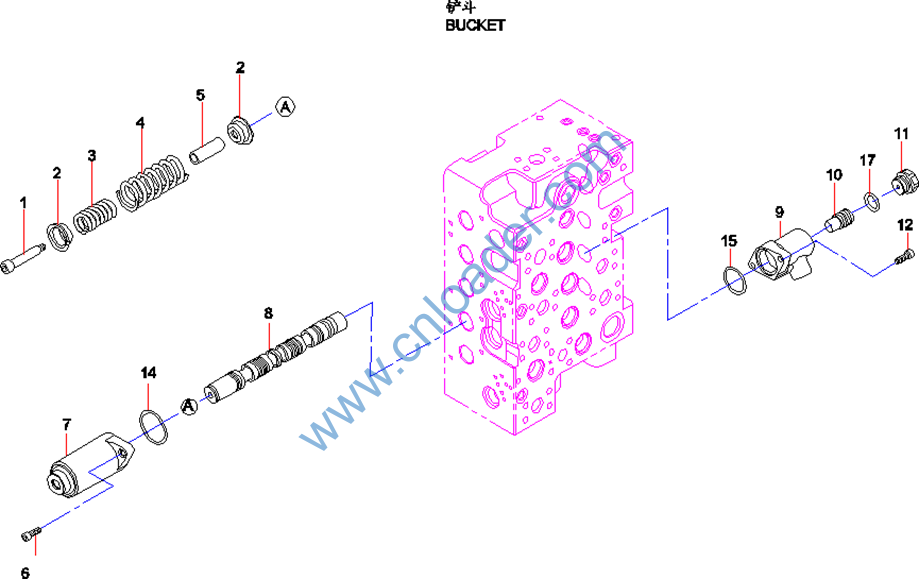

1 60008819 1 螺柱 Bolt, socket head
2 60008823 2 座 Seat
3 60008770 1 弹簧 Spring
4 60008769 1 弹簧 Spring
5 60008818 1 挡圈 Ring, retaining
6 60008721 4 内六角螺钉 Bolt, socket head
7 60100505 1 弹簧盖 Cap, pilot
8 60100474 1 铲斗阀芯 Spool, valve, bucket
9 60100469 1 盖 Cap
10 60100509 1 活塞 Spool
11 60100468 1 堵 Plug
14 60100514 1 O形圈 O-ring
15 60050051 1 O形圈 O-ring
17 60008705 1 O形圈 O-ring

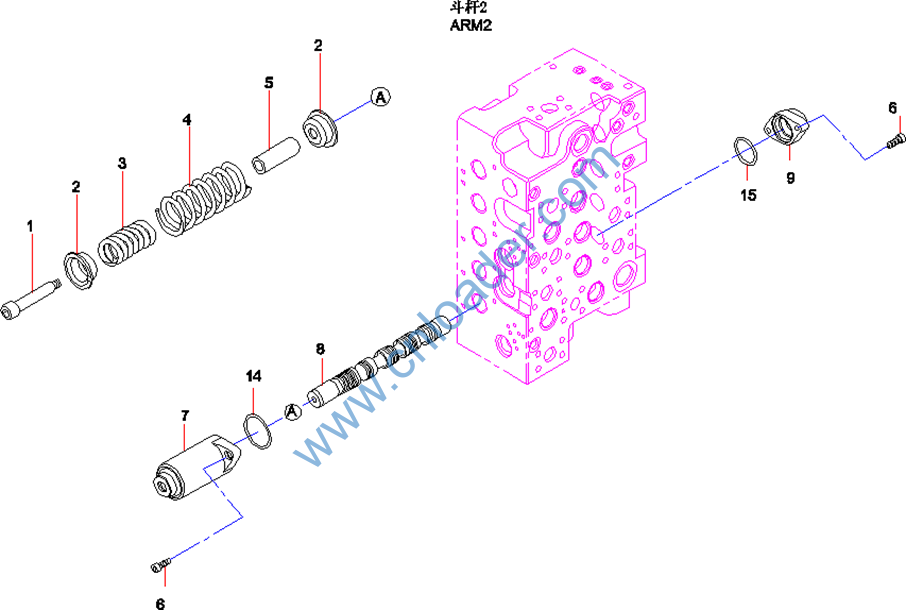

1 60008819 1 螺柱 Bolt, socket head
2 60008823 2 座 Seat
3 60008770 1 弹簧 Spring
4 60008769 1 弹簧 Spring
5 60008818 1 挡圈 Ring, retaining
6 60008721 4 内六角螺钉 Bolt, socket head
7 60100505 1 弹簧盖 Cap, pilot
8 60100482 1 斗杆阀芯 Spool, valve, arm
9 60008789 1 盖 Cap
14 60100514 1 O形圈 O-ring
15 60050051 1 O形圈 O-ring

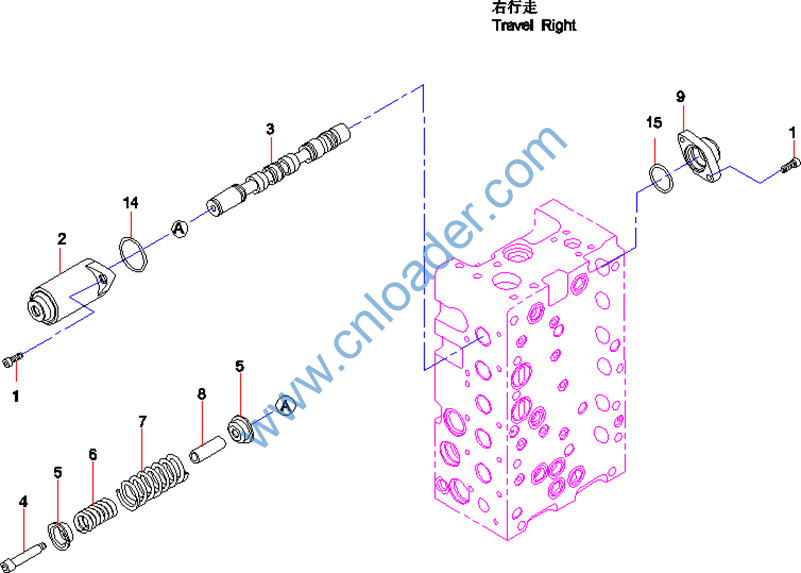

1 60008721 4 内六角螺钉 Bolt, socket head
2 60100505 1 弹簧盖 Cap, pilot
3 60100501 2 左行走阀芯 Spool, valve, travel
4 60008819 1 螺柱 Bolt, socket head
5 60008823 2 座 Seat
6 60008770 1 弹簧 Spring
7 60008769 1 弹簧 Spring
8 60008818 1 挡圈 Ring, retaining
9 60008789 1 盖 Cap
14 60100514 1 O形圈 O-ring
15 60050051 1 O形圈 O-ring

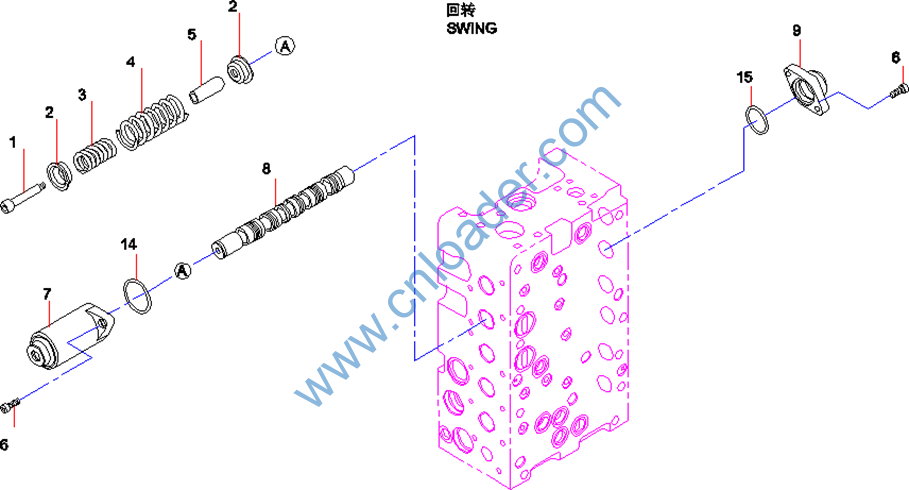

1 60008819 1 螺柱 Bolt, socket head
2 60008823 2 座 Seat
3 60008770 1 弹簧 Spring
4 60008769 1 弹簧 Spring
5 60008818 1 挡圈 Ring, retaining
6 60008721 4 内六角螺钉 Bolt, socket head
7 60100505 1 弹簧盖 Cap, pilot
8 60100485 1 回转阀芯 Spool, valve, swing
9 60008789 1 盖 Cap
14 60100514 1 O形圈 O-ring
15 60050051 1 O形圈 O-ring

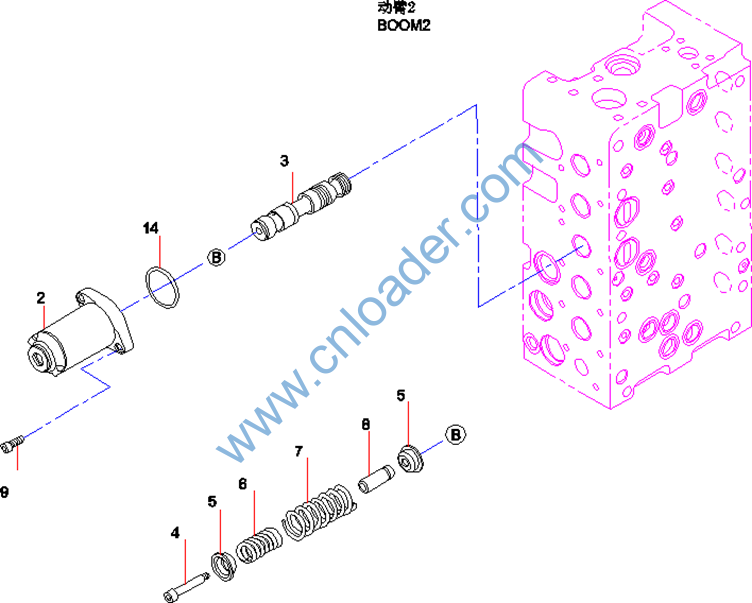

2 60100506 1 弹簧盖 Cap, pilot
3 60100480 1 动臂阀芯 Spool, valve, boom
4 60008819 1 螺柱 Bolt, socket head
5 60008823 2 座 Seat
6 60008772 1 弹簧 Spring
7 60008771 1 弹簧 Spring
8 60008801 1 挡圈 Ring, retaining
14 60100514 1 O形圈 O-ring

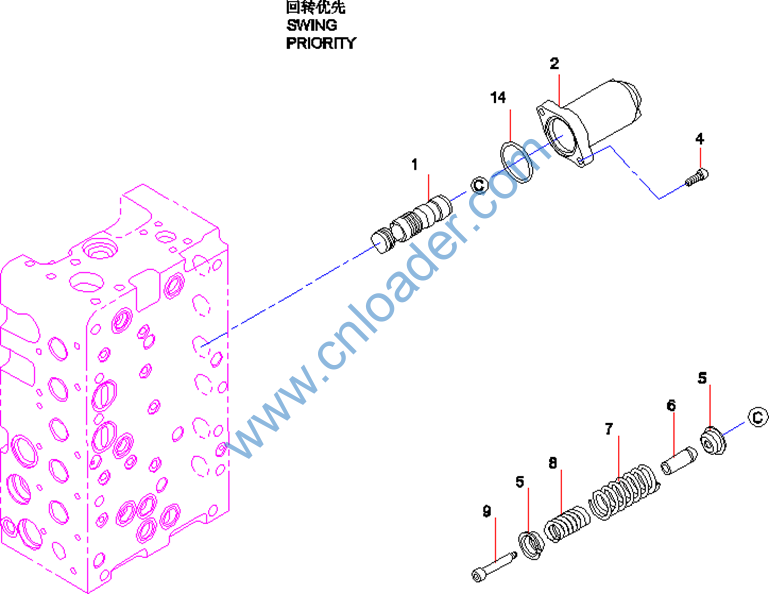

1 60100487 1 回转优先阀 Valve, swing priority
2 60100506 1 弹簧盖 Cap, pilot
4 60008721 2 内六角螺钉 Bolt, socket head
5 60008823 2 座 Seat
6 60008801 1 挡圈 Ring, retaining
7 60008769 1 弹簧 Spring
8 60039319 1 弹簧 spring
14 60100514 1 O形圈 O-ring
